GMC Savana 1996–2002 Repair & Owner’s Manual Set (P/N X2114 A)

5,386 Pages • ZIP Download: 44 Printable PDFs • 304.40 MB

4.6starstarstarstarstar_half(5)
$19.80 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

GMC Models Covered & Key Technical Specifications

Model: Savana

Sub-models / Variants: Passenger Van, Cargo Van, Cab and Chassis; Savana 1500/2500 (G-series; 4L60-E automatic, RPO M30); Savana G2500/G3500, Savana Camper Special and Savana Special (4L80-E automatic applications, RPO MT1)

Model Year: 2001


  • Engine variants in repair articles: 4.3L V6 (L35; LU3 intake-manifold procedures also included), 5.0L V8 (L30), 5.7L V8 (L31), 6.5L diesel V8 (L65), 8.1L V8 (L18)

  • Engine VIN codes (8th character): W — 4.3L; M — 5.0L; R — 5.7L; F — 6.5L diesel

  • Ignition key positions: 5

  • Remote entry range: 3 feet to 30 feet (1 m to 9 m)

  • Interior lighting delay: 20 seconds

  • Coolant heater cold-weather reference (if equipped): 0°F (-18°C) or colder

  • Recommended coolant heater use (if equipped): Usually plugged in for a minimum of 4 hours before starting

GMC Manual Features & Selected Content Preview

Publication Pages
2001 GMC Savana Owner’s Manual — GM, First Edition, copyright 2000, P/N X2114 A 412
2002 Express/Savana — 4.3L Engine Unit Repair 513
2002 Express/Savana — 5.0L & 5.7L Engine Unit Repair 425
2002 Express/Savana — 6.5L Diesel Engine Unit Repair 299
2002 Express/Savana — 8.1L Engine Unit Repair 407
2001–03 Hydra-Matic 4L60-E — Overhaul 107
2001–03 4L80-E — Overhaul 91
2002 Express/Savana — Disc & Drum Brakes 120
2002 Express/Savana — Anti-Lock Brake System 89
2002 Express/Savana — Power Steering System 207
2002 Express/Savana — Steering Wheel & Column 255
2002 Steering Linkage — Non-Rack & Pinion 50
2002 Express/Savana — Front Suspension 108
2002 Express/Savana — Rear Suspension, including Camper Special and Savana Special 22
2002 Rear Drive Axles — 7.6", 8.0", 8.6" & 9.5" Ring Gears 18
2002 Full-Floating Drive Axles — 10.5" & 11.5" 24
2002 Truck Locking Differentials 14
2002 Express/Savana — Propeller Shaft 48
2002 GM Air Bag Restraint Systems 42
2002 Express/Savana — Generators & Regulators 24
2002 Express/Savana — Starters 24
2002 Express/Savana — Electrical Component Locations 41
2002 Computer Relearn Procedures — multi-model reference with Savana applications 28
2001–02 Express/Savana — Cruise Control Systems 43
2001–02 Express/Savana — Remote Keyless Entry Systems 11
2002 Express/Savana — Doors 362
2002 Express/Savana — Stationary Windows, Rear Defogger & Mirrors 87
2002 Express/Savana — Interior Trim 88
Express/Savana — Entertainment Systems 195
2002 Express/Savana — Lighting Systems 247
2002 Express/Savana — Wiper/Washer Systems 19
2002 Express/Savana — Engine Cooling 238
2002 Express/Savana — Engine Exhaust 91
2002 Express/Savana — Heater Systems 88
2002 Express/Savana — Manual A/C-Heater Systems 134
2002–04 Express/Savana — Fuses & Circuit Breakers 12
Chevrolet Service Reminder Indicators — multi-model reference 37
Serpentine Belt Routing — 4.8L, 5.3L & 6.0L diagram 1
Serpentine Belt Routing — 8.1L Express/Savana diagram 1
Serpentine Belt Routing — 6.5L Turbo-Diesel Express/Savana with dual generators 1
2002 Chevrolet Express G1500 — System Wiring Diagrams 135
2002 Chevrolet Express G2500 — System Wiring Diagrams 181

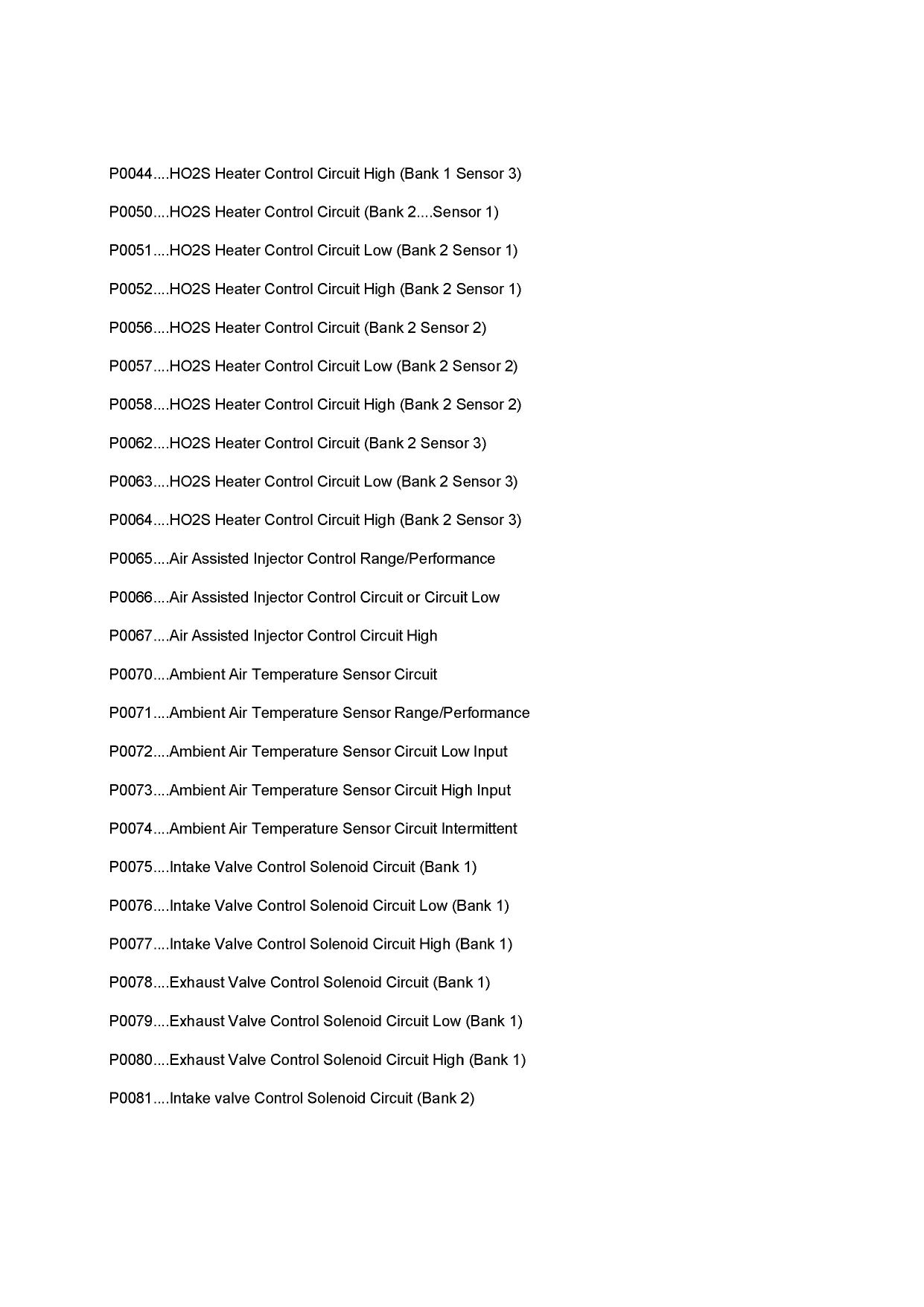

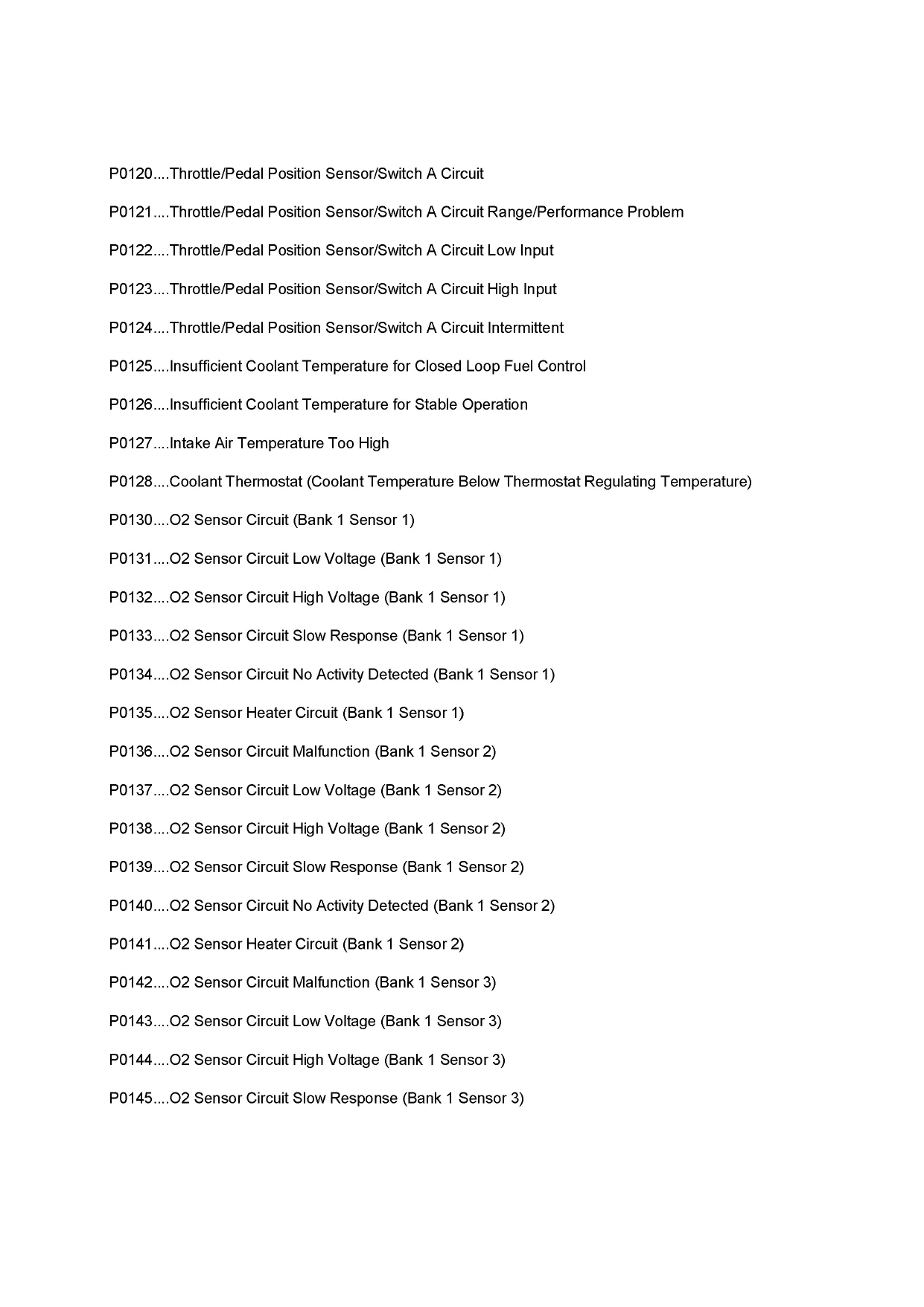

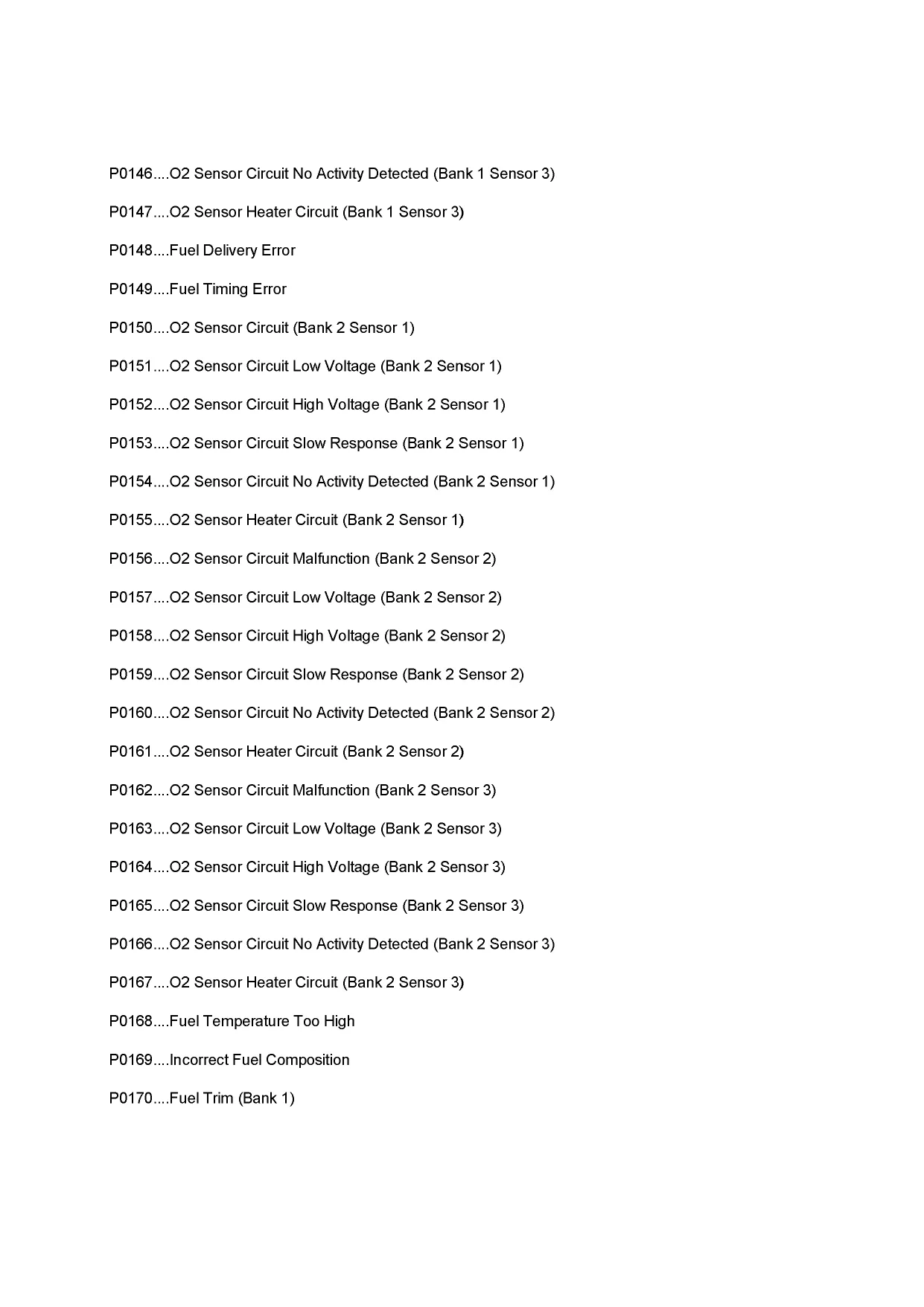

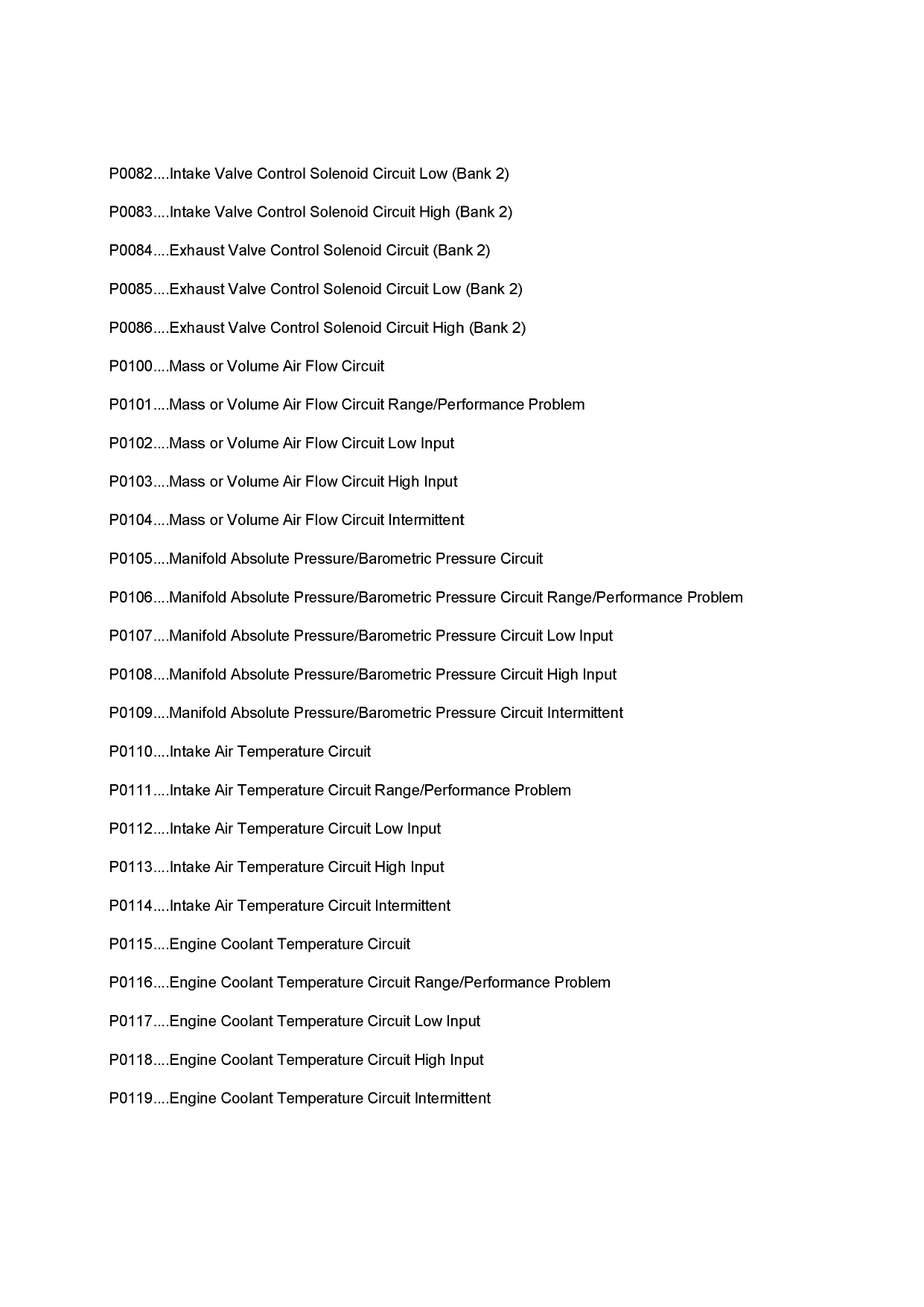

Generic OBD-II Trouble Codes 33
GM Trouble Codes 14

The owner publication covers operation and routine care; the separate repair articles provide system-specific workshop procedures. Wiring volumes and code lists support circuit identification and fault interpretation.

Coverage limits: This is a selected, mixed-year reference set rather than a single GMC factory service manual. Match each procedure to its stated year, series, engine, and equipment. The separate Diesel Engine Supplement and the owner publication’s referenced Section 9 alphabetical index are not included.

Text Search, Bookmarks, and PDF Contents

Search and diagram detail: The owner’s manual has searchable text and embedded bookmarks; the other 43 PDFs have no embedded bookmarks. Repair-article text and wiring captions are searchable, but many table and drawing labels are not. Both trouble-code PDFs lack text search. Small wiring labels require zooming.

The ZIP download contains 44 printable PDFs totaling 5,386 pages, including the owner manual’s 13 front-matter/reference pages and two publication-order pages.


Engine Overhaul, Chassis Repair, and Electrical Diagnosis

The following highlights are a selection of the contents, rather than a complete table of contents. Other examples include stationary-glass adhesive procedures and mirror-compass calibration.

  • Engine unit repair: Step-by-step teardown, cylinder-head and valvetrain work, timing-system installation, oil-pump service, internal inspection, and related specifications.

  • Transmission and driveline: Automatic-transmission overhaul, converter checks, differential setup, locking-axle diagnosis, and one- and two-piece propeller-shaft repair.

  • Brakes and ABS: Disc/drum service, hydraulic and vacuum assist testing, bleeding and flushing, wheel-speed-sensor diagnosis, and automated ABS bleeding.

  • Steering and suspension: Pump-pressure testing, steering-gear repair, column and linkage service, ball joints, hubs, control arms, coil springs, and rear leaf springs.

  • Electrical troubleshooting: SIR air bags, starting and charging, cruise control, lighting, and wiper systems, with connector views, component locators, and diagnostic charts.

  • Body and climate systems: Door-lock and power-window diagnosis, entertainment systems, interior trim, and front/auxiliary heating and A/C testing and component replacement.

  • Control setup: Crankshaft-position variation learning, PCM programming, Passlock relearning, keyless-transmitter programming, and diesel-specific injection-pump and glow-plug relearn procedures.

The owner material suits 2001 Savana owners and operators; overhaul and scan-tool diagnosis are better suited to experienced DIY mechanics and technicians with lifting equipment and the specified service tools.

Owner Operation and Maintenance

The owner’s manual explains seating and safety-belt layouts, air-bag deployment conditions and readiness checks, child-restraint placement, top-strap routing, and body-specific anchors.

Controls cover the automatic transmission, Passlock, keyless entry, cruise control, lighting, comfort, and audio systems. Loading, trailer towing, and roadside emergencies are also addressed.

Service information covers fluids, filters, brakes, tires, bulbs, fuses, and replacement parts for the Vortec 4300, 5000, 5700, and 8100 gasoline engines. Separate Short Trip/City and Long Trip/Highway schedules help owners select maintenance requirements for their operating conditions.

Engine Repair and Electronic Setup

Internal engine work extends to cylinder boring and honing, crankshaft and bearing inspection, piston and connecting-rod service, camshaft work, and cylinder-head rebuilding.

Engine differences: The 4.3L article separates L35 and LU3 intake assemblies. Other files cover 6.5L turbocharger and fuel-injection-pump procedures, the 8.1L water crossover, and 5.0L/5.7L valve-lash adjustment.

Programming and relearning: The computer reference identifies Savana applications for crankshaft-position variation learning and PCM programming using Tech 2/Techline equipment. Diesel sections distinguish injection-pump TDC-offset learning and Federal/California glow-plug system identification.

These application notes help distinguish the required setup work after component replacement from mechanical installation alone.

Transmission, Axle, and Propeller-Shaft Work

The transmission articles provide converter inspection, case disassembly, clutch and servo work, oil-pump service, reassembly, and clearance/end-play specifications. They focus on overhaul; dedicated electronic-control diagnosis is referred to separate articles.

The 4L60-E application table identifies Savana 1500/2500, while the 4L80-E table lists Savana 2500/3500, Camper Special, and Savana Special.

Axle coverage separates semi-floating ring-gear families from full-floating units, with pinion-depth setup, bearing preload, backlash adjustment, and locking-differential diagnosis. Propeller-shaft procedures distinguish one- and two-piece assemblies, center bearings, and different universal-joint retention arrangements.

Brakes, Steering, and Suspension

Brake diagnosis: Base-brake testing is separate from ABS diagnosis. The ABS article adds EBCM/BPMV replacement, wheel-speed-sensor DTC charts, and scan-tool-controlled bleeding.

Steering repair: Procedures include 700-series gear repair, worm-bearing and over-center preload adjustment, and standard/tilt-column disassembly. Suspension files distinguish light- and heavy-duty upper-ball-joint work and passenger/cargo versus cutaway/upfitter leaf-spring procedures.

Named tools include the J 23742 Ball Joint Separator and J 24319-B Universal Steering Linkage Puller. Pump-pulley work specifies the J 25034-C remover and J 25033-C installer; converter inspection uses the J-35138 end-play tool.

Body Systems, HVAC, and Wiring References

Door files go beyond component replacement to power-window and door-lock fault charts. Entertainment and trim sections distinguish Luxury Y91 equipment; climate-system tests separate front and auxiliary systems, cargo and passenger configurations, air-delivery faults, and compressor-clutch concerns.

Illustrated diagnostic references include SIR System Wiring Diagrams (Express & Savana) and Diagnostic System Check - ABS. Mechanical views include Exploded View of 4L60-E Transmission Internal Components, Exploded View of Center Support & Rear Gear Unit, and Tilt Steering Column Disassembled View.

The wiring volumes cover engine performance, power and ground distribution, starting/charging, lighting, HVAC, ABS, SIR, and transmission circuits. Their stated applications are 2002 Chevrolet Express G1500 and G2500, rather than a dedicated 2001 GMC Savana wiring set.

The G2500 volume also distinguishes 5.7L CNG bi-fuel circuits and California/Federal diesel circuits. The separate 4.8L/5.3L/6.0L belt-routing sheet supplies a routing illustration, not engine-repair coverage for those displacements. The generic and GM code lists provide definitions rather than vehicle-specific diagnostic procedures.

Repair Cautions

The 4L60-E article warns that cooler and line contamination can cause premature transmission failure. The 8.1L article warns that an incorrect intake-manifold tightening sequence can cause an oil leak and serious engine damage.

SIR, brake, steering, suspension, and A/C work can involve accidental air-bag deployment, pressurized systems, refrigerant, or heavy components; follow the article-specific precautions and equipment requirements.

Transmission End Play and Oil Capacity Examples

The 4L60-E reassembly section specifies transmission end play of 0.005–0.036 inches (0.13–0.91 mm). Its selective thrust-washer information accompanies the assembled-transmission clearance check.

The owner’s manual lists an approximate crankcase capacity of 6.5 quarts (6.15 L), including the filter, for the Vortec 8100 V8. The capacity entry requires a level recheck after refilling because filter size and oil-cooler drainback can affect the final fill.

Customer Reviews

Read what our customers say about this GMC Van manual and share your own experience.

Checkout
GMC Savana 1996–2002 Repair & Owner’s Manual Set (P/N X2114 A) $19.80
