International Cub Cadet Tractor Full Service Manual (1969-1971) – 130 Pages | Instant PDF

International Harvester Cub Cadet Series Service Manual - GSS-1404

This professional Blue Ribbon Service Manual provides factory-grade repair and maintenance protocols for the 1969–1971 production cycle of International Cub Cadet tractors. A critical unique maintenance insight for maximizing uptime involves the specialized procedure for checking engine compression; because these units are equipped with an Automatic Compression Release (ACR) that relieves pressure at low cranking speeds, technicians must crank the engine in a reverse direction or reach a specific high-RPM range electrically to obtain an accurate 110–120 psi reading. Failure to follow this specific sequence often leads to incorrect diagnosis of engine health.

Technical Applicability & Power Plant Configurations

Kohler Single-Cylinder Engine Series

• International Harvester Cub Cadet 73 (1969-1971): Powered by the Kohler K-161S (7.0 HP) air-cooled gasoline engine.
• International Harvester Cub Cadet 106 & 107 (1969-1971): Powered by the Kohler K-241AS (10.0 HP) air-cooled gasoline engine.
• International Harvester Cub Cadet 126 & 127 (1969-1971): Powered by the Kohler K-301AS (12.0 HP) air-cooled gasoline engine.
• International Harvester Cub Cadet 147 (1969-1971): Powered by the Kohler K-321A (14.0 HP) dynamically balanced engine.

Machine Identification Notes

• Increased Cooling Package: Recommended for 10 HP models with chassis serial numbers prior to 315300 and 12 HP models prior to 318847.
• Transmission Variability: Models 73, 106, and 126 utilize manual gear-drive transmissions, while Models 107, 127, and 147 feature hydrostatic drive systems.

Operational Efficiency & Maintenance ROI

• **Precision Torque Utilization

  Technical Depth & Factory Benchmarks

  Engine calibration is contingent upon precise gap and timing settings to maintain the 3600 RPM governed speed. Standard ignition timing is set at 20 degrees before Top Dead Center (TDC), identified by the "S" mark on the flywheel through the sight hole. Critical internal engine clearances include a crankshaft end play of .002–.023 inches for the K-161 and .003–.020 inches for the K-241 through K-321 series.

Visual Navigation Aids

• Power Train Architectures: Cross-sectional views (Illust. 2-2, 2-3) detailing the relationship between the clutch shaft, reduction gear, and main transmission shafts.
• System Schematics: Comprehensive wiring diagrams for electric starting (Illust. 1-33), lighting (Illust. 1-34), and electric lift systems (Illust. 1-35).
• Hydrostatic Internals: Exploded views of the charge pump and variable displacement pump/motor block assemblies for hydrostatic transmissions.

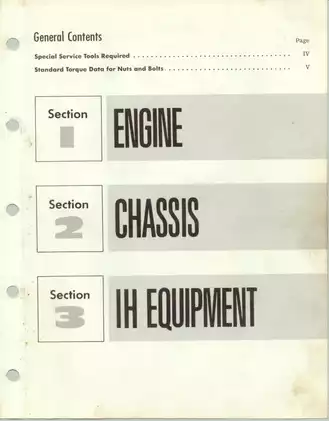

Table of Contents

• Section 1: Engine

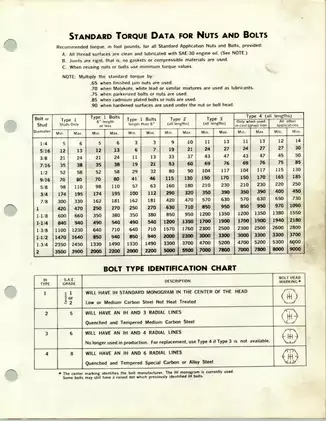

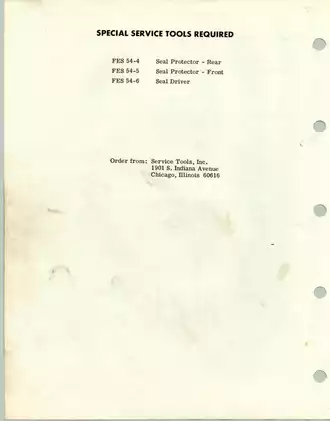

  • Specifications and Special Torques
  • Compression Check and General Information
  • Engine Removal and Disassembly
  • Inspection and Repair (Crankshaft, Piston, Valves)
  • Reassembly (Governor, ACR, Camshaft)
  • Fuel System (Carburetor Adjustments and Cleaning)
  • Electrical System (Motor-Generator, Regulator, Timing)
• Section 2: Chassis
  • Steering and Front Axle Assembly
  • Clutch and Brake Systems (Model-Specific Adjustments)
  • Splitting and Recoupling the Tractor
  • Reduction Drive and Gear Transmission
  • Hydrostatic Transmission (Principles, Service, and Adjustments)
  • Differential and Rear Axle Service
  • Attachments (Creeper Drive, PTO, Electric Lift)

Operational Limits & Specifications

FAQ

Does this manual cover the specific serial number transitions for the 10 and 12 horsepower Cub Cadet models? Yes, the manual explicitly identifies critical production changes based on chassis serial numbers. For instance, it specifies that the increased cooling package should be installed on 10 HP models with chassis serial numbers prior to 315300 and 12 HP models with serial numbers prior to 318847 to ensure optimal thermal management.

What is the correct ignition timing and spark plug specification for the Kohler engines used in these tractors? Technical specifications require the ignition timing to be set at 20 degrees before Top Dead Center (BTDC), which is indicated by the "S" mark on the flywheel visible through the blower housing sight hole. Additionally, spark plugs must be gapped to exactly .025 inch and tightened with a torque wrench to 27 foot-pounds to ensure proper combustion and prevent head thread damage.

Can I find detailed diagnostic procedures for the hydrostatic transmission systems? The manual provides a dedicated section for the Sunstrand hydrostatic transmissions used in Models 107, 127, and 147. It includes specific testing protocols such as checking the charge pump pressure, which should maintain a range of 70 to 120 psi at rated engine speed, and detailed instructions for adjusting the neutral return rod to prevent "creeping" while the lever is in the neutral notch.

What is the specific procedure for performing an accurate compression test on these vintage engines? Because these Kohler engines feature an Automatic Compression Release (ACR) system that holds the exhaust valve open at low speeds, a standard cranking test will yield a false low reading. To obtain an accurate benchmark of 110 to 120 psi, the technician must either crank the engine in a reverse direction or use an electric motor-generator to spin the engine above the ACR's engagement threshold.

How does this digital service manual improve the speed of electrical repairs and wiring identification? The digital format allows for instant navigation to high-resolution schematics, such as the dedicated wiring diagrams for the electric lift system and the lighting circuits found in Illust. 1-34 and 1-35. Technicians can print these specific pages for use at the workbench, ensuring clear visibility of wire color codes and terminal connections without risking damage to an original paper shop manual.
