1998-2004 Nissan Frontier Automatic Transaxle AT Repair Manual

This comprehensive manual details the Automatic Transaxle (AT) for 1998-2004 Nissan Frontier models, covering removal, installation, overhaul, and troubleshooting. Part #: RL4R01A

4.5starstarstarstarstar_half(4)
visibility Preview Available
Nissan 1998-2004 Nissan Frontier Automatic Transaxle AT Repair Manual manual page preview - page 1 of

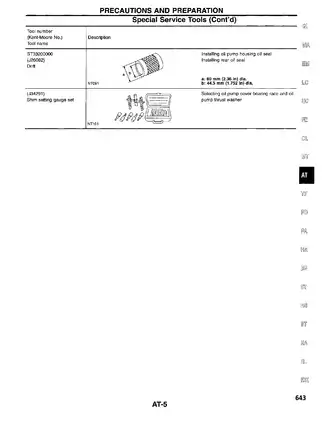

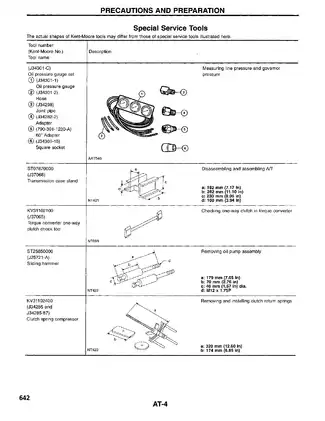

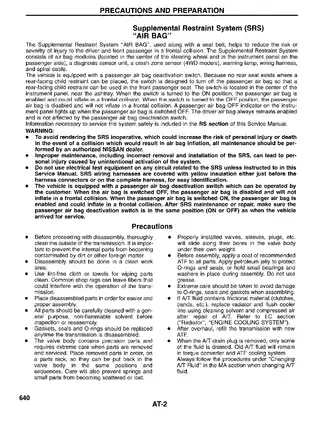

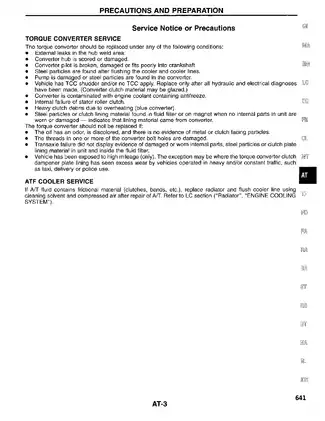

Sample pages from the 1998-2004 Nissan Frontier Automatic Transaxle AT Repair Manual manual

Nissan 1998-2004 Nissan Frontier Automatic Transaxle AT Repair Manual manual preview page 1 - thumbnail
info_outline Click thumbnails to preview different pages
$6.34 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Nissan Models Covered & Key Technical Specifications

Models: Nissan Frontier
Sub-models / Variants: Automatic Transaxle (AT), RL4R01A, 2-door models, 4-door models, VG33E, VG33ER
Build Years: 1998–2004
Technical Data:

  • Transmission model: RL4R01A
  • Fluid capacity: 7.9 US qt (8-3/8 Imperial qt)
  • Stall torque ratio: 2.0:1
  • 1st gear ratio: 2.785
  • Reverse gear ratio: 2.272
  • Top gear ratio: 1.000
  • Overdrive gear ratio: 0.694
  • Line pressure (Idle): 471–510 kPa (68–74 psi)
  • Stall revolution range: 2,100–2,300 rpm
  • Lock-up control (D4): 105–113 km/h (65–70 MPH)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
26743 / Linda Phillips
File Size:
411.81 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Truck
Last updated / verified
Sep 25, 2025

Nissan Manual Features & Content Preview

1998–2004 Nissan Frontier RL4R01A Automatic Transmission Documentation

  • Covers 1998–2004 Nissan Frontier automatic transmission (RL4R01A) units, including diagnostic, overhaul, and adjustment procedures
  • Official manufacturer documentation, Nissan publication PFP:00000
  • Contains 47 detailed system diagrams, torque specifications, and electrical component inspection tables
  • Downloads to your account within seconds of checkout
  • Indexed PDF search covers every chapter and appendix
  • Laid out for standard letter and A4 printing
  • This 1998–2004 Nissan Frontier reference is the specific factory documentation for the RL4R01A transmission build, detailing everything from basic fluid maintenance to internal component overhauls

Transmission Diagnostics and Procedures

This Nissan Frontier 1998–2004 service manual provides extensive details for maintaining and troubleshooting the RL4R01A automatic transmission. The documentation includes sections on the Automatic Speed Control Device (ASCD) and the A/T shift lock system, detailing power supply routing, component locations, and fail-safe system logic. Coverage includes electrical circuit diagrams, symptom charts for troubleshooting shift quality, and diagnostic procedures for solenoid valve faults and sensor inputs.

The manual details the RL4R01A automatic transmission construction, describing the dual planetary gear system, clutch operation, and hydraulic control circuits. The information covers removal and installation steps, torque values for internal components, and specialized procedures for the oil pump, control valve assembly, and torque converter maintenance. Guidance on A/T fluid checks, line pressure tests, and stall tests is provided to help determine mechanical integrity.

Technical Specifications Preview

The technical data section documents critical reference values for the RL4R01A. The line pressure at idle is documented at 471–510 kPa in the hydraulic specifications. The stall revolution standard for the Nissan Frontier 1998–2004 is listed at 2,100–2,300 rpm. Fluid capacity for the RL4R01A transmission is 7.9 US qt. This factory manual offers an authoritative guide for what an OEM service publication covers regarding the drivetrain, electrical, and control systems of the 1998–2004 Nissan Frontier.

Document Reference: Nissan PFP:00000
