Polaris Pro-X, XC & Frontier Manual Collection, 2004 (P/N 9918588)

Use the service manual for the listed Pro X repairs, the applicable supplement for model-specific setup data, and the matching parts catalog for illustrated component identification.

Coverage limits: The collection includes no dedicated Frontier, XC, RMK, Switchback or Indy workshop manual. The supplements accompany owner's manuals; the full owner's manuals are not included. Parts-catalog illustrations are replacement-parts references, not assembly instructions.

PDF Search, Navigation and Included Pages

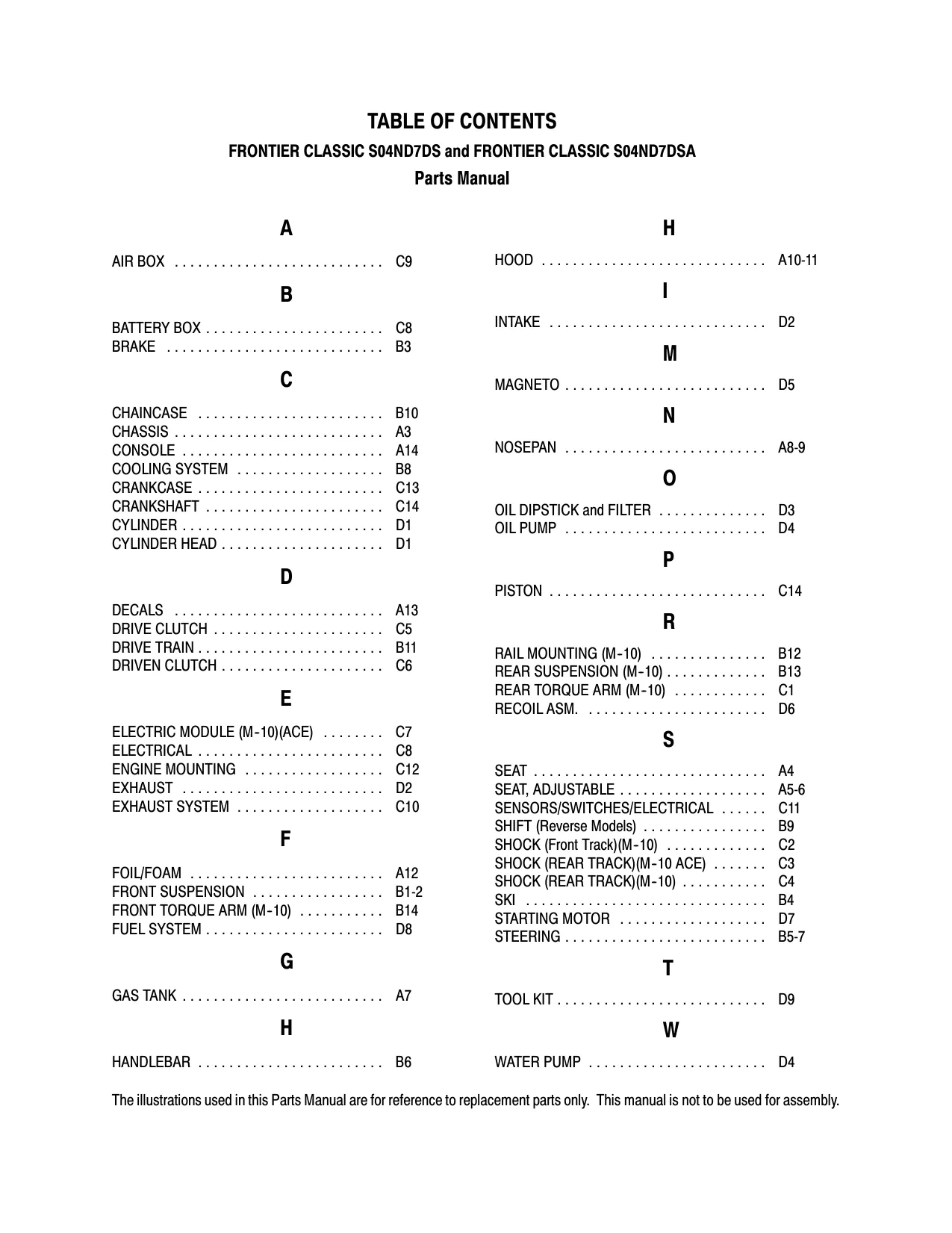

Finding procedures and part numbers: Most body text and parts tables are searchable. The service manual has chapter and topic bookmarks; the three parts catalogs have none. The supplement collection's only bookmark and one service-manual bookmark point to filenames absent from the ZIP. Some supplement tables and the wiring-diagram labels are not text-searchable; small wiring labels are readable when enlarged.

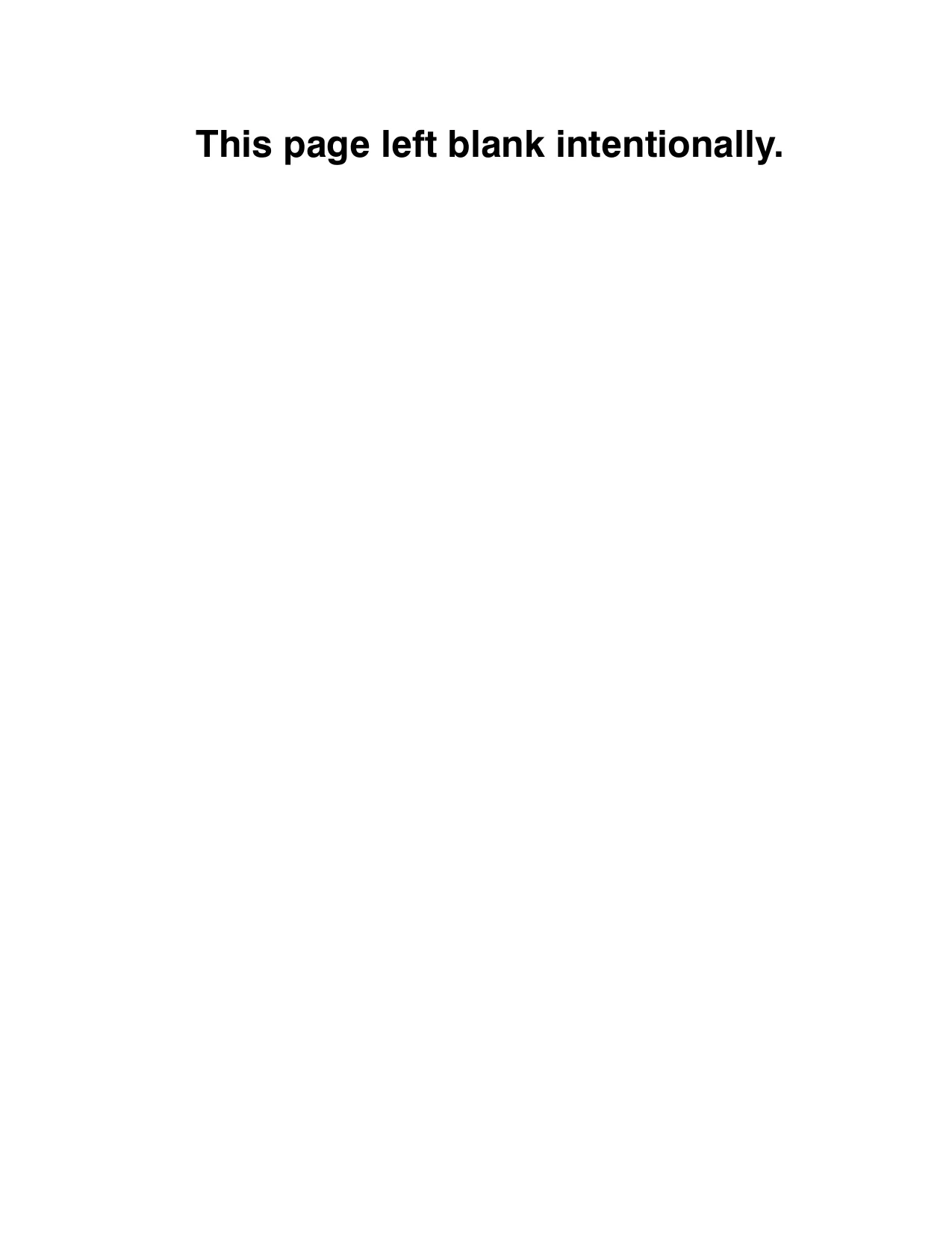

The ZIP contains five printable PDFs totaling 547 pages, plus a separate CD-label JPG. The page total includes covers, foreword/contents/index pages, chapter dividers, two intentionally blank Classic catalog pages, eight service-manual note pages, two parts-catalog revision grids and the three-page supplement index.

Pro X Workshop Procedures and Component References

Selected coverage: The sections below preview the repair and parts-reference content. The service manual also addresses storage preparation, seat-cover replacement and TPO hood/nosepan work.

• Engine inspection and overhaul: Cylinder and piston measurements, wear limits, torque specifications, crankshaft inspection/indexing, fan-cooled engine work, Liberty small-block and large-block disassembly/assembly, reed valves and Variable Exhaust System service.
• Clutches and final drive: P-85 drive-clutch and TEAM driven-clutch servicing, belt-wear diagnosis, clutch alignment, spider indexing, chaincase work, sprocket selection, jackshaft bearings and driveshaft removal.
• Fuel, lubrication and cooling: Mikuni TM, TMX and VM carburetor circuits, needle/seat testing, synchronization, fuel-pump checks, oil-pump adjustment and cooling-system bleeding.
• Suspension and steering: Shock valving and rebuilding, limiter straps, weight transfer, track alignment, Hi-Fax wear, spindle bushings, camber and toe alignment.
• Hydraulic brakes: System inspection, bleeding, Hayes master-cylinder cartridge replacement, parking-brake components and friction-pad replacement.
• Electrical diagnosis: Ignition timing, detonation-system checks, starter testing, throttle-safety switches, TPS testing/adjustment, no-spark flowcharts and Pro X wiring diagrams.

The service manual is written for Polaris technicians with mechanical experience, suitable tools and an equipped shop; drive-clutch work specifically calls for trained service personnel. Parts-counter staff, restorers and experienced owners can use the separate catalogs and supplements to identify components and match model-specific information.

Frontier Engine, Drivetrain and Electrical Parts

The Frontier catalogs identify complete short-block, crankcase, crankshaft, piston and ring assemblies alongside cylinder/head, camshaft, valvetrain, intake/exhaust and oil/water-pump components. Fuel-system plates distinguish the throttle body, fuel rail and injectors; recoil, starting-motor and magneto assemblies have separate references.

Drive and driven clutches, reverse-shift linkage, chaincase and drivetrain plates list shafts, sprockets, bearings, seals, fasteners and repair kits. Chassis and trim coverage extends to front suspension, skis, tie rods, handlebars, cooling, gas tank, nosepan, hood, console, battery box, ECU, load-shed module, relays, switches, harnesses, decals and tool kit.

Classic M-10, Touring Equipment and XC Variants

The Classic catalog separates standard and adjustable seats and identifies M-10/M-10 ACE rail mounting, front/rear torque arms, shock internals and the ACE electric module, potentiometer and harness. Its variant notes distinguish rails, bumpers, hardware, springs and electrical parts; these assemblies should not be treated as interchangeable simply because both carry the M-10 name.

The Touring catalog covers its two-up seat, passenger grab handles and heated grips, cargo box/taillight, rear bumper, hitch, snow flap, rail mounting, torque arms and suspension/shock components. The XC catalog adds separate engine plates for the two engine sizes and distinguishes EDGE, M-10 and M-10 ACE suspension equipment and manual/electric-start clutch components.

Exploded Views, Parts Lists and Setup Charts

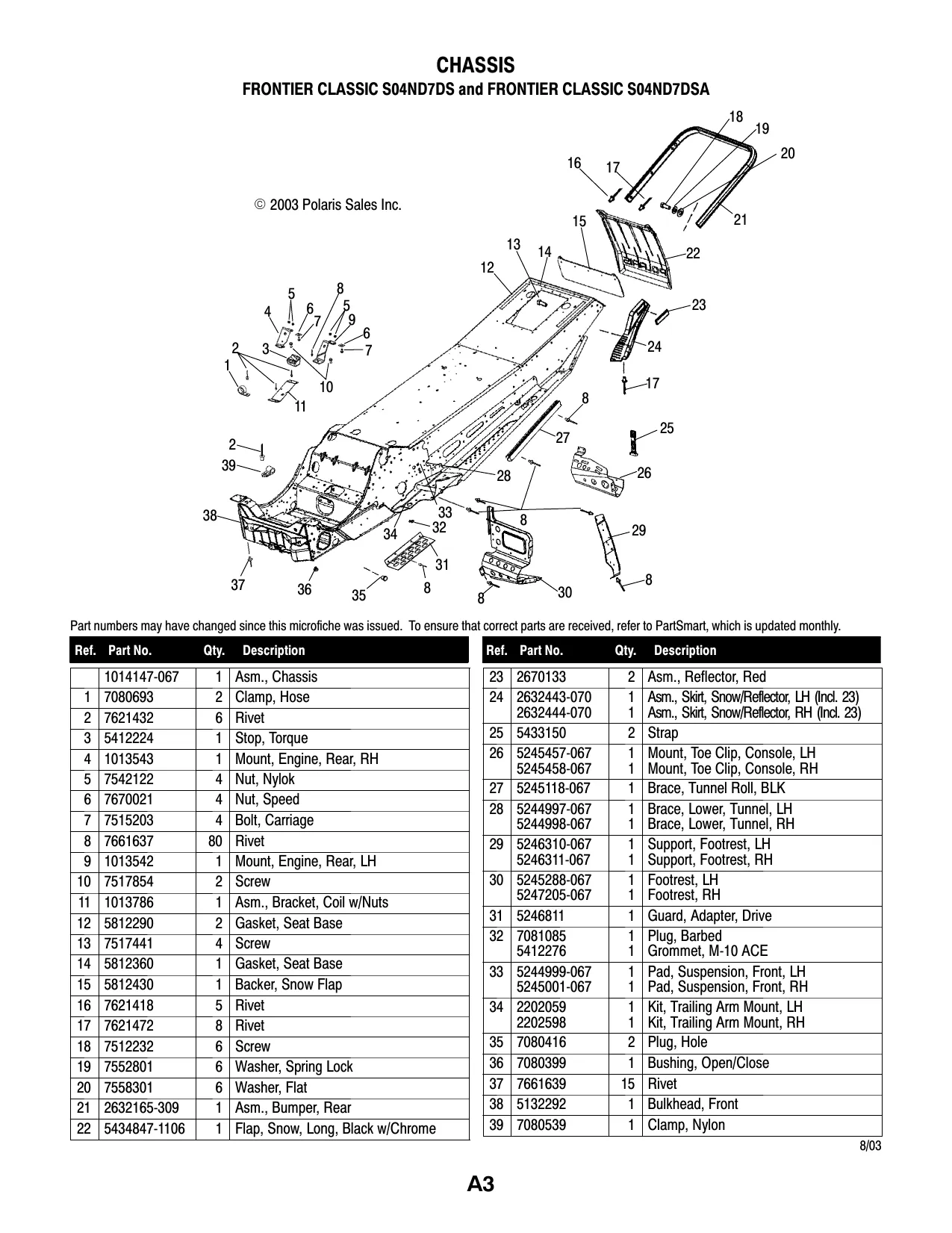

The Frontier catalogs provide 95 pages of assembly illustrations and associated parts lists, with reference numbers, OEM part numbers, quantities and descriptions. Plates include Chaincase, Crankshaft and Piston, Cylinder and Cylinder Head, Rail Mounting (M-10), Electric Module (M-10)(ACE), and Cargo Box/Taillight Assembly.

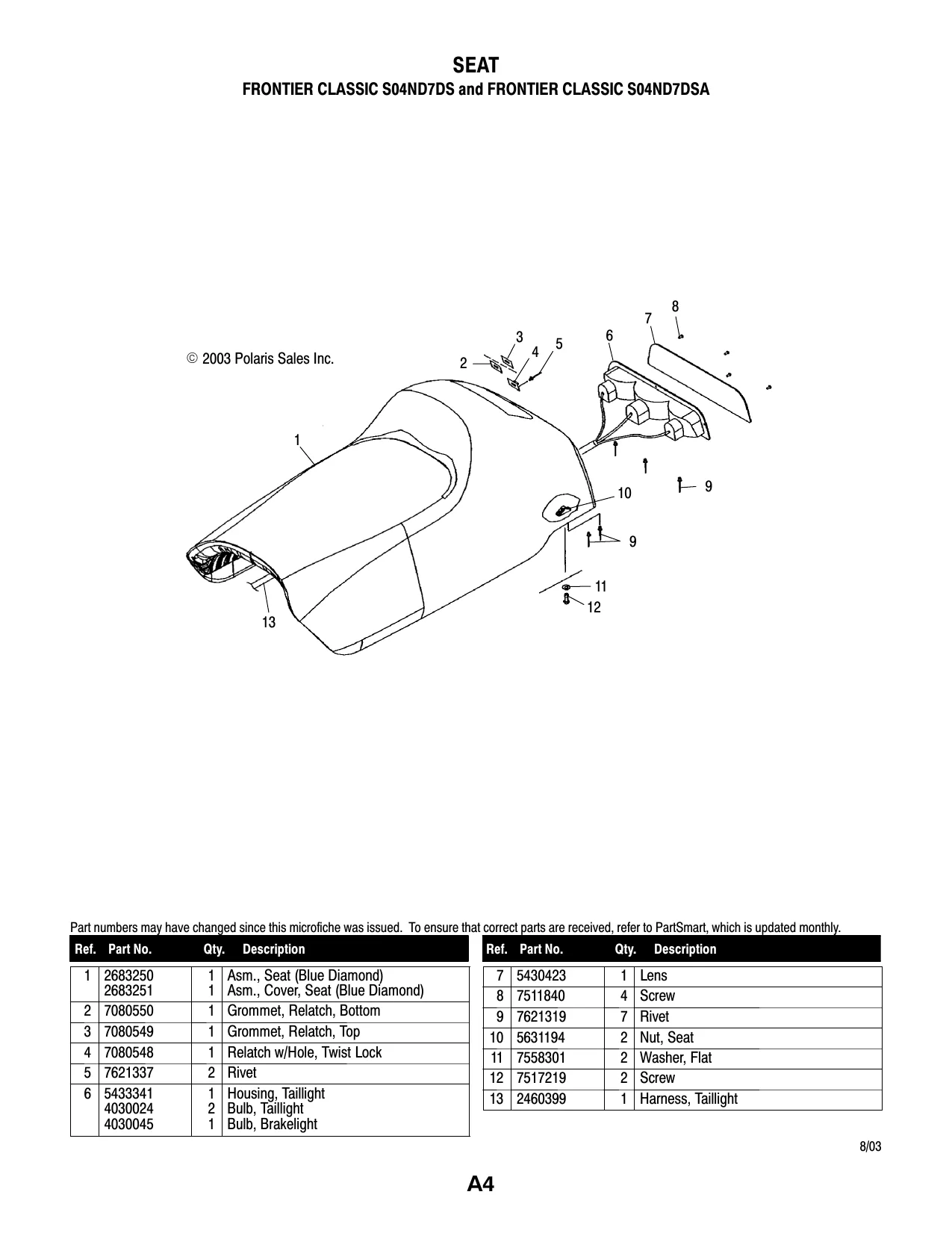

These references connect an illustrated item to its individual part or kit, including short-block, crankcase, crankshaft, piston/ring, shift-fork/shaft, shock and decal kits. Catalog numbers reflect the publication date and may have been superseded.

The supplement sheets pair model-specific capacities and equipment with carburetor jetting and clutching charts organized by altitude and temperature where applicable. Their index links model codes to the individual supplement publications, including distinct RMK track-length and XC suspension variants.

Clutch Balance and Shock-Service Precautions

The service manual warns that an impact wrench can disturb drive-clutch spider torque and damage the crankshaft. Its spider-indexing and shim guidance matters because the assembly's original relationship affects clutch balance and belt clearance.

Shock-rebuild instructions warn that overtightening the piston/valve retaining fastener can damage the piston and valves. Gas-charged shocks require the specified pressure-handling precautions, and running-track checks require clearance from moving components.

Examples from the Pro X Belt-Inspection Specifications

The clutch chapter specifies 1¼ in. (3.2 cm) belt deflection, with both clutches at rest in their neutral position. It also gives 0.020 ± 0.015 in. (0.5 ± 0.4 mm) belt-to-sheave clearance, measured with a new belt. These examples show the distinction between belt-position checks and drive-clutch clearance inspection; the surrounding procedures explain how belt condition, clutch geometry and adjustment affect the readings and starting ratio.
