Yamaha YTM200K Tri-Moto ATV Service Manual (1983–1987)

Covers the 1983–1987 Yamaha YTM200K Tri-Moto three-wheelers, with engine, chassis, and electrical service and repair procedures for model code 21V.

PDF Search, Chapter Bookmarks, and Wiring Detail

Finding information and reading diagrams: Searchable OCR text and embedded bookmarks provide access to chapters and selected subsections. OCR errors can affect exact-word searches. Small wiring labels and wire-color codes are easier to read when zoomed in.

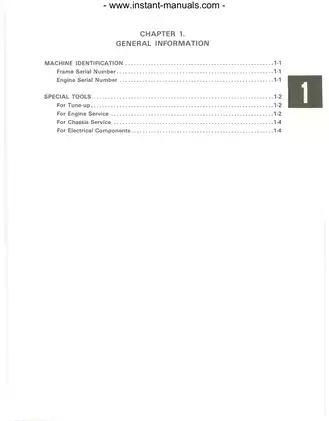

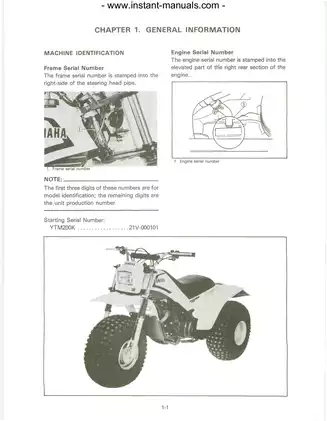

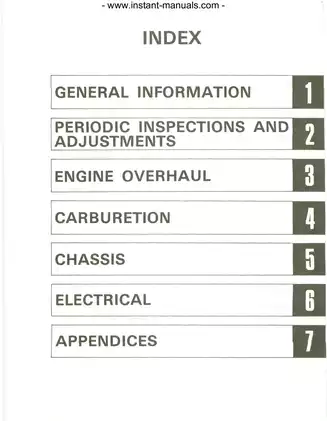

The download contains one printable, English-language, 126-page PDF. This total includes the opening index, chapter contents pages, specification appendices, lubrication and cable-routing diagrams, and the final wiring diagram.

Engine Overhaul, Chassis Service, and Electrical Testing

The following selected service topics outline the manual’s coverage rather than reproduce its full contents. Other sections address fuel-cock inspection and spark-plug condition assessment.

• Engine overhaul: Engine removal, crankcase separation, cylinder-head service, valve-guide and seat repair, piston inspection, and crankshaft and connecting-rod checks.

• Clutch and transmission: Primary and secondary clutch teardown, one-way clutch inspection, transmission shaft and shift-fork checks, and balancer-gear assembly.

• Carburetion: VM22 carburetor disassembly, jet and float-valve inspection, fuel-level adjustment, and air-cleaner and crankcase-ventilation diagrams.

• Brakes and chassis: Front drum and rear disc brake service, wheel-bearing replacement, rear-axle inspection, front-fork rebuilding, and steering-head service.

• Electrical diagnosis: Magneto and ignition-coil tests, spark-gap testing, lighting-circuit output checks, switch-continuity tests, and wiring diagrams.

• Periodic service: Maintenance and lubrication schedules, valve and decompression adjustments, compression testing, cam-chain adjustment, and oil-filter service.

This manual is suited to mechanics familiar with engine disassembly and electrical testing; internal repairs require the listed specialty tools and suitable measuring equipment.

Engine Inspection and Reassembly

Component-specific tables provide standard dimensions and wear limits for the piston, cylinder, crankshaft, valve train, and clutches. These factory references give a baseline for assessing wear and checking parts during reassembly.

Access and job planning: The engine chapter distinguishes work that can be performed with the engine installed, including cylinder and flywheel-magneto removal, from jobs requiring additional access. It also identifies right-rear-wheel removal for clutch access, helping mechanics plan the work before disassembly.

Assembly details: Instructions address cam timing, piston-ring orientation, shift-fork positioning, and balancer timing marks. The balancer drive gear contains six damping springs and three pins that can come loose during removal. Clutch notes explain how the secondary-clutch housing notches provide clearance for the primary drive gear.

Decompression-cable adjustment follows valve-clearance adjustment. The Valve/Cam Chain exploded view and lubrication diagrams support the related assembly and oil-flow information.

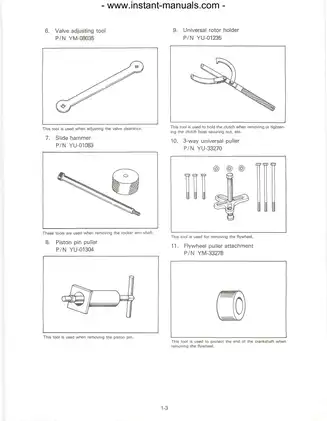

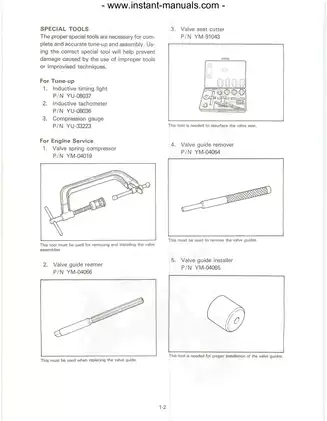

The special-tool section identifies the inductive timing light as YU-08037 and the flywheel-puller attachment as YM-33278. The latter protects the crankshaft end during flywheel removal; improper pulling methods can damage that end.

Carburetor Inspection and Fuel-Level Adjustment

The carburetor chapter includes step-by-step instructions for disassembly and reassembly, supported by a sectional view showing the float, needle jet, throttle valve, and fuel passages. Inspection criteria cover float-needle and seat wear, jet-needle condition, and starter-plunger damage, alongside fuel-level and float-height adjustment data.

Forks, Steering, Brakes, and Final Drive

Front-fork procedures cover seal removal, tube and spring inspection, and reassembly. Chassis references distinguish the front drum brake from the cable-operated rear disc brake and include brake wear limits, wheel and axle runout checks, steering-bearing inspection, and drive-chain and sprocket service.

Wheel-bearing installation cautions identify the risk of bearing damage from force applied through the inner race or balls. Cable Routing drawings show the relationships between brake, throttle, starter, and decompression cables and the wiring harness.

Always follow standard workshop safety practices and wear appropriate gear when handling heavy components or hazardous fluids.

Ignition and Lighting Fault Isolation

The Ignition System and Lighting System diagrams accompany component tests, lead-color references, and switch-continuity charts. The YTM200K Wiring Diagram brings the CDI magneto, CDI unit, ignition coil, lighting, and engine-stop circuits together.

The ignition section relates the system-level spark-gap test to individual coil checks, helping distinguish a weak-spark complaint from a specific component fault.

Examples of Valve, Oil, and Ignition Test Data

Cold intake-valve clearance is specified at 0.05–0.09 mm. The lubrication section distinguishes total engine-oil capacity of 1.8 L from the 1.5 L quantity for a periodic oil change.

Ignition-coil primary resistance is specified at 0.85 Ω ±15% at 20°C (68°F), with the associated resistance-testing procedure in the electrical chapter.
