KYMCO PEOPLE S 50/125/200 4T Service Manual – July 2005 Edition (4122-LCD2/3/4-S00)

• Engine repair: Engine removal and installation, cylinder-head and valve service, piston inspection, camshaft timing, and crankcase separation.

• CVT and final drive: Drive/driven-pulley disassembly, centrifugal-clutch repair, final-reduction bearing replacement, and kick-starter service.

• Fuel and emissions: CVK/VE carburetor service, auto-bystarter testing, float-level inspection, automatic fuel-valve checks, and secondary-air diagnosis.

• Brakes and suspension: Front hydraulic-brake overhaul and bleeding, rear drum-brake service, steering-stem bearings, and shock-absorber inspection.

• Electrical troubleshooting: Charging, CDI ignition, and starter-circuit tests; starter-motor repair; wiring diagrams and switch-continuity tables.

This OEM service manual breaks down the mechanical and electrical systems of the KYMCO PEOPLE S 50, 125, and 200 four-stroke scooters. The 196-page PDF contains the July 2005 first edition, document code 4122-LCD2/3/4-S00.

The procedures are suited to experienced scooter mechanics with the measuring tools and spring compressors needed for internal repair.

Engine Repair and Service Specifications

These are carbureted, forced-air-cooled OHC singles; the PEOPLE S 200 uses a 163cc engine. Cylinder-head, cylinder, and piston work can be performed with the engine in the frame, while crankcase and crankshaft service require engine removal.

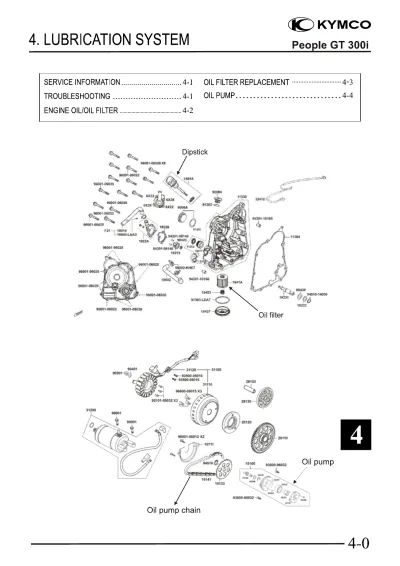

Internal repair coverage extends to rocker arms, valve guides and stem seals, piston-ring measurements, and connecting-rod/crankshaft inspection. The lubrication chapter covers oil-pump removal and rotor-clearance checks.

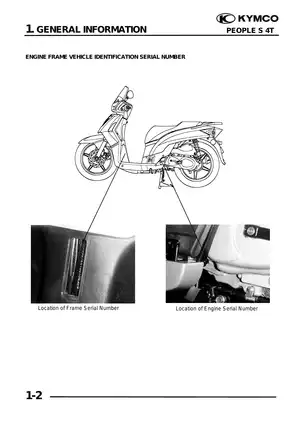

Sections on lubrication points, cable routing, and frame cover removal give you the layout before you start work. Maintenance coverage includes valve-clearance and compression checks, ignition-timing inspection, and tire-pressure tables for solo or two-up riding.

Detailed tables spell out standard bolt torques and cylinder-head fastener specifications. Model-specific reference data covers wear limits, compression-test specifications, fluid capacities, and adjustment data.

Carburetors and Secondary-Air Emissions

The specifications distinguish the 50cc model's CVK carburetor from the VE carburetors on the 125 and 200. Separate jetting, float-level, and auto-bystarter data help prevent applying the smaller engine's setup to the larger models.

Carburetor procedures cover the vacuum piston/diaphragm, air cut-off valve, float chamber, and pilot screw. Cleaning precautions explain how compressed air can damage an installed vacuum diaphragm.

The emissions chapter pairs an Exhaust Emission Control System schematic with vacuum-flow tests for the Air Injection Cut-off Valve (A.I.C.V.) and reed-valve inspection.

CVT, Clutch, and Final Reduction

The Clutch/Driven Pulley Assembly exploded view accompanies clutch-shoe and bearing service. Separate specifications distinguish the 50cc drive components, and its starter pinion has a dedicated service procedure.

Final-reduction repair covers shaft and gear inspection, bearing and oil-seal replacement, and reassembly. The clutch section warns of spring damage from disassembly without the specified compressor, listed as tool E027.

Brakes, Steering, and Suspension

The Hydraulic Brake Drawing supports master-cylinder and caliper repair, including piston and seal inspection. Chassis procedures cover front-wheel bearing replacement, steering ball races, rear brake shoes and cam, and adjustable rear-shock preload.

Always follow the manufacturer's safety guidelines and torque limits, especially during brake work, fuel handling, and engine removal.

Charging, Ignition, and Starting Diagnosis

Troubleshooting charts address hard starting, loss of power, poor charging, and no spark. The three wiring diagrams include Wiring Diagram (50cc) and Wiring Diagram (always light). Separate schematics cover the charging, ignition, and starting circuits.

The meter-specific CDI and regulator/rectifier resistance tables call for Kowa or Sanwa testers. CDI ignition timing is nonadjustable; the procedures cover inspection and fault isolation. AC generator removal procedures specify flywheel puller E002.

The starting chapter details brush and commutator checks, relay diagnosis, and one-way starter-clutch service. Fuel-gauge/sender checks and lighting-switch continuity tables cover the instruments and controls.

File Format and Readability

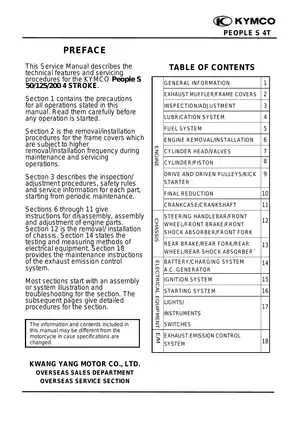

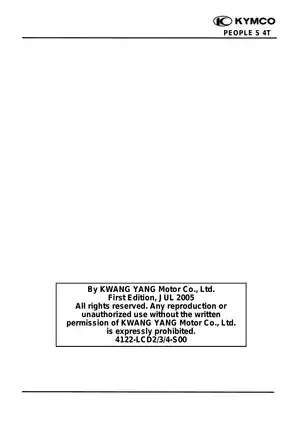

Page count: The total includes one cover page, one publication/edition page, and one combined preface/contents page, plus 193 chapter pages.

Text search and navigation: Main text is searchable. Wiring-diagram labels are embedded in images and cannot be searched. PDF bookmarks reach all 18 chapters but use filenames rather than descriptive chapter names.

Wiring readability: Small labels require zooming. Some remain blurred, and many labels in the “always light” diagram are incomplete or unreadable even when enlarged.
