2003-2007 Infiniti G35 Automatic Transmission Repair Manual
Wiring diagrams, specifications, and repair sequences for automatic transmission systems, including fluid changes and diagnostic procedures. Part #: 31036.

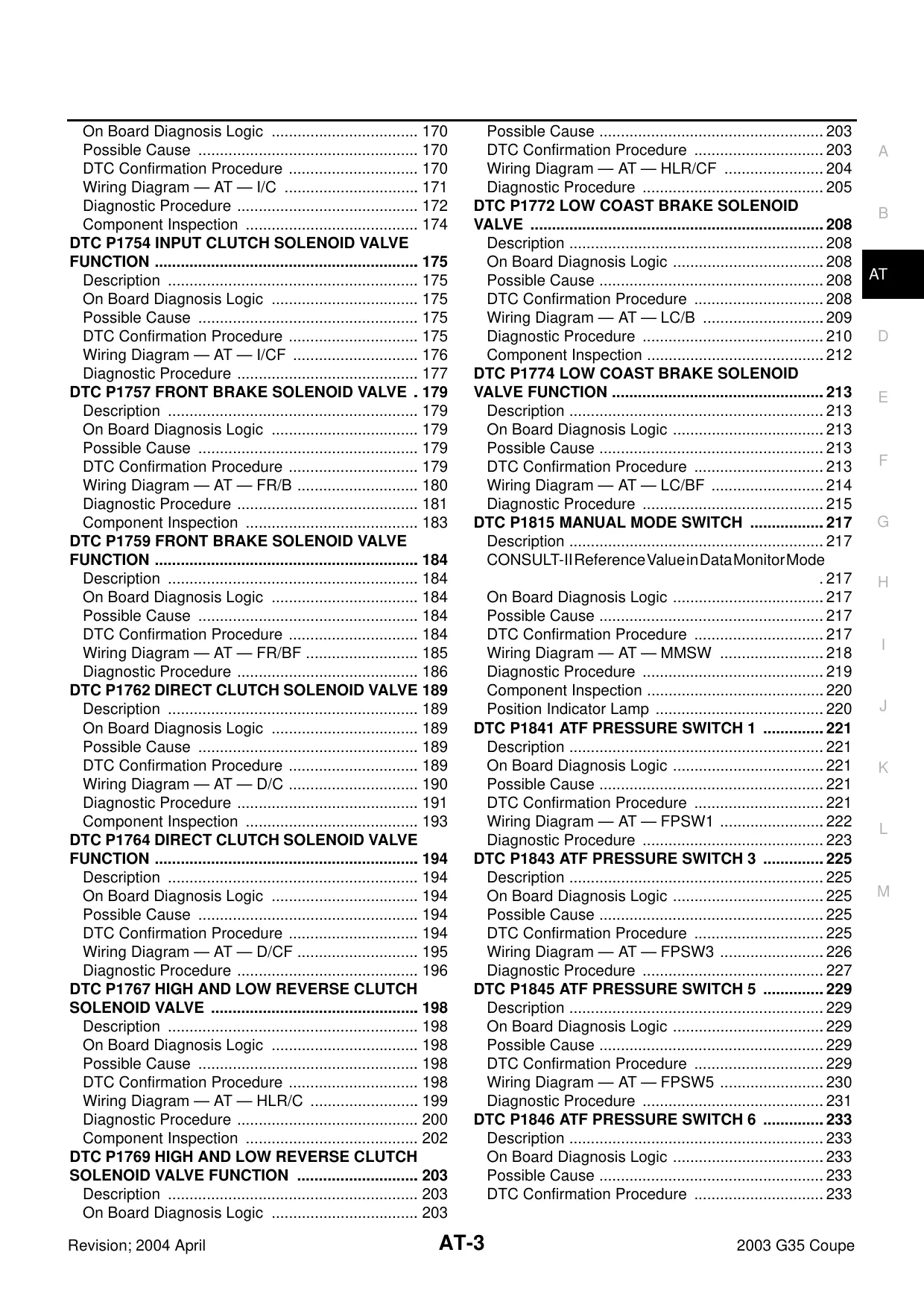

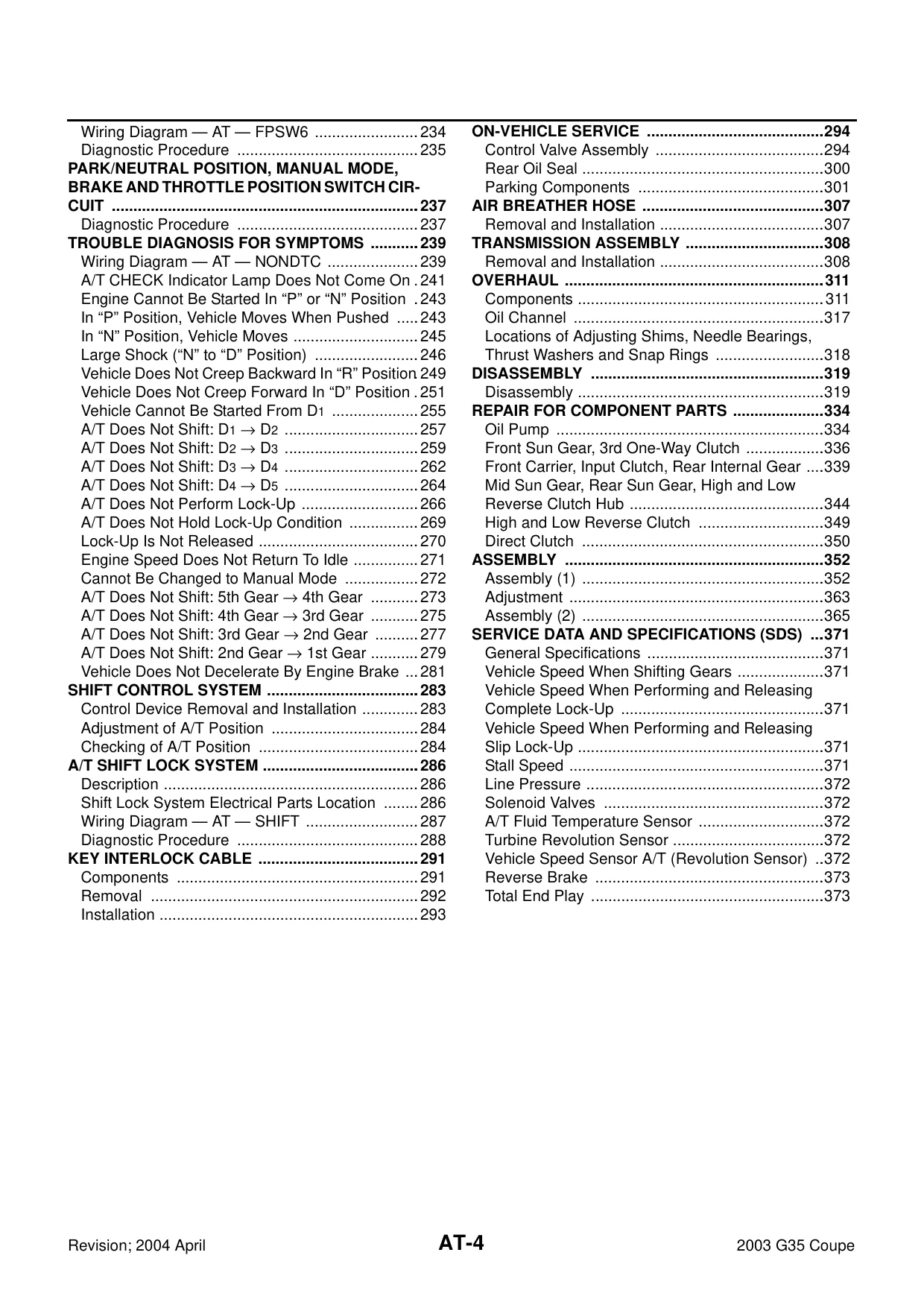

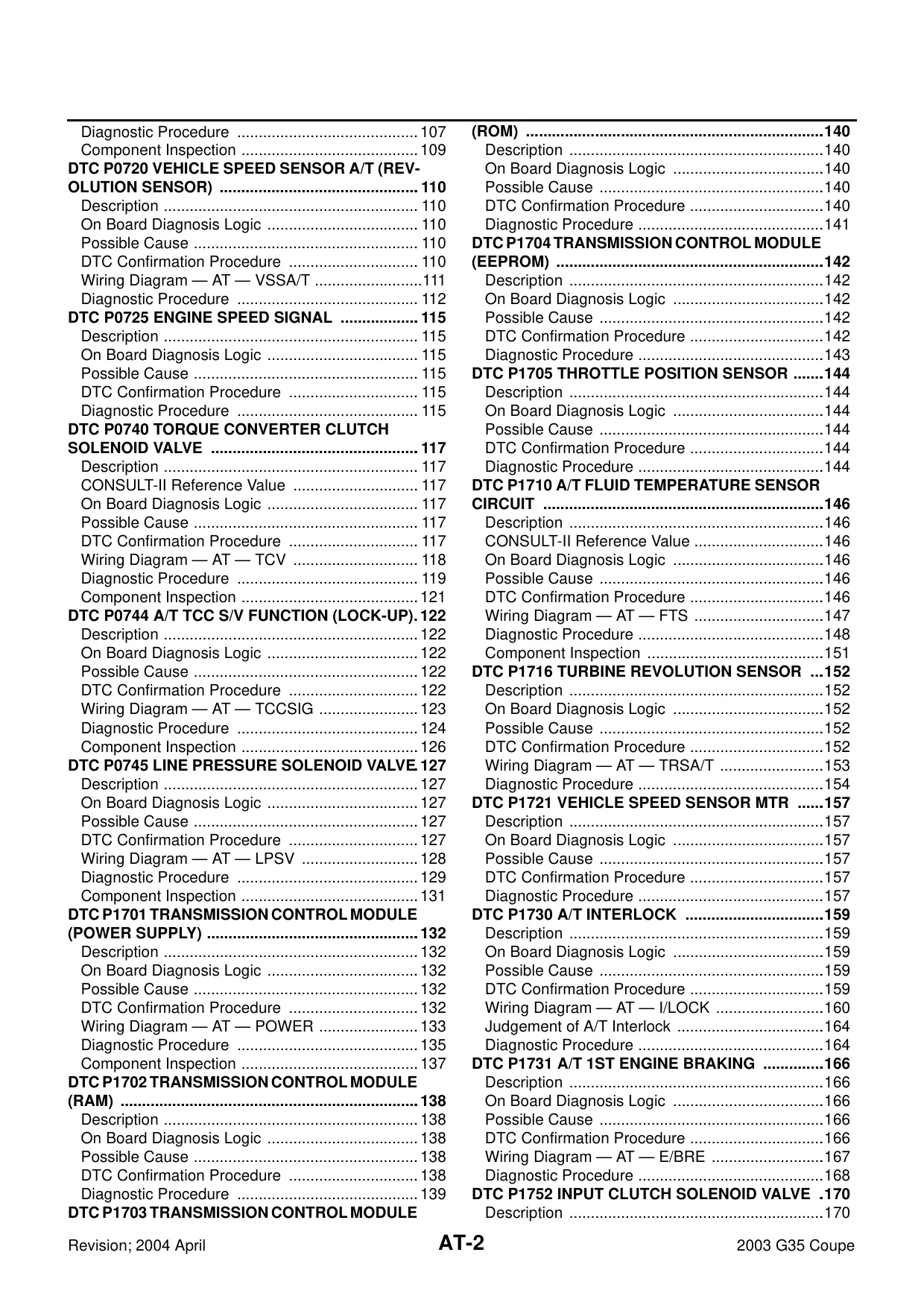

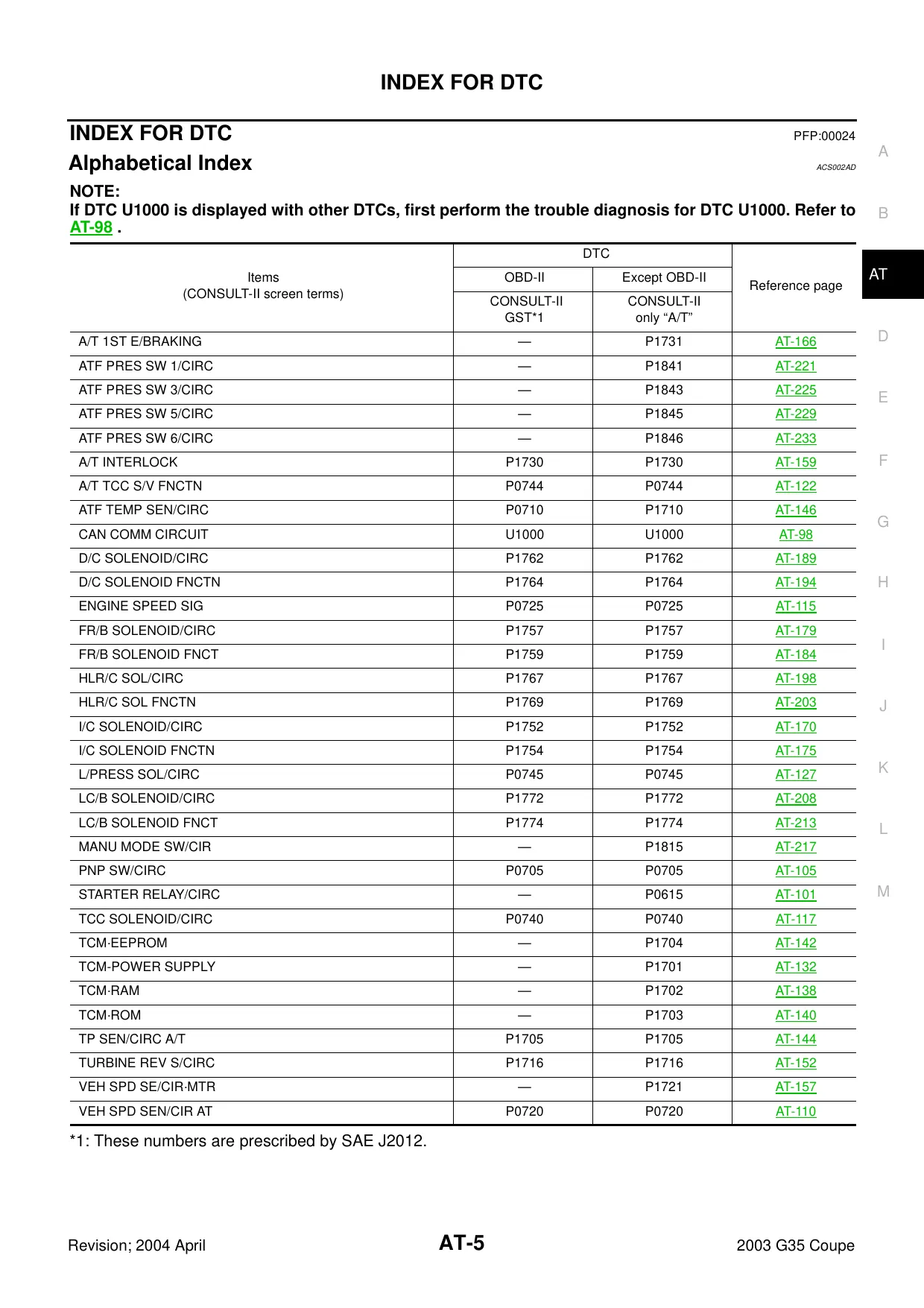

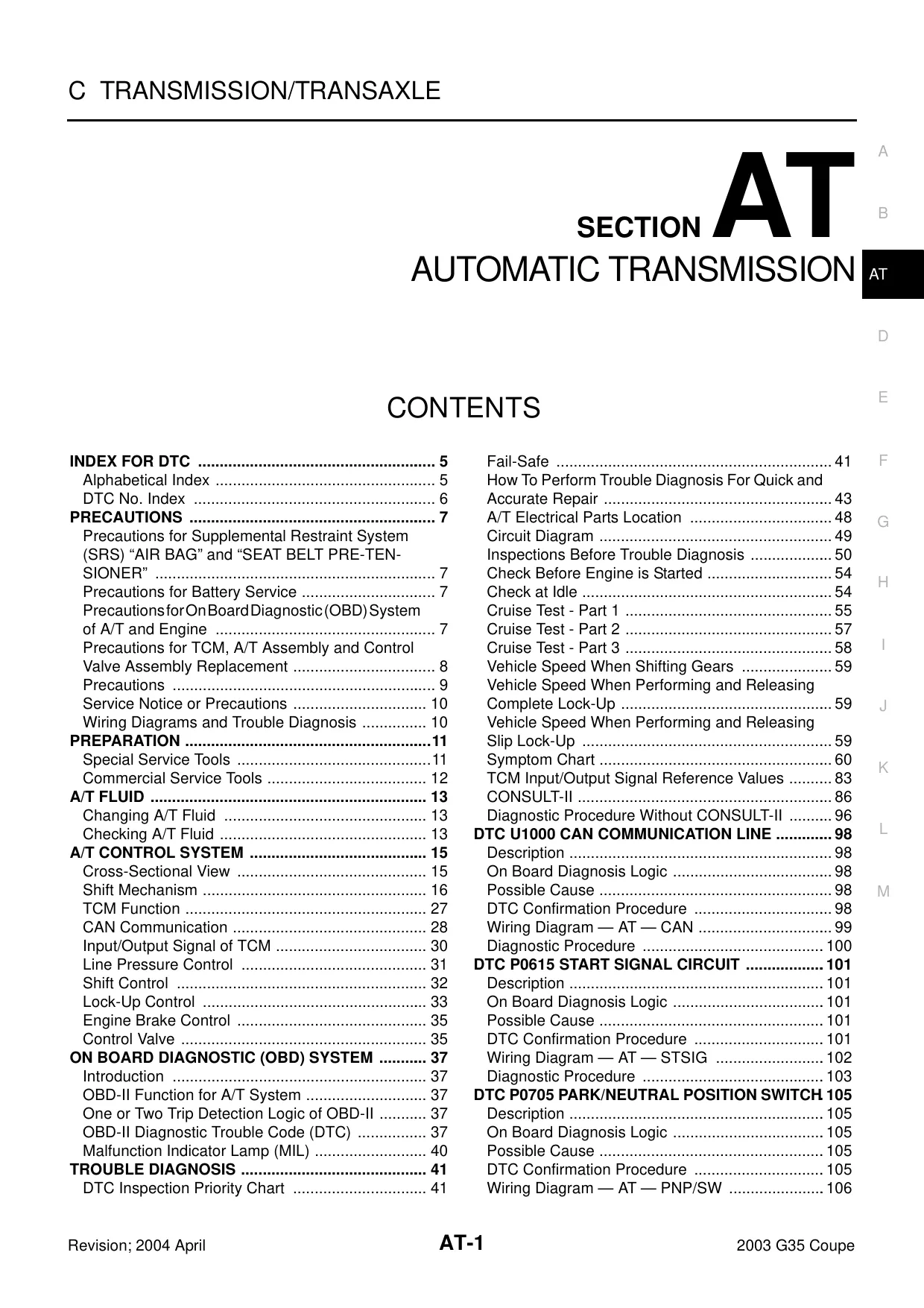

Manual Preview
Sample pages from the 2003-2007 Infiniti G35 Automatic Transmission Repair Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Infiniti G35 Automatic Transmission Repair Manual Covering Automatic Transmission Systems and Diagnostics | Service Manual - Document Set
- Diagnostic Coverage Data: 179 diagnostic items cover the full range of system functions.
- Component Identification: 20 component labels identify key parts of the automatic transmission assembly.
- Troubleshooting Scope: 73 specific symptoms are addressed with detailed diagnostic steps.
- Electrical System Analysis: 55 circuit diagrams provide a clear overview of electrical connections.
- TCM Signal Reference: 40 TCM input/output signal reference values are provided for testing.
- Fluid System Procedures: Covers fluid checks, changes, and cooler cleaning with 14 distinct steps.
Professional Workshop Service Manual & Technical Specifications
Infiniti G35 Automatic Transmission Manual: 2003-2007 Documentation-Set
Model-Specs: 2003-2007 Infiniti G35 Coupe // System-Identifier: Automatic Transmission / Transmission Control Module Logic // Model-Specs: 340 HP
Table of Contents Summary
Following OEM groupings, the manual includes:
- A/T Fluid System Procedures
- A/T Control System Components
- On Board Diagnostic (OBD) System Functions
- Trouble Diagnosis for Symptoms
- Wiring Diagrams
- CONSULT-II Functions
Introduction
This manual provides comprehensive documentation for the Infiniti G35 automatic transmission system, covering models from 2003 through 2007. It details essential diagnostic procedures, system schematics, and repair sequences to ensure proper maintenance and functionality. The manual is organized to guide users through various troubleshooting scenarios, offering specific diagnostic items and their corresponding reference pages.
Troubleshooting and Diagnostics
The document thoroughly outlines the troubleshooting process for a wide array of automatic transmission symptoms. It includes detailed diagnostic items and diagnostic procedures for numerous DTCs (Diagnostic Trouble Codes) related to solenoid valves, pressure switches, sensors, and control modules. The troubleshooting sections are designed to systematically identify and resolve issues affecting the transmission's performance, such as shifting problems, slipping, or lack of engagement. It also covers specific symptoms like 'Vehicle Does Not Creep Forward in "D" Position' and 'Vehicle Cannot Be Started From D1'.
System Components and Schematics
Essential components of the A/T system are clearly identified, including the TCM, various sensors (e.g., vehicle speed sensor, engine speed sensor), solenoids, and actuators. Detailed wiring diagrams and circuit schematics are provided to illustrate the complex interconnections within the transmission control system. The 'TCM Input/Output Signal Reference Values' section offers critical data for diagnosing TCM functionality.
