Subaru Impreza 1993–1996 Service Manual Set (P/N G173GER)

The earlier volume provides the main turbo-engine mechanical repair material. The later volume adds system descriptions and diagnostic information for its listed configurations; use each volume’s specification tables and circuit layouts for the matching vehicle.

Repair scope: Detailed DOHC engine and manual-transmission procedures focus on turbo applications. The later DOHC chapter describes mechanism and function and does not provide a later-model internal engine overhaul procedure.

Drivetrain limits: Automatic-transmission repair material covers on-car inhibitor-switch inspection and adjustment, without a full internal 4AT rebuild chapter. The viscous-coupling LSD assembly is not presented as a rebuildable unit.

Two PDFs with Section Bookmarks

Search and small-print detail: Both files have section bookmarks but no embedded text search. Small connector and wire-color labels require zooming. Some right-edge text in the later volume is faded or clipped, including the proportioning-valve explanation.

The ZIP contains two printable PDFs totaling 1,154 pages, including both opening covers, the earlier volume’s publisher back cover and nine section title pages in the later volume.

Turbo Engine Repair, AWD Drivetrain and System Diagnosis

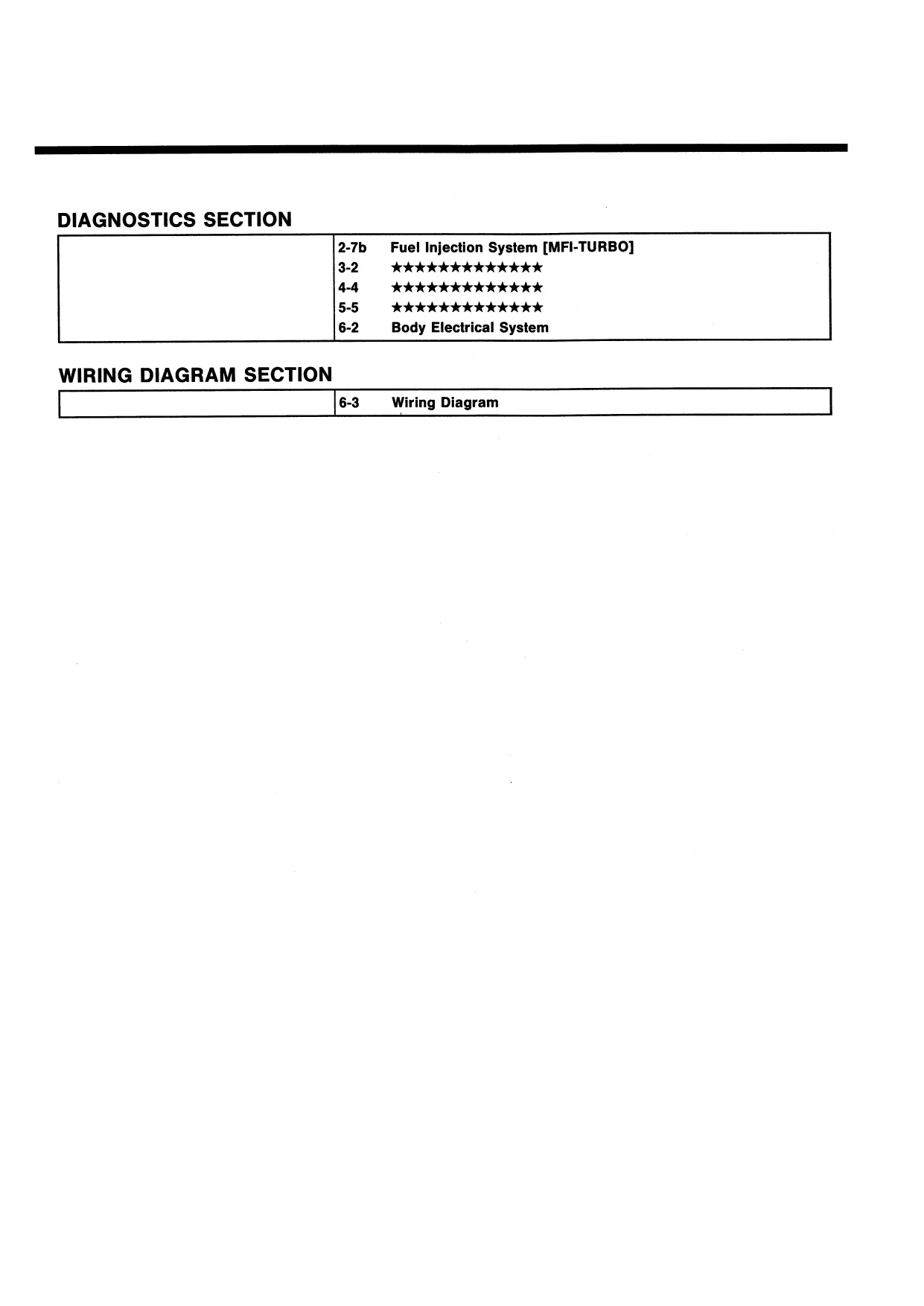

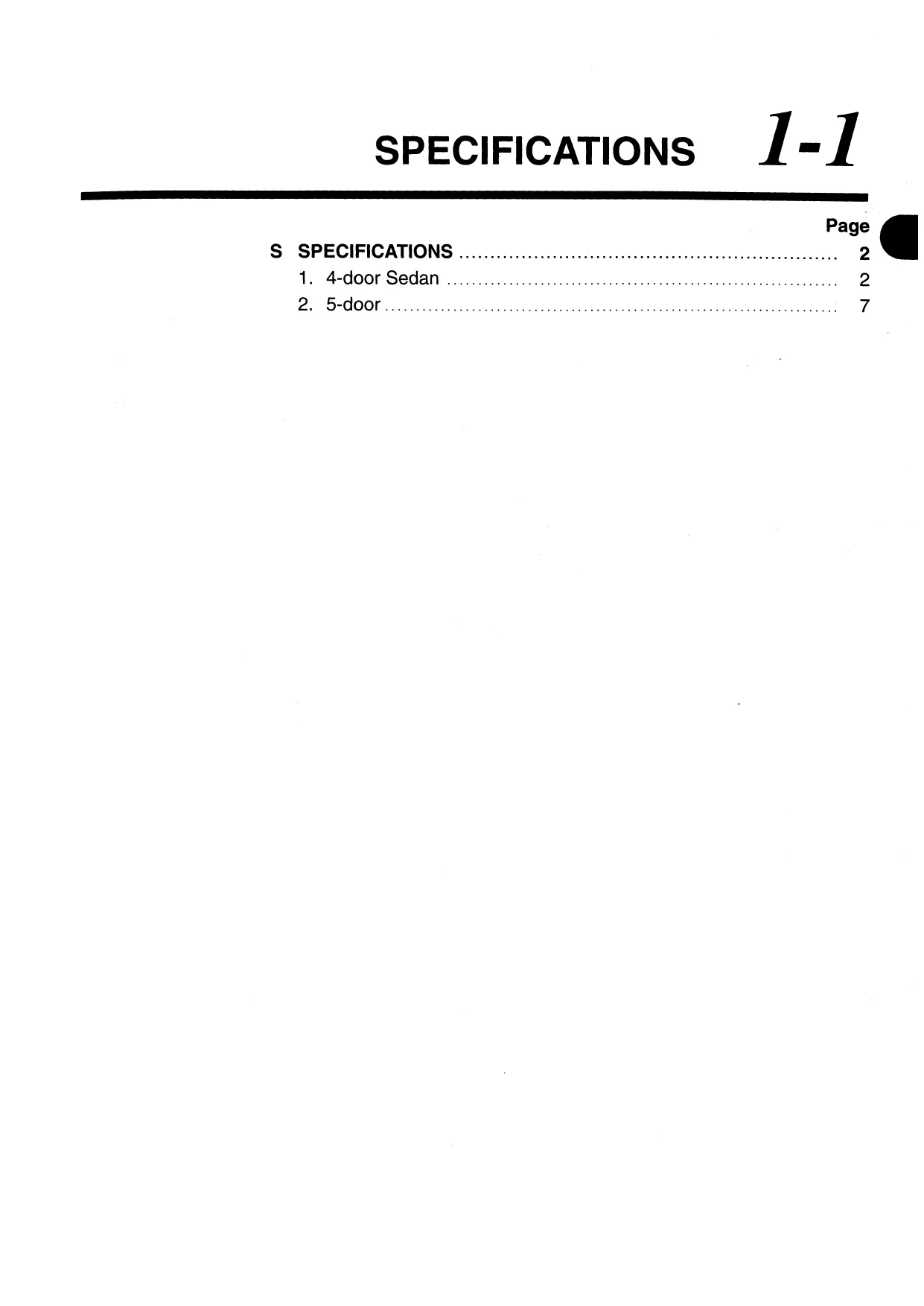

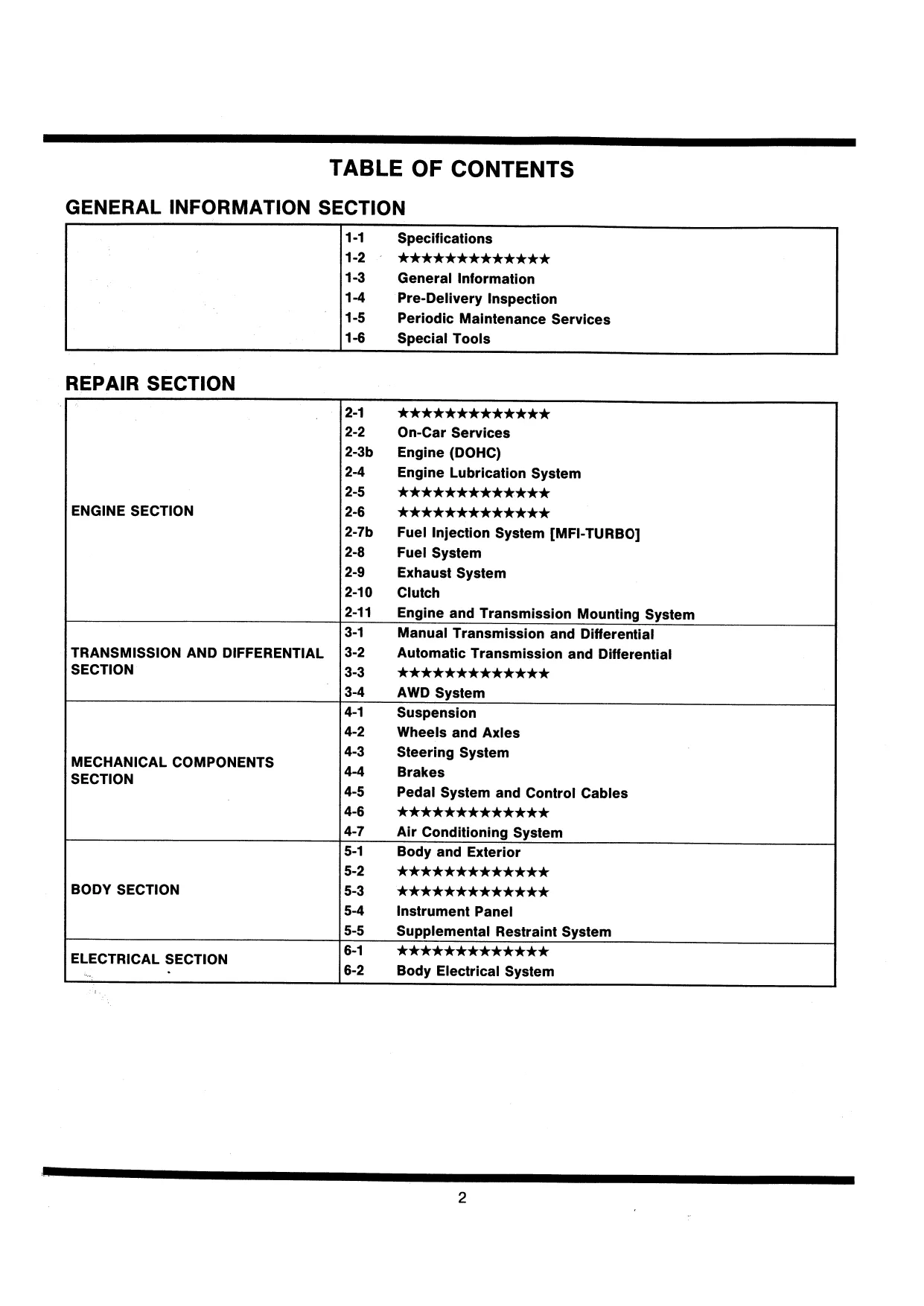

Selected contents are outlined below. Other included topics range from pre-delivery inspection to rear-spoiler removal.

• DOHC engine repair: Step-by-step timing-belt, camshaft, cylinder-head and cylinder-block procedures; crankshaft, bearing, connecting-rod and piston inspection; oil-pump removal and installation.

• Turbo MFI: Intercooler and turbocharger removal, throttle-body and sensor service, starting-failure charts, trouble-code testing and Subaru Select Monitor checks.

• Clutch and AWD drivetrain: Hydraulic-clutch bleeding, engine/transmission removal, AWD manual-transmission case work, propeller-shaft references and rear-differential overhaul.

• Brakes and chassis: ABS circuit diagnosis and component tests, with suspension, drive-shaft, wheel-bearing, steering and pedal-system reference material.

• Maintenance and cooling: Scheduled service, timing-belt inspection, oil and coolant service, spark-plug replacement, emission-control descriptions and radiator-fan operation.

• Body and climate systems: Instrument-panel removal, SRS warning-light and harness diagnosis, air-conditioning evacuation, leak testing and performance checks.

• Wiring and electronic diagnosis: Engine and ABS circuits, ECM pinouts, connector/harness views and ground points, plus cruise-control and immobilizer fault charts.

This Subaru service-manual set is suited to experienced technicians and advanced owners who can work from factory specifications and have access to lifting equipment, electrical test gear, pressure gauges and the specified special tools.

Match the Vehicle Configuration

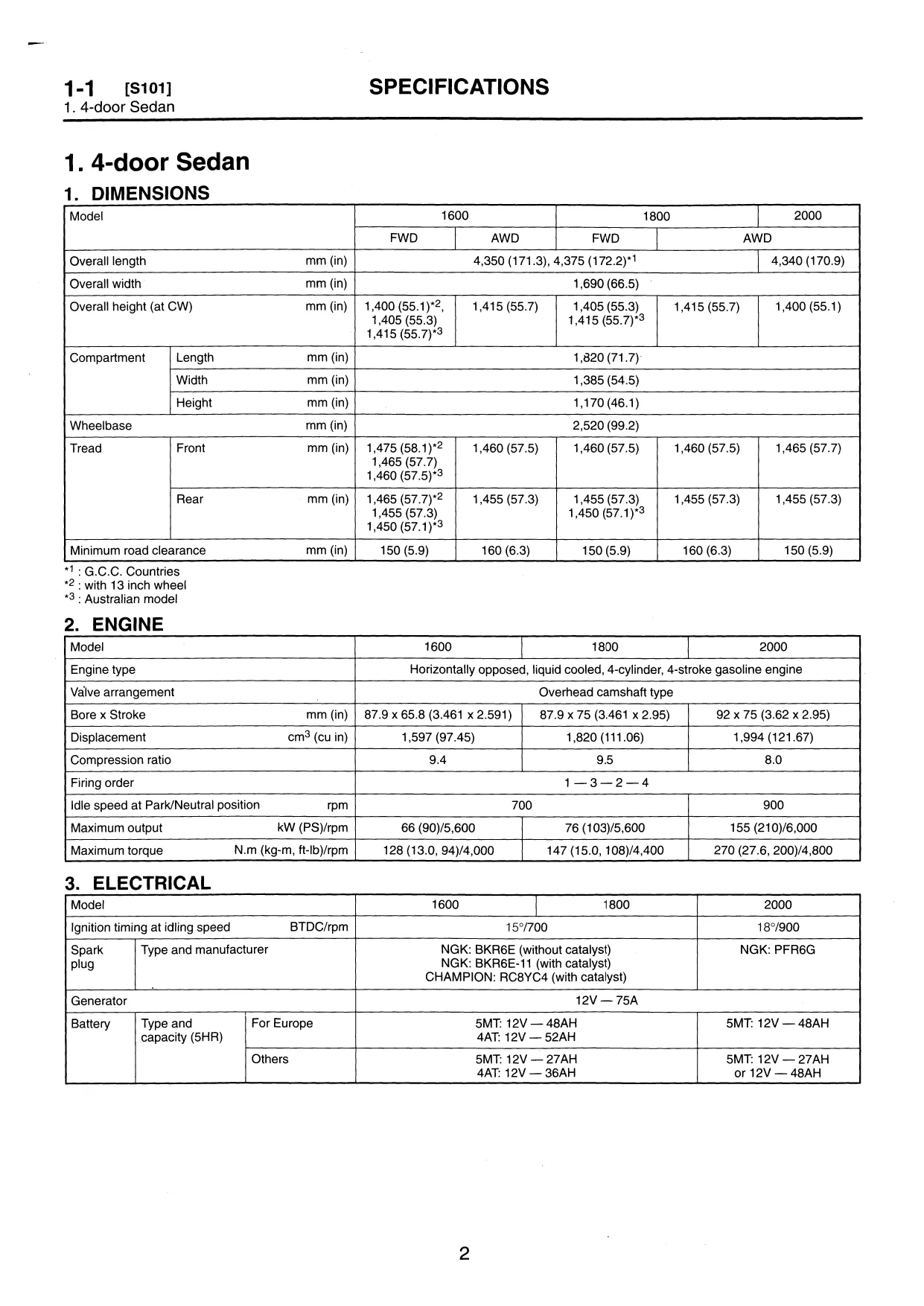

Specification and VIN tables distinguish FWD and AWD, left- and right-hand drive, single- and dual-range transmissions, and regional builds for Europe, General, Australia and GCC markets. That detail matters when selecting engine, differential, brake or electrical information for a particular chassis.

Non-turbo engines receive configuration-specific specifications, maintenance, cooling and emission-control information. Turbo/non-turbo distinctions also appear in the clutch, fuel-tank, exhaust, rear-differential and brake material. Cruise-control speed sensing and engine wiring have their own variant-specific references.

DOHC Inspection, Assembly and Timing

The DOHC section pairs standard dimensions and wear limits with torque sequences, sealing notes, timing layouts and exploded views of the cylinder block, crankshaft and pistons. Special-tool listings identify Cylinder Head Table 498267600, Engine Stand 499817000 and Piston Pin Remover 499097500.

DOHC timing notes explain how independently moving intake and exhaust camshafts can cause valve-to-valve contact and bent stems. Bottom-end cautions address matched pistons, rods, caps and bearings, and the engine damage that can follow blocked oil passages from excess sealant.

Manual Transmission and Rear Differential

Clutch descriptions distinguish cable-operated non-turbo systems from hydraulic turbo systems. Drive-pinion shim selection, shifter-fork selection and bearing preload are described for AWD manual-transmission case assembly. Rear-differential exploded views support pinion-height, crown-gear backlash and preload adjustments.

Later mechanism descriptions explain the center differential and viscous coupling. The LSD discussion advises against disassembly, citing the lack of separately supplied internal parts.

Turbo MFI, ABS and Body-Electrical Fault Tracing

Injector, ECM and relay service accompanies wastegate-control diagnosis and throttle-position adjustment. Pre-inspection and general diagnostic tables supplement the circuit-specific tests.

The turbo starting-failure charts connect ECM power and ground checks with ignition, fuel-pump and injector circuits. Together with control-module I/O data and Select Monitor charts, they provide a circuit-level reference for investigating a cranks-but-won’t-start complaint.

ABS fault charts include wheel-sensor and tone-wheel checks, solenoid/relay tests and hydraulic-unit circuits. Later SRS sections add dedicated diagnostic test-harness information.

Cruise-control charts address power-supply, cancellation-signal and actuator faults. Later immobilizer material includes system schematics, indicator-light circuit checks, trouble codes and Select Monitor diagnostics.

Steering, Climate Control and Maintenance References

Power-steering illustrations distinguish LHD and RHD gearboxes, control valves and oil-pump layouts. Air-conditioning material adds refrigerant service precautions, pressure-switch information and compressor/fan diagnosis.

Maintenance sections also cover transmission and differential lubricants, brake checks, clutch operation, steering and suspension inspections. Service references include system-specific torque and fluid-capacity tables, pressure-test values, alignment data and electrical test specifications.

Fuel, pressurized cooling and air-conditioning systems, raised-vehicle work, and SRS components require the isolation, support, recovery, and deployment precautions specified in the manuals before repair work begins. The SRS warnings specify servicing by an authorized Subaru dealer.

A Preview of Compression and Belt-Adjuster Data

For the earlier volume’s turbo engine, the warmed-engine compression test lists a standard range of 981–1,177 kPa (142–171 psi) and a limit of 834 kPa (121 psi), at 200–300 rpm with the throttle fully open.

The same volume’s DOHC timing-belt inspection specifies a tension-adjuster rod extension of 15.4–16.4 mm (0.606–0.646 in), alongside leakage and rod-holding checks.
