Subaru Outback & Legacy 2008–2009 Service Manual (2009MY Edition)

4,981 Pages • ZIP Download: Printable PDF • 116.41 MB

4.3starstarstarstarstar_border(3)
$18.55 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

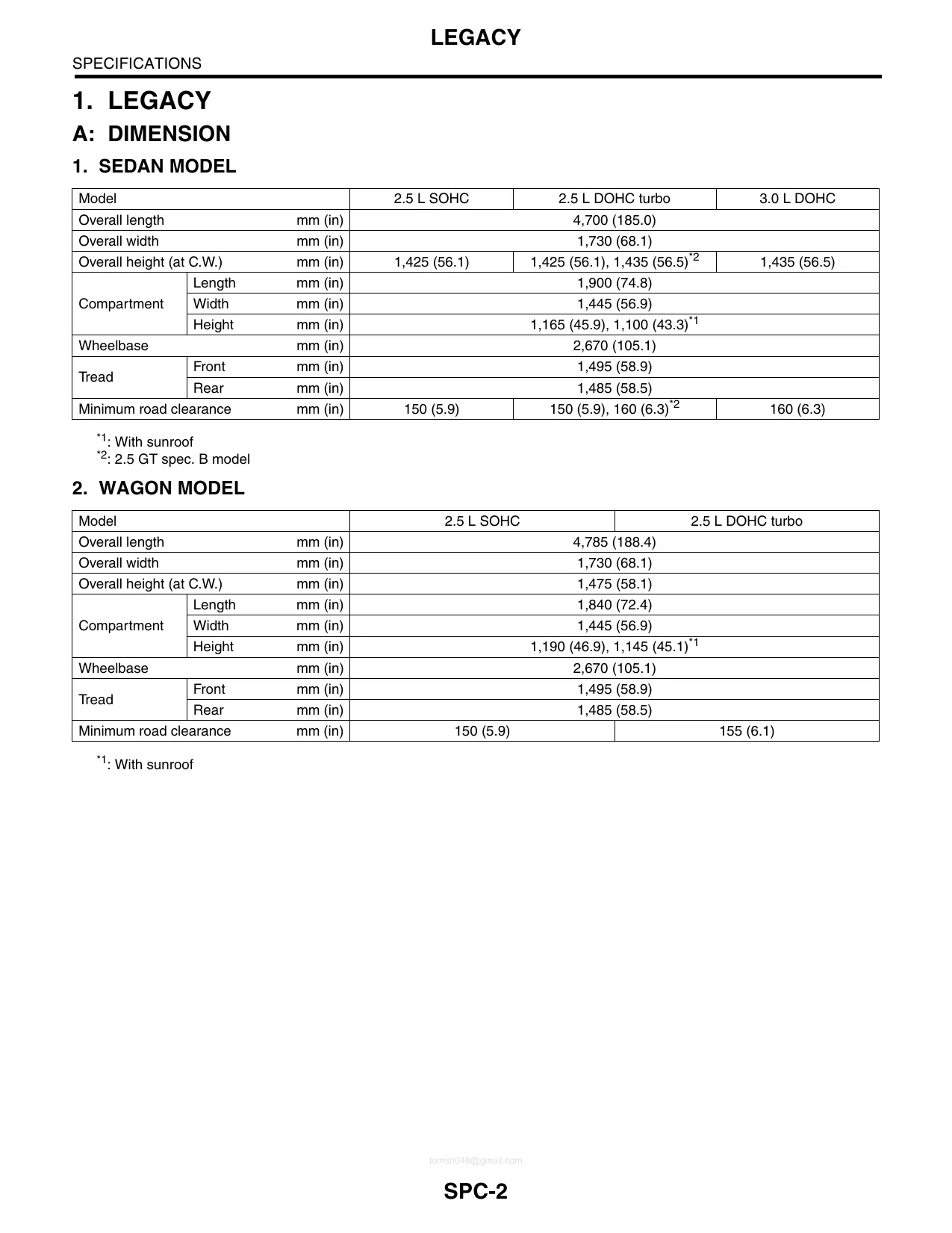

Subaru Models Covered & Key Technical Specifications

Models & Model Codes: Outback (BP wagon), Legacy (BL sedan, BP wagon)

Sub-models / Variants: 2.5 L SOHC (H4SO), 2.5 L DOHC Turbo (H4DOTC), 3.0 L DOHC (H6DO), Sedan, Wagon, 5MT, 6MT, 4AT, 5AT, GT, GT spec. B, 3.0 R, 3.0 R LTD, 2.5 i, 2.5 i Limited, 2.5 i BASE, 2.5 XT LTD

Model Years: 2008–2009


  • Engine displacement: 2,457 cm3 (2.5 L) or 3,000 cm3 (3.0 L)

  • Engine type: Horizontally opposed, liquid cooled, 4-cylinder or 6-cylinder, 4-stroke gasoline engine

  • Maximum output: 125 kW (170 HP) to 185 kW (245 HP)

  • Transmission type: 4AT (MPT; 2.5 L SOHC), 5AT (VTD; 2.5 L DOHC Turbo and 3.0 L DOHC), 5MT (viscous-coupling center differential; 2.5 L SOHC and 2.5 L DOHC Turbo), 6MT (viscous-coupling center differential; Legacy 2.5 GT spec. B)

  • Drive system: Full-time AWD

  • Fuel capacity: 64 liters

  • Brake system: Dual circuit hydraulic with vacuum suspended power unit

Subaru Manual Features & Selected Content Preview

This Subaru service and repair manual covers U.S. and Canadian Legacy BL sedans/BP wagons and Outback configurations. The identification tables specify 2009MY, with VIN year digit 9 and model-plate year code F; 2008MY vehicles fall outside this edition’s identified scope.

PDF Search, Bookmarks and File Contents

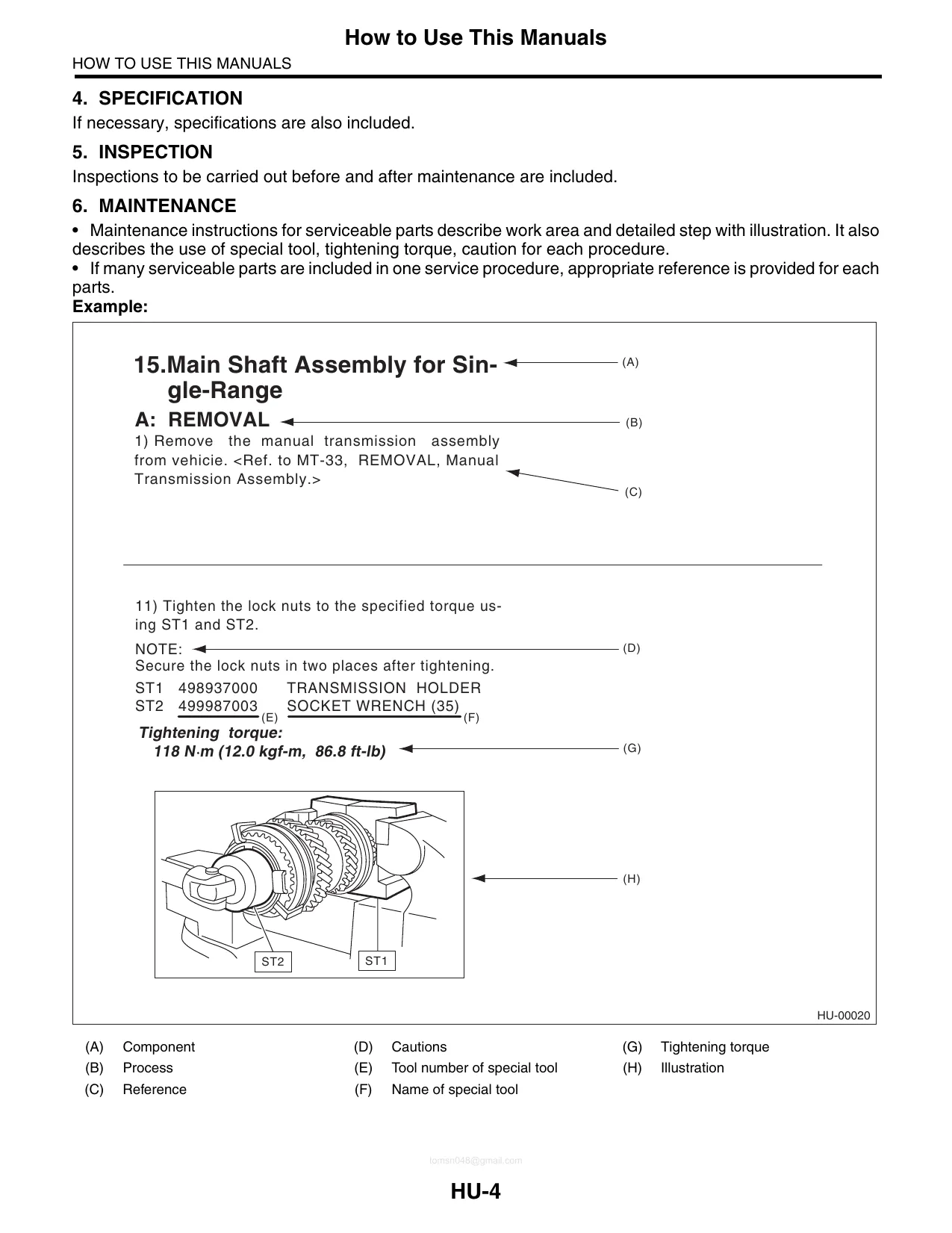

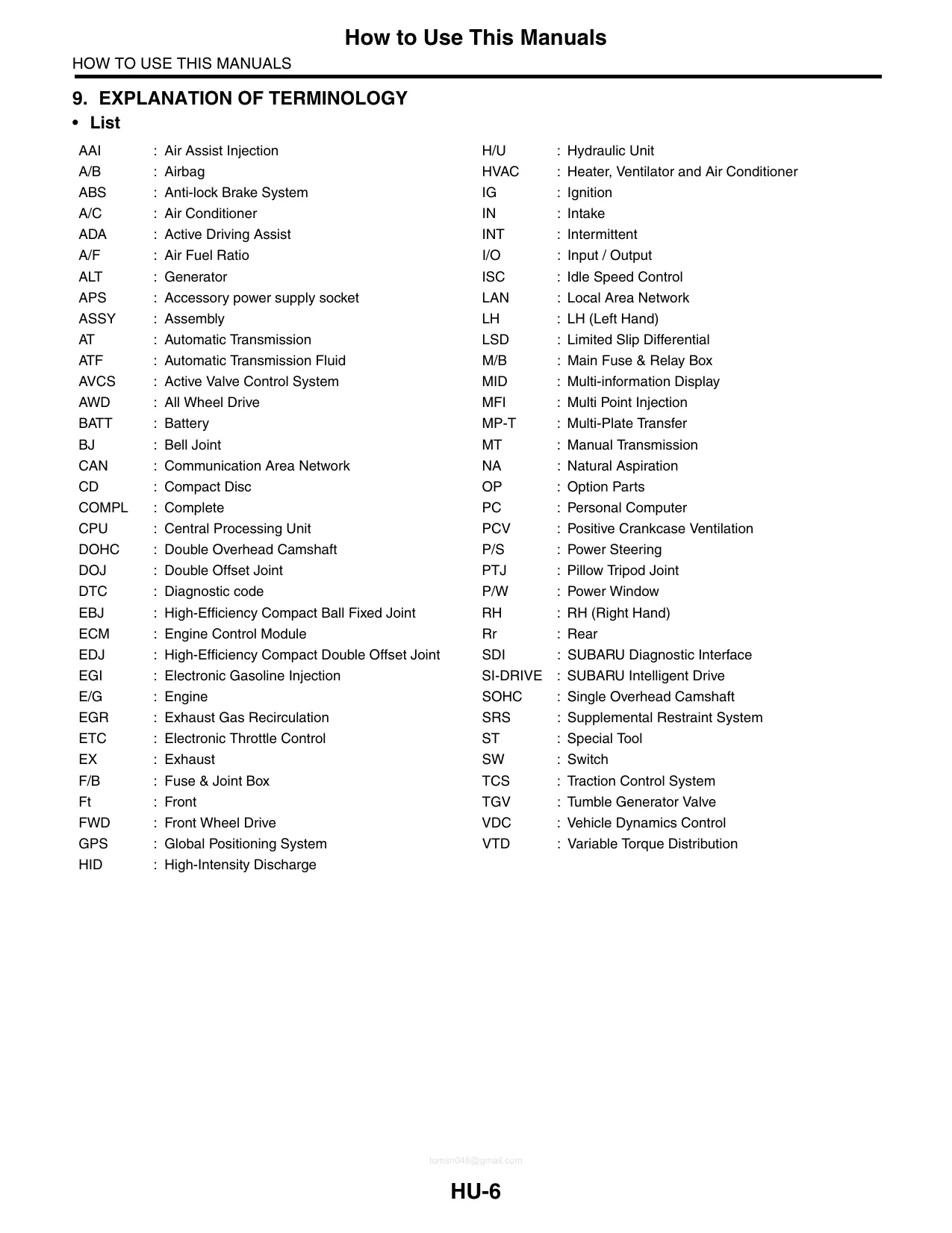

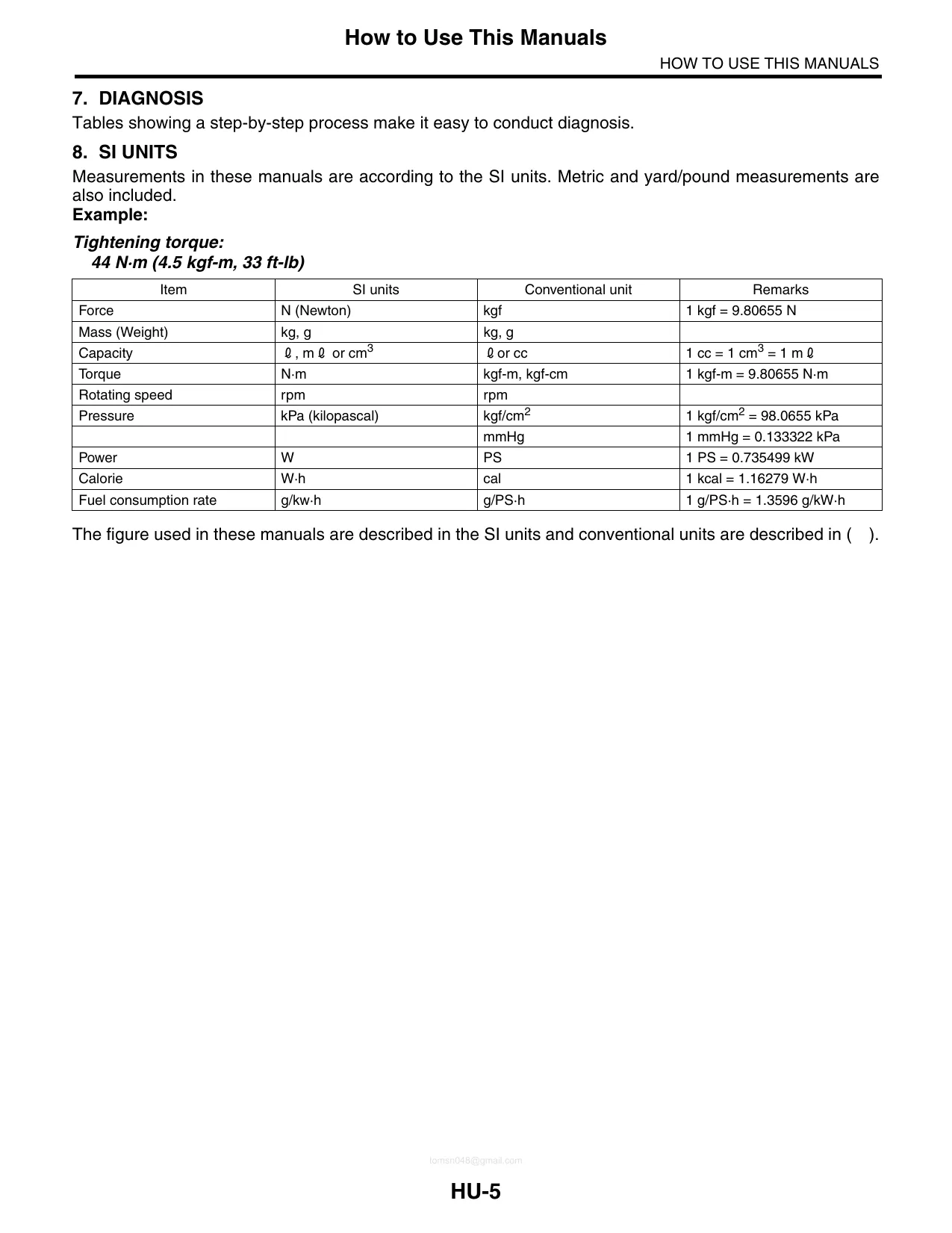

Finding procedures and reading diagrams: Searchable PDF text and embedded bookmarks provide access to service chapters and wiring sections. Small pin numbers and wire-color codes in the checked diagrams are readable when enlarged. The Foreword bookmark opens the first available How to Use page, printed HU-3.

The ZIP contains one printable, English-language PDF totaling 4,981 pages, including 44 section-end pages containing headers and footers only. The archive also includes a separate PDF-reader installer; it is not an additional manual.


Engine, AWD and Vehicle-System Service

The following is a selection of covered work, rather than a full contents list. Other topics include pre-delivery inspection and cruise-control diagnosis.

  • Engine repair: Engine removal, cylinder-head and block service, H4 timing-belt and H6 timing-chain procedures, plus lubrication, cooling, ignition, starting and charging systems.

  • Transmission and AWD: 4AT, 5AT, 5MT and 6MT disassembly and reassembly, clutch hydraulics, transfer clutches, center differentials and pressure-testing procedures.

  • Chassis and brakes: Alignment, struts, links, hub bearings, drive shafts and power steering, with hydraulic brake bleeding, ABS/VDC service and tire-pressure monitoring diagnosis.

  • Scan-tool diagnostics: DTC charts, live data, active tests and calibration routines for powertrain controls, airbags, occupant detection, immobilizer and CAN communication.

  • Body and HVAC: Refrigerant recovery, charging and leak checks; glass, doors, seats, sunroof, locks, trim and exterior-panel removal and installation.

  • Wiring and reference data: System schematics, connector pin views and harness locations, supported by torque tables, fluid data, gear ratios, electrical test values and wear limits.

Because the repair procedures assume Subaru special tools, presses, gauges and scan-tool access, this manual is suited to professional technicians and experienced owners with equivalent shop equipment.

Engine Variants and Fuel-System Repair

Separate H4SO, H4DOTC and H6DO sections distinguish naturally aspirated, turbocharged and six-cylinder engine work. Step-by-step procedures cover internal inspection and overhaul work, with component illustrations, clearances and assembly specifications.

Fuel and emissions coverage follows the throttle body, intake manifold, injectors, fuel pump and tank, evaporative controls, A/F and oxygen sensors, and ECM circuits. The turbo material adds tumble generator valves, oil-flow and wastegate solenoids, secondary-air components, turbocharger, intercooler and SI-DRIVE controls.

Transmission Internals and Post-Repair Learning

The drivetrain material distinguishes 4AT MPT, 5AT VTD and viscous-center-differential manual layouts. Internal procedures address torque converters, oil pumps, valve bodies, clutch packs, pinion shafts, front differentials, mainshaft and driven-gear assemblies, shifter mechanisms and final setup checks. Rear-differential procedures distinguish T- and VA-type units.

Control-valve air bleeding and 4AT/5AT learning routines link mechanical service to the required follow-up checks. The 5AT section explains when learning is needed after TCM, transmission or valve-body work.

Calibration and Vehicle Matching

Subaru Select Monitor routines include VDC steering-angle neutral-position and lateral-G zero-point settings. Occupant-detection re-zeroing is specified after relevant passenger-seat or detection-system work.

VIN, model, option, engine, transmission and rear-differential identification tables help match the vehicle’s configuration before procedures or parts are selected. Application information distinguishes Base, Limited and L.L.Bean grades where listed. Parts ordering is referred to a separate Subaru parts catalog.

Workshop Tools, Wiring and Body Reference

Special-tool tables give tool numbers and applications, including the 1B022XU0 Subaru Select Monitor III Kit, 18231AA010 Cam Sprocket Wrench, 18762AA000 Compressor Special Tool for multi-plate-clutch disassembly, and 926470000/28099PA110 axle-shaft puller set.

Illustrations include H4 timing-belt exploded views and H6 timing-chain assembly views. Named circuit sheets include Engine Electrical System, AT Control System, Airbag System, Occupant Detection System and CAN Communication System.

Periodic-maintenance schedules accompany approved-fluid and capacity tables, alignment geometry, adjustment data and pressure-test specifications. Body sections add datum dimensions, sealing locations and corrosion-protection information.

Timing and Hub-Bearing Cautions

The DOHC timing-belt chapter warns that incorrect cam rotation or belt mis-indexing can cause valve-to-valve or valve-to-piston contact. The front-axle procedure warns that loosening the axle nut with the wheel installed can damage the wheel bearing.

Airbag, brake-hydraulic, refrigerant, fuel-system and vehicle-lifting work requires the isolation, pressure-control, recovery and support precautions specified in the manual. Safety-critical repair should be left to a qualified technician when the required training or equipment is unavailable.

A Preview of Valve-Clearance and A/C Specifications

For the H4SO engine, the valve-clearance section specifies cold clearances of 0.20 ± 0.04 mm at the intake valves and 0.25 ± 0.04 mm at the exhaust valves, alongside inspection and adjustment procedures.

The automatic A/C specifications list an HFC-134a refrigerant charge of 0.40 ± 0.03 kg. This value accompanies the HVAC service material and applies to the automatic A/C configuration.
