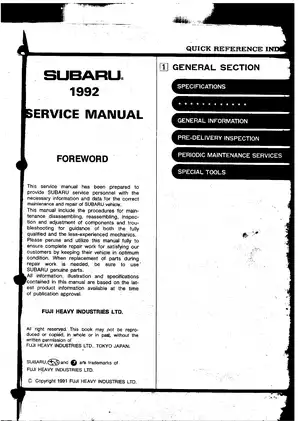

1992 Subaru Legacy Service Manual Set (P/N G205AE )

The general volume supplies maintenance schedules and special-tool references, while the system volumes connect component inspection and repair procedures with specifications and troubleshooting information. Coverage distinguishes Australian and except-Australia configurations, including the right-hand-drive variants identified in the VIN tables.

Coverage limits: This is a partial manual set. The internal 4AT overhaul chapter is absent, although automatic-transmission removal, installation, selector service and electrical diagrams are included. The manual-transmission and body sections have page gaps, and the dedicated pneumatic-suspension service and troubleshooting pages listed in the contents are missing.

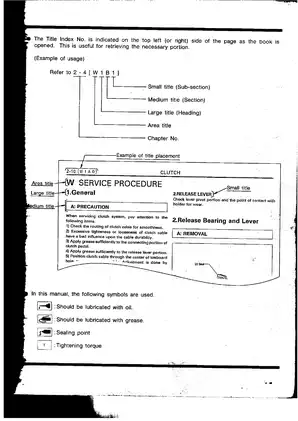

PDF Bookmarks, Text Search and Diagram Detail

Navigation and small labels: PDF text search is not available. Embedded bookmarks provide access to the major sections and many individual topics. Small connector numbers and wire-color codes in the checked wiring diagrams require zooming; some fine annotations are faint.

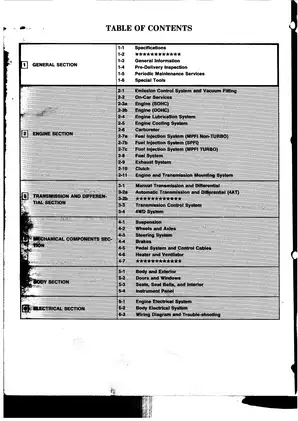

One printable PDF contains 1,427 pages, including 10 section front and back covers, plus the included forewords and indexes. These pages are already included in the total.

Engine Repair, Injection Diagnosis and Chassis Service

These selected topics show part of the workshop coverage; the set also contains Hill-holder adjustment information and heater vacuum-control checks.

• Engine repair: SOHC and DOHC disassembly, cylinder-head and crankshaft inspection, timing-belt replacement, hydraulic lash-adjuster checks, and engine removal and installation.

• Fuel and emissions: Carburetor service, SPFI and MPFI fault diagnosis, turbocharger inspection, intercooler service, emission-control schematics, and vacuum-hose routing.

• Drivetrain service: Selected manual-transmission teardown and assembly procedures, transfer-case work, center-differential inspection, rear-differential adjustment, and mechanical or hydraulic clutch service.

• Brakes and chassis: Disc and drum brake service, ABS diagnosis and hydraulic-unit bleeding, steering-gear inspection, wheel-bearing replacement, and conventional suspension alignment.

• Electrical troubleshooting: System wiring diagrams, connector terminal views, ECU input/output references, charging and starting tests, and harness and ground-point layouts.

Written for Subaru service personnel, the manual provides guidance for qualified and less-experienced mechanics, with procedures that call for workshop measuring equipment and specified special tools.

Engine Inspection and Fuel-System Fault Tracing

The engine chapters detail lubrication, cooling and exhaust-system service alongside internal engine work. Step-by-step instructions cover timing-belt replacement and cylinder-head disassembly, with inspection limits for camshafts, valve guides, bearings and related components.

The injection chapters separate SPFI, non-turbo MPFI and turbo MPFI diagnosis. Read-memory and D-check flowcharts, starting-failure tests, ECU terminal data and Select Monitor output references let a mechanic follow a reported fault through the relevant sensor, power-supply and harness checks before selecting a repair.

Turbo coverage includes oil-leak inspection, shaft-play checks and intercooler components. The turbocharger itself is not intended for internal disassembly or adjustment; foreign material entering its openings can damage the turbine and compressor blades.

Transmission, Differential and Chassis Work

The included drivetrain pages distinguish FWD, selective 4WD and full-time 4WD arrangements. They show transfer-case work, selected main-shaft procedures, differential backlash and tooth-contact checks, and rear-differential assembly.

Special-tool references include the depth gauge 498147000 and dial gauge 498247100. The manual-transmission sequence contains missing pages, so it should not be treated as an uninterrupted overhaul guide.

Brake coverage includes caliper inspection, drum-brake adjustment, ABS fault charts and hydraulic-unit bleeding. Pneumatic suspension is represented by operational checks, specifications and electrical schematics; the missing dedicated service pages limit its mechanical repair coverage.

The full-time 4WD automatic precautions explain that incorrect roller-test preparation can damage the transfer clutch. Driveline, suspension and brake work requires appropriate training, measuring equipment and vehicle support.

Wiring References and Body Excerpts

Electrical references include Power Supply Routing, Automatic Transmission Control (4AT), Pneumatic (Air) Suspension, Antilock Brake System and electrical harness/ground-point layouts. Connector sketches identify terminal positions alongside the circuits.

The body excerpts provide door-alignment data, exploded views for door glass and locks, and instrument-panel removal information. They do not constitute a complete body-repair volume.

Standard bolt-torque tables distinguish 5T, 7T, 9T and 10T hardware classes, alongside assembly-specific tightening data elsewhere in the set.

Examples of Plug-Gap, Idle-Speed and Capacity Data

The FWD sedan capacity table lists 4.5 liters at the upper engine-oil level. Spark-plug specifications distinguish the 0.8 mm gap for carbureted 1600/1800 cc engines from the 0.7–0.8 mm range for the 2000 cc turbo.

For the carbureted 1800 cc engine, the idle-speed procedure specifies 800 ± 50 rpm with the engine fully warmed, the transmission in neutral or N/P, and the listed accessory loads switched off.
