1992 Subaru Liberty Factory Service Manual

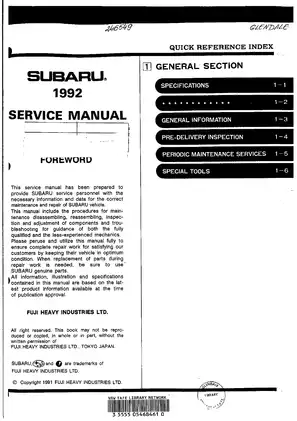

Fuji Heavy Industries' 1992 Subaru Liberty service manual, copyright 1991, covers sedan, station wagon, and touring wagon configurations. Separate model tables identify Australian and other-market applications, including DL, GL, GX, LX, and turbo variants.

• Engine repair: SOHC and DOHC engine disassembly, cylinder-head and crankcase inspection, hydraulic lash adjusters, and camshaft drive belt replacement.

• Fuel and emissions: Carburetor service, MPFI and SPFI fault diagnosis, emission-control layouts, and turbocharger and intercooler inspection.

• Transmission and differentials: Manual gearbox overhaul, 4AT clutch and valve-body service, differential adjustment, and transmission control troubleshooting.

• Suspension and steering: Conventional struts, pneumatic height-control diagnosis, wheel alignment, axle service, and power-steering gearbox and pump repair.

• Brakes: Disc and drum brake service, hydraulic bleeding, Hill-Holder adjustment, and ABS sensor, control-unit, and hydraulic-unit procedures.

• Body service: Body datum dimensions, sealing and corrosion protection, door and window adjustment, sunroof repair, and interior removal.

• Electrical systems: Starter and alternator overhaul, cruise-control diagnosis, wiring diagrams, connector pin views, and harness and ground-point locations.

Written for Subaru service personnel, including fully qualified and less-experienced mechanics, the manual specifies workshop tools and diagnostic equipment for the relevant jobs.

VIN Identification and Workshop Reference

The general information chapter covers VIN decoding, lifting and jacking points, and standard bolt and nut torque tables. Its applicability charts distinguish right-hand-drive configurations by market, engine, body, and transmission.

Pre-Delivery Inspection and Periodic Maintenance Services cover road-test checks, automatic transmission fluid replacement, and routine inspections. Special-tool references identify the Select Monitor kit, 498307500, used in electrical troubleshooting.

SOHC, DOHC, and Fuel-System Repair

Engine chapters cover cylinder-head and block disassembly, camshaft and crankshaft inspection, and component-specific assembly data. Timing-belt routing illustrations support the camshaft drive procedures; separate sections address lubrication, cooling, exhaust components, and engine and transmission mountings.

MPFI non-turbo, SPFI, and MPFI turbo chapters have their own self-diagnosis charts, Select Monitor procedures, and ECU input/output data. These distinctions help match a fault code to the correct circuit checks before a sensor or control unit is condemned.

Turbocharger and intercooler procedures cover removal, inspection, and installation. The turbocharger itself is not intended for internal disassembly or adjustment. The handling precautions explain how debris entering the turbine or blower openings can damage the blades.

Gearbox Overhaul and 4WD Testing

Manual-transmission procedures distinguish FWD, selective 4WD, and full-time 4WD assemblies, including single-range and dual-range versions. Center differentials, viscous couplings, bearing preload, and gear backlash receive separate treatment.

The 4AT section covers clutch packs, the hydraulic control valve body, transfer clutch, performance tests, and TCU fault diagnosis. Transmission overhaul coverage is for 5MT and 4AT units; 3AT references elsewhere concern identification and related systems.

Chassis dynamometer and on-car tire-balance procedures distinguish the different drivetrains. The automatic 4WD precautions identify transfer-clutch damage as a risk of an incorrect roller-test setup.

Struts, Height Control, and Brake Diagnosis

Chassis chapters cover MacPherson front struts and dual-link rear struts. Pneumatic suspension material adds air-strut, compressor/drier, and solenoid-valve service, with height-sensor signals and fault-code charts.

Steering coverage includes rack-and-pinion gearbox internals and pump inspection. Brake sections distinguish NIPPON ABS and BOSCH ABS equipment alongside conventional brakes and Hill-Holder service. ABS hydraulic units are treated as replacement assemblies, not internally rebuildable components.

Body Repairs and Circuit Tracing

Body sections define datum dimensions, sealing locations, and repair procedures for colored polypropylene bumpers. Door and window assemblies, seats, belts, interior trim, and the instrument panel have removal and adjustment information.

Electrical chapters provide MPFI turbo, pneumatic suspension, and ABS wiring diagrams, plus Super Multiple Junction terminal arrangements and harness-location views. These connect circuit references to physical connectors and ground points for open-circuit and short-circuit diagnosis.

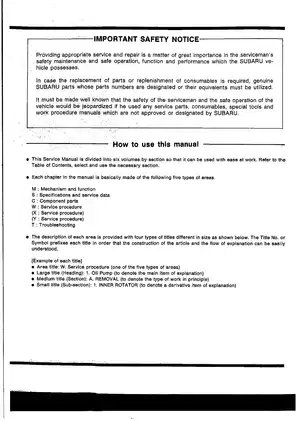

Working with high-pressure fuel setups, heavy drivetrain components, and complex electrical systems carries inherent physical risks. Follow the manual's precautions and equipment requirements before advanced mechanical or electrical work.

A Preview of Spark-Plug and Oil-Level Specifications

These examples represent a small selection of the manual's maintenance data, which also includes SAE viscosity charts and coolant concentration curves.

For the 1800 cc carbureted engine, the specified spark-plug gap is 0.8 mm; the SPFI specification is 1.0–1.1 mm. The engine-oil reference gives 4.5 liters at the upper dipstick mark and 3.5 liters at the lower mark, alongside level-check guidance.

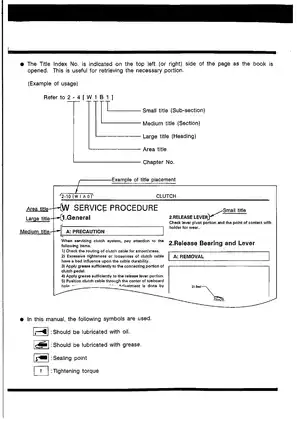

PDF Navigation, Diagrams, and Volume Breakdown

Search, navigation, and wiring detail: PDF text search and embedded bookmarks are not available. Small wiring labels require zooming, especially in dense connector and ECU-terminal areas.

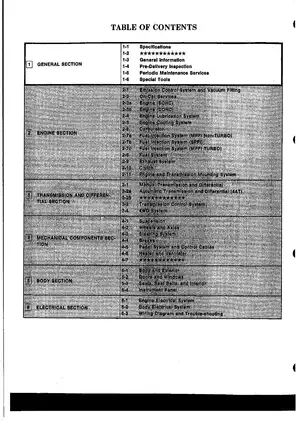

One printable English-language PDF combines six volumes: General, 121 pages; Engine, 618; Transmission and Differential, 376; Mechanical Components, 349; Body, 201; and Electrical, 292. The 1,957-page total includes all six volume covers and 23 introductory and contents pages.
