Dodge Ram 1500/2500/3500 2003 Service & Repair Manual — Dakota Cover
2,897 Pages • ZIP Download: Printable PDF • 74.58 MB
Dodge Models Covered & Key Technical Specifications
Models: Dakota Base, Dakota Sport, Dakota SLT, Dakota R/T
Sub-models / Variants: Ram 1500 (DR1: 4X2; DR6: 4X4), Ram 2500 (DR2: 4X2; DR7: 4X4), Ram 3500 (DR3: 4X2; DR8: 4X4), Conventional Cab (61: Short Box; 62: Long Box), Quad Cab (41: Short Box; 42: Long Box)
Model Year: 2003
-
Engine Options: 3.7L 6 cyl. MPI (EKG), 4.7L 8 cyl. MPI (EVA), 5.7L 8 cyl. SMPI (EZA), 5.9L 8 cyl. SMPI Gasoline (EML), 5.9L 6 cyl. Cummins Turbo Diesel (ETC; VIN position 8: 6), 5.9L 6 cyl. Cummins Turbo Diesel High Output (ETH; VIN position 8: C), 8.0L 10 cyl. MPI (EWA)
-
Transmission Types: 4-speed Automatic (46RE [DGT], 45RFE [DG4], 47RE [DGP; identification and maintenance references], 48RE [DG8]), 5-speed Automatic (545RFE), 5-speed Manual (NV3500 [DDC; 4X2/4X4], NV4500 [DDP; standard-duty 5.7L or heavy-duty V10/Cummins diesel]), 6-speed Manual (NV5600 [DEE])
-
VIN Variant Identification: Position 6: 3 = Ram 3500 with single rear wheels; 4 = Ram 3500 with dual rear wheels
-
Coolant System Capacity (3.7L/4.7L/5.7L): 15.4 Liters (16.2 quarts)
-
Engine Oil Capacity (4.7L, with filter): 5.6 Liters (6.0 quarts)
-
Front Hub/Bearing Bolt Torque (LD): 163 Nm (120 ft-lbs)
-
Suspension: Independent front suspension with coil spring (4X2) or torsion bar (4X4 LD); separate front link/coil suspension coverage
Dodge Manual Features & Selected Content Preview
Important coverage note: The cover is titled 2003 Dodge Dakota, but the service-manual body covers 2003 DR-series Dodge Ram 1500, 2500, and 3500 pickups. Its vehicle identification tables, body codes, and repair chapters identify Ram configurations. This is not Dakota-specific repair documentation.
PDF Search, Bookmarks, and Wiring Detail

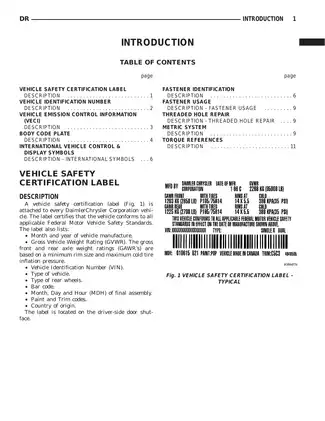

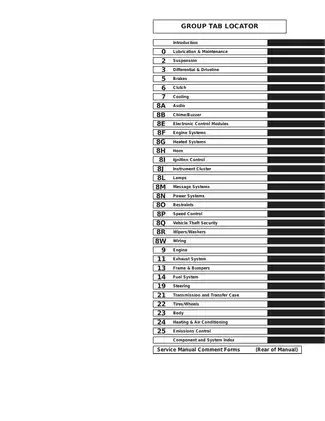

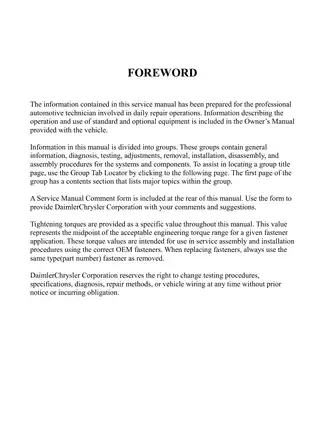

Search and diagram access: Mechanical chapters and connector pin-outs have searchable text, while many wiring-diagram pages do not. Embedded bookmarks navigate the repair chapters, although the Foreword entries are misdirected or inactive. Dense wiring pages require zooming to read small pin numbers, fuse labels, and wire-color codes.
The ZIP download contains one printable, English-language PDF with 2,897 pages, including the Dakota-labeled cover, 31 blank separator pages, and two service-comment/mailing pages. These additional pages are already included in the total.
Engine Overhaul, Drivetrain Repair, and Electrical Diagnosis
The following selected coverage highlights major workshop tasks rather than reproducing the full contents list. Other sections include audio-system diagnosis and wiper/washer service.
-
Engine repair: Step-by-step procedures for engine removal, cylinder-head and valve-train service, timing-system work, bottom-end inspection, and lubrication-system repair, supported by compression and leakage tests.
-
Transmission and transfer cases: Internal disassembly, inspection, reassembly, installation, road testing, hydraulic pressure testing, and clutch or band air checks for the covered units.
-
Driveline and suspension: Propeller-shaft and CV half-shaft service, axle diagnosis, differential adjustment, wheel alignment, and independent, link/coil, and rear leaf-spring suspension work.
-
Brakes: Base-brake diagnosis, ABS and RWAL component service, hydraulic bleeding, hydro-boost bleeding, and scan-tool-assisted ABS bleeding.
-
Wiring and circuit diagnosis: System-specific electrical schematics, power and ground distribution, connector pin-outs, and illustrated connector, ground, and splice locations.
-
Electronic service routines: TCM Quick Learn and Drive Learn, PCM/SKIM programming, Sentry Key initialization, and instrument-cluster configuration information.
-
Maintenance and specifications: Schedule A and Schedule B tables, approved fluids, capacities, component-specific torques, pressure-test data, wear limits, electrical test specifications, and special-tool listings.
The manual is written for professional automotive technicians involved in daily repair work.
Engine, Fuel, and Cooling Coverage
Gasoline engines: Separate chapters address the 3.7L, 4.7L, 5.7L, 5.9L, and 8.0L engines. Coverage extends to intake and exhaust manifolds, cylinder heads, camshafts or in-block valve gear, pistons and connecting rods, crankshafts and bearings, oil pumps and pans, seals, and timing chains or gear drives.
Cummins diesel: Identification tables distinguish standard- and high-output builds. Diesel service includes smoke-diagnosis charts, valve adjustment, cylinder compression and leakage testing, fuel-transfer and high-pressure delivery systems, fuel rails, injectors, water-separator components, and intake-air heaters.
Early and late APPS and fuel-filter-housing arrangements are distinguished. Injector procedures identify tool 9010 for injector removal and 9015 for high-pressure connector removal. The cleanliness cautions explain how contamination can wear injectors or obstruct nozzle holes, while improvised removal can damage the injector.
Cooling and boost systems: Engine-specific sections cover accessory drives, fans, thermostats, radiators, water pumps, transmission coolers, and diesel cooling components. Turbocharger material adds boost-pressure checks, charge-air-cooler leak testing, and removal and installation procedures.
Transmission and Transfer-Case Repair
Manual-transmission chapters cover the NV3500, NV4500, and NV5600, including synchronizers, shafts, forks, bearings, and separate 2WD/4WD installation details. The NV4500 material distinguishes standard-duty and heavy-duty applications.
Automatic overhaul chapters cover 46RE, 48RE, and 45RFE/545RFE units. Power-flow diagrams and hydraulic schematics support pressure-port testing, valve-body and oil-pump service, geartrain and clutch-pack overhaul, and applicable band adjustments.
The 47RE appears in identification and maintenance references but has no separate overhaul chapter. Transfer-case repair covers the NV241 Gen II, NV271, NV243, and NV273.
Installation cautions address torque-converter seating and overlong converter-to-driveplate bolts that can damage the converter’s internal clutch surface.
Axles, Steering, and Chassis
Axle coverage includes C205F and 9 1/4 AA front axles, plus 9 1/4, 10 1/2 AA, and 11 1/2 AA rear axles. Noise and vibration diagnosis leads into shaft and seal replacement, ring-and-pinion installation, pinion depth, backlash, bearing preload, and contact-pattern checks.
Trac-Lok and Trac-Rite: The manual distinguishes clutch-type limited-slip service from Trac-Rite cleaning and assembly replacement when damaged. Axle cautions warn against correcting excessive pinion preload by loosening the nut because the collapsible spacer may already be damaged.
Steering sections cover the column, linkage, steering gear, hydraulic pump, hoses, and related diagnosis and adjustment procedures.
Electrical Fault Tracing and Diagnostic Limits
The 8W section includes Fuel/Ignition System, Transmission Control System, All Wheel Antilock Brakes, Airbag System, Trailer Tow, and Connector Pin-Outs. Connector views and illustrated ground and splice locations let a technician follow a circuit from its schematic to the physical connection.
Separate starting- and charging-system tests support diagnosis beyond component location. DRBIII service information explains the programming and learning requirements associated with module or transmission replacement.
Some electronic fault-isolation work requires separate Powertrain Diagnostic Procedures or Body Diagnostic Procedures publications. These are not included, so this download does not supply every code-by-code diagnostic decision tree.
Body and HVAC Service
Body chapters cover water leaks, wind noise, plastic-panel repair, buzz/squeak/rattle diagnosis, doors, and glass. HVAC coverage includes R-134a testing and service, compressor-clutch work, and single- or dual-zone door-actuator replacement with electronic-calibration requirements.
Support the truck at the specified hoist points and isolate high-pressure diesel fuel, airbag, and refrigerant systems before related repair work.
Examples of Valve-Lash and Transmission Inspection Data
For the 5.9L Cummins diesel, the valve-lash section specifies reset values of 0.254 mm (0.010 in.) intake and 0.508 mm (0.020 in.) exhaust, with coolant below 60°C (140°F). It separately lists acceptable inspection limits, distinguishing a reset specification from the range that requires no adjustment.
For the 45RFE/545RFE, the transmission inspection specifications include output-shaft end play of 0.22–0.55 mm (0.009–0.021 in.), alongside component-specific clutch-pack clearances.
