Jeep Cherokee XJ (2000) & Grand Cherokee WJ (2001) Service Manual Set
4,162 Pages • ZIP Download: 2 Printable PDFs • 95.44 MB
Jeep Models Covered & Key Technical Specifications
Models & Model Codes: Cherokee (XJ), Grand Cherokee (WJ)
Sub-models / Variants: Cherokee (XJ): SE, Sport, Classic, Country, Limited, 4X2 and 4X4 (LHD/RHD), including 4X4 RHD export; AX5 and NV3550 manual transmissions, 30RH and AW-4 automatic transmissions. Grand Cherokee (WJ): Laredo, Limited, 4X2 and 4X4 (LHD); 42RE and 545RFE automatic transmissions.
Model Year: 2000
VIN identification: XJ position 5 (vehicle line): F = 4X4 LHD, N = 4X4 RHD, J = 4X4 RHD export, B = 4X2 RHD, T = 4X2 LHD. WJ position 5 (vehicle line): 2 = 4X2 LHD, W = 4X4 LHD. Position 8 (engine): XJ P = 2.5L gasoline, S = 4.0L gasoline, M = 2.5L diesel; WJ S = 4.0L gasoline, N = 4.7L gasoline.
-
Engine displacement: Cherokee (XJ): 2.5L Gasoline, 4.0L Gasoline, 2.5L Diesel (DD85C). Grand Cherokee (WJ): 4.0L Gasoline, 4.7L Gasoline.
-
Cooling system capacity: Cherokee (XJ): 9.5 L (2.5L gas), 11.4 L (4.0L gas). Grand Cherokee (WJ): 14.1 L (4.0L gas), 13.7 L (4.7L gas).
-
Front axle hub nut torque: 237 N-m (175 ft. lbs.) (XJ and WJ)
-
Front axle lubricant capacity: Cherokee (XJ): 1.48 L (181-FBI, gasoline maintenance table), 1.18 L (186-FBI), 1.2 L (Model 181 diesel).
-
Rear axle lubricant capacity: Cherokee (XJ): 1.66 L (194-RBI), 2.08 L (8-1/4), 1.6 L (Model 194 diesel), 2.3 L (8-1/4 diesel).
-
Transfer case lubricant capacity: Cherokee (XJ): 1.3 L (Selec-Trac 242), 1.0 L (Command-Trac 231, gasoline), 1.3 L (Command-Trac 231, diesel). Grand Cherokee (WJ): 1.35 L (NV242), 1.6 L (NV247).

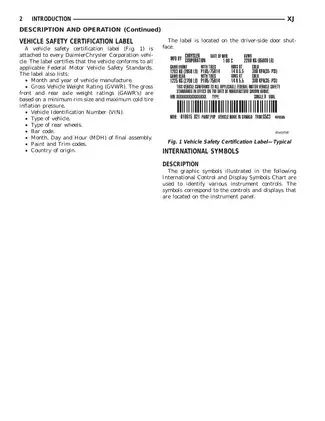

Jeep Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 2000 Jeep Cherokee (XJ) Electronic Service Manual | 2,101 |
| 2001 Jeep Grand Cherokee (WJ) Electronic Service Manual | 2,061 |
Each volume is a separate workshop reference. Choose the volume by vehicle platform and model year before using a wiring diagram, fluid specification, or repair procedure.
Model fit: The 2000 PDF cover reads “Grand Cherokee,” but its service chapters apply to the Cherokee XJ. Use the 2001 volume for the Grand Cherokee WJ.
PDF Search, Bookmarks, and Download

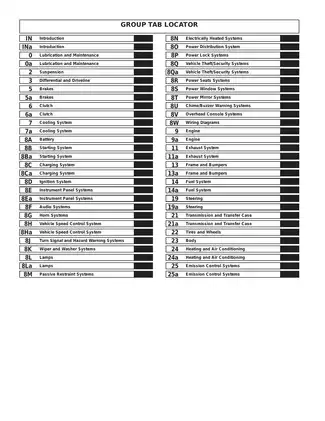

Finding procedures and wiring details: The XJ volume supports text search on its content pages. The WJ volume is partially searchable, with some wiring sheets best located through the bookmarks. Both volumes have chapter and subsection bookmarks, with a few entries that do not jump to a page in the file. Zoom in to read small connector, pin, and wire labels on dense diagrams.
The English-language ZIP download contains two printable PDFs totaling 4,162 pages, including both covers, blank pages, and the two-page service manual comment form in the WJ volume.
Powertrain Overhaul, Axle Setup, and Circuit Diagnosis
These are selected workshop topics. The volumes also include service information for restraint systems and vehicle theft security.
- Engine overhaul: Engine removal and installation, cylinder head and valvetrain service, timing components, pistons and connecting rods, crankshaft bearings, and oil pump service.
- Engine and fuel diagnosis: Compression, combustion leakage, and oil pressure tests, plus XJ turbo-diesel injection pump testing, timing, fuel system bleeding, and high-pressure line service.
- Transmission and transfer case: Disassembly, inspection, reassembly, and hydraulic testing where applicable, with separate procedures by transmission or transfer case.
- Axles and chassis: Propeller shaft and universal joint service, axle shafts and hubs, ring-and-pinion setup, suspension, steering, and base brake service.
- Electronic service and ABS: WJ PCM and SKIM programming, TCM Quick Learn, and scan-tool-assisted ABS bleeding.
- Wiring and fault isolation: Fuel and ignition, transmission control, ABS, HVAC, power and ground distribution, connector pinouts, splice locations, and circuit tests.

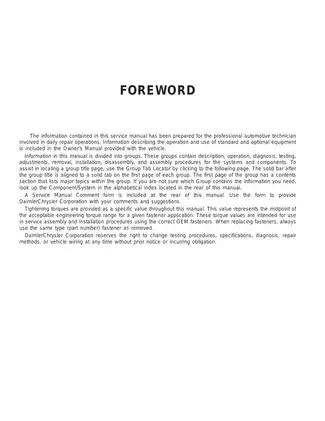

The forewords identify professional automotive technicians as the intended users. Some procedures call for specialty tools, standard shop equipment, or a DRB III scan tool.
XJ Axle Setup and Diesel Service
The XJ axle chapters cover the 181 FBI and 186 FBI front assemblies and the 194 RBI and 8¼ rear assemblies. Use the axle-specific procedures for pinion seals, differential removal, and gear installation. Pinion depth, bearing preload, backlash, and tooth contact are separate checks, with tool references including dial indicator C-3339, axle spreader W-129-B, and pinion depth tool set 6774. Mark the propeller shaft and yokes before separation so they can be reinstalled in phase and avoid driveline vibration. Support the shaft during removal to protect the joint.
The 2.5L turbo-diesel chapters include MSA/DRB III diagnostic information alongside mechanical engine and injection system procedures. The separate diesel maintenance and fuel chapters help locate the correct service procedure for the diesel configuration.
WJ Transmission, Differential, and Cooling Service
The WJ volume covers the 42RE and 545RFE automatics and the NV242 and NV247 transfer cases. Its axle chapters include the 186FBI front axle, the 198RBI and 226RBA rear axles, and Vari-Lok service. For 4.7L cooling complaints, the hydraulic fan diagnosis accounts for the shared power steering fluid circuit.
Tracing Electrical Faults
Follow a circuit from the power distribution diagram through its splices and connector pinouts to the load and ground. The wiring chapters pair those references with continuity, short-to-ground, and voltage drop tests, so you can isolate a wiring fault before replacing a component. The manuals also provide transmission schematics, axle illustrations, torque tables, fluid capacities, and wear and adjustment limits.
Sample Maintenance Specification
The WJ lubrication and maintenance table lists 5.7 L (6.0 US qt) of engine oil with a filter change for both the 4.0L and 4.7L gasoline engines.
