Harley-Davidson Sprint C/H/SS/SX 1961–1974 Service Manual (P/N 99492-74)
158 Pages • ZIP Download: 1 Printable PDF (English)
Harley-Davidson Models Covered & Key Technical Specifications
Models: Sprint Models C, H, SS, SX
Sub-models / Variants: C, H, SS, SX, 250, SS-350 (6A), SX-350 (3C)
Model Years: 1961–1974 (1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974)
-
Engine: 4-cycle, overhead-valve, single-cylinder, horizontal configuration
-
Crankcase Capacity: 2.0 quarts (1972 & earlier); 2.6 quarts (1973 & later)
-
Idle Speed: 1200 RPM (optimum carburetor idle speed)
-
Primary Drive: Helical gears
-
Ignition Coil: 6-volt primary circuit (1972 & earlier); 12-volt primary circuit (1973 & later)
-
Front Brake Adjustment: Hand lever free movement of about 1/8 of its full travel
-
Clutch: Multiple-disc; wet type (1968 & earlier), dry type (1969 & later)
-
Transmission: Constant mesh, foot shift; 4 forward speeds (1972 & earlier), 5 forward speeds (1973–1974)
-
Carburetor Serial Breaks: Revised jet specifications for late 1961 C above 61C-1631 and late 1971 SS above 6A-10366H1
-
Frame Serial Break: Separate frame dimensions for 1972 SX above VIN 3C 12065 H2
-
Fork Serial Break: Vent valve and baffle on 1970 SS from serial No. 12216 and on 1971 SS and SX models
-
Generator Serial Break: Armature and crankshaft taper changed during 1969, starting with serial No. 3672
Harley-Davidson Manual Features & Selected Content Preview
Harley-Davidson’s factory service manual, P/N 99492-74, revised 3-77, covers 1961–1966 Sprint C and H models and 1967–1974 H, SS, and SX models. Procedures range from scheduled maintenance to major engine, transmission, chassis, fuel-system, and electrical repair.
PDF Access and Diagram Detail
Text search and wiring labels: PDF text search is not available, and there are no embedded PDF bookmarks. Small component numbers, terminal markings, and wire-color codes in the wiring diagrams require zooming.

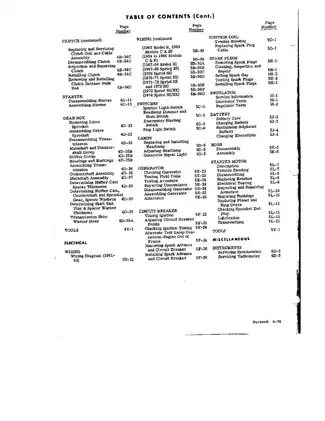

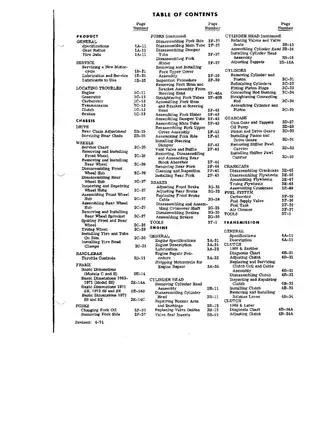

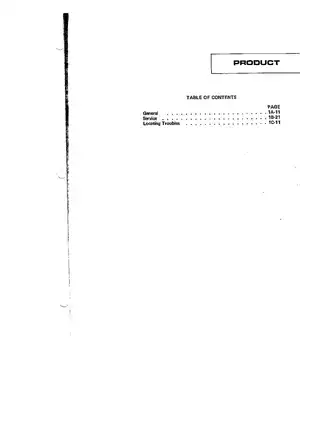

The ZIP download contains one printable, 158-page PDF in English. That total includes the title page, foreword, two general contents pages, and six section contents pages.
Sprint Engine, Drivetrain, and Electrical Service
The following selected coverage highlights outline the main workshop areas rather than reproduce the full contents. Other topics include throttle-control cable replacement and speedometer and tachometer drive service.
-
Engine repair: Step-by-step procedures for engine removal, cylinder-head disassembly, crankcase separation, oil-pump service, flywheel assembly, and flywheel truing.
-
Clutch and gearbox: Separate clutch diagnosis and overhaul sections, transmission disassembly, gear and bushing inspection, shifter repair, and reassembly.
-
Wheels, suspension, and brakes: Wheel-hub repair, wheel lacing and truing, tire and bead-clamp service, fork and steering-head repair, rear-fork alignment, and drum-brake overhaul.
-
Fuel and ignition: Early and late carburetor service, float setting, jet selection, fuel-valve repair, tappet adjustment, circuit-breaker service, and ignition-timing checks.
-
Charging and starting: Generator, alternator, regulator, battery, and starter diagnosis, with manual-starter service, electric-starter repair, and model-specific wiring diagrams.
-
Factory reference data: Frame dimensions, component fits and clearances, wear limits, valve-spring data, flywheel runout, transmission shim tables, electrical test values, and exploded assembly drawings.
The book supports owners performing basic maintenance and repair, while its major-overhaul sections are suited to professional mechanics equipped for precision measurement and press work.
Engine Builds and Internal Repair
The specifications distinguish the 246.2 cc 1961–1966 and 248.4 cc 1967–1968 engines from the 344 cc 1969–1974 builds. Cylinder-head procedures separate the applicable designs, including differences in rocker-arm construction and external oil lines.
Top-end repair extends to rocker-arm bushing service, valve-guide and valve-seat replacement, cylinder refinishing, piston-ring fitting, and connecting-rod alignment. The lubrication chapters distinguish the 1963-and-earlier duplex feed-and-scavenge oil pump from the feed-only arrangement used from 1964 onward.
Gearbox Access, Shimming, and Starter Service
Internal gearbox service requires engine removal and crankcase separation. Mainshaft, countershaft, and shifter-cam checks are supported by end-play measurements, spacer-washer selection procedures, and transmission shim tables.
The manual cautions that pressing multiple transmission gears off together can damage the gears and countershaft. Manual and electric starter drives receive separate treatment; the electric-starter drive clutch is a nonserviceable assembly replaced when defective.
Carburetor and Ignition Adjustments
Early and late carburetors have different starting arrangements and adjustment details. Serial-specific jetting entries help match the calibration data to the carburetor being serviced.
Ignition coverage includes mechanical spark-advance inspection, running-engine checks with a strobe light, and static checks with a circuit tester. The tool listings identify the 95860-67P Crankshaft Degree Indicator for the applicable timing procedures.
Suspension and Brake Variations
Fork, steering-head, shock-absorber, and brake procedures are divided by the applicable year and model. The brake section includes the SS double-leading-shoe front brake and its individual shoe-equalization adjustment.
Shock-absorber repair limits: Late-1972-and-later SS and 1973-and-later SX shock absorbers cannot be disassembled for repair. Earlier serviceable assemblies have their own disassembly and assembly instructions.
Charging Circuits and Electric Starter Repair
For 1973–1974, the earlier generator and separate regulator give way to an alternator, solid-state rectifier-regulator, electric starter, and revised lighting and direction-signal circuits. These distinctions help select the appropriate wiring diagram and diagnostic checks before testing a charging fault.
Starter-motor coverage includes solenoid-circuit diagnosis, brush and commutator work, armature and field-coil testing, and planetary-gear replacement. Reversed battery polarity can damage the rectifier-regulator diodes; a defective module is replaced as a complete unit.
Drawings and Workshop Tools
Illustrations include Basic Frame Dimensions—1973–74 SS and SX, Front Fork (1971 and Later)—Exploded View, Cross Section of Carburetor (1969 and Later), and Transmission, 1973 and Later—Exploded View. Electrical references include the separate 1973 and 1974 Sprint SS/SX Wiring Diagrams and the Rectifier-Regulator Module Schematic Diagram.
Service-tool listings identify the 95760-69 Bushing and Bearing Puller Set, 97305-61 Fork Tube Tool, 97290-61P Valve Spring Compressor, and 97293-61P Clutch Spring Compressor. Crankcase work uses the 97295-61PA and 97297-61PA crankshaft tools.

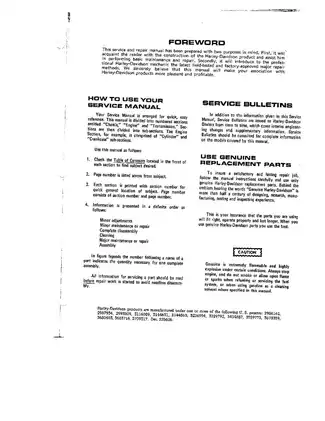

The foreword directs readers to separate Harley-Davidson service bulletins for interim engineering changes. Wheel, steering, suspension, and brake work requires secure motorcycle support; fuel and battery service carries specific fire and explosion precautions.
Examples of Engine Fits and Alternator Test Values
The engine inspection tables specify rocker-arm shaft clearance in its bushings of 0.0005–0.0015 in. and piston-pin clearance in the connecting-rod bushing of 0.0006–0.0012 in.
For the 1973-and-later alternator, the stator checks specify approximately 0.8 ohm across both coils in series, measured brown to green, and approximately 0.4 ohm across either individual coil, brown to black or green to black.
