Harley-Davidson 1998 Sportster XLH 883/1200 Service Manual (P/N 99484-98)

This Harley-Davidson factory service manual (P/N 99484-98) covers the 1998 Sportster XLH 883, XLH 883 Hugger, XLH 1200, XL 1200C Custom, and XL 1200S Sport.

PDF Bookmarks and Wiring Diagram Detail

Navigation and readability — Bookmarks open the seven chapters and the index. PDF text search is unavailable. Small pin numbers and wire codes generally need zooming, and some labels are faint.

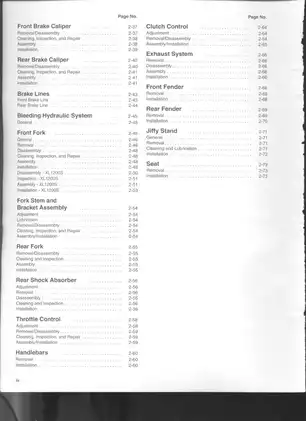

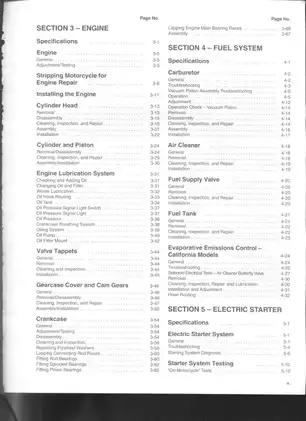

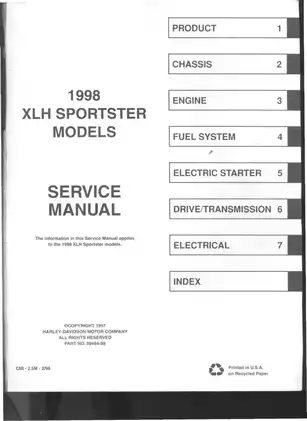

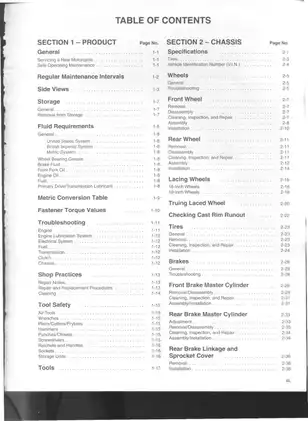

The ZIP contains a single printable, 415-page PDF. The total includes the cover, title page, six contents pages, an unnumbered lubrication diagram, and a second scan of printed page 7-83.

Chassis Repair, Engine Overhaul, and Electrical Tests

These selected shop procedures give a preview of the manual. It also covers storage and rear shock absorber service.

• Scheduled maintenance — Service intervals, shop practices, fluid requirements, torque tables, and factory tool references.
• Chassis and brakes — Wheel bearing service, hydraulic brake repair, and separate front-fork overhaul procedures for the XL 1200S Sport.
• Engine — Compression and cylinder leakage tests, cylinder-head repair, and crankcase and flywheel work.
• Fuel system — Carburetor troubleshooting, air cleaner and fuel tank service, and California evaporative emissions diagnosis.
• Clutch and transmission — Primary chain and secondary belt adjustment, clutch release mechanism repair, gearshaft inspection, and bearing replacement.
• Starting and charging — Starter circuit flowcharts, assembled-starter bench tests, and stator and regulator checks.
• Ignition and wiring — Separate diagnostic charts for standard models and the XL 1200S, with domestic and international wiring diagrams and connector repair.

The manual suits technicians and experienced home mechanics familiar with tools such as a cylinder leakage tester and an electrical breakout box.

Wheels, Brakes, and Sport Forks

The chassis chapter covers lacing and truing spoked wheels, checking cast-rim runout, and measuring wheel bearing end play. It also details front and rear master-cylinder and caliper repair, brake line routing, and hydraulic bleeding. Wheel truing references the HD-99500-80 truing and balancing stand.

The XL 1200S Sport fork has separate disassembly, inspection, assembly, and installation procedures. The service manual refers to the 1998 owner's manual for Sport suspension adjustment procedures, recommended settings, and troubleshooting.

Evolution Engine Overhaul

Compression and cylinder leakage tests help distinguish ring, valve, and head-gasket problems before teardown. The chapter covers engine removal and installation, cylinder-head disassembly, valve-guide and seat work, cylinder and piston measurement, and ring fitting.

Oil-flow drawings accompany pressure checks and oil-pump service. Internal engine work covers tappets, cam timing and bushing inspection, crankcase separation, flywheel truing, connecting-rod races, pinion bearing fitting, and main-bearing race lapping. The manual warns that resting a removed engine on its primary side can damage the clutch-cable end fitting.

Carburetor and California Emissions

The fuel chapter covers carburetor disassembly and vacuum-piston checks. The California section details the air cleaner butterfly valve, control solenoid, emissions hose routing, and solenoid electrical tests.

Primary Drive, Clutch, and Gearbox

Tool references include the HD-35381 belt tension gauge and HD-38515A clutch spring compressor. The clutch service section warns that excessive diaphragm-spring compression can damage the pressure plate.

Transmission procedures cover the shift forks and drum, mainshaft and countershaft, main drive gear, access-door and right-case bearings, and final shifter-pawl adjustment. Exploded views and wear limits accompany the component inspections.

Starter Tests, Ignition, and Harness Repair

Starter diagnostics cover on-bike voltage-drop and current-draw checks, bench testing, and solenoid inspection. The electrical chapter includes charging and battery tests. The battery cable replacement procedure starts partway through because printed page 7-72 is absent.

Standard ignition has no-spark and misfire charts. The XL 1200S single-fire, twin-plug system has check-engine light code retrieval and diagnostic charts for the MAP sensor, cam synchronization, ignition coils, tachometer, bank-angle sensor, battery voltage, and ignition module. The chapter also covers static and dynamic timing, turn-signal cancellation, and speedometer and tachometer testing, including self-diagnostics for the late-model XLH 883 speedometer. Tool references include the HD-41325-95A Scanalyzer cartridge and HD-42682 breakout box with HD-42962 adapters where required.

The wiring sheets include the XL 1200S main harness, ignition, and front lamps, plus the XLH starting and charging circuit and separate main harness and ignition sheets for other XL models. Deutsch, Amp Multilock, Packard, and sealed butt connector procedures cover terminal removal, pin and socket installation, and crimping, with harness-specific crimp tables.

Use the specified tools and shop practices for brake, wheel, steering, engine, and electrical work. Have critical repairs checked by a qualified technician when needed.

Oil Pressure and Cylinder Wear Examples

For both engine sizes, the oil-pressure table gives 7–12 psi at a nominal idle of 1,000 rpm and 10–17 psi at 2,500 rpm. The readings are taken at the oil-pressure switch fitting at normal operating temperature.

For cylinder inspection, the engine tables give service wear limits of 0.002 in. for bore taper and 0.003 in. for out-of-round on both engine sizes.
