1994–2000 Yamaha Timberwolf YFB250FWF Service Manual (P/N LIT-11616-09-11)

• 1994 Yamaha Timberwolf YFB250FWF 4WD, model code 4KD1: factory service coverage supplied with a separate 2000 YFB250FWM owner’s manual.
• Engine repair extends from cylinder-head inspection, valve-guide replacement, and valve-seat work to crankshaft, balancer, and timing-chain service.
• Primary and secondary clutch procedures cover the centrifugal clutch and friction plates, alongside constant-mesh five-speed transmission disassembly, shift-fork inspection, and reverse-gear service.
• Shaft-drive work includes front differential and constant-velocity joints, middle and transfer gears, and the rear final drive, with shim selection, backlash checks, and pinion starting-torque adjustment.
• The Mikuni VM24SH carburetor section details component inspection, float-height adjustment, and fuel-level measurement rather than stopping at idle-speed settings.
• Electrical fault tracing covers CDI ignition, starter and starting-circuit cut-off relays, charging, and lighting. Starter-motor repair includes armature, commutator, and brush inspection.
• Chassis sections address drum-brake and wheel-bearing inspection, steering-shaft and tie-rod service, toe-in adjustment, front struts, and swingarm bearings.

Manual Organization and Model Identification

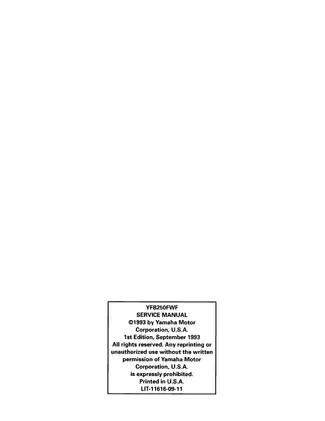

The set totals 503 PDF pages: a 342-page service manual, LIT-11616-09-11, first edition September 1993, and a 161-page owner’s manual, LIT-11626-13-02, first edition February 1999. These are separate Yamaha publications for the model designations listed above.

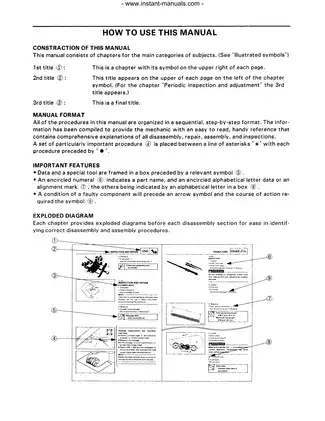

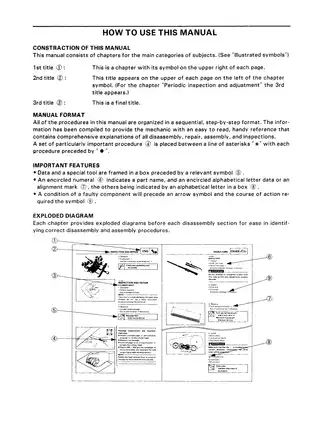

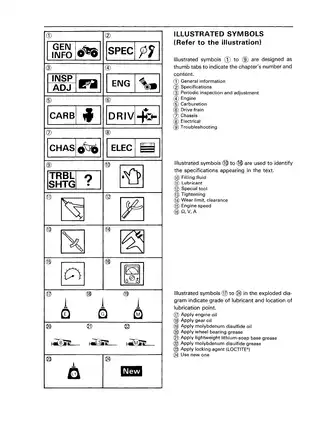

The nine-chapter service manual opens with machine identification, special tool requirements, and general shop information. Identification references include VIN JY44KDA0*RA000101 and engine starting number 4KD-000101, providing a reference for checking the machine against the 4KD1 model designation.

Service PDF condition: Printed pages 7-7 and 7-34 are missing, interrupting the front-brake installation and rear-shock/swingarm removal sections. Printed page 4-11, PDF page 108, is largely unreadable.

Engine and Shaft-Drive Repair Scope

For the air-cooled SOHC single-cylinder engine, Yamaha distinguishes components removable with the engine in the frame from work requiring engine removal. The cylinder head, cylinder, piston, clutches, and oil pump fall into the first group. Middle-gear and transfer-gear service requires removal of both the engine and rear wheel drive assembly.

Exploded views titled “Transmission and Shifter” and “Middle Gear Shims” support internal component identification. The gear-setting procedures explain how housing and gear markings determine shim selection, with separate checks for the front differential, rear final drive, and forward/reverse gear arrangements.

The differential section covers housing, bearing, ring-and-pinion, and joint service, but the factory-assembled internal differential gear unit is not intended for disassembly. That distinction matters when planning a drivetrain rebuild.

Yamaha flags gear-tooth damage from insufficient backlash. Its pinion-setting procedure also warns that excessive tightening can over-collapse the collar, making it unusable.

Technical Preview: Circuits, Tools, and Specifications

The “YFB250FW (F) ’94 Circuit Diagram” maps the machine’s electrical system, while the “Electric Starting System” circuit diagram supports starter-interlock diagnosis. Test procedures distinguish switch and connector faults from ignition-coil, pickup-coil, source-coil, and charging-system problems.

“Lubrication Diagrams” show engine oil paths, and “Cable Routing” drawings document harness, cable, and hose placement. Reference tables provide component-specific tightening torques, fluid capacities, wear limits, clearances, and electrical test specifications.

The special-tool references identify the crankcase separating tool YU-01135-A, fuel-level gauge YM-01312-A, and final-drive shaft bearing-retainer wrench YM-04050.

The final troubleshooting chapter separates clutch slip from clutch drag and addresses hard shifting, jumping out of gear, driveline noise, overheating, and unstable handling.

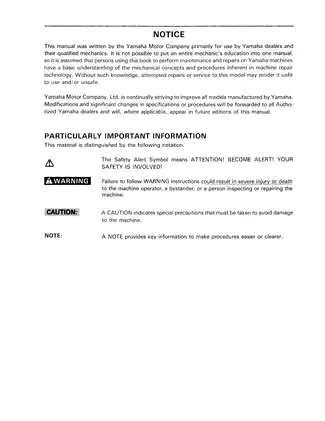

Review the manual’s safety precautions before beginning work, particularly those covering fuel handling, electrical testing, and supporting the ATV during chassis repair.

Separate Owner’s Manual

The YFB250FWM guide adds electric and recoil starting, reverse-control operation, break-in, cargo and trailer loading, and terrain-specific riding guidance. Its maintenance coverage includes air-filter and spark-arrester cleaning, storage preparation, and a maintenance record.

This is an operating and basic-maintenance publication, not a later-model workshop supplement. The two manuals contain different lubrication-capacity data; specifications must remain tied to the matching model designation.
