Yamaha Models Covered & Key Technical Specifications

Models & Model Codes:

Badger 80 — YFM80N(C) (owner's manual)

Raptor 80 — YFM80RT (owner's manual)

YFM80(D) — 4EM 1 (USA and Oceania), 4EM 2 (Europe)

YFM80M — 4EMT (except California)

YFM80MC — 4EMS (California)

YFM80WP — 5TH1

Model Years: 1993–2002 (1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002)

Starting frame and engine serial numbers — YFM80(D): 4EM-000101 (USA and Oceania), 4EM-016101 (Europe)

Starting VIN — YFM80(D), Australia: JY44EMW0*NA000101

Specification reference: Badger 80 YFM80N(C) Owner's Manual


  • Engine displacement: 79 cc

  • Transmission type: 3-speed forward, constant-mesh, centrifugal automatic clutch

  • Fuel tank capacity: 6.8 L (1.8 US gal)

  • Fuel reserve capacity: 0.9 L (0.2 US gal)

  • Recommended oil: Yamalube 4 (10W30) or SAE 10W30, Yamalube 4 (20W40) or SAE 20W40, or SAE 5W30, according to ambient temperature. API Service SE, SF, SG, or higher.

  • Periodic oil change quantity: 0.8 L (0.85 US qt)

  • Total oil amount: 0.95 L (1.00 US qt)

  • Final gear oil: SAE 80 API GL-4 Hypoid gear oil

  • Drain plug torque: Engine oil drain plug: 20 Nm (14 ft-lb)

  • Spark plug gap: 0.6–0.7 mm

  • Recommended tire pressure: 20 kPa (2.9 psi)

  • Minimum tire pressure: 17 kPa (2.5 psi)

  • Maximum vehicle load: 95 kg (209 lb)

Yamaha Manual Features & Selected Content Preview

Publication Pages

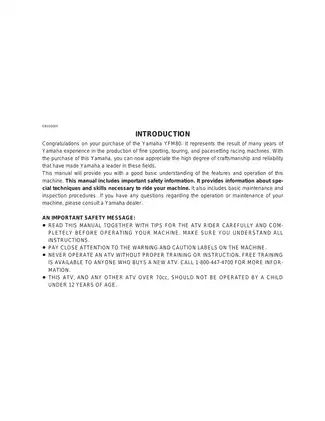

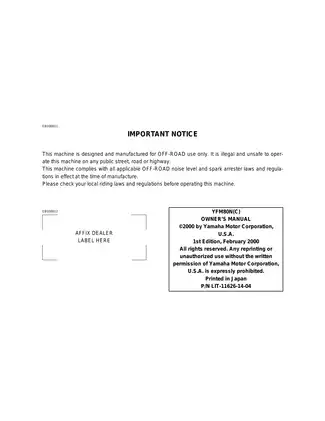

Badger YFM80N(C) Owner's Manual — First Edition, February 2000. P/N LIT-11626-14-04; Yamaha identifier 4EM-28199-1B. 141
Raptor YFM80RT Owner's Manual — First Edition, March 2004. P/N LIT-11626-18-07; Yamaha identifier 5TH-28199-13. 144
YFM80(D) Service Manual — First Edition, September 1991. P/N LIT-11616-08-19; Yamaha identifier 4EM-28197-20. 204
YFM80M/YFM80MC Supplementary Service Manual — First Edition, September 1999. P/N LIT-11616-13-28; Yamaha identifier 4EM-28197-21. Includes its wiring diagram near the end of the combined service PDF. 16
YFM80WP Supplementary Service Manual — First Edition, September 2001. P/N LIT-11616-15-38; Yamaha identifier 4EM-28197-22. 24

The owner's manuals cover operation and routine upkeep; the service publications provide workshop repair information. The M/MC supplement requires the base service manual, while the WP supplement requires both preceding service publications.

Raptor coverage: The YFM80RT publication is an owner's manual. Workshop procedures are identified for the service models listed above, so match the machine's model label before applying repair specifications.

PDF Search, Bookmarks, and Page Details

Search and diagram detail: Operating and maintenance text in both owner's manuals supports text search, with exceptions on some warning-label and closing pages. In the service PDF, searchable text is limited to the opening WP supplement. All three PDFs have embedded bookmarks; one closing-section bookmark in the Badger file opens the wrong section. Small wire-color and connector labels in the service diagrams require zooming.

The ZIP download contains 529 pages across three printable PDFs: two separate owner's manuals and one combined service file. The total includes covers, three blank pages, four warranty pages, eight promotional pages, a two-page safety reply card, and one additional title page.


YFM80 Overhaul, Electrical Diagnosis, and Owner Maintenance

This is a selected content overview. Other included topics range from cable-routing diagrams to cleaning and long-term storage.

  • Engine overhaul: Engine removal and remounting, cylinder-head and valve-train repair, piston and crankshaft inspection, crankcase separation, and internal reassembly.

  • Clutch and transmission: Wet centrifugal clutch, starter clutch, primary drive, transmission, and shifter disassembly, inspection, assembly, and adjustment.

  • Brakes and chassis: Front and rear drum brakes, steering and tie rods, suspension arms, shock absorbers, swingarm, and shaft-drive service.

  • Carburetion: Mikuni VM16SH removal, disassembly, cleaning, component inspection, reassembly, and float-height and fuel-level adjustment.

  • Electrical troubleshooting: Ignition, electric-starting, charging, and signal-system fault isolation, including neutral-indicator and starting-interlock checks.

  • Workshop references: Exploded assembly views, job instruction charts, special-tool identification, torque tables, lubrication data, wear limits, and component test specifications.

  • Operation and upkeep: Controls, pre-operation checks, starting, shifting, braking, parking, break-in, riding techniques, loading limits, and scheduled owner maintenance.

The owner's manuals are suited to owners and supervising adults handling operation, preventive maintenance, and minor repair; Yamaha states that the service material was written primarily for dealers and qualified mechanics and assumes a basic understanding of machine repair.

Engine and Drivetrain Repair

The base service manual provides step-by-step procedures through disassembly, inspection, repair, assembly, adjustment, and remounting. Top-end work includes valve-guide replacement and reaming, valve-seat cutting and lapping, valve-spring checks, cam timing, and cam-chain service.

Bottom-end coverage includes the oil pump and strainer, CDI magneto, crankshaft, and middle-gear shim selection. Clutch assembly instructions distinguish clutch-boss height adjustment with selected washers from friction-plate height adjustment through plate selection.

Exploded views establish component identity, while the accompanying job charts and expanded procedure text explain the work. The supplements distinguish revised carburetor calibration and electrical components, helping mechanics select the appropriate specifications before testing or assembly.

Overhaul cautions: Spinning cleaned bearings with compressed air can damage their surfaces. The manual also warns that insufficient lubrication of the crankcase oil-pump passages during assembly can damage the engine.

Brakes, Steering, and Suspension

Chassis procedures cover wheel bearings, brake shoes and drums, steering-shaft bushings, tie-rod ends, front lower arms, and the rear swingarm. Shaft-drive instructions extend to drive-pinion, ring-gear, coupling-gear, and bearing inspection, with component-specific installation and fastening requirements.

Troubleshooting charts address drivetrain noise, hard shifting, clutch slipping or dragging, weak braking, shock-absorber faults, and unstable handling.

Electrical Tests and Wiring Diagrams

Electrical sections provide switch and bulb continuity checks, ignition-coil and CDI-magneto testing, starter-motor inspection, and charging-system diagnosis. The starter troubleshooting separates relay, neutral-switch, rear-brake-switch, and wiring faults.

The YFM80(D) Wiring Diagram and YFM80M/YFM80MC Wiring Diagram include component keys and wire-color codes. Separate circuit diagrams cover the ignition, electric-starting, charging, and signal systems.

Special Tools for Workshop Jobs

Named tools include the YM-91042 / 90890-04086 universal clutch holder and YM-01189 / 90890-01189 rotor puller.

Valve work identifies the YM-04019 / 90890-04019 valve spring compressor. Chassis and electrical references include the YM-37132 / 90890-01422 rear axle nut wrench and 90890-06754 ignition checker.

Controls, Riding, and Owner Maintenance

Both owner's manuals explain cold and warm starting, shifting, braking, parking, break-in, loading, and accessory limits. Riding chapters address body position, turning, hill climbs and descents, side slopes, stalls, shallow-water crossings, rough terrain, and skid recovery.

The YFM80RT book also explains the air-intake restrictor plate and staged speed-limiter adjustment used while a beginner develops riding skill.

Periodic-maintenance tables organize engine and final-drive oil service, spark-plug inspection, air-filter and spark-arrester cleaning, brake and clutch checks, cable and pivot lubrication, wheel and steering inspection, battery care, and fuse replacement. The owner books limit this material to preventive maintenance and minor repairs and direct unfamiliar or dealer-designated work to Yamaha service personnel.

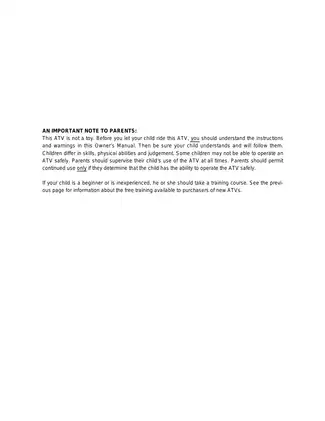

The manuals warn that these ATVs are for off-road use only, prohibit passengers, and specify that riders under 12 must not operate them; riders under 16 require adult supervision. Pre-operation condition checks and the manufacturer's service warnings should be followed before riding or beginning repair work.

Valve-Clearance and Idle-Speed Examples

For the YFM80(D), the valve-adjustment section specifies cold clearances of 0.05–0.10 mm for the intake valve and 0.075–0.125 mm for the exhaust valve. These are adjustment ranges, rather than wear limits.

The YFM80WP supplement lists an engine idle-speed range of 1,750–1,850 rpm in its carburetor specifications, illustrating the need to match adjustment data to the applicable service revision.
