Yamaha 9.9S / 15S Outboard Service Manual (1995–2002) (P/N LIT-18616-00-99)
170 Pages • 1 Printable PDF (English) • Download
Yamaha Models Covered & Key Technical Specifications
9.9MH — 6E7
9.9D — 6E7
9.9EH — 6E7
9.9DE — 6E7
15MH — 6E8
15D — 6E8
15EH — 6E8
15DE — 6E8
Sub-models / Variants: Manual start, Manual and Electric start, 9.9 HP, 15 HP, 2-Stroke, Short Shaft (S), Long Shaft (L)
Model Years: 1993–2002 (1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002)
Serial Numbers: 9.9MHS/9.9D: S 093428–, L 401956–; 9.9EHS/9.9DE: S 252979–, L 558304–; 15MHS/15D: S 115096–, L 366827–; 15EHS/15DE: S 254267–, L 555878–
-
Engine type: 2-stroke, inline 2-cylinder
-
Displacement: 246 cm³ (15.0 cu. in)
-
Compression ratio: 7.00:1
-
Full throttle speed range: 4,500–5,500 rpm
-
Spark plug gap: 0.9–1.0 mm (0.035–0.039 in)
-
Fuel type: Regular gasoline (minimum 86 octane)
-
Lubrication system: Pre-mixed fuel and oil (100:1 ratio)
-
Gear oil capacity: 185 cm³ (6.25 US oz)
-
Starter motor output: 0.4 kW (9.9EH/9.9DE and 15EH/15DE)
-
Steering angle: 40 degrees left and right
-
Ignition timing (fully advanced): B.T.D.C. 30° ± 1°
Yamaha Manual Features & Selected Content Preview

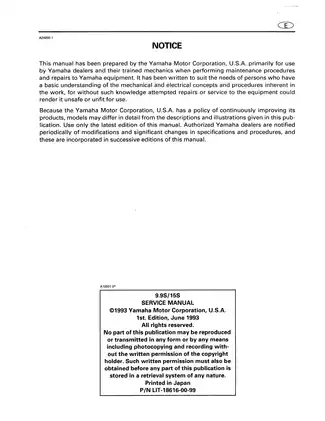

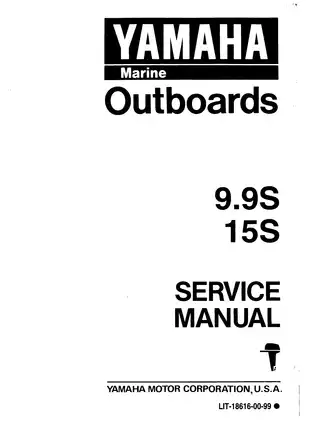

This first-edition Yamaha service manual (P/N LIT-18616-00-99, June 1993) covers 9.9S and 15S outboards in the 6E7 and 6E8 model series. It covers manual-start and manual/electric-start configurations. Use the starting serial numbers in the identification section to check model fit.
Printable PDF and Navigation
Chapter bookmarks and wiring detail. Embedded bookmarks jump to the main index, chapters, and selected sections. PDF text search is unavailable. Small wire-color and connector labels are readable at higher zoom. The “Return to main index” bookmark points to a separate file.

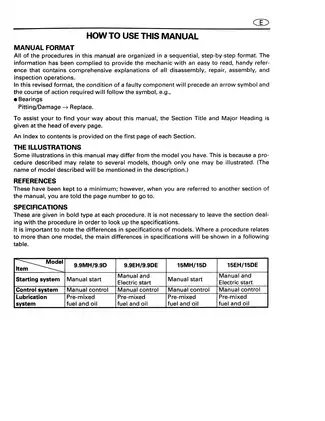

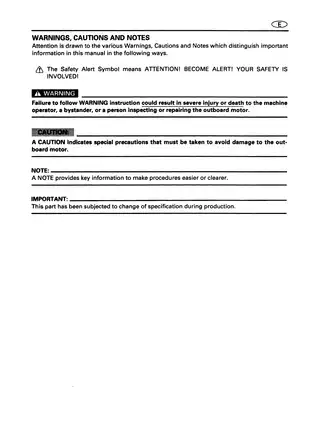

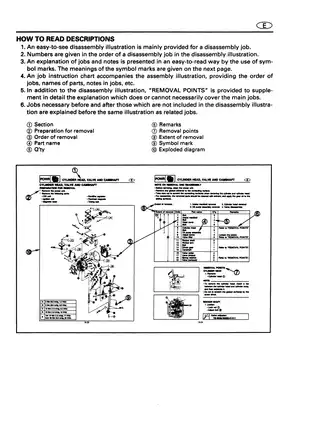

The download is one printable English-language PDF with 170 pages. That total includes 153 numbered chapter pages, 10 chapter contents pages, and seven front-matter pages: the cover, publication notice, four pages of reading guidance and symbols, and the main index.
Outboard Repair and Diagnostic Coverage
These are selected workshop topics. The manual also covers anode inspection and predelivery checks for fuel, water, and exhaust leaks.
- Power unit repair: Step-by-step procedures for powerhead removal and installation, cylinder and crankcase disassembly, piston and crankshaft inspection, reed-valve service, and recoil starter rebuilding.
- Fuel system: Carburetor removal and overhaul, diaphragm fuel-pump disassembly and assembly, fuel-joint pressure testing, and float inspection and adjustment.
- Lower unit and cooling: Gear and dog-clutch inspection, shim selection, backlash measurement, gearcase pressure testing, water-pump and impeller service, and thermostat checks.
- Electrical diagnosis: C.D.I., charge-coil, and pulser-coil testing, starter-motor overhaul, charging-system checks, and wiring diagrams for the different starting configurations.
- Controls and brackets: Throttle-link and start-in-gear protection adjustments, steering-handle service, and overhaul of the clamp and swivel bracket assemblies.
- Service references: Periodic maintenance schedules, dimensional drawings, general and component-specific torque tables, fluid capacities, wear limits, and electrical test specifications.
Yamaha prepared this manual primarily for its dealers and trained mechanics. It assumes a working knowledge of mechanical and electrical service procedures.
Carburetor Calibration and Controls
Exploded views show where the jets, needle valve, float, and fuel-pump diaphragms fit. Calibration tables distinguish the 9.9 and 15 HP carburetors, including European settings for the 9.9 HP models. The fuel enrichment valve procedures apply to European electric-start models.
Illustrated ignition-timing and idle-speed adjustments accompany separate throttle-link procedures for tiller and remote controls. The manual also addresses throttle opening in reverse and the neutral opening speed check.
Powerhead Inspection and Reassembly
Cylinder wear, piston clearance, ring gaps, crankshaft runout, and small-end bearing checks give mechanics reference points for deciding which parts can be reused. Reed-valve stopper specifications distinguish the 9.9 HP regional versions from the 15 HP models.
The flywheel removal section explains how uneven puller loading can damage the engine or tools. The timing section warns that turning the flywheel backward can distort the impeller blades and reduce water-pump performance.
Gearcase Shimming and Bracket Service
The lower-unit chapter separates U.S. and Canadian shim selection from the procedure for other markets. It identifies the YB-34232 pinion height gauge and YB-6265 backlash indicator. After a gearcase or internal part is replaced, comparing forward and reverse backlash readings helps determine whether pinion height needs attention.
Bracket-unit procedures cover the upper casing, bottom cowling, rubber mounts, pivot shaft, and steering-handle knee gears. Reassembly illustrations show the position of the tilt mechanism and steering-handle components.
Wiring and Fault Tracing
Wire-color keys accompany separate diagrams for manual-start models and European and non-European electric-start configurations. A dedicated diagram covers the European 703 remote control box.
C.D.I. coverage includes resistance and output tests with replacement criteria. The resistance check calls for an analog meter. Starter-motor procedures cover the brushes, armature, commutator, and pinion clutch.
Troubleshooting flowcharts cover starting and rough-running complaints, power loss, misfires, shifting faults, and battery charging. The shifting charts distinguish tiller-operated from remote-control models. The electrical test section flags the risk of ignition sparks near fuel vapor.
Sample Gear Backlash and Solenoid Test Values
For both power ratings, the lower-unit specifications list pinion-to-forward gear backlash of 0.23–0.70 mm and pinion-to-reverse gear backlash of 0.82–1.17 mm when measured with the specified service tools.
For European electric-start models, the fuel enrichment solenoid resistance check specifies 6.39–7.81 Ω at 20 °C (68 °F) between the blue and black leads.
