Yamaha YZ250(W)/W1 2006 Owner's Service Manual (P/N 1P8-28199-32)

Yamaha’s Owner’s Service Manual, P/N 1P8-28199-32, covers the 2006 YZ250(W)/W1. This first edition, dated May 2006, combines operating information, routine maintenance, troubleshooting, engine and chassis repair, and competition tuning across seven chapters.

Searchable Multilingual PDF and Page Count

Text search, bookmarks and diagram detail: Searchable text and embedded bookmarks provide access to the language and service sections. Chapter-level bookmarks lead to the contents pages, while section bookmarks jump to the relevant procedures. Small wiring and connector labels are readable when enlarged.

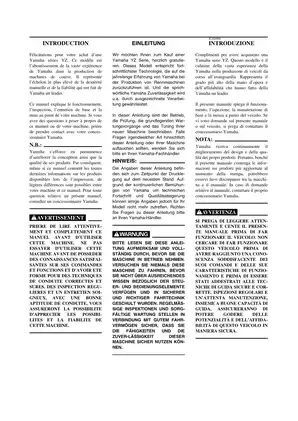

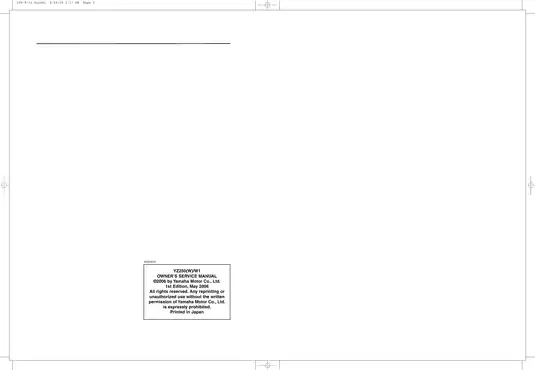

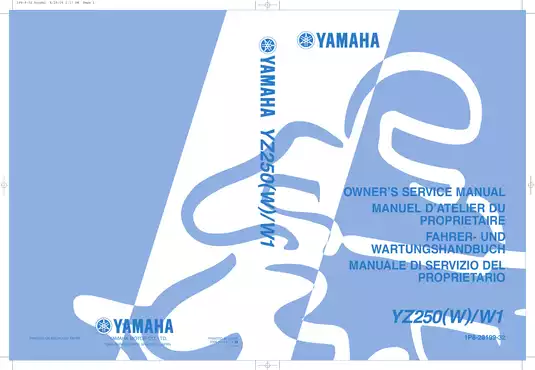

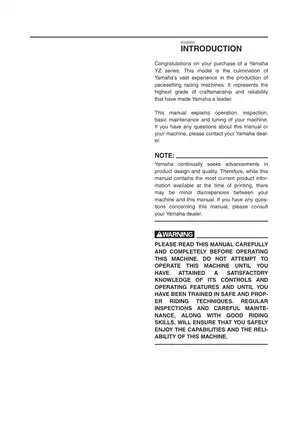

One printable PDF contains 596 pages in English, French, German and Italian. The total includes the original covers and introductory material, two memo pages and one blank page.

Engine Repair, Electrical Diagnosis and Race Setup

The following selected highlights outline the service coverage. Other topics include starting and break-in procedures and silencer packing replacement.

• Engine repair: Step-by-step instructions for engine removal, crankcase separation, crankshaft inspection, cylinder and piston service, power-valve assembly and YPVS governor work.

• Clutch and transmission: Clutch-pack inspection and assembly, primary-drive service, kickstarter repair, and transmission, shift-cam and shift-fork removal and installation.

• Carburetor and intake: Keihin PWK38S disassembly, float-height inspection, reed-valve service, and jetting guidance for atmospheric conditions and engine symptoms.

• Cooling system: Radiator removal, cap and cooling-system pressure tests, and water-pump disassembly with impeller-shaft, bearing and seal inspection.

• Brakes and running gear: Caliper and master-cylinder repair, brake bleeding, wheel-bearing replacement, steering-bearing service, and swingarm and linkage inspection.

• Suspension: Front-fork disassembly and assembly, rear-shock spring and mounting-bearing service, and symptom-based suspension adjustment charts.

• Electrical troubleshooting: Wiring diagrams and diagnostic flowcharts for ignition, the carburetor solenoid valve and the throttle position sensor, including replacement and adjustment procedures.

Owners can use the operating and routine-maintenance sections; the internal repair procedures are suited to mechanics equipped for precision measurement and assembly work.

Engine Inspection and Assembly References

Exploded-view diagrams and job instruction charts identify components, removal scope and assembly notes. Component-specific torque tables and wear limits support inspection and reassembly, while the piston-and-cylinder matching chart helps select the corresponding piston size from the cylinder marking.

Crankcase work identifies the required separating tool, YU-1135-A / 90890-01135, alongside crankshaft installation tools. The power-valve instructions warn that omitting the specified set pin during push-rod work can damage power-valve components.

Carburetor Tuning and Cooling Repairs

The carburetor section distinguishes regional jetting specifications and explains how the main jet, pilot circuit, power jet and needle affect different throttle openings. Tuning charts relate engine symptoms and riding conditions to setting changes; the main nozzle is press-fitted and is not replaceable.

The TPS handling notes warn that loosening its mounting screws during ordinary carburetor service can reduce engine performance. Separate electrical procedures cover replacement and adjustment when the sensor has failed.

Water-pump inspection addresses the impeller shaft, shaft gear, bearings and oil seals. The manual links coolant discoloration, unusual coolant-level changes and milky transmission oil to reasons for investigating the pump.

Brake, Fork and Rear-Shock Service

Front-fork exploded views accompany seal, bushing, base-valve and damper-assembly procedures. Yamaha recommends dealer maintenance for the fork because of its sensitive internal construction.

Rear-shock coverage includes removal, inspection, spring replacement, mounting bearings and reinstallation, plus preload and damping adjustments. It does not provide an internal damper rebuild: the handling notes prohibit opening the nitrogen-pressurized cylinder or reservoir.

Suspension-setting charts address bottoming, harshness, instability and traction, while spring-selection tables distinguish the available spring types and identification marks. Brake sections include hydraulic component inspection, seal replacement and post-assembly leakage checks.

Ignition and Sensor Fault Isolation

The ignition flowchart connects a no-spark complaint with tests of the stop switch, spark-plug cap, ignition coil and CDI magneto coils before CDI-unit replacement. This gives a mechanic a documented basis for narrowing the fault to a circuit or component.

The wiring diagram includes wire-color codes and connector layouts, with the neutral switch identified for markets outside the USA and Canada. Cable-routing diagrams show harness and hose placement; separate solenoid-valve and TPS flowcharts provide component tests and sensor voltage checks.

Examples of Piston, Fastener and Jetting Specifications

The piston inspection data specify a standard piston-to-cylinder clearance of 0.045–0.050 mm. The cylinder-head assembly section lists 25 Nm for the head nuts, together with staged, crisscross tightening notes.

For the Keihin PWK38S carburetor, the standard main jet is #178 for USA/CDN models and #180 for Europe. These regional specifications sit alongside the tuning charts for changing atmospheric and track conditions.
