Honda TRX450R ATV 2004–2005 Service & Parts Manual Set (P/N 61HP101)

Use the service procedures to assess the work involved and the illustrated parts listings to identify replacement components before ordering.

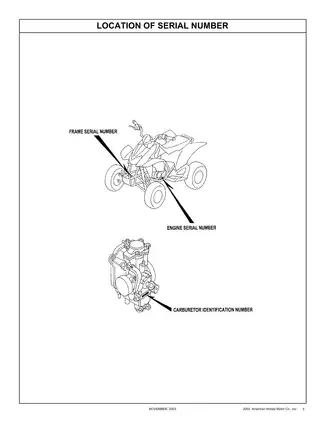

Parts-catalog coverage: The catalog’s ordering and serial-number data apply to the 2004 model only. The set’s 2005 repair coverage comes from the service manual.

PDF Search, Bookmarks and Wiring Detail

Text search and diagram detail: The service manual is partly searchable; its first 82 PDF pages have no searchable text. It has 18 section bookmarks, although the first opens at the cover. The parts catalog has searchable parts lists but no embedded bookmarks; some introductory material is not searchable. Small wiring-diagram labels require zooming.

The ZIP contains two printable PDFs totaling 453 pages. This total includes the service manual’s two cover pages and two introductory pages, plus the parts catalog’s cover and three blank pages.

Engine, Chassis and Electrical Repair Coverage

The following selected highlights outline the technical coverage rather than reproduce the full contents. Additional topics include frame-panel removal and exhaust-system service.

• Engine repair: Engine removal and installation, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, camshaft/decompressor assembly, and cylinder and piston service.

• Clutch and transmission: Clutch and kickstarter repair, gearshift-linkage service, crankcase separation, transmission inspection, crankshaft service, and balancer assembly.

• Fuel and lubrication: Carburetor removal, teardown, assembly and pilot-screw adjustment, plus oil-pump, strainer, pressure-relief-valve and oil-cooler service.

• Cooling system: Pressure testing, coolant replacement and air bleeding, thermostat checks, radiator and cooling-fan removal, and water-pump mechanical-seal replacement.

• Wheels and suspension: Tire removal and repair, hub and bearing replacement, rear-axle and bearing-holder work, shock and linkage inspection, swingarm service, and steering-shaft and tie-rod work.

• Hydraulic brakes: Fluid replacement and bleeding, master-cylinder and caliper overhaul, brake-pad replacement, disc inspection, and parking-brake service.

• Electrical diagnosis: Alternator and regulator tests, ignition peak-voltage diagnosis, ignition timing checks, throttle-position-sensor testing, cooling-fan and ECT-sensor diagnosis, and the wiring diagram.

Honda wrote the service manual for people with basic maintenance knowledge of its motorcycles, motor scooters or ATVs; internal repairs and electrical testing also require the specified measuring equipment and special tools.

Engine Inspection and Repair Planning

Inspection and assembly: Step-by-step procedures cover compression testing, valve-clearance and decompressor inspection, shim selection, cam timing, piston-ring inspection, transmission and shift-fork checks, crankshaft inspection, and crankcase bearing replacement. System specifications include component-specific torque values, lubrication data, clearances and service limits.

Work scope: Transmission and crankshaft service require engine removal and crankcase separation. Cylinder-head and cylinder/piston work can be performed with the engine installed, helping you assess the teardown and equipment needed for the planned repair.

Maintenance and Honda System Features

Technical-feature pages explain the Unicam valve train, automatic decompression, hot-start circuit and twin-sump lubrication system with separate engine and transmission oil chambers.

Routine service coverage includes the maintenance schedule, air-cleaner care, engine and transmission oil changes, radiator and drive-chain checks, brake inspection, clutch and parking-brake adjustment, suspension checks, tires and steering alignment.

Fault Tracing and Reference Illustrations

Troubleshooting charts address hard starting, loss of power, poor low-speed or high-speed performance, and handling faults. Ignition tests compare readings at the control module and individual components to distinguish wiring faults from component faults.

The wiring diagram and cable-and-harness routing views support electrical tracing. Unicam, twin-sump and lubrication-system illustrations explain the mechanical relationships behind the service procedures.

OEM Parts Identification

Exploded engine and frame plates pair reference numbers with descriptions, quantities, OEM part numbers, H/C entries and serial-number columns. Coverage includes the cam-chain tensioner, shift drum, fuel tank, bodywork, exhaust, wire harness, radiator and oil cooler alongside the major repair assemblies.

Master, part-number and description indexes connect components to their plates. Color tables support bodywork identification, while listed supersessions reflect the catalog’s publication date.

Special Tools and Repair Cautions

Engine-tool references include cam-chain tensioner holder 07ZMG-MCAA400, clutch-center holder 07724-0050002 and flywheel puller 070MC-HP10100. Electrical and tire-service references include the IgnitionMate peak-voltage tester MTP07-0286 and ATV Bead Buster KLS379024.

Bearing drivers, pullers, valve-seat cutters and cooling-system test equipment are also identified for the relevant work.

Installing the oil filter backward can cause severe engine damage. The ignition control module can be damaged by impact or by disconnecting its connector while current is flowing.

Brake and suspension work is safety-critical; the manual calls for contaminated pads to be discarded and the ATV to be securely supported before wheel or suspension repair.

Selected Valve-Clearance and Oil-Capacity Data

For a cold engine below 35°C (95°F), the service manual specifies intake valve clearance of 0.16 ± 0.03 mm and exhaust clearance of 0.28 ± 0.03 mm, alongside the inspection and shim-adjustment procedures.

The separate lubrication chambers have different refill quantities: engine oil capacity after draining and filter replacement is 0.82 liter; transmission oil capacity after draining is 0.55 liter.
