2004–2012 Honda TRX450R / TRX450ER ATV Service Manual (P/N 61HP108)

This Honda service manual covers the 2004–2012 TRX450R and TRX450ER sport ATVs, detailing engine, chassis, and electrical repair. The text separates technical details between the initial 2004–2005 models and the later post-2005 revisions.

The download contains one English-language PDF with 538 pages.

• Engine repair: Unicam valve adjustment, camshaft and decompressor service, cylinder head inspection, piston replacement, crankshaft checks, and crankcase separation are covered.
• Transmission and starting mechanisms: Procedures address clutch replacement, gearshift linkage, transmission overhaul, balancer timing, the TRX450R kickstarter, and the TRX450ER starter clutch.
• Fuel system: Carburetor removal and overhaul include float-level inspection, accelerator pump service, pilot screw adjustment, and high-altitude settings for the later variants.
• Lubrication and cooling: Coverage includes separate engine and transmission oil supplies, oil pump inspection, cooling-system pressure testing, thermostat checks, and water pump mechanical seal replacement.
• Chassis and brakes: Front double-wishbone suspension, steering linkage, rear axle bearings, swingarm linkage, brake calipers, master cylinders, and hydraulic brake bleeding receive dedicated procedures.
• Electrical diagnosis: AC-CDI ignition testing, throttle position sensor checks, charging-system diagnosis, electric starter repair, and variant-specific wiring diagrams support electrical fault finding.

Suited to mechanics and experienced owners equipped for inspection and measurement, this manual also covers internal engine work requiring overhaul experience and the specified special tools.

Unicam engine and drivetrain repair

The Unicam valve train section covers valve clearances, shim selection, decompressor adjustment, camshaft inspection, and valve timing. Exploded camshaft-holder views show the relationship between the camshaft, rocker arm, and decompressor components.

Cylinder head and piston procedures can be performed with the engine in the frame; transmission and crankshaft work requires engine removal and crankcase separation. Inspection tables provide wear limits and clearances for deciding which components need replacement.

The twin-sump lubrication system keeps engine oil separate from the clutch and transmission oil supply. Lubrication diagrams show the oil paths, while separate procedures address the early oil cooler and later piston oil jet.

Lapping the later models’ titanium intake valves damages their protective oxide coating. The oil filter procedure identifies the OUT-SIDE marking and warns that reversed installation can severely damage the engine.

Carburetor and cooling-system service

The fuel chapters distinguish the early QA16A carburetor from the later FCR10A and FCR11A units. They cover disassembly, cleaning, float inspection, accelerator pump components, and reassembly, with pilot screw and high-altitude adjustments where applicable.

Tool references include the carburetor float level gauge, 07401-0010000. Identifying the correct carburetor section helps keep jetting information and adjustment procedures matched to the machine being serviced.

Cooling coverage extends from radiator cap and system pressure tests to thermostat inspection, coolant replacement, air bleeding, and water pump mechanical seal and bearing replacement. A coolant gravity chart supports the hydrometer testing procedure.

Suspension, steering, and brake work

Chassis procedures cover wheel hubs, suspension arm bearings, steering shaft and tie-rod inspection, rear axle components, and swingarm linkage service. Shock absorber coverage includes removal, inspection, pivot-bearing replacement, and assembly replacement; internal damper overhaul is outside that coverage.

Brake repair includes front and rear master cylinder and caliper service, pad and disc inspection, fluid replacement, bleeding, and parking brake adjustment. Follow the manual’s vehicle-support precautions and brake-operation checks when carrying out chassis or brake work.

Electrical troubleshooting and service references

The electrical chapters include ignition peak-voltage checks, throttle position sensor testing, coolant temperature sensor checks, and the TRX450ER battery, charging system, starter motor, relay, and clutch diode. System diagrams introduce the ignition, charging, and starter circuits.

For later models, the closed-throttle detection section explains how throttle-switch and cable conditions can interrupt ignition. Its checks help distinguish those causes of a no-start condition from an ignition-component fault.

Troubleshooting charts address hard starting, lack of power, poor running at different engine speeds, and handling faults.

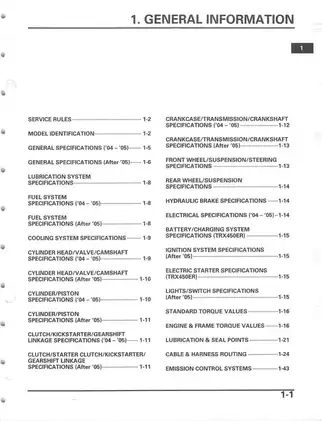

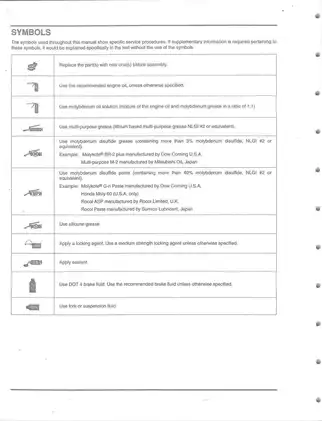

Cable and harness routing diagrams cover the early and later layouts, and separate wiring diagrams identify the early TRX450R, later TRX450ER, and later TRX450R circuits. General information adds model identification, service rules, torque specifications, fluid capacities, lubrication points, and electrical test data.

PDF navigation and readability

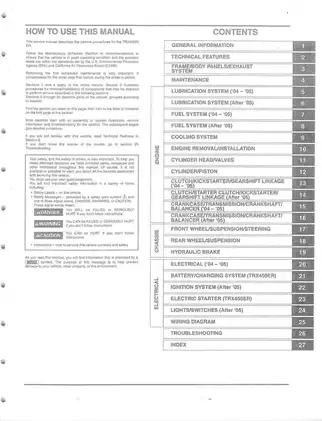

Chapter bookmarks, wiring-diagram bookmarks, and the index support navigation; the page total includes one cover, two blank pages, and fourteen memo pages. OCR text search is available, although some table entries and wiring labels are not reliably recognized. Small wiring labels and wire-color codes are readable when enlarged.
