Honda TRX450R / TRX450ER ATV Service Manual, 2004–2009

This Honda service manual covers the 2004–2009 TRX450R, with TRX450ER procedures in its After '05 sections. Kick-start and electric-start systems have separate procedures where the hardware differs.

Text Search, Chapter Bookmarks and Wiring Detail

Search and diagram access: Most service text is searchable, with embedded bookmarks for the chapters and index. The introductory contents page and many wiring-diagram labels are not searchable. Small wiring labels require zooming.

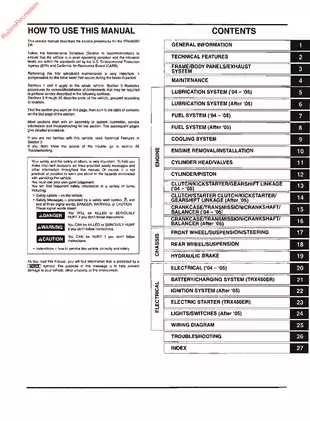

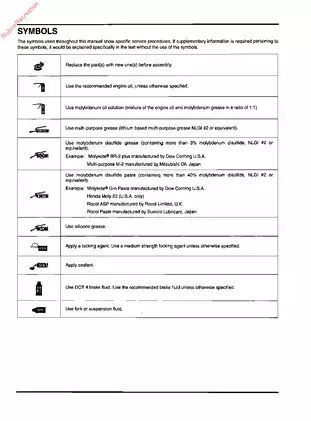

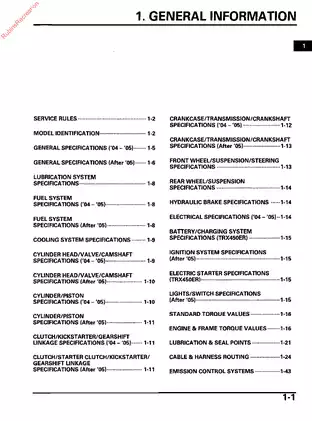

One printable English PDF with 522 pages: 519 chapter and index pages plus 3 preliminary pages—the cover, contents/how-to-use page, and symbols page.

Unicam Engine, Chassis and Electrical Service

The following selected repair topics are examples rather than a complete contents list. Other subjects include body-panel and exhaust removal and spark-arrester cleaning.

• Unicam engine repair: Engine removal and installation, camshaft and automatic-decompressor service, cylinder-head and valve work, and cylinder/piston inspection.

• Clutch and transmission: Clutch removal and inspection, gearshift-linkage service, internal transmission work, and variant-specific kickstarter or starter-clutch procedures.

• Fuel system: Carburetor removal, disassembly, cleaning and reassembly, pilot-screw adjustment, and high-altitude setup for After '05 models.

• Lubrication and cooling: Oil-pump and strainer service, cooling-system pressure testing, thermostat inspection, radiator/fan work, coolant bleeding and water-pump repair.

• Wheels, suspension and steering: Wheel and hub service, shock-absorber checks, suspension-arm repairs, steering-shaft and tie-rod work, rear-axle service, linkage and swingarm procedures.

• Hydraulic brakes: Fluid replacement and bleeding, pad and disc inspection, front/rear master-cylinder and caliper repair, and brake-pedal service.

• Electrical diagnosis: Charging and ignition tests, starter-circuit diagnosis, closed-throttle detection checks, lights and switch testing, harness routing and model-specific wiring diagrams.

These procedures suit mechanically qualified users with proper tools and service data; the maintenance schedules recommend dealer-only service for selected safety-related items.

Unicam Top-End and Internal Drivetrain Work

The Unicam SOHC cylinder head uses direct camshaft actuation for the intake valves and a U-shaped roller rocker arm around the centrally located spark plug for the exhaust valves. Its system view explains the automatic decompressor's operation during and after starting.

Step-by-step instructions extend to camshaft-holder removal, camshaft/decompressor disassembly and assembly, valve-guide replacement and valve-seat inspection/refacing. Cylinder-compression checks, valve-shim selection and cam-sprocket timing-mark alignment support top-end diagnosis and reassembly.

Internal transmission, crankshaft and oil-pump work requires engine removal and crankcase separation. Gear and shift-fork inspections, balancer timing, bearing replacement and final crankcase assembly are documented.

The oil-filter instructions warn that reversed installation can severely damage the engine, while valve-clearance notes identify shims that can remain inside lifters and fall into the crankcase. For After '05 engines, lapping the titanium intake valves damages their thin oxide coating.

Carburetor Variants and Altitude Settings

The early fuel chapter identifies the QA16A carburetor; After '05 specifications distinguish FCR10A for the TRX450ER from FCR11A for the TRX450R. High-altitude guidance for the later models covers jet changes and returning to standard settings for lower-altitude use.

Twin-Sump Lubrication and Cooling Service

The twin-sump lubrication diagrams distinguish the engine's oil supply from the clutch/transmission supply, with independent level checks. Separate chapters address the early oil cooler and the later piston jet and pressure-relief-valve arrangement.

Cooling coverage combines a system-component layout and coolant gravity chart with radiator-cap/leak tests, fan disassembly and water-pump mechanical-seal replacement.

Suspension, Steering and Brake Repair Detail

Suspension procedures reach the suspension-arm spherical bearings, steering-shaft bearings, rear-axle bearing holder, shock linkage and swingarm pivots. Shock-absorber coverage addresses removal, inspection and pivot-bearing replacement; damper faults call for assembly replacement. The throttle housing has its own disassembly procedures.

Brake chapters include exploded master-cylinder and caliper layouts. Parking-brake shaft inspection and adjustment accompany the hydraulic work.

Starting-System Diagnosis and Wiring References

The TRX450R retains hot-start and kickstarter coverage. Dedicated TRX450ER material covers the battery, electric starter, starter clutch, relay, clutch diode, neutral switch and clutch switch.

Ignition diagnosis uses peak-voltage checks and throttle-position-sensor testing. The later closed-throttle detection section explains how the throttle-lever and carburetor switches interact with the ICM, helping distinguish a switch/cable-related no-start from an ignition-component fault.

System-specific troubleshooting appears throughout the manual, with a separate section for hard starting, power loss, poor idle/low-speed performance, poor high-speed performance and handling complaints.

Cable/harness routing drawings, connector views, battery/charging and electric-starter system diagrams support electrical fault tracing. Wiring diagrams distinguish the '04–'05 TRX450R, After '05 TRX450ER and After '05 TRX450R.

Special Tools, Reference Tables and Workshop Precautions

Tool references include float-level gauge 07401-0010000, pilot-screw wrench 07KMA-MN90101, valve-spring compressor 07757-0010000 with attachment 07959-KM30101, and drive-chain tool set 07HMH-MR10103 (07HMH-MR1010C for the U.S.). These callouts show where general hand tools alone are insufficient.

Maintenance schedules accompany torque tables, fluid capacities, lubrication/seal points, clearances, wear limits and electrical test specifications.

Pre-ride inspection details are referenced to the owner's manual. Work on this ATV's engine, brakes, steering, suspension and electric-start system carries inherent risks; follow the applicable procedures, tool requirements and final installation/operational checks before riding.

Float-Level and Thermostat Test Data: A Preview

The carburetor assembly specifications give a float level of 15.9 mm (0.63 in) for the '04–'05 QA16A and 8.0 mm (0.31 in) for the After '05 FCR10A/FCR11A, measured with the float valve just contacting the float-arm lip.

For thermostat testing, opening begins at 80–84°C (176–183°F), with a minimum valve lift of 8 mm (0.3 in) at 95°C (203°F).
