Honda TRX450R ATV Service Manual 2004–2005 (P/N 61HP101)

Honda's factory service manual for the 2004–2005 TRX450R, P/N 61HP101, is dated December 2003. It covers scheduled maintenance, system diagnosis, and major engine, drivetrain, and chassis repair.

PDF Search, Bookmarks, and Diagram Detail

Search and navigation: Text search is only partially available; the opening chapters, Sections 1–5, have no searchable text. Embedded bookmarks link to the main sections, although the General Information bookmark opens at the front cover. Small wiring labels are readable when enlarged; the main wiring diagram is split across two PDF pages.

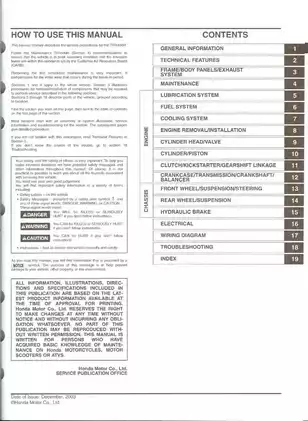

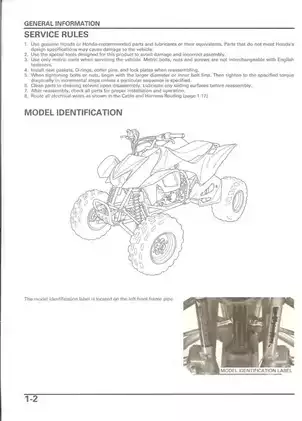

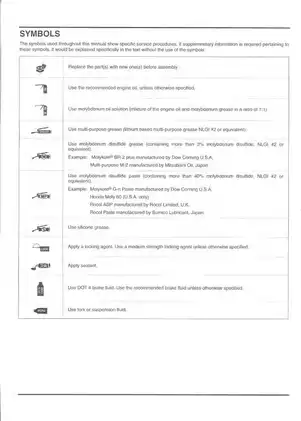

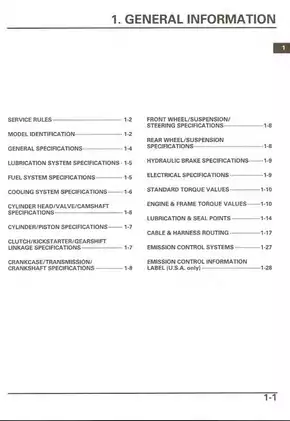

The download contains one printable English PDF with 333 pages, including both covers, two introductory pages, and one duplicate of printed page 3-5. The printed contents lists a Section 19 index, but this file ends after Section 18 Troubleshooting and the back cover.

Unicam Engine, Drivetrain, and Electrical Service

These selected service topics show the manual's coverage rather than its complete contents. Further topics include body-panel and exhaust-system removal, plus spark-arrester maintenance.

• Engine and top end: Step-by-step procedures for camshaft timing, decompressor service, valve-guide replacement, valve-seat refacing, and cylinder, piston, and ring inspection.

• Fuel and lubrication: Carburetor removal and overhaul, float-level checking, pilot-screw idle-drop adjustment, separate oil-circuit service, and oil-pump and cooler inspection.

• Cooling system: Pressure testing, thermostat inspection, radiator and fan removal, coolant replacement and bleeding, and water-pump mechanical-seal replacement.

• Clutch and transmission: Clutch inspection and replacement, kickstarter overhaul, gearshift-linkage service, balancer timing, crankcase separation, and internal transmission and crankshaft repair.

• Chassis and brakes: Wheel-hub bearings, tires, suspension arms, steering shaft and tie rods, rear axle, shock linkage, swingarm, master cylinders, calipers, and brake bleeding.

• Electrical diagnosis: Generating-system and ignition tests, regulator/rectifier checks, throttle-position and coolant-sensor testing, cooling-fan diagnosis, connector locations, harness routing, and wiring diagrams.

Honda wrote this manual for readers with basic Honda motorcycle, scooter, or ATV maintenance knowledge; advanced repair also requires the specified measuring equipment and special tools, and the maintenance schedule reserves certain safety-related work for a Honda dealer.

Engine Repair Depth and Access Requirements

Unicam and decompression: The technical-features chapter explains how the camshaft operates the intake valves directly and the exhaust valves through a U-shaped roller rocker arm. Functional views show the automatic decompressor and carburetor hot-start system.

Cylinder-head work extends to camshaft and rocker-arm inspection, valve-guide measurement and replacement, seat cutting, reassembly, and timing. Separate cylinder and piston procedures include ring inspection, piston-pin measurements, and assembly clearances.

Planning major work: The manual distinguishes work that can be done with the engine installed from repairs requiring removal. Clutch, kickstarter, and shift-linkage service can be performed in the frame; transmission and crankshaft repair requires engine removal and crankcase separation. Oil-pump service also requires separated crankcases.

Twin-sump lubrication: Engine oil remains separate from clutch and transmission oil, with independent level checks and service procedures. The lubrication-system diagram identifies the oil cooler, filter, crankshaft feed, and cylinder-head oil passages.

Fault Isolation and Workshop References

System-specific troubleshooting addresses hard starting, loss of power, low- and high-speed running problems, poor handling, mixture faults, overheating, clutch and shifting complaints, brake drag, generating faults, and no-spark conditions.

Electrical testing: Procedures cover alternator resistance, ignition-coil primary peak voltage, exciter-coil and pulse-generator checks, switch continuity, coolant-indicator logic, fan-motor circuits, and ECT-sensor resistance. Comparing measurements at the ICM and component connectors helps distinguish a wiring fault from a component fault before replacement.

Graphic references include Unicam and auto-decompression views, the twin-sump illustration, lubrication-system diagram, cable and harness routing plates, electrical component-location view, and main wiring diagram. Assembly drawings support the carburetor, water pump, engine internals, suspension, axle, and brakes.

Tools and specifications: Honda identifies float-level gauge 07401-0010000, cam-chain tensioner holder 07ZMG-MCAA400, clutch-center holder 07724-0050002, flywheel holder 07725-0040000, and flywheel puller 070MC-HP10100, with applicable alternatives. Related sections supply torque tables, fluid data, inspection clearances, wear limits, cooling-system pressure specifications, and electrical test values.

Component Cautions and Safe Service

Careless locknut unstaking can damage the balancer-shaft threads, while an incorrect flywheel-puller setup can damage the crankshaft oil orifice. The electrical chapter also warns that disconnecting an energized ICM connector can damage the module.

Fuel, hot-coolant, brake, and supported-vehicle procedures carry fire, scalding, fluid-contact, and stability hazards, so the manual's safety instructions and proper workshop equipment should be followed throughout.

A Preview of Valve and Compression Specifications

For cold-engine valve inspection below 35°C (95°F), the manual specifies intake clearance of 0.16 ± 0.03 mm and exhaust clearance of 0.28 ± 0.03 mm.

The warm-engine compression-test specification is 745 kPa (108 psi). Honda explains that this comparatively low reading reflects the camshaft's automatic decompression device, which matters when interpreting compression-test results.
