2008 Yamaha WR450F / WR450FX Owner's Service Manual (P/N 5TJ-28199-71)

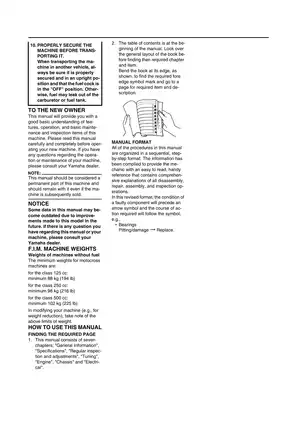

The 2008 Yamaha WR450F(X) Owner's Service Manual, 5TJ-28199-71 (first edition, June 2007), covers the WR450FX for Canada, Australia, and New Zealand and the WR450F for South Africa. It combines operating guidance with maintenance, tuning, and repair procedures.

• Engine repair: Engine removal, camshaft and cylinder-head service, piston inspection, crankcase separation, and crankshaft installation.

• Clutch and shifting: Clutch inspection and assembly, kick shaft and shift shaft service, and internal transmission, shift cam, and shift fork inspection.

• Fuel and cooling systems: Carburetor disassembly, accelerator-pump timing, air induction checks, radiator pressure testing, and water-pump service.

• Brakes and steering: Hydraulic brake bleeding, caliper and master-cylinder repair, steering-head service, and wheel-bearing replacement.

• Suspension and final drive: Front-fork disassembly, rear-shock spring and bearing replacement, swingarm linkage service, and drive-chain guide inspection.

• Electrical diagnosis: Ignition and charging flowcharts, starter-motor repair, throttle position sensor tests, and multi-function display and speed-sensor checks.

Owners can use the operating and routine-maintenance guidance; internal repairs and electrical diagnosis are suited to experienced mechanics with precision measuring equipment and the specified special tools.

Engine, Valvetrain, and Transmission Repair

Cylinder-head work covers the five-valve valvetrain, valve guides and seats, spring inspection, and camshaft-to-cap clearance. Camshaft procedures include timing-mark alignment, decompression-system checks, and timing-chain tensioner inspection.

The PAD SELECTION TABLE connects measured valve clearance with replacement pad thickness, helping you select shims before reassembly. The instructions also identify the importance of keeping valve lifters and pads in their original positions.

The camshaft section warns that uneven cap-bolt removal or tightening can damage the cylinder head, camshaft caps, and camshafts.

Lower-engine coverage includes piston-ring end-gap checks, balancer-shaft timing, oil-pump rotor clearances, and transmission gear and shift-fork inspection. Component-specific torque tables distinguish assembly requirements from general fastener specifications.

The AC magneto and starter-clutch section documents rotor removal and installation, woodruff-key positioning, starter-clutch engagement checks, and torque-limiter inspection. Special-tool listings identify equipment such as the valve spring compressor YM-4019/90890-04019 and rotor puller 90890-04142.

Carburetor Tuning and Cooling-System Service

FCR-MX39 carburetor procedures cover float-height measurement, needle-valve inspection, accelerator-pump timing, and reassembly. Symptom-based tuning charts connect throttle response and mixture symptoms with the relevant jetting circuits.

The air induction section explains air cut-off valve operation and vacuum testing. Cooling-system coverage includes radiator-cap and circuit pressure checks, hose inspection, and water-pump impeller-shaft, bearing, and seal service.

Brakes, Steering, and Suspension

The semi-double-cradle chassis coverage includes front and rear hydraulic disc brakes, steering-head bearings, and link-type Monocross rear suspension. Front-fork work extends to the damper rod, base valve, bushings, and seals; swingarm procedures cover the relay arm and connecting rod.

Suspension Setting charts relate front-fork and rear-shock symptoms to setup changes. Rear-shock procedures cover removal, spring and bearing replacement, and adjustment. The manual expressly prohibits disassembling the nitrogen-filled damper cylinder or reservoir.

Electrical Fault Tracing and Reference Diagrams

Ignition, starting, and charging flowcharts help distinguish wiring and interlock faults from failed components before replacement. Electrical coverage includes CDI-system diagnosis, stator output and coil-resistance data, starter-motor overhaul, lighting tests, and throttle position sensor adjustment.

The signaling-system section covers multi-function display input and output checks and speed-sensor testing. Operating instructions explain the display's basic and race modes.

Reference illustrations include Lubrication Diagrams, the Cable Routing Diagram, the Wiring Diagram with color codes, and the Starting Circuit Cut-Off System Operation schematic.

A Preview of Jetting, Coolant, and Fork Settings

These fuel, cooling, and suspension values are a small selection of the technical data in the manual.

The carburetor's standard main jet is #162. Specified coolant capacity is 1.0 L, including all routes.

Standard fork oil level is 132 mm for Canada and 125 mm for Australia, New Zealand, and South Africa. Measurement is from the top of the outer tube with the inner tube and damper rod fully compressed, the spring removed, and the spring guide installed.

PDF Search, Bookmarks, and Page Breakdown

Text search and navigation: Main text is searchable, but some table and diagram lettering is outside the text layer. Embedded section bookmarks are provided; chapter-level bookmarks lead to the contents page. Small wiring labels require zooming.

This is a single printable, English-language 220-page PDF. The total includes 210 chapter pages, eight opening pages comprising the cover, front matter, contents, and a blank page, plus one blank closing page and the back cover.
