1986-1988 Kohler MV16, MV18, MV20 Twin-Cylinder Engine Service Manual

Full service documentation for MV16, MV18, MV20 twin-cylinder engines addressing general information, special tools, periodic maintenance, troubleshooting, and component-specific repair procedures. Ref: TP-2289-A

4.5starstarstarstarstar_half(4)
★ TOP SELLER
visibility Preview Available

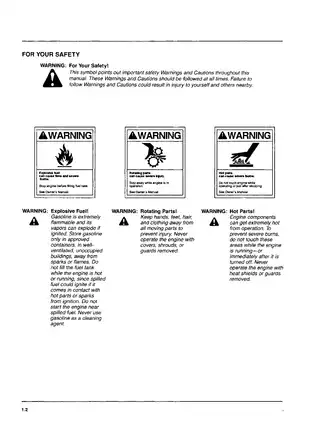

Kohler 1986-1988 Kohler MV16, MV18, MV20 Twin-Cylinder Engine Service Manual manual page preview - page 1 of 105

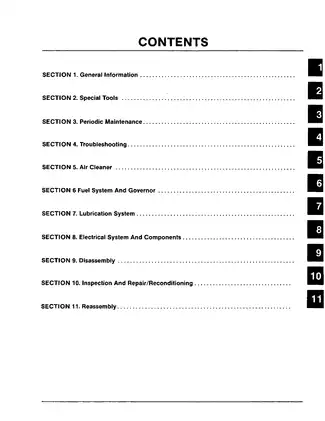

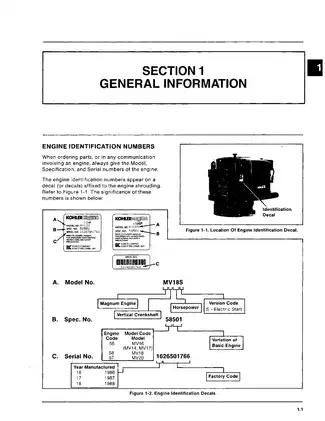

Sample pages from the 1986-1988 Kohler MV16, MV18, MV20 Twin-Cylinder Engine Service Manual manual

Kohler 1986-1988 Kohler MV16, MV18, MV20 Twin-Cylinder Engine Service Manual manual preview page 1 - thumbnail
Kohler 1986-1988 Kohler MV16, MV18, MV20 Twin-Cylinder Engine Service Manual manual preview page 2 - thumbnail
info_outline Click thumbnails to preview different pages
$13.95 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Kohler Models Covered & Key Technical Specifications

Models: Kohler MV16, Kohler MV18, Kohler MV20
Build Years: 1986–1988
Serial Numbers: 1626501766 (Example production code sequence indicated in document)
Technical Data:

  • Engine displacement (MV16): 42.18 cu. in.
  • Engine displacement (MV18): 42.18 cu. in.
  • Engine displacement (MV20): 46.98 cu. in.
  • Horsepower (@ 3600 RPM): 16 (MV16), 18 (MV18), 20 (MV20)
  • Compression Ratio: 5.8:1 (MV16), 6.0:1 (MV18/MV20)
  • Spark Plug Gap: 0.025 in.
  • Ignition Module Air Gap: 0.008–0.012 in.
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
27050 / Dennis Mason
File Size:
5.21 MB
File Type:
PDF
Language:
English
Pages:
105
Printable:
Yes
Category:
Gasoline-Engines
Last updated / verified
Mar 1, 2025

Kohler Manual Features & Content Preview

1986–1988 Kohler MV16, MV18, and MV20 Twin-Cylinder Service Manual

  • Covers the 1986–1988 Kohler MV16, MV18, and MV20 twin-cylinder engines, documenting engine identification, maintenance, and technical overhaul parameters
  • Official Kohler publication TP-2289-A, original manufacturer service documentation
  • Contains 49 exploded-view diagrams and 6 detailed system schematics for carburetor, ignition, and fuel pump assembly
  • Accessible from your device as soon as the order is placed
  • Laid out for standard letter and A4 printing
  • This 105-page edition provides the reference standard for the Magnum engine series build, detailing factory clearances and torque values

Engine Service Scope

The 1986–1988 Kohler MV16, MV18, and MV20 service manual provides technical data on internal combustion architecture. Chapters include general information, periodic maintenance schedules, troubleshooting guides for non-crank and ignition issues, air cleaner assembly, and fuel system calibration. The document also details the lubrication system, including pump rotor maintenance, alongside comprehensive electrical system diagnostics, including wiring diagrams for 15-amp and 25-amp regulated battery charging systems.

Specification and Technical Preview

This publication includes torque specifications for components assembled into iron, steel, and aluminum, such as cylinder head fasteners and oil drain plugs. The compression ratio for the 1986–1988 Kohler MV16 is documented at 5.8:1 in the tolerance tables. Intake valve clearance is specified at 0.003–0.006 in. in the valve specification table. Ignition module air gap for the Kohler MV16–MV20 line is set at 0.008–0.012 in. as defined in the electrical components section. Reference charts for reassembly include sealant patterns for crankcases and detailed torque sequences for cylinder heads. This is an official 105-page Kohler OEM service manual covering the 1986–1988 MV16, MV18, and MV20 twin-cylinder engines, documenting internal engine geometry, lubrication, electrical systems, and fuel delivery specifications for the Magnum-series build.

Manual FAQ, Purchase & Download Details

Can I find electrical reference values, connector pinouts, or wiring diagram information for the Kohler Magnum electrical systems in this document? keyboard_arrow_down

Service manual includes dedicated chapters covering electrical system components. It provides technical reference information such as ignition module gap specifications and ignition testing guidance for the covered engine models.

Which exploded views or component breakdown illustrations are included for the engine systems? keyboard_arrow_down

Document contains various exploded views and illustrations, such as the special service tool kit diagrams and engine component identification figures, to show how parts are assembled.

What service data or fluid capacity information is available in the specification tables for these twin-cylinder engines? keyboard_arrow_down

Manual contains comprehensive specification tables that list approximate oil capacities, tightening torque values for bolts and fasteners, and internal engine tolerances. These tables provide the technical data needed for reference throughout the service life of the MV16, MV18, and MV20 engines.

Does the document indicate its publication status or edition information for the 1986-1988 Kohler MV series? keyboard_arrow_down

Digital manual is identified as publication TP-2289-A and covers the Kohler MV16, MV18, and MV20 twin-cylinder engine models produced between 1986 and 1988.
