Yamaha SJ700AU Superjet PWC Service Manual, 1997–2010 (P/N LIT-18616-01-43)

128 Pages • ZIP Download: Printable PDF • 8.00 MB

4.7starstarstarstarstar_half(3)
$16.65 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Model & Model Code: SJ700AU Superjet (SJ700A)

Model Years: 1997–2010 (1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010)

Serial Numbers: Primary I.D. number starting with GM6: 900101~ (FRA 910101~, GUM/AUS 930101~), Engine serial number starting with 64V: 000101~, Pump serial number starting with 64V: 500101~


  • Engine type: 2-stroke, 2-cylinder

  • Displacement: 701 cm3

  • Cooling system: Water-cooled

  • Fuel type: Regular gasoline

  • Lubrication system: Pre-mixed fuel and oil (50:1)

  • Ignition system: C.D.I. magneto

  • Spark plug: B8HS/BR8HS

  • Spark plug gap: 0.6–0.7 mm

  • Propulsion system: Axial flow jet pump

  • Transmission: Direct drive from engine

  • Battery capacity: 12 V / 68.4 kC (19 Ah)

  • Starter motor: SM13237 / MITSUBA

  • Fuse rating: 10 A

Yamaha Manual Features & Selected Content Preview

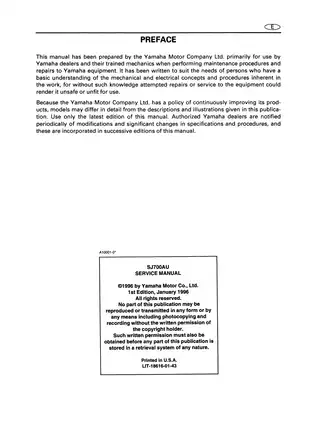

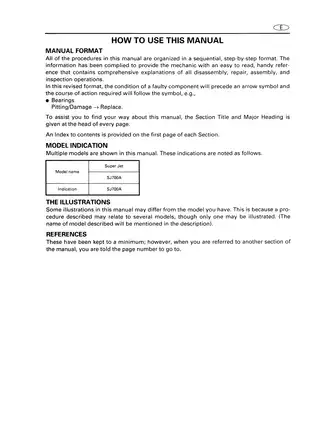

This Yamaha SJ700AU Superjet service manual, P/N LIT-18616-01-43, is the first edition from January 1996. The instructions and specification tables use the model indication SJ700A.

PDF Bookmarks, Wiring Detail, and Page Count

Search and navigation: PDF text search is not available. Chapter and component bookmarks provide navigation, but the external “Return to Index” bookmark does not work within this download. Small wire-color codes and component labels in the wiring diagrams are best read with magnification.

The ZIP contains one printable, 128-page English PDF, including the front cover, six introductory/index pages, and one closing page.


Engine, Jet-Pump, and Electrical Service

These selected coverage highlights outline the main workshop areas. Other topics include fuel-cock and check-valve inspection, plus graphic removal and application.

  • Periodic service: Steering-friction and cable adjustments, trolling-speed checks, spark-plug and battery inspection, impeller and bilge-strainer checks, and lubrication points.

  • Engine repair: Step-by-step procedures for engine removal and installation, cylinder-head and piston removal, crankcase disassembly, and crankshaft inspection.

  • Fuel system: Fuel-line and tank service, carburetor disassembly and inspection, fuel-pump checks, and throttle- and choke-valve synchronization.

  • Jet-pump repair: Axial-flow single-stage pump removal, deflector/nozzle/duct disassembly, impeller and drive-shaft service, bearing and oil-seal work, and bilge-system inspection.

  • Electrical diagnosis: Separate ignition-, starting-, and charging-system wiring diagrams, with factory tests for the CDI magneto, switches, starter circuit, battery, and charging components.

  • Hull and controls: Handle and steering-pole service, steering/throttle/choke cable replacement, hull-damage repair, and insert-nut procedures.

Yamaha prepared this manual primarily for its dealers and trained mechanics, assuming a basic understanding of mechanical and electrical service procedures.

Carburetor Inspection and Adjustment

The 64U00F/R carburetor section covers the diaphragm, float arm, body, needle valve, jets, and high- and low-speed screws. Internal inspection criteria, separate front/rear high-speed settings, and synchronization instructions support repairs beyond basic external adjustment.

The carburetor cautions explain how cleaning jets with steel wire can enlarge their openings and affect performance.

Power-Unit Service and Alignment

Engine inspection extends to reed valves, piston rings and pins, and cylinder-head and cylinder water jackets. Exhaust-ring, exhaust-chamber, and muffler removal have dedicated charts, alongside component-specific tightening data, clearances, and wear limits.

The manual also documents crankcase sealing, flywheel-magneto and electrical-unit removal, starter-motor overhaul, and coupling/intermediate-housing service. Engine-mount shim identification and coupling-clearance checks support driveline alignment.

Flywheel service specifies puller YB-06117 / 90890-06521 and warns that uneven or incomplete set-bolt engagement can damage the engine or tools.

Jet-Pump Assembly and Workshop Tools

The jet-pump removal chart identifies mounting shim packs for reassembly. Drive-shaft service includes press work, bearing inspection, and oil-seal installation; intermediate-housing pages provide seal-position and shaft-position dimensions.

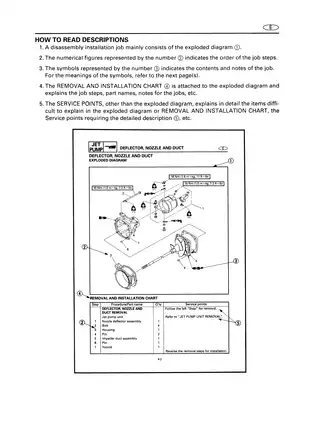

Factory tool references include the coupler wrench, flywheel holder, intermediate-shaft holder, drive-shaft holder, bearing drivers and attachments, and slide-hammer equipment. The repair chapters contain 36 exploded-diagram/removal-and-installation chart pairs, including carburetor, engine-unit removal, impeller/drive-shaft, and steering-cable views.

Electrical Checks and Fault Tracing

Component tests cover the spark-plug cap, ignition coil, engine-stop switch, thermo switch, CDI unit, starter relay, lighting coil, and rectifier regulator. Low-resistance measurement guidance explains how meter resistance affects readings.

The trouble-analysis chart links no-start, rough idle, stalling, failure to stop, poor performance, and overheating to the relevant service chapters. It also addresses loose steering, increased bilge water, and poor battery charging, helping locate checks for a particular symptom.

Hull Repairs and Body Components

Separate removal charts cover the battery case and water lock, handle column, steering-pole bracket, engine hood, deck, gunwale, and mat.

Hull repair instructions distinguish light scratches, deep scratches, puncture damage, and insert-nut work. For additional fiberglass-repair detail, the chapter refers to the separate Water Vehicle FRP Repair Manual, which is not included.

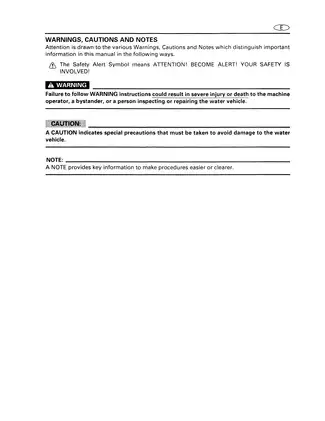

The opening safety material covers fire prevention, ventilation, battery/electrical precautions, protective clothing, and safe disassembly practices. Those precautions are especially relevant before fuel-system, electrical, rotating-component, or hot-engine service.

Selected Engine Clearances and Ignition Test Values

Piston inspection specifies a piston-to-cylinder clearance of 0.070–0.075 mm. The crankshaft inspection section gives a maximum deflection of 0.05 mm, alongside connecting-rod clearance and bearing checks.

Ignition testing lists pulser-coil resistance of 12.6–15.4 Ω between White/Red and Black, and charge-coil resistance of 497.7–608.3 Ω between Brown/White and Black. Both ranges apply at 20°C (68°F).
