1983-1985 Honda ATC200X Shop Manual
Complete engine control, transmission, alternator/electrical, brake system, suspension, fuel carburetor service procedures with detailed torque specifications and special tool requirements for all major assemblies.

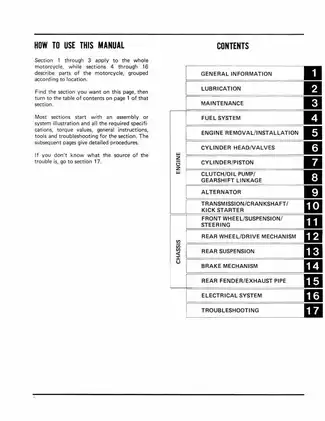

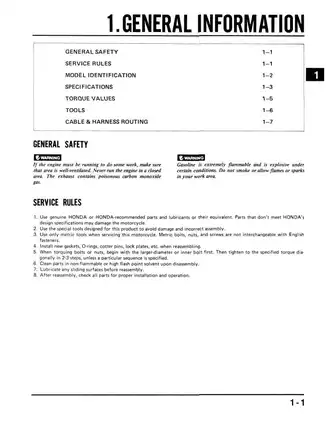

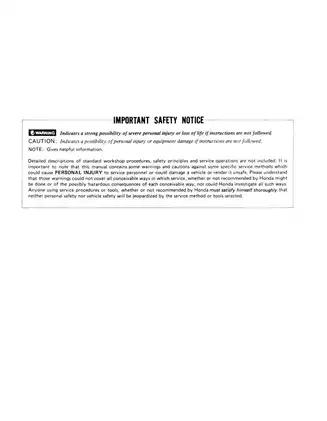

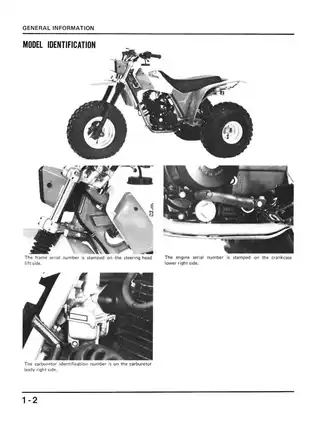

Manual Preview
Sample pages from the 1983-1985 Honda ATC200X Shop Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Honda ATC200X — 1983–1985 Technical Service Archive | ATC200X Series Repository.
- Authorized Reservoir Specs: The fuel tank capacity is established at 9.7 liters (2.56 US gallons, 2.14 Imperial gallons) for optimal riding range Benchmarks.
- Calibrated Displacement Data: For comprehensive engine classification, 209 cc (1983) and 214 cc (after 1983) represents the engine cylinder volume Range.
- Published Dimensional Tolerance: The cylinder bore and stroke dimensions are specified at 65.0 × 57.8 mm (2.56 × 2.28 inches) establishing precise engine architecture Sequences.
- Reference Climate Parameters: Maximum horsepower maintains 18 ps at 8,000 rpm limiting peak performance output Baseline.
- Established Physical Specs: Peak torque is configured at 1.7 kg·m (approximately 12.4 lb-ft) at 6,000 rpm establishing rotational force delivery Requirements.
- Core Fluid Capacity: The compression ratio indicates 9.6:1 for standard combustion chamber pressure validation Threshold.
Professional Workshop Service Manual & Technical Specifications
Certified Maintenance Manual: ATV Official Honda ATC200X Maintenance Manual (1983-1985) - Comprehensive Guide for Repair and Service Assembly-Guide
Machine-Range: ATC200X 1983-1985 // Engine-Type: Single-cylinder, air-cooled 4-stroke gasoline engine Logic // Operational-Scope: Complete service documentation with torque specifications and diagnostic procedures.
| Component | Operational-Logic | Validation-Data |
|---|---|---|
| Cylinder Head/Valves | Intake and exhaust valve adjustment, camshaft timing | Complete specifications provided |
| Clutch/Transmission | Multi-plate wet clutch, 5-speed transmission assembly | Documented clearance tolerances |
| Fuel System | Carburetor float level, pilot screw, jet configuration | Reference values and adjustment procedures |
| Electrical System | CDI ignition, alternator output, pulse generator timing | Wiring diagrams and continuity test data |
| Brake Systems | Hydraulic front and disc rear mechanisms | Complete specifications provided |
Technical chapters are organized around engine maintenance, fuel system service, drivetrain operations, electrical troubleshooting, and suspension adjustment. The document includes cylinder head and valve systems, fuel system components including carburetor operation, engine removal and installation procedures, transmission and crankshaft assemblies, front wheel and steering mechanisms, rear suspension and shock absorber service, brake fluid and caliper servicing, and electrical system diagnostics. Major sections focus on lubrication points, maintenance schedules organized by operating hours, drive chain inspection and adjustment, and complete wiring diagram references.
Comprehensive Parameters
Professionally demanding service documentation encompasses the engine's displacement of 209 cc with a 9.6:1 compression ratio. Safety procedures are documented for all fluid handling, gas pressurization, and spark arrester cleaning operations. The manual provides complete lubrication system guidance, including oil capacity specifications and grease application points for steering head bearings, swingarm pivots, and brake pedal mechanisms. Torque specifications are referenced for all critical fastening points including cylinder head nuts, crankcase bolts, engine hangers, and suspension mounting hardware. Bolt torque specifications ensure proper assembly of frame components, engine mounts, and drivetrain elements.
Strategic Logic-Path
Fluid capacities are listed for the fuel system (9.7 liters total with 1.4 liter reserve), engine oil capacity at both full and drain conditions, and front fork hydraulic reservoir amounts. Tool requirements are listed for specialized operations including valve guide removal, bearing installation, clutch holder applications, and fork seal servicing. The document includes both Honda part numbers and commercially available equivalent tool specifications for North American users. Installation guidelines are provided for the engine assembly process, carburetor installation with throttle cable routing, cylinder head installation with cam timing verification, and final drive chain tensioning.
Strategic Framework
Maintenance guidelines are included for every 30-day operating intervals covering oil and filter service, air cleaner element cleaning, and spark plug inspection. Additional service requirements address valve clearance checking at initial service and annually thereafter, brake fluid level verification, tire pressure checking with circumference measurement, and steering head bearing adjustment procedures. The complete manual documents all adjustment procedures with reference values, including idle speed stabilization at 1,300 rpm and carburetor pilot screw positioning. Service sections detail the removal and reinstallation of major components including alternator rotor removal, rear shock absorber assembly procedures, and swingarm bearing replacement using specialized drivers and pilots.
Structured Logic-Path
Diagnostic framework organization separates engine starting problems from operational performance issues across low-speed, mid-range, and high-speed performance conditions. The troubleshooting structure addresses brake system concerns including lever softness, pad wear conditions, fluid contamination, and caliper piston sticking conditions. Electrical system troubleshooting differentiates between primary and secondary ignition circuit failures, battery charging concerns, and lighting circuit continuity issues. The documentation includes a comprehensive wiring diagram showing alternator connections, CDI unit integration, ignition coil routing, and handlebar switch continuity data for both light and engine stop functions.
Diagnostic Framework
The manual documents torque specifications for the swingarm pivot bolt assembly at 70–110 N·m to ensure proper lateral stability and bearing preload. Cylinder compression verification procedures are included with reference pressure of 1,128 kPa for diagnostic baseline comparison. Spark plug specifications reference both NGK DR8ES-L and Champion RA6YC models with 0.6–0.7 mm gap requirements. The document includes specification tables for frame dimensions, tire pressures, fuel capacity, and suspension travel measurements. Service procedures reference multiple chapter locations for related operations, such as carburetor removal cross-referencing fuel tank removal, air cleaner service, and crankcase breather routing to coordinate repairs efficiently.
