Hyundai Accent 2006–2008 Service Manual Set

The system-specific publications pair mechanical repair procedures with circuit diagrams and diagnostic tests, allowing related component, wiring, and control-module information to be used together.

Application: The supplied articles are labeled for the 2006 Hyundai Accent GLS. Engine and fuel-system material covers the G4ED-GSL 1.6L CVVT application; match the transaxle and equipment configuration before selecting procedures.

PDF Search, Navigation and Diagram Detail

Text search and diagram readability: The PDFs have no searchable text layer or embedded bookmarks. Small labels in the separate color wiring diagrams require zooming. Some SRS and ABS circuit reproductions are grainy, making fine labels harder to read even when enlarged.

The ZIP contains 33 printable PDFs totaling 1,777 pages, organized by vehicle system.

Engine, Drivetrain and System Diagnostics

The following selected coverage highlights summarize the repair and diagnostic material. Additional topics include windshield-glass replacement and seat-cover and seat-track service.

• Engine repair: Compression testing, timing-belt service, cylinder-head disassembly and reassembly, CVVT inspection, engine removal, cooling-system testing, and lubrication-system repair.

• Fuel and engine management: OBD-II troubleshooting, Hi-Scan data, ECM/PCM pinouts, sensor and actuator tests, fuel-pressure diagnosis, and fuel-pump and tank removal.

• Transaxle and clutch service: A4AF3 stall and hydraulic-pressure testing, solenoid and valve-body service, M5CF1 external repairs, hydraulic-clutch work, and complete-unit removal and installation.

• Brakes and chassis: ABS/EBD diagnosis, brake bleeding, master-cylinder and disc/drum brake service, steering-gear repair, CV joints, hubs, struts, control arms, and rear torsion-beam work.

• Restraints: SRSCM diagnosis, airbags and pretensioners, impact and seat-position sensors, occupant classification, connector views, component replacement, and deployment/disposal precautions.

• HVAC and electrical systems: Refrigerant recovery, evacuation, charging and leak testing; manual and automatic climate controls; system wiring diagrams; starting, charging, and body-electrical checks.

Suited to readers with automotive repair experience who can interpret wiring diagrams and use scan tools, electrical test equipment, and the specified service tools.

Engine Mechanical Repair

Step-by-step procedures cover cylinder-head removal, disassembly and reassembly, valve and camshaft inspection, valve-guide and seat-ring work, and CVVT checks. Lower-end material addresses crankshaft, connecting-rod, bearing, piston, ring, and cylinder-bore inspection, including bearing-selection tables and reassembly information.

Cooling and lubrication chapters add coolant filling and bleeding, radiator and cap pressure tests, thermostat and fan service, oil-pan resealing, oil-pump inspection, and front oil-seal replacement. Intake and exhaust sections cover manifold and exhaust-component removal.

Transaxle Diagnosis and External Repair

The A4AF3 material explains power flow, hydraulic control, PCM-integrated management, and fail-safe operation. Hydraulic-circuit diagrams and pressure-test charts accompany actuator checks, valve-body and solenoid service, speed and temperature sensor tests, and range-switch adjustment.

The manual-transaxle and clutch files cover gear oil, axle seals, shift controls, pedal adjustment, hydraulic bleeding, master and release cylinders, clutch disc, cover, release bearing, and fork.

Overhaul scope: These transaxle PDFs cover diagnosis, adjustment, external service, and complete-unit removal and installation. They do not provide a full internal A4AF3 or M5CF1 teardown-and-rebuild chapter.

Fuel-System Fault Isolation

Symptom troubleshooting, intermittent-fault simulation, connector inspection, OBD-II monitors, freeze-frame information, and scan-tool data support DTC-specific diagnosis. Coverage includes cam timing, air and coolant metering, throttle input, oxygen sensors, catalyst monitoring, injectors, EVAP, system voltage, A/C pressure input, and CAN communication.

Separate A/T and M/T fuel-system circuit diagrams and ECM/PCM terminal descriptions accompany power, ground, signal, and component checks. Diagnostic paths include detection criteria, probable causes, and verification of repair.

Fuel-pressure and pressure-retention tables link test results to filter, regulator, injector, or pump check-valve faults, helping narrow the cause before selecting a replacement component.

ABS, SRS and Chassis Work

ABS/EBD diagnosis includes HECU terminal charts, wheel-speed sensor checks, hydraulic leak inspection, scan-tool actuator tests, air-bleeding mode, and pump-motor faults.

SRS circuit diagrams and SRSCM connector views support diagnosis of supply-voltage faults, airbag and pretensioner circuits, impact sensors, seat-track sensors, occupant classification, buckle switches, crash records, and warning lamps.

Mechanical chassis sections extend to steering-gear disassembly and adjustment, power-steering pump service, driveshaft-joint work, wheel hubs, suspension bushings, and rear springs and shock absorbers.

HVAC, Starting and Body Electrical

HVAC procedures cover compressor and clutch service, condenser and desiccant replacement, heater-unit work, control actuators, and sensor tests. Manual and automatic controls have separate component and diagnostic information.

Charging and starting material includes generator output and regulated-voltage test circuits, starter-circuit troubleshooting, solenoid and free-running tests, and generator and starter disassembly and inspection. Body-electrical files add switch, relay, motor, and connector checks for lighting, locks, windows, mirrors, wipers, horns, and seat heaters.

Service Tools and Repair Cautions

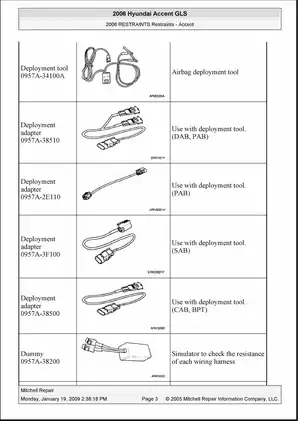

Tool references include the 09214-32000 crankshaft seal installer, 09222-28000/09222-28100 valve-spring compressor set, and 09353-24100 fuel-pressure gauge. Transaxle and SRS sections identify the 09452-21001/09452-21002 pressure adapters, 09200-38001 engine support fixture, and 0957A-34100A airbag deployment tool.

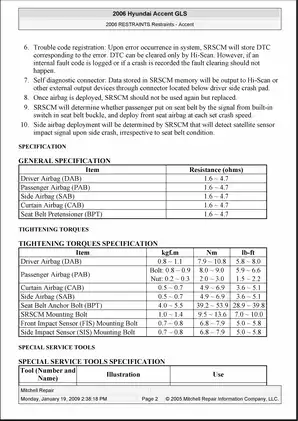

Related sections provide torque tables, inspection limits, clearances, pressure-test data, fluid specifications, electrical test values, and adjustment information.

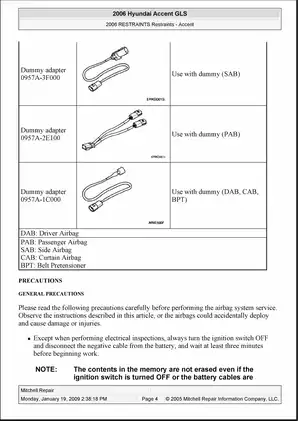

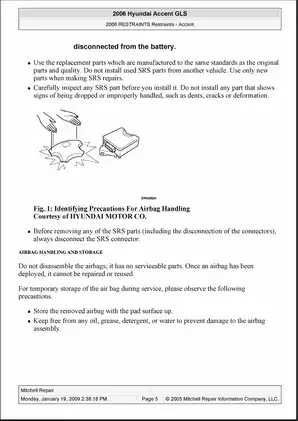

The timing-belt section warns that incorrect crankshaft rotation during the sonic tension check can damage the engine. SRS wiring, dummy adapters, spring-loaded connector locks, and module handling receive specific precautions because improper testing or handling can trigger an airbag or pretensioner.

Airbag, brake-hydraulic, and refrigerant work requires the isolation, bleeding, recovery, and handling precautions in the PDFs and the proper equipment.

Fuel-Pressure and Injector Specification Examples

For the G4ED-GSL 1.6 application, the fuel-pressure test specifies a standard pressure of 343 kPa (49.8 psi) at idle.

The injector-inspection section specifies coil resistance of 13.8–15.2 ohms at 20°C (68°F).
