Hyundai Sonata 1997 + EF/NF Service & Body Repair Manual Set

The shop sections address mechanical, diagnostic, and electrical service for their respective configurations; the body manuals cover structural collision repairs. Match the generation and drivetrain before selecting a procedure.

Coverage limits: The 1997 folder omits the Volume 2 Engine Electrical, Body Electrical, and air-conditioning groups referenced by its contents page. The separate Electrical Troubleshooting Manuals are not included; the NF companion is identified as Pub. No. A3KE-EG40A.

PDF Search, Chapter Links, and Wiring Detail

Search and diagram access: EF12-ENG.pdf supports text search through its main content; the other 57 PDFs have no searchable text layer. Bookmarks are present in 56 files, with some incorrect chapter destinations and links that depend on the original folder structure. Dense wiring diagrams need enlargement to read small pin and wire labels.

The ZIP download contains 58 printable PDFs totaling 4,209 pages. The total includes 10 shop-manual opening pages, three body-manual introductory/contents pages, the 12-page NF alphabetical index, and 62 duplicated NF pages.

Powertrain, Control-System, and Body Repair Contents

These selected contents outline the main workshop coverage rather than a full table of contents. Other topics include weatherstrip service and headlamp aiming.

• Engine repair: Engine/transaxle removal, timing-belt and chain service, cylinder heads and valves, oil pumps, balance shafts, pistons, crankshafts, blocks, and cooling-system bleeding.

• Transaxle service: Manual gearbox repair, earlier automatic and EF F4A42 overhaul, NF automatic diagnosis, road tests, hydraulic pressure checks, and control-circuit troubleshooting.

• Brakes and stability control: Conventional brake service, ABS/TCS/EBD and NF ESP diagnosis, wheel-speed-sensor checks, HECU terminal data, scan-tool tests, and bleeding.

• Fuel and engine electrical systems: MFI diagnosis, fuel-pressure testing, sensor and actuator checks, starting and charging tests, cruise control, electronic throttle, and CVVT.

• Chassis and steering: Clutch hydraulics, driveshafts and axles, hubs, front and rear suspension, steering-gear and pump repair, and NF EPS troubleshooting.

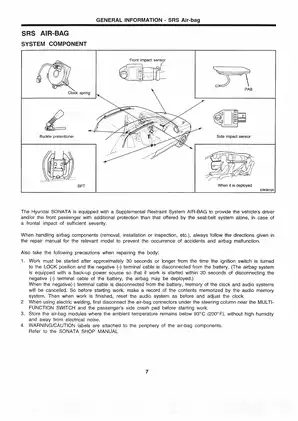

• Body electrical and SRS: ETACS functions, keyless-entry registration, immobilizer key teaching, power-accessory troubleshooting, airbag fault charts, connector checks, and component-handling precautions.

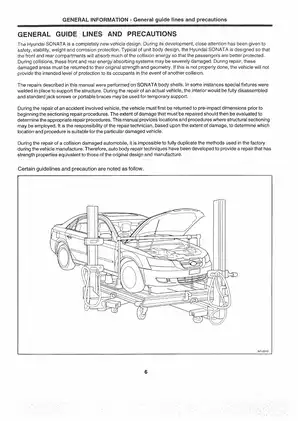

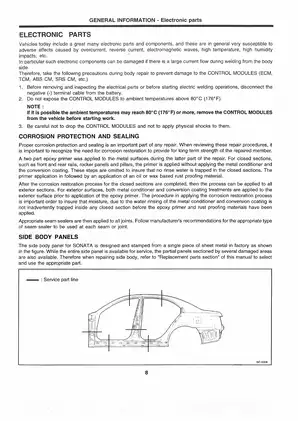

• Collision repair: Body construction, high-strength and galvanized panels, datum measurements, structural sectioning, welded panel replacement, sealing, underbody coatings, and cavity wax.

Hyundai identifies authorized-dealer service technicians as the intended users; these procedures call for appropriate scan tools, measuring equipment, lifting gear, and system-specific safety knowledge.

Match the Engine and Transaxle

The earlier sections distinguish KM206 and KM210 manuals from KM175-5, KM175-6, and F4A33 automatics. EF tables identify M5GF for the 2.0, M5GF1 for the 2.4, and M5GF1-1 for the 2.5; automatic applications separate F4A42-1 for the 2.0 from F4A42-2 for the 2.4/2.5. EF engine-repair chapters cover the 2.0 DOHC and 2.5 V6.

The NF volume pairs the G4KC engine with M5GF2 manual and F4A42-2 automatic applications. Mechanical checks include compression testing and valve-clearance inspection.

Its M5GF2 input-shaft teardown is reference material: Hyundai recommends assembly replacement when that unit is faulty. NF automatic coverage centers on electronic and hydraulic diagnosis, adjustment, and unit removal/installation rather than a full internal bench overhaul.

Identification keys include 1997/1998 codes in the earlier material, 1998–2001 in the EF VIN key, and 2004–2006 in the NF VIN key; the NF transaxle key extends through 2007. These identification tables should be read alongside the configuration-specific repair chapters.

Internal Repair and Fault Isolation

Step-by-step procedures in the earlier automatic and EF F4A42 sections cover internal disassembly and reassembly, clutch/brake-pack inspection, end-play adjustment, valve-body service, and differential work.

The EF F4A42 oil-pump warning explains how disassembly and incorrect alignment can cause pump failure and further transaxle damage. A separate caution distinguishes the A/T filter from a similar-looking engine-oil filter, whose different filtering action can damage the transmission.

Diagnostic charts link symptoms and DTCs to component and circuit checks, helping technicians distinguish electrical, hydraulic, and mechanical causes before selecting a repair. NF material adds ECM terminal/input-output data and freeze-frame workflows; ABS/ESP coverage includes yaw-rate, lateral-G, and steering-angle sensor diagnosis, plus steering-angle calibration.

Climate Control and Structural Repair

HVAC sections cover refrigerant leak testing, compressor service, manual and automatic controls, actuator/sensor checks, and climate-control self-diagnosis.

The body manuals restrict structural sectioning to specified repair locations. Their measurement charts support restoring body geometry before panel replacement; the EF instructions expressly limit those repair procedures to the EF body.

Brake/ABS, SRS, refrigerant, lifting, and structural repair work must follow the manual's system-specific safety precautions and should be performed only with suitable shop equipment and training.

Diagrams, Test References, and Factory Tools

Illustrated references include the three-part 1997 ABS schematic, automatic-transaxle hydraulic circuits and F4A42 section views, engine-specific fuel-system circuits, NF ECM connector/terminal views, NF ABS/ESP circuits, and EF/NF body-measurement and panel-section views. Tables supply component torque values, fluid and lubricant specifications, service limits, clearances, hydraulic test data, and electrical test values.

Named equipment includes Hi-Scan 09900-11000 with DLC cables 09900-21100/09900-21200, SRS harness checker 0957A-29000, and deployment tool 0957A-34100. EF F4A42 tooling includes spring compressor 09453-24000 and oil-pump remover 09452-33100.

A Preview of F4A42 End-Play Specifications

The EF F4A42 service specifications list input-shaft end play of 0.70–1.45 mm and second-brake end play of 0.79–1.25 mm. The adjustment sections relate these clearances to selective thrust washers, snap rings, and pressure plates.
