2005 Epson AcuLaser CX11 / CX11F Service Manual (P/N SEOT04007)

Epson’s service manual, document code SEOT04007, Revision A, first release dated April 28, 2005, covers the AcuLaser CX11 and CX11F host-based color laser all-in-ones. Both print, scan, and copy; only the CX11F includes fax and an ADF.

The ZIP package contains a 670-page PDF and two Excel parts lists.

• Fault diagnosis: Fault-isolation charts address service-call errors, paper jams, print defects, abnormal noise, and fax communication failures.

• Printer repair: Disassembly covers fuser and secondary-transfer replacement, rotary developer housings, drive assemblies, and the optional lower paper feeder.

• Scanner and ADF repair: Removal and reinstallation of the CCD module and carriage motor, plus the ADF pickup assembly, magnetic clutch, and paper sensors.

• Board replacement: MCU data backup/restore and USB ID writing support board replacement; separate procedures cover firmware updates and component life-counter resets.

• Electrical diagnosis: C588MAIN circuit schematics, connector layouts, and system-specific wiring diagrams support electrical fault tracing; exploded views support component identification.

Written for experienced repair technicians, the manual specifies that repairs be performed only by Epson-certified technicians.

Print Engine Repair and Maintenance

The two models have different control panels and cannot be converted from one version to the other. The operating-principles chapter explains how the print engine, scanner module, and fax controller work together.

Within the engine, coverage follows the photoconductor drum, transfer belt, waste-toner handling, and automatic density control. The Total Print Process Schematic Diagram connects these processes to the charging, development, transfer, and fusing stages.

Mechanical repair coverage goes beyond replacing consumables. It includes registration and preregistration clutches, transfer-retraction mechanisms, developer home-position sensing, and the low- and high-voltage power-supply assemblies. ROS laser-unit service covers assembly removal and reinstallation, not internal disassembly.

Maintenance instructions cover as-needed cleaning, specified lubrication points, and replacement criteria tied to component usage. The pickup-roller cleaning notes warn about damaging the actuator directly in front of the feed roller.

Fault Isolation, Test Prints, and Fax Diagnosis

The Printing-quality Troubleshooting Entry Chart leads into symptom-specific checks. When the engine can reach Ready status, its built-in test print helps distinguish print-engine faults from controller-related problems.

A repeating-defect pitch table helps associate regularly spaced marks with the relevant rollers. Noise diagnosis is divided by power-on, standby, and printing conditions rather than treated as one general complaint.

MFP Maintenance Mode provides scanner, ADF, fax, and control-panel checks. The scanner procedures distinguish carriage-lock and origin-detection problems from lamp, motor, and cable faults.

For fax communication failures, the documentation explains Activity Reports, the Fax Setting List, and the Protocol Monitor List, supported by internal and external error-code tables and phone-line parameter references.

Board Replacement and Required Service Software

The PWBA MCU retains engine-specific life and correction data. Its replacement procedure addresses matching firmware versions before restoring that data.

MCU and CRUM boards become printer-specific after initialization; an MCU taken from another printer can trigger the NVRAM error Service Req E513.

The adjustment chapter distinguishes controller, engine, color-table, and fax firmware updates. Fax repair procedures also cover retrieving and restoring stored dialing information and system settings. The chapter calls for no scanner or ADF adjustments.

Software work uses the Main Board Initialization Tool, Firmware Update Tool, and MFP Maintenance Utility. These utilities and firmware files are not included in the documentation package.

Print Engine and Electrical Specifications

The specification sections cover output performance, resolution, warm-up conditions, media handling, and electrical ratings for 120V and 240V configurations. Fuser temperature control and connector-level electrical checks are documented alongside the mechanical fault-isolation procedures.

The DC POWER SUPPLY, 2nd BTR, and FUSER Connection and Wiring Diagrams identify the relevant signal paths and connector references. Plug-and-jack location views connect those references to the physical boards and harnesses.

Because the printer contains high-voltage circuitry and a hot fuser, follow Epson’s electrical-isolation and cooling precautions; powered tests require the manual’s specified service conditions.

File Format and Readability

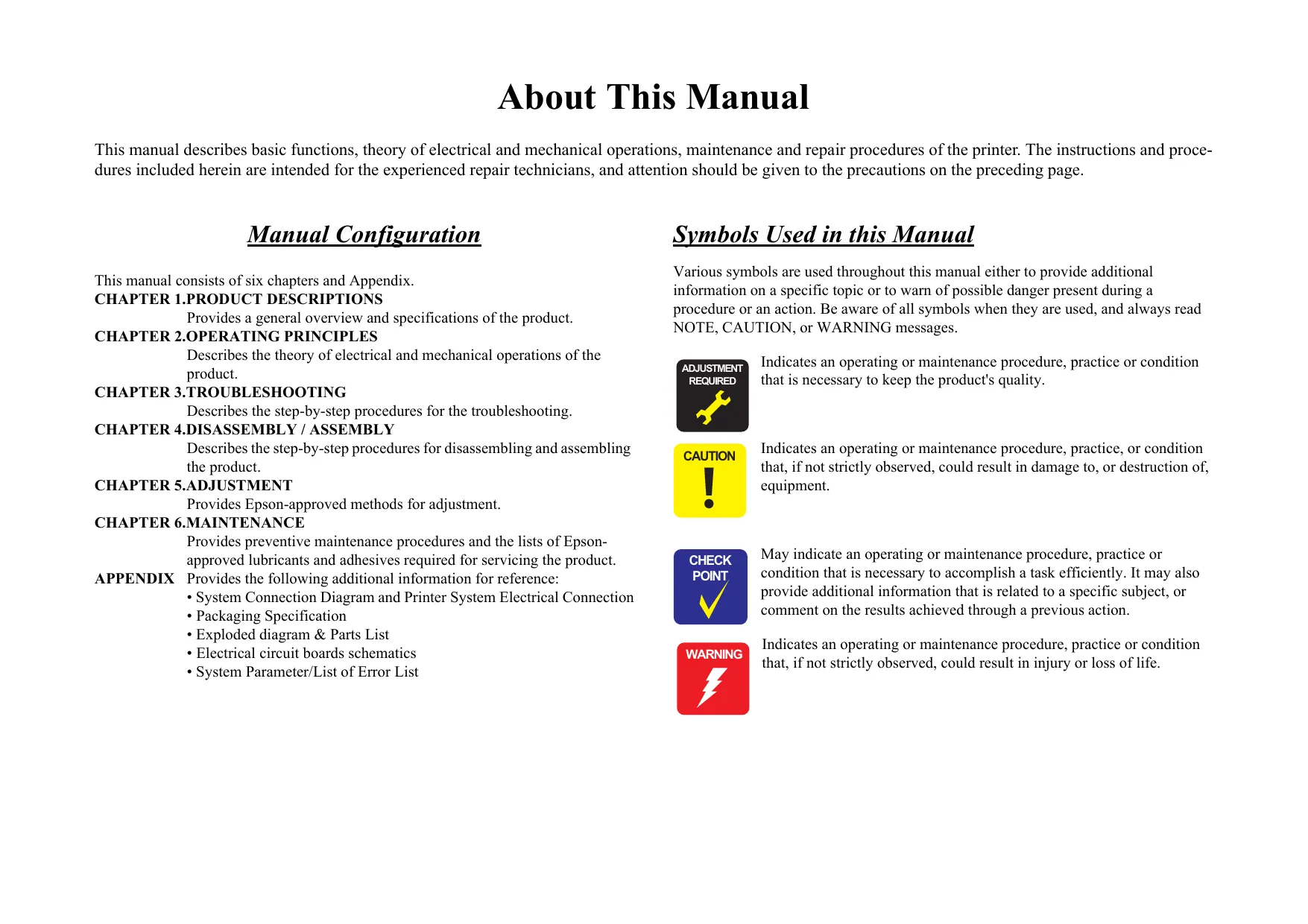

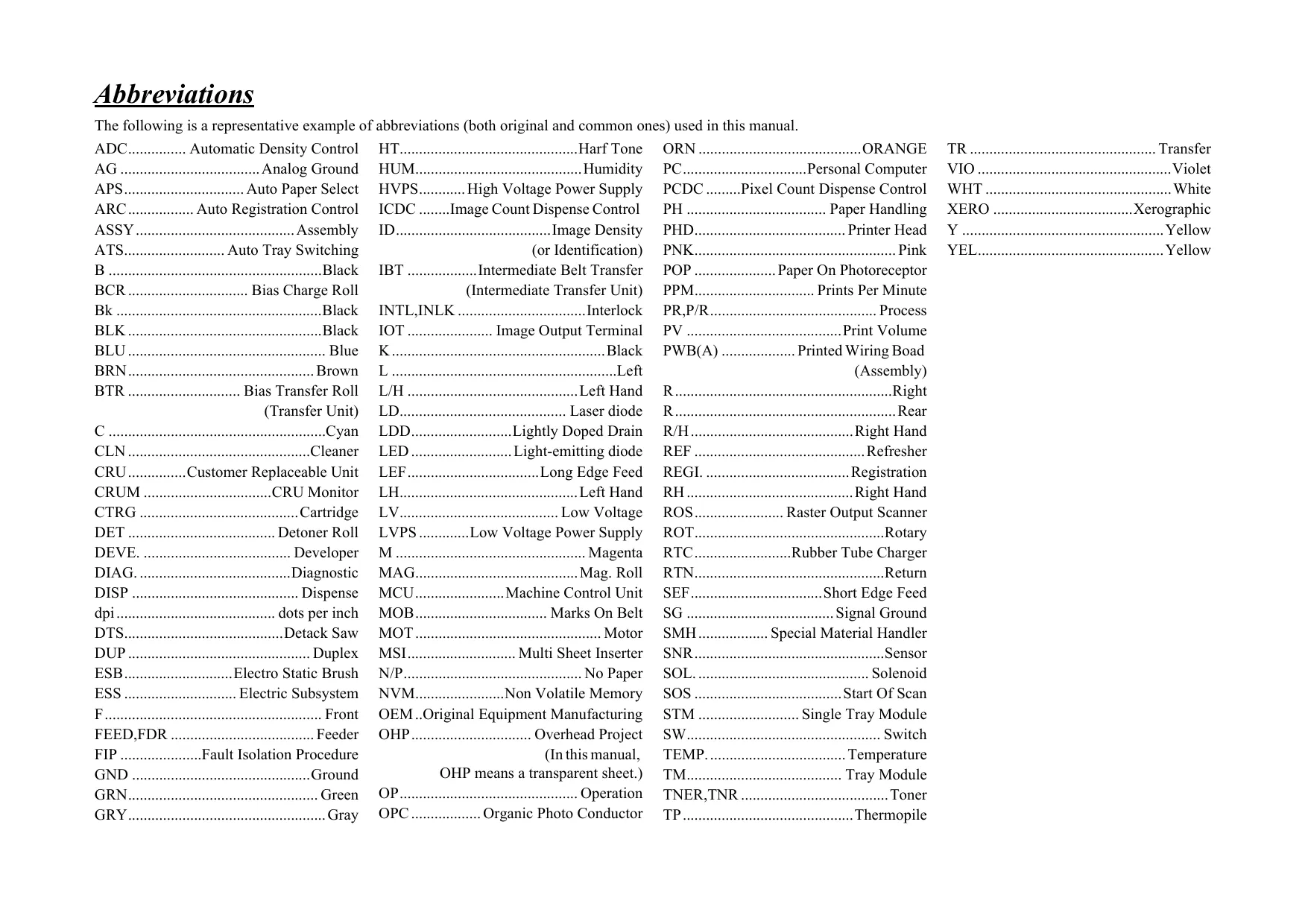

The PDF total includes 16 pages of front matter, including the cover, 547 pages across six service chapters, and a 107-page technical appendix. The appendix contains parts lists, exploded views, circuit schematics, and fax reference tables; these pages are already included in the total.

Separate Excel parts lists for CX11N and CX11NF accompany the PDF, with reference numbers, part codes, and descriptions. These spreadsheets are additional files and do not add to the PDF page count.

Text search and navigation: Body text and many tables are searchable. The PDF has 134 embedded bookmarks for chapters and subsections. Some graphical labels, including those on the six C588MAIN schematic sheets, are not searchable.

Diagram readability: Small schematic labels require zooming.
