Kawasaki Models Covered & Key Technical Specifications

Model: KLX450R

Sub-models / Variants: KLX450A8F, KLX450A9F

Model Year: 2009

Serial Numbers: KLX450A8F — beginning frame numbers JKALXGA1□8A000001 or JKALX450AAA000001; KLX450A9F — beginning frame numbers JKALXGA1□9A010001 or JKALX450AAA010001. □ varies from one machine to another.


  • Engine: 4-stroke, liquid-cooled, single cylinder, DOHC 4-valve

  • Displacement: 449 cm³

  • Bore x Stroke: 96.0 x 62.1 mm

  • Compression Ratio: 12.0:1

  • Carburetion: KEIHIN FCR-MX40

  • Ignition System: Digital AC-CDI

  • Transmission: 5-speed, constant mesh, return shift

  • Fuel Tank Capacity: 8 L (2.1 US gal)

  • Dry Mass (KLX450A8F): 115 kg (254 lb)

  • Curb Mass (KLX450A9F): 126 kg (278 lb)

  • Suspension (Front): Telescopic fork (up side down), 305 mm travel

  • Suspension (Rear): Swingarm (New Uni-trak), 315 mm travel

  • Brake Type: Single disc (front and rear)

Kawasaki Manual Features & Selected Content Preview

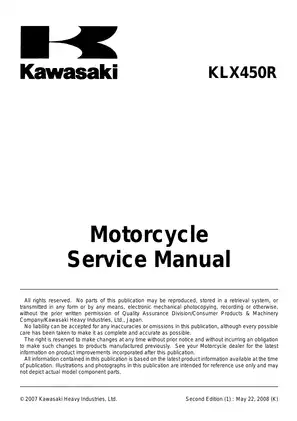

Kawasaki Heavy Industries’ KLX450R Motorcycle Service Manual, P/N 99924-1385-02, covers KLX450A8F (2008) and KLX450A9F (2009). This is Second Edition (1), dated May 22, 2008.

PDF Search, Bookmarks, and Diagram Detail

Text navigation and wiring labels: The PDF has searchable body text and embedded bookmarks for chapters and individual procedures. Text within some diagram graphics is not searchable. Small wire-color codes and terminal letters on the main wiring diagram are readable with enlargement.

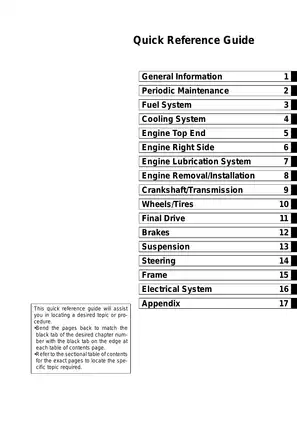

The ZIP download contains one printable English PDF with 439 pages: 10 preliminary pages, including the cover and three blank pages; 428 pages across 17 chapters, including 10 blank divider pages; and one final Model Application page. All are included in the total.


Engine, Chassis, and Electrical Service

The following selected content highlights outline the main workshop coverage. Other topics include spark-arrester cleaning and rear-frame removal and installation.

  • Engine repair: Step-by-step procedures for engine removal and installation, DOHC top-end disassembly, camshaft-chain timing, valve and valve-seat work, and cylinder/piston inspection.

  • Drivetrain service: Crankcase splitting, crankshaft and balancer service, transmission repair, clutch setup, external shift-mechanism inspection, and kickstarter service.

  • Carburetor service: Fuel-level adjustment, disassembly and assembly, acceleration-pump timing, throttle cables, hot-start controls, air-cleaner maintenance, and fuel-tank inspection.

  • Cooling and lubrication: Pressure testing, bleeding, radiator and water-pump service, feed/scavenge oil-pump inspection, oil-screen cleaning, and oil-pressure measurement.

  • Chassis repair: Brake-line bleeding, caliper and master-cylinder service, wheel/hub bearings, drive-chain alignment, fork disassembly, rear-shock oil service, Uni-Trak/swingarm bearings, and steering-stem service.

  • Electrical diagnosis: Wiring continuity, battery and charging tests, magneto and regulator/rectifier inspection, ignition/starter circuits, starter-motor overhaul, sensors, switches, relays, lighting, and meter functions.

  • Maintenance reference: Distance- and operating-hour schedules, periodic replacement charts, torque and locking-agent tables, fluid data, wear limits, clearances, adjustment specifications, and electrical test values.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners performing basic maintenance and repair who understand mechanics, proper tool use, and workshop procedures.

Model Scope and Regional Differences

Electric and kick starting are both covered. Fuel-system procedures are carburetor-based; this is not a DFI or fuel-injection diagnostic manual.

Regional notes distinguish U.S., California, and Canadian clean-air-system and vacuum-switch-valve work from Australia and Europe carburetor and tire specifications. Australia-specific brake and electrical components are also identified.

The main wiring diagram and several electrical circuit drawings are labeled for models other than Australia. A8F- and A9F-specific callouts appear in cooling, exhaust, engine-mounting, and brake exploded views. These distinctions help match the illustrated components and procedures to the relevant configuration.

Internal Engine and Transmission Work

Valve-clearance adjustment includes shim-selection calculations and a shim part-number table. Crankshaft rebuilding requires a shop with the equipment needed to meet the specified assembly tolerances.

Transmission inspection extends to shift-fork bending, gear-groove wear, shift-drum engagement, and gear damage. Clutch instructions distinguish friction-plate positions and include adjusting-plate selection for the assembled clutch pack.

Suspension and Lubrication Detail

Fork procedures identify seal and guide-bush replacement, with separate inspections for the adjuster assembly, base valve, and cylinder unit. Rear-shock oil-service instructions address reservoir components and air bleeding, alongside spring-preload and damping adjustments.

Oil-pressure diagnosis connects low readings with feed-pump inspection and high readings with filter or oil-passage restrictions, providing a basis for choosing the next inspection rather than treating all pressure faults alike.

Electrical Tests and Workshop References

Ignition diagnosis includes separate peak-voltage checks for the ignition coil, crankshaft sensor, and exciter coil, plus throttle-position-sensor resistance, voltage, and adjustment procedures.

Reference graphics include the Coolant Flow Chart, Lubrication System Chart, Wiring Diagram (Other than Australia Models), Charging System Circuit, Ignition System Circuit, and Cable, Wire, and Hose Routing views. The appendix provides a system-based troubleshooting guide for starting, engine performance, shifting, noise, handling, braking, and battery faults.

Chapter-opening exploded views identify assembly relationships, replacement parts, lubrication points, sealants, locking agents, and sequence-controlled fasteners.

Engine-tool references include Crankcase Splitting Tool Assembly 57001-1362 and Crankshaft Jig 57001-1174. Fork procedures identify Top Plug Wrench 57001-1653 and Fork Oil Seal Driver 57001-1509; electrical peak-voltage tests specify Peak Voltage Adapter 57001-1415.

Component-Specific Repair Cautions

Partially loosening and retightening the non-return camshaft-chain tensioner can damage the tensioner and chain; turning the crankshaft with it removed can disturb timing and damage valves.

Kawasaki specifies Hand Tester 57001-1394 for regulator/rectifier resistance testing because a megger or meter with a large-capacity battery can damage the regulator.

Fuel-system repair requires the stated fire precautions, ignition testing involves dangerous high voltage, and suspension work must account for stored spring force and pressurized nitrogen.

Fuel-Level and Sensor-Voltage Examples

The carburetor section specifies a service fuel level of 6.5 ± 1 mm below the bottom edge of the carburetor body, distinguishing this check from float-height measurement.

For the throttle position sensor, the electrical chapter gives an output-voltage range of 0.58–0.78 V at engine idle. The accompanying test views identify the sensor leads and adapter connections.
