1989–1999 Yamaha FZR600 / 600R W Service Manual (P/N LIT-11616-06-82, LIT-11616-07-36)

• Factory document set and model identification: A 497-page PDF whose Yamaha compilation cover carries LIT-11616-FZ-00, containing the FZR600W/WC base manual plus factory supplements for FZR600RA/RAC and FZR600RB/RBC, with separate non-California and California data.
• Covers complete engine repair work: Engine removal, cylinder-head and camshaft disassembly, valve and timing-chain service, piston and crankshaft inspection, crankcase splitting, clutch and starter-clutch work, transmission service, reassembly, timing, adjustment, and engine installation.
• Breaks down fuel, cooling, and emission systems: Carburetor removal, disassembly, inspection, assembly, installation, synchronization, and adjustment; radiator, thermostat, and water-pump service; plus California air-induction and EXUP valve, cable, servo-motor, and control-system coverage.
• Details chassis procedures: Wheel removal and static balancing, brake-pad replacement, caliper and master-cylinder overhaul, brake-system bleeding, fork disassembly, steering-head service, rear shock and swingarm work, and drive-chain and sprocket inspection.
• Maps electrical diagnosis: Model-specific wiring diagrams and system circuits with fault-finding for digital ignition, electric starting, charging, lighting, signals, cooling-fan control, fuel-pump operation, and the California EXUP system.
• Provides factory service data: Maintenance schedules, component-specific torque specifications, lubrication and coolant diagrams, cable-routing views, fluid capacities, wear limits, clearance and adjustment data, electrical test values, and Yamaha special-tool listings.

Factory Repair Depth

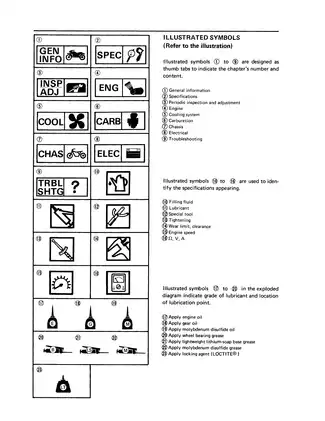

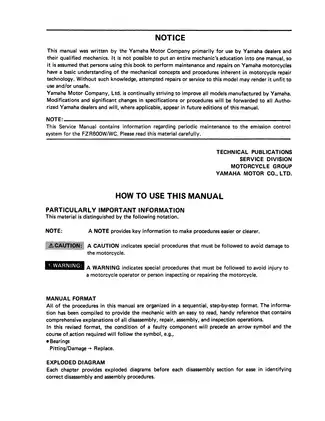

Yamaha states that this material was written primarily for its dealers and qualified mechanics and assumes a basic understanding of motorcycle repair. It is therefore suited to experienced technicians or comparably skilled owners who already have the shop knowledge and measuring equipment required for internal engine, brake, suspension, and electrical work.

The base manual provides full mechanical breakdowns, ranging from scheduled maintenance through advanced troubleshooting. Engine repair coverage reaches the cylinder head, valves and guides, camshafts and timing chain, cylinders and pistons, crankshaft and connecting rods, lubrication system, clutch, starter drive, and constant-mesh six-speed transmission. Inspection and repair sections are followed by assembly, adjustment, timing verification, and remounting coverage rather than stopping at removal.

Exploded views precede the major disassembly sections. Particularly useful examples cover the cylinder head and camshafts, crankcase and transmission shift mechanism, carburetor section view, front and rear brakes, and fork and rear-suspension assemblies. The manual also documents valve-clearance adjustment, compression testing, ignition-timing checks, carburetor synchronization, cooling-system inspection, brake bleeding, steering-head adjustment, and final chassis checks.

The cautions are component-specific: rotating the camshaft during the identified disassembly stage can damage valves, while excessive force or bottoming the inner fork tube during separation can damage the oil seal, bushings, or oil-lock piece. The brake chapters also warn that unsuitable cleaning solvents can swell and distort hydraulic seals.

Model and Supplement Coverage

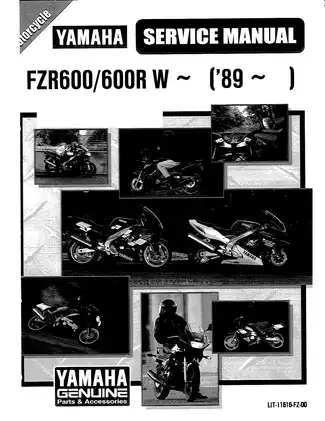

The compilation cover is marked FZR600/600R W~ ('89~). The PDF consists of a one-page compilation cover, the 384-page W/WC base manual LIT-11616-06-82, the 39-page RA/RAC supplement LIT-11616-07-36, and the 73-page RB/RBC supplement LIT-11616-07-60. Inside, the factory identification pages specifically cover the 1989 FZR600W/WC, 1990 FZR600RA/RAC, and 1991 FZR600RB/RBC. Starting engine numbers are listed as 3HH-000101 and 3HW-000101 for W/WC, 3HH-016101 and 3UU-000101 for RA/RAC, and 3HH-032101 and 3UU-003101 for RB/RBC; matching starting VIN patterns are also provided.

The RA/RAC supplement adds model-specific specifications, revised front and rear brake repair procedures, and its own circuit and wiring diagrams. The RB/RBC supplement goes further, updating engine, chassis, electrical, lubrication, coolant, and cable-routing data. It adds revised oil and filter service, oil-pan and strainer work, radiator, thermostat and water-pump sections, and updated starting, fuel-pump, and California EXUP troubleshooting.

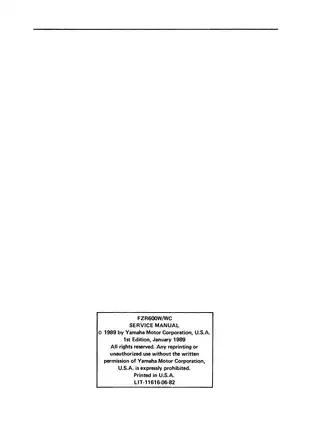

These supplements contain model-specific change data and are not standalone repair manuals. Their forewords cite FZR600W/WC base publication LIT-11616-06-97, while the base edition included in this PDF is LIT-11616-06-82, first edition, January 1989. No separately identified model supplement after RB/RBC is included.

Electrical Schematics, Specifications, and Tools

The electrical chapters include full W/WC, RA/RAC, and RB/RBC wiring diagrams plus dedicated circuits for digital ignition, starting, charging, fuel-pump operation, cooling control, and the California EXUP system. Troubleshooting paths move from circuit operation and switch continuity to component tests for coils, relays, the starter motor, regulator/rectifier, fan motor and thermoswitch, fuel pump, and EXUP servo components.

Factory tool references include the vacuum gauge YU-08030-A / 90890-03094 for carburetor synchronization, valve spring compressor YM-04019 / 90890-04019 with attachment YM-04108 / 90890-04108, fork damper-rod holder YM-01300-01 / 90890-01294, dynamic coil tester YM-34487 / 90890-03144, and pocket tester YU-03112 / 90890-03112. The brake, cooling, suspension, and electrical procedures include system-specific safety warnings and should be approached at the experience level Yamaha assumes for this service information.
