1992–1993 Yamaha WR500 / WR500Z Service Manual OEM (P/N LIT-11626-08-44, 4AA-28199-11)

• Covers the 1992 Yamaha WR500ZD (model code 4AA1) and 1993 WR500ZE (model code 4AA2), with separate starting VIN and engine-number identification for each build.
• Details VM38SS Mikuni carburetor and Y.E.I.S. reed-induction service, cylinder and piston repair, clutch and primary-drive work, CDI magneto service, engine removal, crankcase splitting, crankshaft installation, and constant-mesh transmission repair.
• Covers front and rear wheel-bearing work, hydraulic disc-brake bleeding and overhaul, front-fork seal, base-valve, and damper-rod service, steering-head repair, swingarm and relay-arm inspection, and rear-shock spring setup.
• Provides CDI ignition fault tracing, spark-gap and coil tests, engine-stop circuit inspection, cable-routing and wiring diagrams, carburetor and suspension setting charts, and troubleshooting tables.
• Contains two PDFs totaling 482 pages. The WR500ZE volume carries Yamaha publication numbers LIT-11626-08-44 and 4AA-28199-11 and is marked 1st Edition, May 1992.

Model and Publication Coverage

This is a two-manual set, not a single 4AA1 specification book. The 1992 volume identifies the WR500ZD as model code 4AA1, starting with VIN JYA4AAW0*NA000101 and engine number 4AA-000101. The 1993 volume identifies the WR500ZE as 4AA2, starting with VIN JYA4AAW0*PA006101 and engine number 4AA-006101.

Both manuals document the 487 cc, air-cooled two-stroke single, wet multi-disc clutch, and constant-mesh five-speed transmission. However, the model-year specification tables and several service-tool callouts differ. The books provide separate cylinder and piston limits, carburetor settings, final-drive data, ignition timing and CDI resistance checks, brake limits, suspension specifications, and fastener torque tables. Values from the 4AA1 manual should not be carried over to the 4AA2 build without checking the corresponding model-year section.

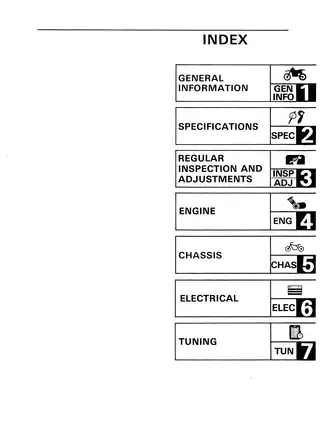

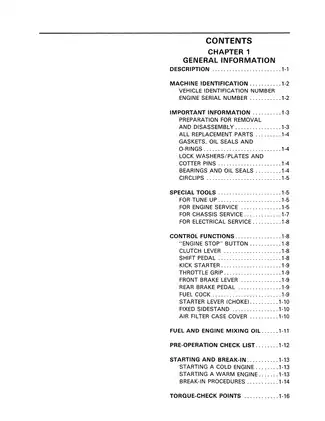

What the Manuals Document

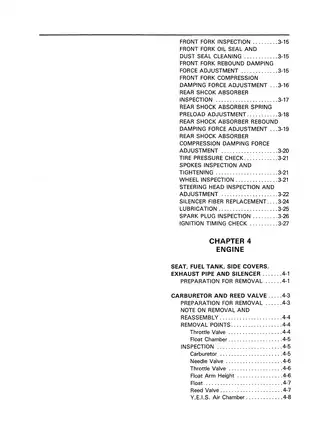

Engine coverage starts with removal and inspection of the VM38SS carburetor, throttle valve, needle valve, float system, reed valve, and Y.E.I.S. air chamber. The top-end section covers cylinder-head flatness, cylinder and piston measurement, piston-pin and small-end bearing checks, ring inspection, and reassembly.

Deeper repair sections address the clutch and primary gears, kick axle and shift shaft, CDI magneto, complete engine removal and installation, crankcase separation, crankshaft inspection and installation, and transmission, shift-cam, and shift-fork service.

Electrical diagnosis follows a defined fault-isolation path rather than stopping at a schematic. It covers spark-gap testing, coupler and lead inspection, the engine-stop button, ignition-coil primary and secondary windings, CDI magneto pickup, source, and lighting coils, and CDI-unit diagnosis.

The tuning chapter addresses carburetor metering ranges, jetting changes for atmospheric and course conditions, spark-plug selection, gearing, front-fork and rear-shock adjustment, front/rear suspension compatibility, and symptom-based remedies.

Chassis procedures include wheel-bearing removal and replacement, front and rear caliper and master-cylinder overhaul, piston and seal-kit inspection, brake-hose and disc checks, pad replacement, fluid service, and brake-system bleeding.

The fork section goes beyond routine oil changes, documenting cap-bolt and base-valve work, oil-seal replacement, damper and rod-assembly inspection, inner- and outer-tube checks, reassembly, oil-level setting, and damping adjustment. Steering bearings, the steering shaft, swingarm, relay arm, linkage clearances, rear-shock spring removal and installation, and shock inspection are covered in the same workshop format.

Specification, Tool, and Diagram Coverage

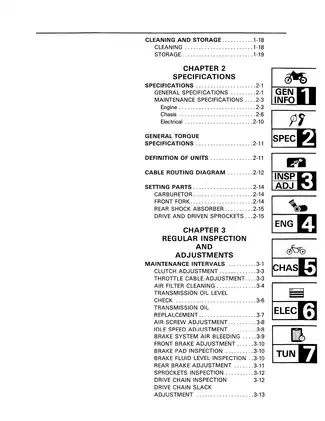

Reference data includes maintenance intervals, model-specific torque tables, capacities and approved lubricants, wear limits, running clearances, carburetor setting parts, suspension setup data, electrical resistance tests, and a setting-record table.

Special-tool callouts are explicit. Both manuals identify the YU-01135 / 90890-01135 crankcase separator, YU-01235 / 90890-01235 rotor holder, YM-01189 / 90890-01189 rotor puller, and YM-91042 / 90890-04086 clutch holder.

The tool listings also distinguish the 4AA1 crankshaft-installing adapter YU-90062 / 90890-01277 from the 4AA2 adapter YU-90063 / 90890-01278. The 1993 fork chapter adds the YM-01434 / 90890-01434 rod holder and YM-01437 / 90890-01437 rod puller with attachment 90890-01436.

Diagram support includes the cable-routing layout, CDI component and wiring diagram, carburetor metering-range chart, ignition-timing graph, fork and rear-shock setting charts, and exploded job views for the clutch, crankshaft, transmission, brakes, front fork, and suspension linkage.

Manual-specific cautions matter on this machine. Yamaha warns against driving the crankshaft out with a hammer and specifies separator and installer tools so the crank and bearings are not subjected to damaging force. Piston rings must be indexed to their locating pin, the piston arrow faces forward, and new pin clips must be installed clear of the piston slot; incorrect positioning can damage the ring, piston, or cylinder. The rear-shock reservoir contains high-pressure nitrogen, and the manual specifically warns against removing the plug from the nitrogen tank.

Because the WR500Z is a competition motorcycle with premixed gasoline, hydraulic brakes, and a gas-charged shock, verify every torque, clearance, fluid, and electrical value in the correct model-year volume before repair work begins.
