Yamaha YZ125F1 1994 Owner’s Service Manual (P/N LIT-11626-09-14)

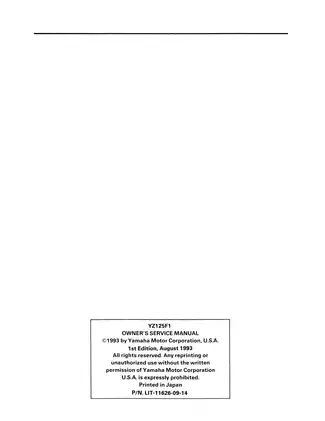

This Yamaha Owner’s Service Manual covers the 1994 YZ125F1 and its regional 4JY variants. The first edition is dated August 1993 and carries P/N LIT-11626-09-14 and 4JY-28199-10.

Printable PDF, Section Bookmarks and Wiring Detail

Search, bookmarks and diagrams: PDF text search is not available. Embedded bookmarks open chapters and many individual service sections; the external index shortcut requires a separate file that is not included. Small connector labels and wire-color codes in the wiring diagram are readable when enlarged.

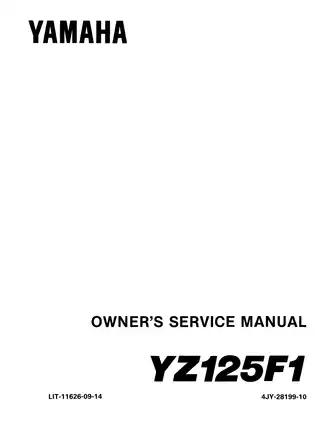

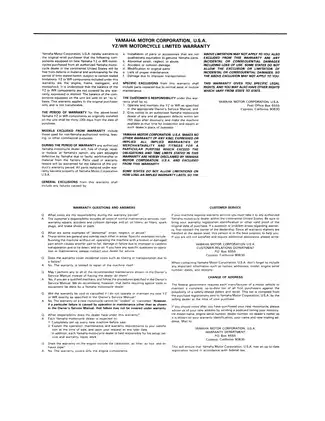

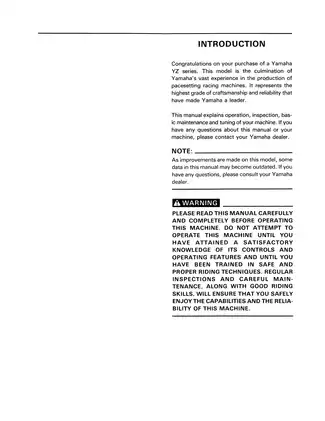

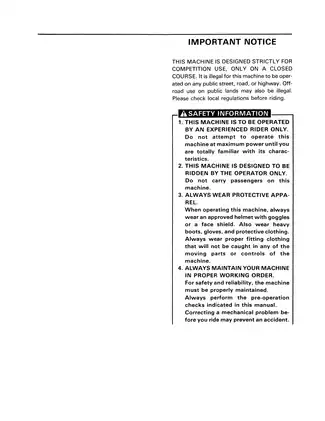

The ZIP contains one printable, 265-page English PDF: 234 content pages, 23 opening pages covering the original cover, publication details, introductory material and contents, seven chapter dividers, and one blank page. All are included in the stated total.

Race Maintenance, Engine Repair and Chassis Setup

The following selected coverage highlights major service areas rather than reproducing the complete contents. Other topics include silencer fiber replacement and storage preparation.

• Race maintenance: Pre-operation checks, break-in procedures, race-based maintenance schedules, piston and ring inspection, YPVS cleaning, and chassis lubrication.

• Engine repair: Step-by-step procedures for engine removal, cylinder and piston service, YPVS governor work, crankcase separation, and crankshaft installation.

• Clutch and shifting: Wet multi-plate clutch service, primary-drive inspection, kickstarter and shift-shaft work, and transmission, shift-cam, and shift-fork repair.

• Fuel and cooling: Carburetor and reed-valve overhaul, float-arm inspection, radiator-cap and cooling-system pressure tests, and water-pump seal replacement.

• Brakes and wheels: Hydraulic brake overhaul and bleeding, pad replacement, wheel-bearing service, disc inspection, and steering-head adjustment.

• Suspension: Fork seal replacement, swingarm and Monocross linkage inspection, side-clearance shimming, rear-shock spring service, and damping adjustments.

• Ignition diagnosis: Spark-gap testing, ignition-coil and CDI-magneto checks, an inspection flowchart, and the Electrical Components and Wiring Diagram.

Owners can use the operating and maintenance sections; repair work calls for qualified mechanical skills, and Yamaha recommends dealer service for jobs requiring special tools or equipment.

Race Schedules and Internal Engine Inspection

The maintenance schedule reflects motocross use rather than road mileage. Separate columns identify work after break-in, every race, every third race, every fifth race, and as required.

Scheduled work includes cylinder-head decarbonizing and retorque, crankshaft inspection, chain alignment, and spoke tightening. The Torque-Check Points chart identifies fastening locations for routine checks.

Engine tables give the measurements needed to judge whether parts can be reused. They cover cylinder bore, piston clearance, cylinder-head warpage, crankshaft runout, and main- and drive-axle deflection. Clutch specifications distinguish friction-plate wear, plate warpage, and spring free-length limits.

A cylinder-and-piston matching chart relates cylinder size marks to color-coded piston groups. Operating specifications also distinguish premix requirements, periodic transmission-oil changes, and total oil quantity.

Secure the machine on a suitable stand before engine or chassis teardown, and allow the cooling system to cool before opening the radiator cap.

Carburetor Tuning and Cooling Service

The tuning chapter relates jetting changes to temperature, terrain, throttle opening, plug condition, and engine response. It explains main-jet selection, the 6EJ35-59 needle and clip settings, pilot-jet and air-screw adjustments, and throttle-valve choices. The road-condition jetting examples specifically exclude Europe.

Cooling coverage includes radiator inspection and the water-pump impeller shaft, gear, and seal. Water-pump cautions address “WATER SIDE” seal orientation, seal-lip damage, and a displaced spring that can allow coolant and transmission oil to mix.

Ignition Fault Tracing

The inspection flowchart helps trace a no-spark complaint through connections, the engine-stop switch, ignition-coil windings, pickup coil, and both source coils before CDI-unit replacement is considered.

Illustrated tester connections and the Cable Routing Diagram support those checks. Electrical repair coverage concerns the competition ignition system, rather than street-bike lighting or charging equipment.

Suspension Service and Track Setup

Chassis references include Suspension Oil “01,” fork-oil quantities and level ranges, rear-spring set lengths, brake-pad standards and wear limits, and component-specific tightening torques.

Rear-shock coverage is limited to removal, spring service, external inspection, and setup. Yamaha warns against opening the shock cylinder or remote reservoir because they contain high-pressure nitrogen.

Suspension troubleshooting connects handling symptoms with spring, preload, oil-level, and damping settings. The secondary-reduction-ratio table supports gearing choices, while the Setting Record Table provides a place to document track settings.

Assembly cautions explain the risk of crankcase and crankshaft damage from forcing or hammering, and fork oil-lock-piece damage during seal removal.

Special Tools for Engine and Fork Work

The tool section distinguishes North American YU/YM references from 90890 references for other markets. Engine listings identify the YU-01135/90890-01135 crankcase separator, YU-90050 and YU-90062 crankshaft installer, and YM-01189/90890-01189 rotor puller.

Clutch and fork references include the YM-91042/90890-04086 clutch holder and YM-38853/90890-01442 fork-seal driver.

Piston Clearance and Ignition-Test Data: A Preview

Piston inspection specifies a standard cylinder-to-piston clearance of 0.040–0.045 mm and a 0.1 mm service limit, alongside the procedures for measuring the cylinder and piston.

Ignition-coil checks give a primary winding resistance of 0.45–0.61 Ω and a secondary resistance of 10.7–14.5 kΩ, both at 20°C (68°F). Illustrated tester connections accompany these specifications.
