Detailed Service Manual for Yamaha XV250 Motorcycle (1988-1994) – 175 Pages | Workshop Ready
Product Gallery

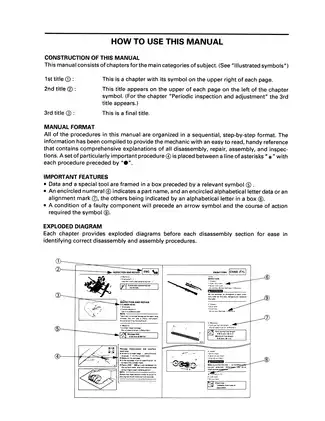

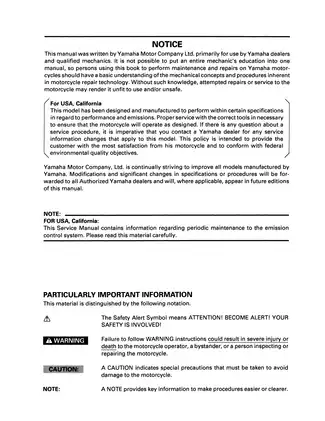

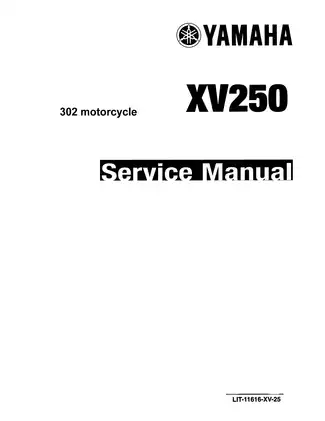

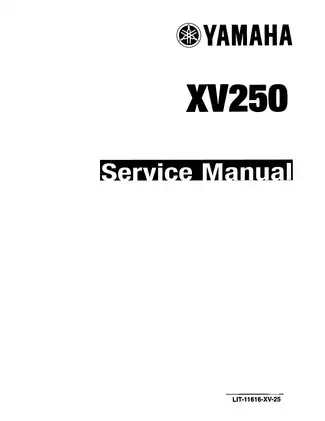

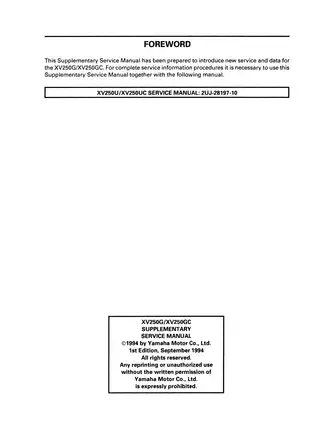

Sample pages from the Detailed Service Manual for Yamaha XV250 Motorcycle (1988-1994) – 175 Pages | Workshop Ready manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 26646 / Amanda Cook
- File Size:
- 16.70 MB
- File Type:
- Language:
- English
- Pages:
- 302
- Printable:
- Yes
- Estimated Download Time:
- 0.34 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Motorcycle
- Brand:
- Yamaha
- Reviewed and Approved:
- May 30, 2025
Yamaha Models and Parts Covered in this Motorcycle Manual
- YAMAHA XV250 VIRAGO (1988-1994) | Series: 2UJ / 3BG / 3DN
- Full Coverage: XV250U | XV250UC | XV250G | XV250GC | XV250SG
Model Identity
- Primary Model Name: XV250 Virago | Model Years: 1988-1994
- Series Revision: 2UJ4 (USA) | 3BG4 (Cal) | 3DN5 (CDN)
- Chassis Dimensions: Length: 2,190 mm | Width: 815 mm | Height: 1,140 mm
- Weight Profile: 147 kg (324 lb) Wet | Wheelbase: 1,490 mm
Power & Drive Core
- Engine Specs: Air-cooled 4-stroke | SOHC V-2 Cylinder
- Displacement: 249 cm³ | Bore x Stroke: 49 x 66 mm
- Compression: 10:1 Ratio | Pressure: 1,100 kPa (156 psi)
- Idling Speed: 1,350-1,450 r/min | Starting: Electric Starter
Technical Systems
- Fuel Induction: MIKUNI BDS26 x 1 | ID: 2UJ10 / 3BG10
- Ignition Logic: T.C.I. (Digital) | Timing: 8° B.T.D.C. @ 1,300 RPM
- Transmission: 5-speed Constant Mesh | Left foot operation
- Drive Train: 520DS Chain | Ratio: 2.813 (45/16)
Essential Benchmarks
- Valve Clearances: IN: 0.08-0.12 mm | EX: 0.10-0.14 mm (Cold)
- Torque Specs: Cylinder Head: 22 Nm | Rear Axle: 104 Nm
- Spark Plug Gap: 0.6-0.7 mm | Type: NGK C6HSA / CR6HSA
- Front Fork: Travel: 140 mm | Spring Free Limit: 410 mm
Capacities & Consumables
- Tank Volumes: Total: 9.5 L (2.5 US gal) | Reserve: 2.6 L
- Engine Lubricant: Yamalube 4 (20W40) or SAE 10W30 SE/SF
- Oil Volume: 1.4 L (Change) | 1.6 L (Filter) | 1.8 L (Total)
- Hydraulic Fluid: DOT #4 Brake Fluid | Fork Oil: 10WT (245 cm³)
FAQ
Which Virago sub-models are supported by the supplemental technical data? The 1994 supplemental data explicitly covers the XV250G (USA), XV250GC (California), and XV250SG (Canada) models. This technical literature must be used in conjunction with the primary service manual for the XV250U and XV250UC variants to ensure full coverage of the 249cc V-twin engine and chassis systems.
What is the critical valve clearance benchmark for a cold engine? For proper valvetrain timing and component longevity, the intake valve clearance must be set between 0.08 and 0.12 mm (0.003–0.005 in). The exhaust valves require a slightly larger gap of 0.10 to 0.14 mm (0.004–0.006 in) to account for higher thermal expansion, ensuring the valves seat fully during high-temperature operation.
What is the standard compression pressure for the XV250 series? A healthy engine should produce a standard compression pressure of 1,100 kPa (156 psi) at sea level. If a diagnostic test reveals pressure below the minimum threshold of 1,000 kPa (142 psi), technicians should perform a "wet test" by adding a few drops of oil to the cylinder to identify if the fault lies with worn piston rings or defective valve seating.
How is the ignition timing verified on this digital T.C.I. system? Verification requires an inductive timing light connected to the #1 (rear) cylinder spark plug lead while the engine idles at 1,300 RPM. The stationary pointer in the timing window must align with the "T" mark on the flywheel, confirming the base timing of 8° B.T.D.C. is accurate for optimal combustion efficiency.
What are the specific torque requirements for the rear axle assembly? When reassembling the rear drive group, the rear wheel axle nut must be torqued to precisely 105 Nm (75 lb-ft). Following the torque application, a new cotter pin must be installed through the axle nut groove; if the hole does not align, the nut should be tightened further rather than loosened to ensure the safety of the wheel retention system.
What is the wear limit for the front disc brake pads? To prevent damage to the 282mm brake disc, the front brake pads must be replaced as a set if the friction material thickness reaches the wear limit of 0.8 mm (0.03 in). Maintaining this clearance is vital for consistent hydraulic pressure and preventing a "spongy" feel at the lever during emergency braking maneuvers.
Complete Manual Information

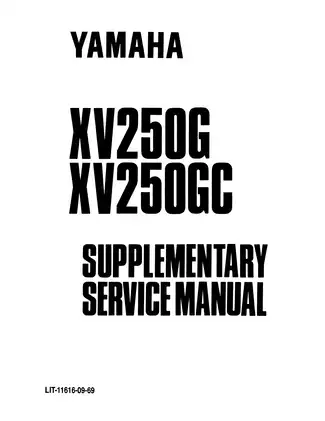

Yamaha XV250 Virago Supplementary Service Manual
Cruiser maintenance for the V-twin platform requires exact factory alignment to preserve the unique 60-degree engine harmonics and valve timing. Yamaha-certified repair procedures within this documentation eliminate the risk of component fatigue by providing specialized torque sequences and clearance values. Master technicians rely on these exact assembly protocols to maintain fuel-system balance and electrical system integrity across the entire 1988-1994 production span.
Workshop Logistics & File Metadata
- Total Pages: 175 Pages
- Publication Date: September 1994 (First Edition)
- Print/LIT Number: LIT-11616-09-69
- File Format: High-Resolution PDF
Strategic Asset Protection
- Stop guesswork during engine top-end overhauls to prevent premature cam chain or valve seat wear.
- Protect equipment resale value by adhering to factory-specified service intervals and fluid types.
- Avoid costly electrical failures by following OEM-standard wiring continuity and voltage test benchmarks.
- Minimize workshop downtime through efficient "First-Time-Right" diagnostic logic.
Machine Applicability & Full Coverage
Detailed technical support is provided for the XV250 Virago series, focusing on the 2UJ, 3BG, and 3DN revision codes. Coverage includes the primary XV250U/UC models and the specific 1994 revisions including XV250G, XV250GC, and the XV250SG Canadian edition
Electrical & Mechanical Schematics
Precision-rendered wiring diagrams and exploded chassis views allow for infinite zoom on mobile or desktop devices without losing line clarity. These high-resolution visuals facilitate the tracing of complex ignition circuits, charging system paths, and front brake hydraulic routing. Every diagram includes indexed component labeling to ensure correct wire-to-terminal matching during harness repairs or frame-up restorations.
Essential Benchmarks & Operational Logic
| Service Point | Setpoint | Maintenance Benefit |
|---|---|---|
| Valve Clearance (IN) | 0.08 - 0.12 mm | Ensures optimal volumetric efficiency. |
| Ignition Timing | 8° B.T.D.C. @ 1,300 RPM | Prevents detonation and optimizes power. |
| Compression Pressure | 1,100 kPa (156 psi) | Confirms ring and valve seat integrity. |
| Rear Axle Nut | 105 Nm (75 lb-ft) | Secures drive-train alignment and safety. |
| Front Fork Oil | 245 cm³ (10WT) | Maintains consistent damping characteristics. |
Technical Troubleshooting & System Diagnostics
Diagnostic focus is placed on the Mikuni BDS26 carburetor synchronization and T.C.I. (Transistor Controlled Ignition) health. The manual details logic-based testing for the pickup coil resistance, ignition coil secondary winding continuity, and charging system output. Specialized troubleshooting sections address cold-start enrichment issues and drive-chain slack adjustments (30-40 mm range) to prevent countershaft bearing stress.
Critical System Chapters
- General Information: Machine ID, SN Locations, and Workshop Safety.
- Specifications: Dimensional Data, Engine Benchmarks, and Torque Charts.
- Periodic Inspections: Maintenance Schedules and Lubrication Points.
- Engine Overhaul: V-Twin Disassembly, Crankshaft Tolerances, and Reassembly.
- Carburetion: Fuel Level Adjustments, Jetting Specs, and Cleaning.
- Chassis: Front Fork Rebuilding, Brake Caliper Service, and Wheel Alignment.
- Electrical System: Battery Charging, Ignition Circuitry, and Lighting
What is the standard electrolyte gravity for a fully charged 12V 7Ah battery on this chassis? A healthy battery must maintain a specific gravity of 1.280 at 20°C (68°F) to ensure reliable cold-cranking performance. If the reading drops below 1.230, the cells are sulfated or undercharged, which often leads to erratic digital T.C.I. performance and potential ignition failure during high-load operation.
How is the Mikuni BDS26 carburetor synchronized for optimal idle stability? Fuel-air balance is achieved by adjusting the throttle synchronization screw until the vacuum pressure across both cylinders is identical at a 1,400 RPM idle. Maintaining a maximum variance of less than 1.33 kPa (10 mmHg) between the front and rear intake tracts prevents excessive vibration and ensures linear throttle response across the powerband.
Which specific serial ranges and sub-models does this technical data supplement cover? This documentation provides critical updates for the 1994 production cycle, specifically targeting the XV250G and XV250GC (California) series. It serves as a necessary technical bridge for machines carrying the 2UJ-28197-10 primary manual designation, ensuring technicians have the correct emission-compliant specs for late-model 249cc Virago variants.
What are the critical wear limits for the engine's top-end hardware? During a top-end inspection, the cylinder bore must not exceed a maximum wear limit of 49.10 mm, and the piston-to-cylinder clearance should be maintained within a 0.030–0.050 mm window. Adhering to these tight tolerances prevents "piston slap" and ensures the 10:1 compression ratio is maintained for maximum thermal efficiency.
What is the required drive chain tension for the XV250 series to protect the countershaft? The drive chain must be adjusted to allow 30–40 mm (1.18–1.57 in) of vertical slack at the midpoint between the sprockets while the motorcycle is on its side stand. Setting the tension tighter than 30 mm can cause premature failure of the output shaft bearing and excessive wear on the 520DS drive chain links.
Download Instructions for Yamaha Motorcycle Manual
Frequently Asked Questions - Yamaha Motorcycle Manual
Is this manual suitable for beginners?
Yes, this Yamaha manual is designed for both professional technicians and DIY enthusiasts. It includes step-by-step procedures with clear illustrations and safety guidelines for Motorcycle maintenance and repair.
What file format will I receive?
You will receive this manual as a PDF file (16.70 MB), which is compatible with all devices. The manual is fully searchable and printable for your convenience.
How quickly can I access the manual after purchase?
You'll receive instant access to your Yamaha Motorcycle manual immediately after payment completion. The download link is valid for 3 days, with lifetime re-download guarantee.
Are engine specifications included?
This motorcycle service manual includes detailed engine specifications, valve clearances, torque settings, and performance data specific to your Yamaha model.
Can I print specific sections of the manual?
Absolutely! This digital manual allows you to print any section you need, from individual pages to complete chapters, making it perfect for workshop use.
