Yamaha Virago XV750SE / XV750 1981–1984 Service Manual Collection

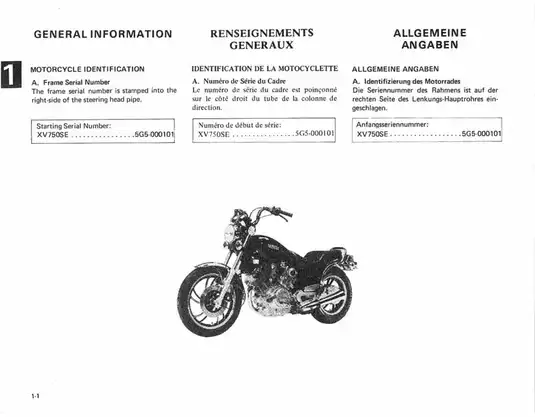

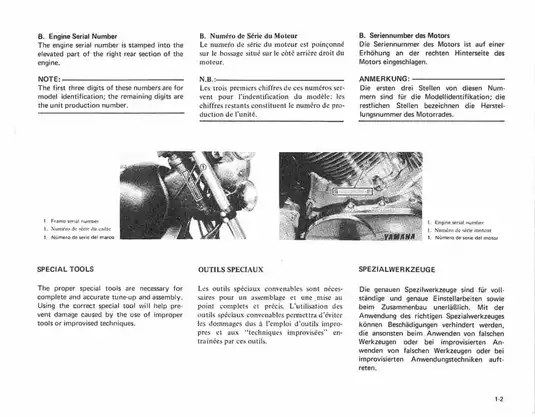

The XV750SE material provides the detailed repair procedures. The XV750H extracts add model-specific identification, periodic service information, specifications, torque tables and assembly drawings.

Coverage distinction: The 5H1 sections concern a separate 920 cc, chain-drive configuration. Their specifications and chassis procedures must not be substituted for the XV750 shaft-drive information.

PDF Search, Diagram Detail and Page Count

Text search and diagram detail: PDF text search and embedded bookmarks are not available. Small wiring labels require magnification; some remain soft, and the shaded charging-system sheet has low contrast.

The ZIP contains one printable 475-page PDF, including all sections listed above, repeated revision/reference pages and eight introductory, contents and index pages placed at the end.

Engine Overhaul, Shaft Drive and Electrical Diagnosis

The selected coverage below highlights the main service areas. Fuel-cock inspection and headlight-beam adjustment are further examples of the topics included.

• Engine and transmission: Step-by-step engine removal, internal inspection, clutch and transmission repair, reassembly, cam timing and engine installation.

• Shaft drive: Middle-gear service, noise diagnosis, final-drive teardown, shim selection, gear-lash adjustment and drive-shaft inspection.

• Carburetion: Twin-carburetor disassembly, passage and diaphragm inspection, float-valve checks, fuel-level adjustment, synchronization and mixture-control-valve testing.

• Brakes and wheels: Front caliper and master-cylinder repair, brake bleeding, rear drum-brake inspection, wheel checks and bearing replacement.

• Suspension and steering: Front-fork disassembly and seal service, steering-head adjustment, swingarm inspection, and rear-shock air-pressure and damping adjustments.

• Electrical troubleshooting: Starter-motor repair, relay and interlock checks, charging and TCI ignition tests, lighting and signal diagnosis, wiring diagrams and fault-isolation charts.

Written primarily for Yamaha dealers and qualified mechanics, the manual assumes a basic understanding of motorcycle repair concepts and procedures.

Engine Inspection and Reassembly

Overhaul depth: The removal chapter covers the seat, fuel tank, air filter, battery, exhaust, foot controls, wiring and cables involved in taking the engine out of the frame. Internal inspection extends to cylinders, pistons and rings, valve guides and seats, valve springs, and crankshaft and connecting-rod bearings.

Valve train and timing: Rocker arms and shafts, camshafts, cam chains, timing gears and flywheel components receive separate attention. Reassembly information distinguishes front- and rear-cylinder timing parts and covers cylinder-head installation, cam timing, carburetor and ignition-coil refitting, and final engine mounting.

Clutch, primary-drive, shifter, transmission, starter-drive and oil-pump sections cover their internal components. Crankcase assembly, bearing installation and oil-seal replacement are supported by component-specific tightening torques, clearances, lubrication requirements and wear limits.

Carburetors and Vacuum Controls

The Hitachi HSC40 reference tables distinguish the 5G5-00 and 4X7-00 carburetor builds, including different jet-needle specifications. Section views and component identification accompany carburetor separation, jet inspection, float-valve service and reassembly.

The air-cleaner, crankcase-ventilation and mixture-control-valve pages show hose routing and functional checks. These references help separate a vacuum-line or control-valve problem from internal carburetor wear when investigating drivability symptoms.

A misplaced diaphragm locating tab can leave the diaphragm pinched and damaged beneath its cover; the assembly notes identify this positioning requirement.

Brakes, Suspension and Chassis Service

Chassis references include axle and brake-disc inspection, rear brake-shoe and drum checks, and tubeless-tire and aluminum-wheel precautions. Suspension charts relate front-fork and rear-shock settings to riding load.

Rear-shock coverage includes air-leak checks, control-cable inspection and replacement, and adjuster setup. Swingarm bearing inspection and side-clearance assessment accompany the steering-head and wheel-bearing procedures.

Periodic service charts also address engine and final-drive oil, fork oil, brake-fluid replacement, control-cable lubrication and electrical checks.

The caliper instructions warn against prying out the piston, which can damage its sealing surfaces. Brake hydraulics, compressed-air piston removal, engine handling and final-drive setup require proper support, protective equipment and technician-level mechanical judgment.

Middle Gear and Final-Drive Setup

Symptom-based troubleshooting distinguishes wheel-bearing rumble from shaft-drive noise and vibration during acceleration, deceleration and coasting. Oil-leak inspection and drained-oil checks provide additional diagnostic references.

Final-drive repair extends to ring-and-pinion inspection, guide-collar and bearing service, shim calculations, thrust-washer clearance and drive-shaft spline inspection. The middle-gear procedure treats the collapsible collar as a one-use part; overtightening damages it and requires replacement.

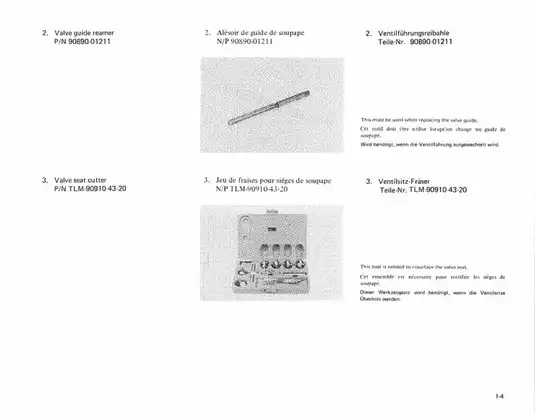

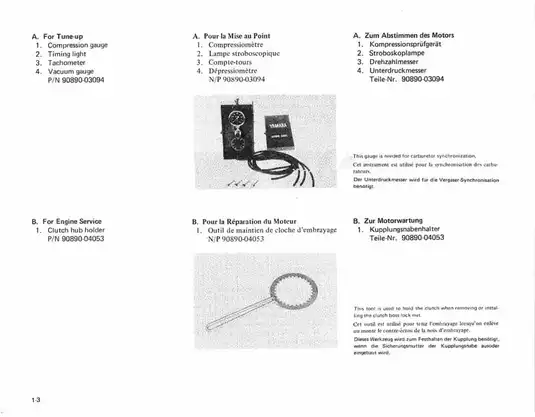

The special-tool references identify the middle/final gear holding tool (P/N 90890-01229) and final-gear lash measurement tool (P/N 90890-01230). They also list the dial gauge (P/N 90890-03097) and final-drive bearing-retainer wrench (P/N 90890-04050).

Electrical Circuits and Assembly References

Starting-system coverage explains the neutral and clutch interlocks, starting-circuit cut-off relay, starter cut-out relay and tachometer-control-unit connection. Charging and ignition tests address the AC generator, stator, voltage regulator, silicon rectifier, pickup coils and ignition coils.

Lighting, signal and self-canceling flasher checks use continuity charts, circuit diagrams and fault-isolation flowcharts alongside the XV750SE wiring diagram.

Exploded views include Cylinder Head/Valve, Transmission and Middle Gear. Final Gear/Drive Shaft, Front Brake Caliper and Electrical Components drawings are supplemented by lubrication diagrams, cable-routing illustrations and wire-color references.

Sample Carburetor and Middle-Gear Settings

For the XV750SE, the fuel-level section specifies 1.0 ± 1.0 mm above the carburetor body for the rear (#1) carburetor and 2.0 ± 1.0 mm for the front (#2). These separate references accompany float-level inspection and adjustment.

The XV750SE middle-gear section specifies gear lash of 0.1–0.2 mm, supported by dial-gauge measurement and adjustment procedures.
