Kawasaki KZ1000/KZ1100 1981–1985 Service Manual Set (P/N 99924-1026-03)

The factory PDFs contain substantially overlapping base procedures and model supplements. The separate guide adds shaft-drive, Uni-Trak and later GPz/LTD applications; its broader coverage extends beyond the factory book’s listed models.

Page gaps: The 370-page factory PDF omits printed pages 11-2–11-9 and 11-13; these are present in the 382-page version. The separate guide omits printed pages 116–117 at the opening of its clutch chapter.

PDF Search, Diagram Detail and File Contents

Finding text and reading diagrams: The 370-page factory PDF and separate guide have OCR text search, with gaps and recognition errors; many wiring pages are not searchable. The 382-page factory PDF has no text search. None has embedded PDF bookmarks. Small wiring labels require zooming, and some diagrams in the 370-page file are faint or soft.

One ZIP contains three printable PDF files with 1,100 pages total, including 19 cover, introductory, safety, contents and reference pages already counted in the publication totals.

Engine Overhaul, Fuel Injection and Chassis Repair

This selection of workshop topics highlights major repair areas. Other included subjects range from exhaust-system service to storage preparation.

• Engine overhaul: Step-by-step engine removal, cylinder-head and valve-train repair, camshaft-chain timing, piston inspection and crankcase separation.

• Clutch and transmission: Clutch inspection, release-mechanism revisions, shift-drum and fork inspection, and transmission disassembly with component wear limits.

• Carburetors and injection: Mikuni BS34 adjustment and synchronization, KZ1100-B fuel-injection testing, and ZX1100-A self-diagnosis.

• Chain and shaft drive: Chain and sprocket service, front bevel-unit inspection, final gear case removal and drive-shaft replacement.

• Brakes and suspension: Bleeding, caliper and master-cylinder rebuilding, steering bearings, air-assisted forks, dual shocks and Uni-Trak linkage service.

• Electrical diagnosis: Model-specific wiring diagrams, charging and starter tests, troubleshooting charts, and control-unit connector and pin views.

The factory text is written primarily for motorcycle mechanics in properly equipped shops; the separate guide addresses owners and home mechanics while identifying work that requires specialist skills or equipment.

Engine Internals and Workshop Equipment

Top-end inspection covers camshaft bearings, valve stems and guides, valve-seat repair, and cylinder-block and piston measurements. Bottom-end sections address crankshaft and connecting-rod inspection, lubrication, the oil pump, clutch and shift mechanism. Factory supplements identify changes to camshafts and sprockets, clutch releases, instruments and lubrication.

Tool references include valve-lifter holder 57001-113, oil-pressure gauge 57001-125, vacuum-gauge set 57001-127 and engine stand 57001-900. Electrical and removal work references Kawasaki hand tester 57001-983 and rotor puller 57001-1099; injection pressure tests also specify gauge 57001-164 and adapter/hose kit 57001-1089.

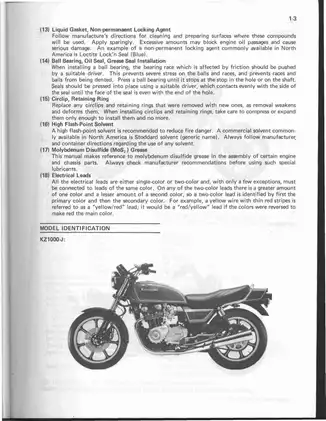

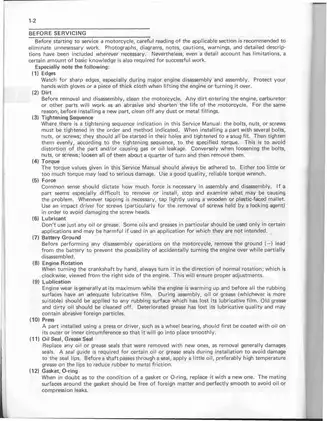

Excessive liquid gasket can block crankcase oil passages and damage the engine.

Carburetor Adjustment and Injection Fault Tracing

Carbureted models receive fuel-level, pilot-circuit and throttle-adjustment coverage. U.S.-model clean-air sections cover air-suction valves and the vacuum switch.

Injection generations: KZ1100-B1 uses an air-flow meter and throttle-valve switch; KZ1100-B2 uses DFI with a throttle-position sensor. The troubleshooting material separates electrical supply and signal faults from fuel-delivery problems, helping readers choose the appropriate tests before replacing a control unit.

Checks extend to injectors, relays, the fuel pump, pressure regulator, throttle sensor, air- and engine-temperature sensors, and fuel or intake leaks. ZX1100-A self-diagnosis adds fault-indication guidance.

Wheels, Suspension and Shaft-Drive Limits

Wheel and brake material distinguishes cast from wire-spoke wheels and tube-type from tubeless tires. Fork disassembly, steering-stem bearings, swing arms and rear suspension are supported by exploded assemblies and inspection data.

Shaft-drive work: The guide covers front bevel-drive removal, inspection and installation, plus final gear case removal/installation and drive-shaft service. Internal bevel-gear setup and overhaul are referred to a Kawasaki dealer because they require specialized tools and skills.

Electrical Tests and Diagram Support

Diagnosis covers pickup coils, the IC igniter, starter lockout, lighting, hazard and turn-signal circuits, reserve lighting, fuel gauges and electric instruments. Variant sections address the KZ1100-B LCD fuel-gauge and warning unit.

Illustrations include engine-lubrication flow diagrams, camshaft timing views, injection component-location and connector-pin diagrams, and master-cylinder and caliper exploded views. The guide’s wiring section covers applications including KZ1000-J1/M1, KZ1100-A, KZ1100-B2, Z1000-J3/R2 and ZX1100-A1/A2.

Incorrect battery-vent routing can expose the drive chain to electrolyte and dangerously weaken it. The safety sections also address secure motorcycle support, battery isolation and fuel discharge from disconnected injection hoses.

Examples of Valve Clearances and Clutch Wear Data

For KZ1000-J1/K1/M1 valve adjustment, the factory manual lists cold intake and exhaust clearances of 0.05–0.15 mm. The separate guide specifies 0.08–0.18 mm for ZX1100-A intake and exhaust valves with the engine cool to room temperature.

For the factory base models’ clutch inspection, friction-plate thickness is listed as 2.9–3.1 mm standard, with a 2.8 mm service limit.
