1981–1999 Yamaha XV700, XV750, XV920, XV1000 & XV1100 Virago Clymer Service and Repair Manual

This is the XV700–1100 section of Clymer’s service and repair manual, covering the 1981–1999 Yamaha XV700, XV750, XV920, XV1000, and XV1100. It includes chain- and shaft-drive variants.

• Engine repair: Engine removal, cylinder-head and camshaft service, valve inspection, piston and ring replacement, crankcase separation, and crankshaft inspection.

• Clutch and transmission: Wet-clutch disassembly, friction-plate measurement, shift-mechanism repair, and transmission shaft, shift-drum, and shift-fork inspection.

• Fuel and emissions: Hitachi HSC40 and Mikuni BST40 carburetor service, synchronization, coasting-enrichener inspection, fuel-pump testing, and air-induction system checks.

• Ignition and starting: Transistor Controlled Ignition (TCI) diagnosis, alternator and regulator/rectifier tests, starter idler-gear service, relay checks, and model-specific wiring diagrams.

• Chassis and final drive: Wheel-bearing service, steering-head bearing repacking, fork service, suspension adjustment tables, and enclosed-chain or shaft-drive maintenance.

• Brakes: Master-cylinder disassembly and inspection, front pad and rear shoe replacement, disc and drum measurements, and hydraulic bleeding.

Written for owner-mechanics, it explains routine service while identifying work that calls for specialist skills, measuring equipment, or dedicated tools.

Engine, Clutch, and Transmission Repair

Cylinder-head tightening sequences, separate front- and rear-cylinder camshaft timing procedures, and model-specific wear tables support engine rebuild work. Inspection photographs and instructions cover piston-to-cylinder clearance, cam-lobe measurements, valve-guide wear, and connecting-rod bearings.

Cold valve-clearance tables accompany the tune-up procedures. Valve-guide replacement and valve-seat reconditioning are referred to specialists.

Crankshaft installation: The manual identifies puller TLU-90900-57-01 and adapter TLU-90900-69-00. Its installation caution explains how hammering the crankshaft into position can disturb alignment.

Clutch illustrations distinguish the XV1100 spring design from the other models. Internal transmission work requires crankcase separation; the clutch can be serviced with the engine in the frame.

Carburetors, Vacuum Lines, and Fuel Delivery

Separate sections cover Hitachi and Mikuni carburetors, with exploded views, jetting tables, and fuel-level measurement.

Coasting Enrichener System illustrations distinguish the separate unit on 1986–1987 XV1100 models from the integrated design on 1988-on XV750 and XV1100 carburetors. Air Induction System Vacuum Line Routing diagrams show the hose connections.

Fuel-pump and controller tests apply to the XV1000 and XV1100, alongside main and sub-tank removal. Carburetor-cleaning cautions explain how damaged jet passages can alter fuel flow.

TCI Diagnosis and Electrical Circuits

Fault isolation: The Ignition System Diagnosis chart checks switches, coils, and wiring before treating the ignitor unit as suspect. This helps owners distinguish an interlock or wiring fault from a failed ignition component.

Starting Circuit diagrams and the Fuel Pump Circuit schematic support the test procedures. Electrical tables list fuse ratings, charging voltage, and coil resistance.

The XV920J computerized monitor section provides handling precautions and directs service to a qualified specialist. Ignitor-unit testing also calls for experience with Yamaha TCI systems.

Steering, Suspension, Brakes, and Final Drive

Fork illustrations distinguish the different internal layouts. Deeper disassembly and seal installation for the XV700, 1988-on XV750, XV920J, XV1000, and XV1100 are referred to specialists.

Rear-drive coverage separates enclosed-chain service from shaft-unit removal and spline inspection. Final-drive overhaul and middle-drive gear service are referred to specialists.

Brake coverage includes master-cylinder overhaul and rear-drum service; caliper rebuilding is referred to a brake specialist. For brake and steering work, follow the complete manual’s inspection and safety requirements before returning the motorcycle to service.

Clutch and Spark-Plug Specification Examples

These examples are a small selection of the clutch inspection and tune-up data in the manual.

For the covered models, clutch friction plates have a standard thickness of 0.12 in. (3.0 mm) and a minimum thickness of 0.11 in. (2.8 mm).

The tune-up table specifies an NGK BP7ES spark-plug gap of 0.028–0.032 in. (0.7–0.8 mm).

Text Search, Chapter Bookmarks, and PDF Contents

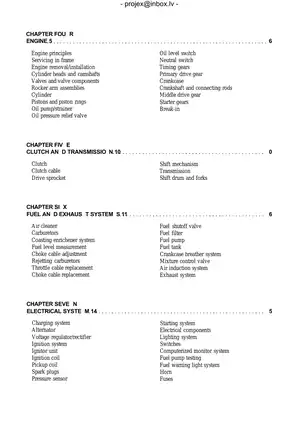

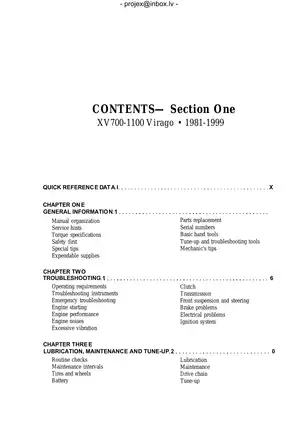

Finding procedures and diagrams: OCR text supports searches through the main chapters, with recognition errors in some words and tables. Embedded bookmarks link the chapters, index, and wiring section. Most wiring-diagram labels are not searchable; small wire codes and connector labels require enlargement.

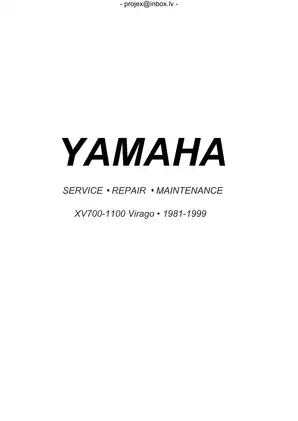

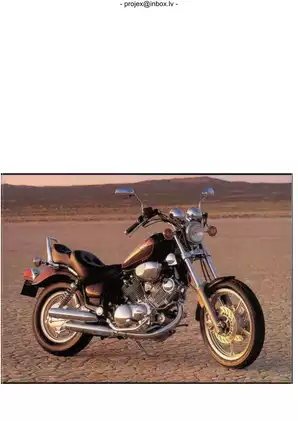

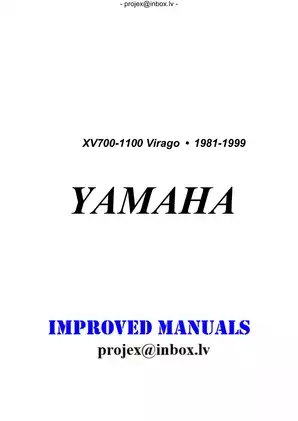

The download is one printable 290-page PDF in English. The total includes two opening title pages and one photo page.
