Yamaha YT175J Tri-Moto ATV Service Manual, 1981–1982 (P/N LIT-11616-03-20)

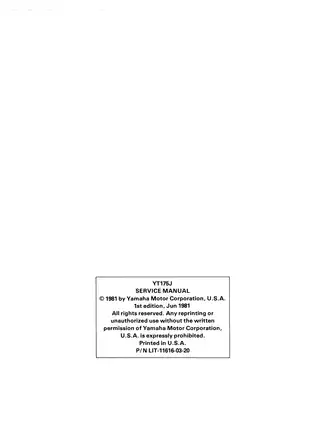

Yamaha’s YT175J factory Service Manual, P/N LIT-11616-03-20, covers the 5V7 Tri-Moto build. This is the first edition from June 1981, with a factory-marked replacement specification page at printed page 7-2.

PDF Search, Bookmarks and Diagram Detail

Search and navigation: Text search is limited to the cover; the manual’s body text is not searchable. Embedded bookmarks link to chapters and subsections. The “Back to Index” bookmark points to a separate file outside this download. Small wire-color labels in the ignition circuit diagram are readable when enlarged.

The ZIP download contains one printable English PDF with 103 pages, including one cover page and the replacement specification page. The total also includes 12 appendix exploded-diagram pages, two cable-routing pages, and the final wiring diagram.

Two-Stroke Overhaul, Autolube and Chassis Service

The following selected service topics outline the repair coverage. Other included subjects range from fuel-cock servicing to headlight beam adjustment.

• Engine overhaul: Engine and flywheel-magneto removal, top-end and crankcase disassembly, piston and crankshaft inspection, reassembly, and engine mounting.

• Clutch and transmission: Automatic wet-clutch service, primary-drive inspection, shift-shaft checks, shift-cam and fork inspection, and gearbox assembly.

• Carburetion and fuel delivery: Mikuni VM24SS inspection, float and jet-needle adjustment, reed-valve checks, fuel-pump inspection, and piping diagrams.

• Autolube service: Pump-cable adjustment, minimum-stroke checks, output diagnosis, delivery-line inspection, and air-bleeding procedures.

• Brakes and chassis: Wheel-bearing replacement, rear-axle installation, front drum and rear disc brake repair, fork rebuilding, steering-head service, and chain/sprocket work.

• Electrical diagnosis: Magneto-coil, ignition-coil, spark-gap, and AC-lighting tests, supported by an ignition circuit diagram and the YT175J Wiring Diagram.

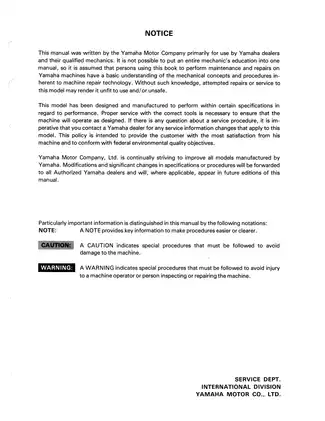

Written primarily for Yamaha dealers and qualified mechanics, it assumes basic machine-repair knowledge and the ability to use precision measuring and electrical test equipment.

Engine, Clutch and Transmission Repair

Step-by-step procedures cover crankcase separation, crankshaft installation, recoil-starter assembly, and final engine assembly. Cylinder measurement and honing guidance, piston and ring inspection, and bearing and oil-seal checks establish the bench-repair depth.

Clutch coverage includes friction-plate and spring inspection, plate selection, release adjustment, and checks for wear in the housing, boss, and ratchet mechanism. Transmission inspection addresses shaft runout, gear teeth and engagement dogs, guide bars, shift forks, and cam wear.

Component-specific torque data, fits, clearances, wear limits, and assembly positions accompany the procedures. The Crankshaft/Connecting Rod/Piston and Transmission exploded diagrams provide additional assembly references.

Engine tools: Specified Yamaha equipment includes crankcase separation tool P/N 90890-01135-00, flywheel puller P/N 90890-01189-00, and flywheel holding tool P/N 90890-01235-00.

The crankcase cautions address damage from uneven separation or blows to machined gasket surfaces. The clutch section explains how excessive release adjustment can cause slipping and burned plates.

Carburetor, Fuel Pump and Autolube Diagnosis

Carburetor procedures cover passage cleaning, float and inlet-valve inspection, float-height correction, and jet-needle positioning. Fuel-pump coverage includes delivery and leak checks plus installation and piping guidance; the pump itself is treated as a replacement assembly, not a rebuildable unit.

Autolube troubleshooting connects suspected low output with delivery-line obstructions, damaged seals, check-ball or spring problems, incorrect routing, and air leaks. The inspection and output information helps distinguish external delivery problems from a pump assembly requiring replacement.

Wheel, Brake, Fork and Steering Work

Chassis procedures include wheel and axle runout checks, bearing replacement, brake-component inspection, fork disassembly and seal replacement, and steering-bearing service. The rear-brake adjustment instructions distinguish the caliper, pedal, and hand-lever settings rather than treating them as independent adjustments.

The Rear Wheel exploded diagram supports axle and hub assembly work. O-ring drive-chain handling and sprocket inspection are also covered. A rear-axle warning explains how excess grease can contaminate the brake disc and cause slippage.

Chassis tools: The manual specifies steering nut wrench P/N 90890-01051-00 and front-fork-cylinder holder P/N 90890-01300-00.

Steering-page limitation: Internal numbering jumps from printed page 5-12 to 5-14; printed page 5-13 is absent. Steering-head removal, inspection, and assembly remain on page 5-14, with adjustment information in the periodic-service chapter and an appendix steering exploded view.

Brake, steering, fork, and rear-axle work directly affects control of this three-wheeler. Follow the factory procedures and use qualified Yamaha service support whenever the required skills or equipment are in doubt.

CDI, Lighting and Wiring References

Electrical fault isolation covers pickup and charge coils, ignition-coil windings, system spark, and AC-lighting output and coil resistance. Wire-color codes and factory test values support the checks; the oil-warning circuit is illustrated, and the maintenance section explains indicator operation.

Electrical diagnosis calls for Pocket Tester P/N 90890-03104-00 and Electro Tester P/N 90890-03021-00. The Electrical exploded diagram and Cable Routing pages supplement the circuit references, including harness, brake-cable, oil-line, and carburetor-piping arrangements.

Sample Carburetor and Fork Specifications

For the Mikuni VM24SS, the float-height specification is 25 ± 1 mm, measured with the float just resting on the spring-loaded inlet needle without depressing it.

Front-fork service data lists 116 cm³ of oil per fork and an oil level of 245.5 mm below the top of the inner tube, measured with the tube fully compressed and the spring removed.
