Xerox 5614/5113/5114 Copier Service Manual, 1996–1997 (P/N 701P09830)

362 Pages • 1 Printable PDF (English) • Download

5.0starstarstarstarstar(1)
$4.71 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Xerox Models Covered & Key Technical Specifications

Models: 5614, 5113, 5114

Sub-models / Variants: 50 Hz, 60 Hz

Models & Model Codes:

500-sheet Tray 1 — USCO 1:1 (OKU), USCO R/E (1KU), USCO R/E + SDF (2KU), XCL 1:1 (3KU), XCL R/E (4KU), XCL R/E + SDF (5KU), RX 1:1 (6KU), RX R/E (7KU), RX R/E + SDF (8KU)

250-sheet Tray 1 — non-RX retail R/E (2KV), non-RX retail R/E + SDF (3KV), RX retail R/E (4KV)

Serial ranges — SDF left counterbalance retrofit (Tag 3), mandatory: RX/XLA (8KU298 100001 through 8KU298 100817); USCO (2KU030001 through 2KU031775); XCL/XLA (5KU035001 through 5KU035796)

Serial ranges — SDF left counterbalance retrofit (Tag 3), optional: RX (8KU298 100818 through 8KU298 102654); USCO (2KU031776 through 2KU040438); XCL/XLA (5KU035797 through 5KU037570); XLA (8KU298 100818 through 8KU298 102654 and 8KU298 500001 through 8KU298 500050)

Model Year: 1996–1997


  • Print rate: 13/14 cpm (A4/Letter, document cover closed; depending on model/build)

  • Environmental temperature limit: 10°C at 15% humidity and 32°C at 85% humidity

  • DC Voltage (+5 VDC): Nominal at Main PWB test point JP 1

  • DC Voltage (+24 VDC): Nominal at Main PWB test point JP 3

  • DC Voltage (+32 VDC): Nominal at Main PWB test point JP 47

  • Overtemperature Fuse Temperature: 119°C (exposure lamp fuse F1)

  • Thermistor resistance (cold): Approximately 200 Kohms (fuser thermistor RT1)

  • Thermistor resistance (hot): Approximately 2 Kohms (fuser thermistor RT1)

Xerox Manual Features & Selected Content Preview

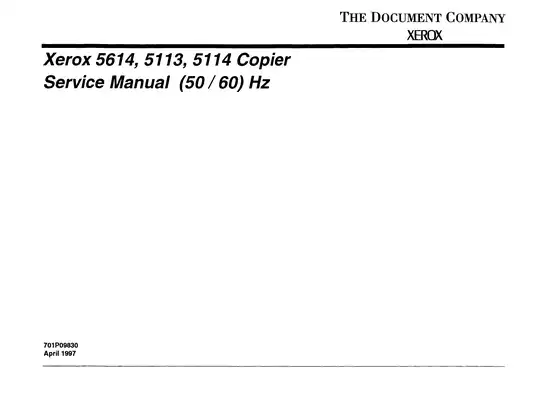

This Xerox service manual covers the 1996–1997 Xerox 5614, 5113, and 5114 copiers in 50 Hz and 60 Hz configurations. P/N 701P09830 is the April 1997 reissue that replaces the December 1995 edition.

Using the Wiring Diagrams in the PDF

Text search and diagram labels: PDF text search is unavailable. The sole embedded bookmark, “Cover Page,” opens the transmittal sheet. Small pin numbers and wire color codes in the DC power, corotron bias, and fuser diagrams are easier to read when enlarged.

The download contains one printable 362-page PDF in primarily English. The parts-list contents and introduction are in Spanish, and the illustrated parts entries are in English. The total includes 356 manual pages, a two-page transmittal insert, and four pages for the service log and copy cartridge report, including their blank backs.


Paper Feed, Image Quality, and Fuser Service

The topics below are a selection of the service procedures. The manual also includes copier relocation and removal checklists and a reference table for examining and modifying nonvolatile memory (NVM).

  • Service calls and maintenance: Call Flow Diagrams, status indicator Repair Analysis Procedures (RAPs), and periodic maintenance schedules for service calls.

  • Paper feed and drive: C1–C3 misfeed diagnosis, Bypass Tray service, paper-feed adjustments, and step-by-step Main Drive Motor replacement.

  • Document feeding and optics: Set Document Feeder (SDF) troubleshooting, Lens Drive Motor replacement, and optical carriage alignment and registration for fixed-ratio and reduction/enlargement (R/E) configurations.

  • Xerographics: Developer Assembly and Transfer/Detack Corotron service, High Voltage Power Supply (HVPS) testing, Auto Developer Setup, and Copy Defect Tables with Image Defect Samples.

  • Fusing and cooling: U4-02 overtemperature and U4-03 undertemperature diagnosis and code clearing, Fuser Heat Roll replacement, thermistor checks, and cooling-fan troubleshooting.

  • Wiring and parts identification: Plug/Jack Locational Drawings, Electrical Component Wiring Connections Drawings, Component Drawings, exploded-view parts lists, and the Change Tag Matrix.

Xerox wrote this manual for certified service personnel trained on these copiers. Coverage applies to Xerox-authorized configurations. The separate Accessories/Options section is unused in this edition.

Tracing Paper Feed and Image Quality Faults

The fault trees combine voltage checks, sensor actuation tests, and mechanical drive inspections. Image-quality procedures cover background, banding, light images, residual images, and resolution problems.

The Optics/Xerographics Isolation and Processor Skew Isolation procedures help pinpoint whether a defect originates in the optics, xerographics, or paper transport before parts are selected. Toner-concentration diagnosis explains how to interpret the hexadecimal values on the display.

Developer, Optics, and Main PWB Repair

Auto Developer Setup stores a new reference value in NVM after developer material is replaced. The replacement procedure warns that developer material can damage the drive components if it gets into the gears.

Main PWB replacement covers EEPROM handling and checks of stored NVM settings against the copier configuration. The Lower Rear Cover procedure warns that an overlong screw can damage the Lower PWB.

The optical procedures account for differences between fixed-ratio and R/E machines. Scan-rail alignment is normally set at the factory, and Xerox specifies special equipment for optimal results.

Circuit Tracing and Configuration-Specific Parts

The wiring data for the Main, Lower, and Input Power PWBs shows pin references, signal levels, and component locations. The Corotron and Developer Bias Power and Fusing Heat Control diagrams trace the xerographic power and fuser circuits.

The exposure lamp has its own overtemperature fuse. Fuser protection uses a separate thermostat and thermistor. The optics heater can remain energized with the copier switched off. Xerox requires disconnecting the power cord before servicing it.

Exploded-view parts lists link callouts to Xerox part numbers and identify regional and tagged versus untagged configurations. The Change Tag Matrix gives serial-specific applicability for the SDF left counterbalance retrofit.

A Preview of Registration and Fuser Settings

The Registration Buckle check allows up to 0.5 mm of lead-edge variation across ten copies of the test pattern at 100% from Tray 1 or the Bypass Tray.

On both fixed-ratio and R/E machines, the lead-edge registration check calls for 10 mm ± 1 mm from the copy edge to the test pattern’s 10 mm line at 100% magnification.

The fuser temperature adjustment offers settings from 175°C to 200°C in 5°C increments.
