Xerox 2510/2515 Copier Service & Parts Manual — 1996 (P/N 700P87480)
408 Pages • 1 Printable PDF (English) • Download
Xerox Models Covered & Key Technical Specifications
Models & Model Codes: 2510 (64G: 60 Hz; 60J: 50 Hz), 2515 (4L3: 60 Hz)
Sub-models / Variants: USO, XCL, XLA; 2515 XLA 50 Hz (4L2, selected diagnostics and parts references); RX (2510 and 2515, selected diagnostic, parts and Tag/MOD references); FX and XBRA (2510 and 2515, selected parts references); SPO (2510 50 Hz, selected parts references); China (2510, selected parts references)
Model Year: 1996
Serial Numbers: Tag/MOD-specific manufacturing references. 2510 (USO): Tag 2 — 64G000181 and up; Tag 3 — 64G000421 and up; Tag 4 — 64G000475 and up; Tag 5 — 64G001272 and up; Tag 6 — 64G002845 and up; Tag 7 — 64G000882 and up; Tag 8 — 64G000925 and up; Tag 10 — 64G033503 and up; Tag 11 — 64G000971 and up; Tag 12 — 64G004613 and up; Tag 13 — 64G005754 and up; Tag 14 — 64G007315 and up; Tag 15 — 64G008820; Tag 16 — 64G011535; Tag 22 — 64G023918 and up; Tag 23 — 64G033660 and up; Tag 24 — 64G034645 and up; Tag 255 — 64G004132 to 64G005822. 2510 (RX): Tag 6 — 60J321520 and up; Tag 12 — 60J322206 and up; Tag 13 — 60J322755 and up; Tag 14 — 60J322984 and up; Tag 15 — 60J324880; Tag 16 — 60J329100; Tag 255 — 60J322566 to 60J322966. 2515: Tag 2 — 4L3002757 (US), 110510068; Tag 3 — 4L3002568 (US), 110509634 (RX); Tag 4 — 4L302806 (US), 110509671 (RX); Tag 5 — 4L303532 (US), 110510885 (RX); Tag 6 — 4L303624 (US), 110510729 (RX); Tag 7 — 4L3003624 (US), 110510729 (RX).
-
Designated speed rating: 2 inches per second
-
Primary travel rate: 3 metres per minute
-
Net mass: 2510: 79.6 kg; 2515: 81.8 kg
-
Fuser overheat indicator (2515): Above 390°F (200°C)
-
DC Voltage Specifications: 5 VDC (4.75–5.25), 10 VFWR (2.5–14 VDC), 15 VDC (14.25–15.75), 24 VDC (19–35)
Xerox Manual Features & Selected Content Preview
Xerox’s August 1996 copier service manual, P/N 700P87480, covers the 2510 (50/60 Hz) and 2515 (60 Hz), with USO, XCL and XLA configurations identified in the introduction. It incorporates revision documents 700P87481 and 700P87482. For the 2515 XLA 50 Hz (4L2), the manual includes selected references such as the Low Power timeout setting and a model-specific document transport platen.

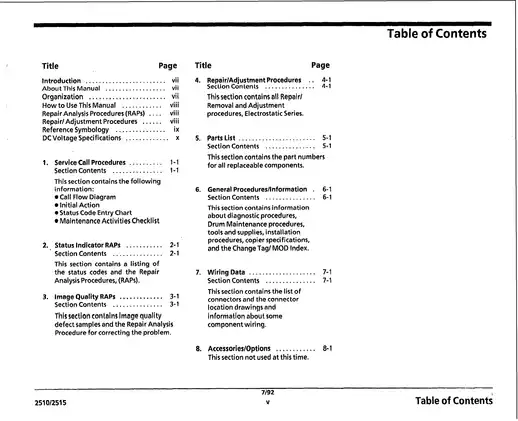

PDF Search, Bookmarks and Page Count
Finding text and wiring details: The embedded text layer supports partial search. OCR errors and image-only pages can cause missed results. Eight bookmarks provide navigation, though the Service Call Procedures bookmark opens the repeated cover. That section starts at PDF p. 21. Small wiring labels are easier to read when zoomed in, and some preliminary pages need rotation.

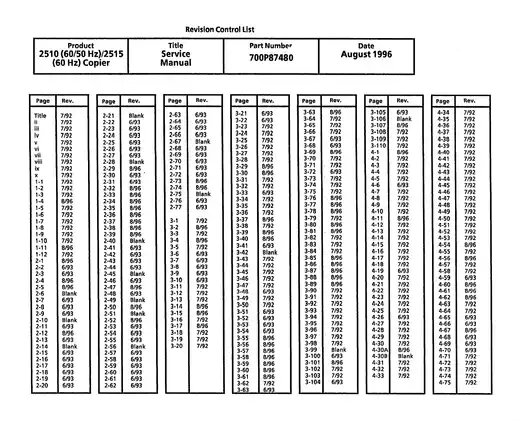

One printable English-language PDF contains 408 pages. The total includes 20 preliminary pages with a repeated 10-page opening block, 386 pages across the service, parts and wiring sections, and a two-page publication comment form. Notes and blank pages are included in the count.
Copier Fault Diagnosis, Fuser Service and Parts
These selected topics show the scope of the service documentation. The manual also includes installation and internal-move checklists.
- Service calls and maintenance: Call Flow Diagram, Status Code Entry Chart, and Normal Call and Extended Maintenance checklists for the xerographic module, media transport, and developer module.
- Document and media transport: Document feed-roll replacement, media transport module removal, fabric-guide installation, motion-sensor replacement, and registration adjustment.
- Image quality: Repair Analysis Procedures (RAPs), defect samples, developer-bias and exposure diagnosis, Electrostatic Series adjustments, and image-density checks.
- Xerographic and developer service: Photoreceptor drum, cleaner blade, corotron wire, and developer-material replacement, plus toner-sensor and dispense-solenoid service for the 2515.
- Fuser and oiling: Step-by-step instructions for heat rod and stripper-finger replacement, plus fuser roll and thermistor replacement, oil-dispenser service, wick priming, and fuser-roll initialization.
- Electrical troubleshooting: Control PWB, low- and high-voltage power supply diagnosis, cooling-fan and ground-fault checks, circuit diagrams, connector locations, and pin assignments.
- Parts and modifications: Exploded assembly views, a part-number index, and separate Change Tag/MOD indexes for hardware and firmware changes.

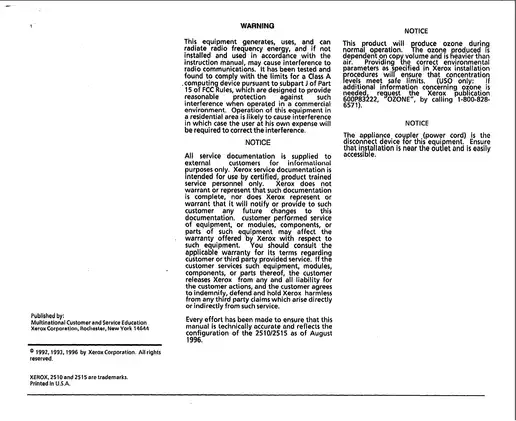

Xerox wrote this manual for certified, product-trained service personnel.
Status Codes and Service Tests
The Status Indicator RAPs cover document sensor errors, cover interlocks, paper jams, and fuser faults. On the 2515, the high- and low-toner diagnostic paths help distinguish concentration, dispensing, and developer-mixing faults. The manual also documents a 2515 de-toning procedure for excessive toner concentration.
Input, output, and combined-output tests support component checks. The foreign-accessory procedures cover copier enablement and external billing signals, and the 2515 diagnostics include an image-length setting. Maintenance checklists link inspection and replacement tasks to accumulated media footage.
The cooling-fan troubleshooting separates 2510 machines without Tag 5, which use AC fans, from the DC fan configurations on the 2510 with Tag 5 and the 2515. Connector tables and wiring diagrams trace the relevant signals between the control board and power supply.
Image Defects and Electrostatic Adjustments
The Copy Defect Flowchart and defect samples cover background banding, streaks, deletions, and residual images. The Image on Drum procedure helps determine whether a defect is already present before transfer or arises at transfer or fusing.
Image-quality checks reference Test Pattern 82E5980, Image Reference Scale 82E7030, and Xerox Background Grainness SIR Scale 82P502. The manual explains how photoreceptor crystallization can cause deletions and distinguishes the older 2510 high-voltage power supply adjustments from the newer procedures for both models. The tools list identifies the Mod IV Electrometer 600T1620 and Probe Holder 600T1969.
Developer Repair Limits and Oiler Variants
The 2510 developer module has repair-kit coverage, including kit 600K14082. The 2515 developer module calls for replacement when the repair would require a rebuild. The manual explains that its tighter manufacturing tolerances require tooling beyond the 2510 repair kit.
Exploded views distinguish oil-dispenser assemblies on the 2510 with and without Tag 252 and the 2515 with and without Tag 88. Those views help match replacement parts to the installed assembly.
The heat-rod procedure warns that oil from fingers can damage the rod. The cleaner-blade procedure illustrates the seal position needed to prevent damage to the photoreceptor drum. The manual identifies dangerous voltage and hot fuser parts in the relevant procedures.
A Preview of Fuser and Fan Test Values
The 2510 fuser diagrams label thermistor RT1 at 145 kΩ cold and 2 kΩ hot for the XLA 50 Hz and USO Tag 5 configurations shown, as well as for the 2510 without Tag 5.
The DC cooling-fan RAP lists the control signal at P/J9-7 for the 2510 with Tag 5 and the 2515. With the fans on, the signal reads +3.5 to +5.0 VDC in Run Mode and +2.0 VDC in Power Saver Mode.
