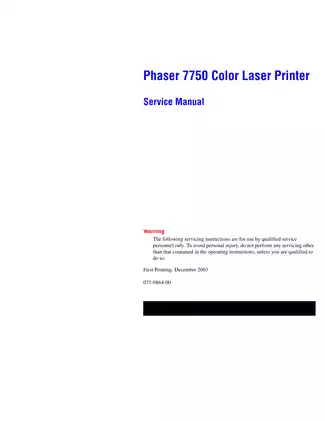

2003 Xerox Phaser 7750 Color Laser Printer Service Manual (P/N 071-0864-00)

• Xerox Service Manual 071-0864-00, First Printing, December 2003: a 505-page PDF covering Phaser 7750B, 7750DN, 7750GX, and 7750DXF configurations.
• Print-engine repair procedures cover Laser Unit (ROS) replacement, developer-housing removal and recharging, and accumulator-belt drive and belt-cleaner service.
• RegiCon registration adjustments address fine/coarse skew, in/out setup, and center setup; ATC Sensor Setup covers replacement developer housings.
• Electrical fault isolation includes AC and low-voltage power supplies, door interlocks, and image processor and engine control board troubleshooting.
• Paper-handling repairs extend to duplex and inverter transports, lower-tray feeders, and the finisher’s horizontal transport, stapler, and stacker mechanisms.
• Built-in service diagnostics test sensors, motors, fans, clutches, and solenoids, supported by front-panel error-code tables and chain-link fault references.

What's Inside the Manual

This factory service manual breaks down the maintenance and troubleshooting procedures for the printer and its options. It starts with safety protocols for high voltage, lasers, and electrostatic discharge (ESD). The operating-theory chapter follows charging, laser exposure, development, primary transfer to the accumulator belt, secondary transfer, fusing, and the paper feed paths.

The configuration chart distinguishes the GX’s 1,500-sheet Lower Tray Deck from the DXF’s 2,500-sheet High-Capacity Feeder. It also identifies the B-to-DN upgrade required for Ethernet networking and automatic two-sided printing; these features are not standard on the base B configuration.

Fault Isolation and Print-Quality Repair

The troubleshooting chapters walk you through startup sequences and POST routines, including health-LED blink patterns. Engine Error History, Jam History, and Service Usage Profile codes provide additional fault records. Separate procedures address fuser heating failures, missing colors, streaking, mottling, and unfused images.

Print-quality diagnosis compares front-panel test pages with engine-generated test prints. The Repeating Defects Page links recurring mark spacing to likely components, while Print Grid 1-Dot supports color-registration checks. ADC Output Check and Tone Up/Down examine density control and toner concentration.

The diagnostic notes warn that repeated toner-dispenser motor tests can overfill and damage the developer housing.

Component Replacement and Stored Settings

Board and hard-drive repair coverage includes Engine NVRAM storage and restoration for machine-specific calibration data. PostScript NVRAM resets and Clear Tech Rep Faults are also documented; some faults remain latched after the underlying problem has been repaired.

Removal and reinstallation notes cover the imaging-unit plate and rails, Mark-On-Belt (MOB) sensor, waste auger, and electrical chassis. Misalignment at the imaging-unit plate’s locating pins can bend the plate when its screws are tightened.

Finisher-specific work includes compiler-tray removal, set-clamp clutch and gear replacement, and stack-height sensor service. The disassembly chapter covers selected service assemblies, not every replacement operation. The ROS is treated as a replaceable unit rather than an internally serviceable optical assembly.

Specs and Reference Data

The Color Registration Control and ADC and Environment Sensing diagrams trace image-control circuitry. Fusing and Decurler and Paper Transportation cover the fuser area and finisher paper path. This factory workshop documentation pairs connector pinouts with plug/jack locator maps for electrical repair.

Exploded parts lists cover the main engine, optional lower trays, and finisher, with assembly references and part numbers. The serial-number guide distinguishes 110V RRW machines from 220V RTG (7750V) machines, and the parts lists separate voltage-specific fusers and power components.

Reference data includes print-mode specifications, electrical test values, operating conditions, mounting clearances, and consumable-life estimates. The cleaning section specifies a Type II toner vacuum; the parts catalog identifies the ROS Window Cleaning Wand as 116-1116-00.

Note: This overview is for reference only. Always rely on the complete OEM manual and qualified professionals for actual maintenance and electrical work.
