Xerox Phaser 7300 Color Printer Service Manual – 2002 (P/N 071-0862-00)

Xerox’s September 2002 Phaser 7300 Color Printer Service Manual (P/N 071-0862-00) covers the 7300B, 7300N, 7300DN, 7300DT, and 7300DX. It documents the LED-based tandem tabloid print engine and the duplex and lower-tray hardware fitted to these configurations.

Text Search, Bookmarks, and Page Count

Finding service information: The PDF has searchable text and embedded chapter bookmarks. Zoom in to read the smallest connector, pin, and wire labels on dense wiring diagrams.

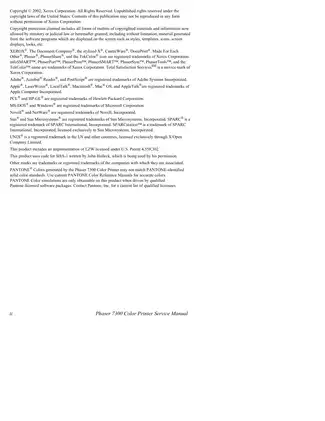

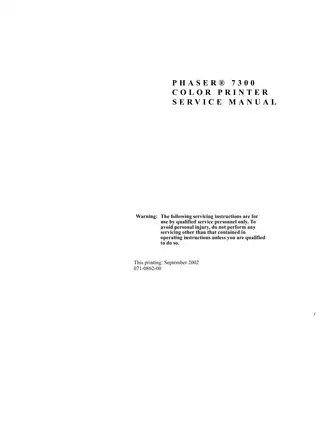

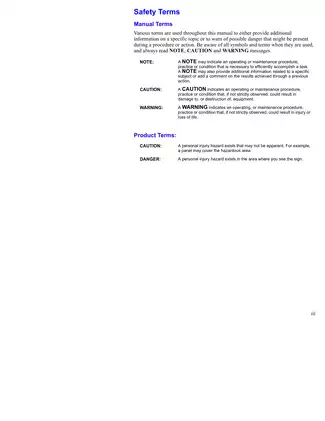

One printable PDF contains 277 pages, including the original front and back covers, front matter, and blank or pagination-only pages.

Print Engine Diagnostics, Calibration, and Repair

The following selected service topics give a sample of the manual’s coverage. It also covers Image Processor DIP switch settings and troubleshooting PostScript errors.

• Fault codes and startup: Front-panel error code index, fault history, and troubleshooting for failed startup, paper jams, power-supply errors, and tray or duplex interface faults.
• Built-in diagnostics: Front-panel tests for sensors, switches, motors, clutches, fans, and solenoids, plus Image Processor RAM testing.
• Calibration and resets: Automatic Density Control (ADC), Automatic Thickness Sensor (ATS) anvil adjustment and calibration, color balance, margin calibration, and targeted NVRAM resets.
• Component removal: Step-by-step procedures for the Image Processor and Engine Controller boards, high- and low-voltage power supplies, and selected paper-feed and imaging assemblies.
• Preventive maintenance: Periodically replaced parts, consumable-counter checks, and cleaning procedures for LED lenses, pick and feed rollers, ADC and registration sensors, and electrical contacts.
• Electrical fault tracing: Engine Controller POWER connector pinout, board connector and fuse assignments, fuser lamp and thermistor checks, and wiring diagrams.

Xerox wrote the service instructions for qualified service technicians.

Startup, Network, and Print-Quality Diagnosis

Xerox’s service flowchart runs from complaint verification through final checkout. Fault history is available through the Usage Profile, the front panel, or CentreWare IS. For Ethernet-equipped printers, the manual explains TCP/IP, NetWare, and AppleTalk logs and the Connection Setup and Configuration pages.

The power-on self-test (POST) section distinguishes soft and hard faults using the Image Processor health LED and its blink patterns. Separate procedures cover printers stuck at Booting, Initializing, or Warming Up, as well as ROM, RAM, EEPROM, fuser, fan, LED-head, imaging-unit, temperature and humidity, and fuse-cut errors.

Engine-generated test prints bypass the Image Processor Board, helping technicians isolate the print engine when the source of a defect is unclear. The manual explains how to interpret solid fills, Color Test Pages, PS Pattern A, and the Color Stripe Pattern. Troubleshooting covers light or blank output, color errors, background contamination, poor toner transfer, ghosting, cold offset, misregistration, banding, voids, and streaks.

Calibration and Electrical Checks

Xerox calls for ADC calibration after replacement of the color-registration sensor, its shutter, the print-engine EEPROM, or the Engine Controller Board. The ATS section covers the 4-Sheet Calibration and specifies Phaser 35-Series Premium Transparencies. Other film can damage the fuser and invalidate the calibration. Separate reset procedures cover printer, job, network, color, margin, and PostScript settings.

The startup power-loop checks help distinguish a low-voltage power-supply failure from a board or harness fault. The manual explains safety-interlock operation and power-supply output checks. Its reference tables cover input and fusing by voltage configuration, environmental limits, media and tray limits, and fuser temperature by media type.

Wiring references include Motors and Drum Contacts, Paper Path Sensors A and B, Front Panel and Toner Sensor Board, High Voltage and Low Voltage Power Supplies, The +5 Volt Loop, and Optional Duplex Unit and LTA/LTD Controller Board.

Disassembly, Parts, and Paper Path

The disassembly chapter covers the Multi-Purpose Tray (MPT), Duplex Unit, feed and registration hardware, fuser-exit assembly, imaging-unit drive, and color-registration and LED-head assemblies. Exploded views, part numbers, and service kits support parts identification. Tray 1 and the lower tray modules have separate illustrations, with parts identified for the Lower Tray Assembly (7300LTA) and Lower Tray Deck (7300LTD).

The configuration table shows which models have standard duplex, lower-tray, hard-drive, and network equipment. Theory-of-operation diagrams trace the xerographic process, paper feed from each source, duplex reversal, jam and paper-size sensing, color registration, and consumable detection. They also identify the sensors, motors, clutches, and solenoids involved.

Most parts go back in reverse removal order. Xerox provides separate reassembly directions where special steps are required. The rear-cover notes flag a pinch point that can damage harness wires or connectors.

Internal repair calls for power isolation, ESD precautions for boards and memory, light protection for removed imaging units, and time for the fuser to cool.

Defect Spacing and Fuser Test Examples

The Repeating Defects Identification Chart uses 58 mm spacing for the transfer unit and 143 mm for the fuser assembly. The spacing helps narrow down which assembly is responsible for a recurring mark.

For electrical diagnosis, the fuser resistance table lists 200–250 kΩ for the lower-roller thermistor when hot and notes that resistance varies with temperature.
