Xerox Phaser 7400 Service Manual – 2005, Book 1: Print Engine (P/N 071-0876-00)

682 Pages • Printable PDF • 42.99 MB • Download

4.5starstarstarstarstar_half(2)
$4.94 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Xerox Models Covered & Key Technical Specifications

Models: Phaser 7400, Phaser 7400N, Phaser 7400DN, Phaser 7400DT, Phaser 7400DX, Phaser 7400DXF

Sub-models / Variants: 7400N, 7400DN, 7400DT, 7400DX, 7400DXF; regional product variants: 7400 (WMY), 7400V (WNC)

Model Year: 2005


  • Print technology: Single-pass electrophotographic, LED exposure

  • Monochrome print speed: 40 ppm

  • Color print speed: 36 ppm

  • Default resolution: 600 x 600 dpi

  • Enhanced resolution: 1200 x 600 dpi

  • Standard memory: 256 MB or 512 MB (configuration dependent)

  • Maximum memory: 1 GB

  • Paper output capacity (max): 1750 sheets (with finisher)

  • Fuser life expectancy: 100,000 pages

  • Imaging system: 4-tandem drums, 2-component developer

  • Connectivity: USB 2.0, 10/100baseT Ethernet

Xerox Manual Features & Selected Content Preview

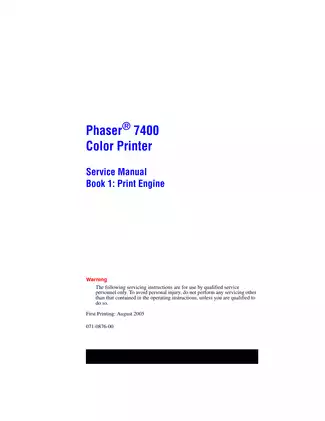

Xerox's Phaser 7400 Color Printer Service Manual, P/N 071-0876-00, first printing August 2005, covers the 7400N, 7400DN, 7400DT, 7400DX, and 7400DXF configurations. This is Book 1: Print Engine, with diagnostics for the printer, optional feeders, duplex unit, and finisher. Detailed option repair requires the separate Book 2: Options, which is not included.

Searchable Text, Bookmarks, and Wiring Detail

Finding procedures and circuit labels: Searchable PDF text and embedded bookmarks provide access to service sections, component procedures, and wiring diagrams. Small connector numbers and signal labels in dense wiring diagrams benefit from zooming.

One printable, English-language 682-page PDF: 610 chapter pages, 28 cover and preliminary pages, a 30-page reference appendix, a 12-page index, and two closing pages. Original covers and blank pages are included in these totals.


Print Engine Repair and Fault Diagnosis

Selected coverage appears below. Other documented topics include metered-toner troubleshooting and preparing the printer for shipment.

  • Fault isolation: Error-code procedures, Power On Self Test (POST) messages, resident Service Diagnostics, and sensor and motor tests for printer and option faults.

  • Print-quality diagnosis: Test-print analysis for light or blank output, repeating defects, ghosting, incomplete fusing, and color misregistration.

  • Print engine service: Step-by-step removal procedures and replacement notes for imaging units, the fuser, transfer unit, registration assembly, and waste-toner components.

  • Calibration and memory: Automatic Density Control (ADC), Automatic Thickness (ATS), color registration adjustments, NVRAM resets, and consumable-counter utilities.

  • Cleaning and maintenance: Procedures for imaging-unit contacts, LED heads, and feed rollers, alongside inspection of ventilation and cooling components.

  • Electrical and parts references: Wiring diagrams, plug/jack locators, exploded assembly views, and orderable part numbers for component identification and circuit tracing.

The manual is written for qualified service personnel performing printer maintenance, diagnosis, and repair.

Print Engine Technical Overview

The theory section explains charging, exposure through LED head assemblies, development, and transfer for cyan, magenta, yellow, and black toner. It connects the tandem-drum electrophotographic engine with chassis mechanisms, paper-path sensors, and electrical controls.

Component removal is supported by illustrations and part-specific replacement notes. The fuser is serviced as a complete unit; its internal operating description is not a fuser-overhaul procedure.

Imaging-unit handling: The removal section warns that prolonged light exposure degrades imaging-unit performance.

Troubleshooting and Maintenance Data

For workshop maintenance and complex printer repair, fault tables connect symptoms with component checks and replacement decisions. Engine-generated test prints help separate print-engine faults from Image Processor Board problems.

Color and media calibration: The ADC procedure includes the registration shutter's color-chip reference value and recalibration requirements after specified component replacements. ATS calibration is required after changes to NVRAM, the Media Thickness Sensor, or the Registration Assembly.

The ATS procedure specifies Phaser 35-Series Premium Transparencies; using other transparency media during calibration can damage the fuser.

Electrical Diagnosis and Parts Identification

Print Engine General Wiring diagrams establish circuit connections, while Front Sensor Board and Motor Driver Board diagrams identify sensor and drive signals. Separate LED Heads and LVPS diagrams support exposure-system and power-supply diagnosis.

Intermittent faults: Serial back-channel tracing records printer activity before an error. The procedure specifies serial cable 012-1535-00 and level adaptor 012-1543-00.

Exploded views distinguish individually orderable parts from components supplied within an assembly or service kit. This supports matching the diagnosed component to the relevant replacement listing.

High-voltage components are present within this print engine. Improper handling of internal components can cause personal injury or further equipment damage.

Selected Power, Imaging-Life, and Defect-Spacing Data

Electrical specifications distinguish regional printers with primary line voltages of 110–127 V or 220–240 V. Imaging-unit life is rated at 30,000 A-size pages with 5% coverage and an average three-page job length.

For repeating print defects, the diagnostic reference associates a 94 mm repeat spacing with the imaging drum. The repeating-defect chart connects this spacing with the relevant imaging-unit replacement reference.
