Xerox Models Covered & Key Technical Specifications

Models: Phaser 7500 N, Phaser 7500 DN, Phaser 7500 DT, Phaser 7500 DX

Sub-models / Variants: 7500 N (7500_N [RXD], 7500V_N [RXE]), 7500 DN (7500_DN [RXD], 7500V_DN [RXE]), 7500 DT, 7500 DX

Model Year: 2009

Production serial numbers (last five digits):

RXD (110 V): 7500_N 10001–30000, 7500_DN 30001–90000, 7500_YDN (GSA) 90001–99999

RXE (220 V): 7500V_N 10001–35000, 7500V_DN 35001–99999


  • Print technology: Electrophotographic method, 4-color (YMCK) tandem architecture

  • Print resolution: 1200 x 1200 dpi (enhanced), 600 x 600 x 4 dpi (photo)

  • Print speed: 35 ppm (color and mono)

  • Standard RAM: 512 MB (expandable to 2.0 GB)

  • Processor: 1.0 GHz

  • Connectivity: USB 2.0 Hi-Speed, 10/100/1000 Base-TX Ethernet

  • Operating temperature: 10° to 32° C (50° to 90° F)

  • Maximum paper input: 1600 sheets (with optional trays)

Xerox Manual Features & Selected Content Preview

This Xerox factory service manual (P/N 701P49561, first printing May 2009) covers the Phaser 7500 color printer in 7500 N, 7500 DN, 7500 DT, and 7500 DX configurations.

Searchable PDF with Chapter Bookmarks

Text search, bookmarks, and diagram detail: Searchable text and embedded bookmarks cover the main chapters, reference appendix, and index. Small connector IDs, pin numbers, and signal labels are best read at higher zoom.

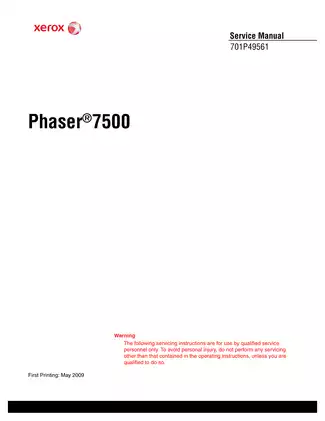

The 968-page printable PDF includes the front and back covers, the title page, two blank pages, and the 22-page reference appendix.


Print Engine Diagnostics, Calibration, and Repair

The topics below are selected examples from the manual. It also covers paper guide position settings and service-life counter resets.

  • Fault isolation: Chain-link fault codes, Fault History, Power On Self Test (POST), and Service Diagnostics for startup faults, paper jams, and component failures.

  • Print quality and calibration: Defect-specific troubleshooting, ADC Output Check, RegiCon Check and Calibration, and LED EEPROM Check.

  • Xerographic process: BCR charging, SLED/LPH exposure, magnetic toner development, primary and secondary transfer, waste-toner collection, and pressure-belt fusing.

  • Component replacement: Step-by-step procedures for toner cartridges, imaging units, LED print heads, developer housings, toner dispensers, the IBT belt, the fuser, and drive assemblies.

  • Duplex and feeder service: Removal and replacement procedures for the duplex assembly and tray modules, with configuration details for the Productivity Kit, wireless adapter, and memory upgrades.

  • Parts and wiring: Exploded parts views, connector-designator tables, and wiring diagrams for the print engine, duplex unit, and tray modules.

Xerox specifies product certification for qualified technicians performing service on this printer.

Fault Codes and Print Defects

The chain-link directory matches control-panel messages and Error History codes to the relevant troubleshooting procedures. POST addresses controller and memory startup faults. The Hidden Service menu provides access to selected service routines, while Service Diagnostics can monitor paper-path, BTR retract, IBT home, ATC, and ADC sensors and test feed and lift motors, developer and dispenser motors, the fuser drive, registration clutch, fans, switches, solenoids, and interlocks.

The 30 indexed print-quality procedures help distinguish LED print-head faults from drum, developer, transfer, fuser, media, software, and environmental causes. They cover process-direction image shift, white or color stripes, uneven density, video data crosstalk, side 2 transfer failure, smears, and contamination. Built-in 90 Degree Grid, B Patch, Drum Pitch Halftone, Color Test, and Solid Fill prints support diagnosis and post-repair checks.

RegiCon Check measures lateral and process-direction registration shift. ATC Sensor Setup records the per-color sensitivity data required after developer replacement.

Print Engine, Options, and Service Precautions

The theory chapter explains how trickle development renews the carrier in the dry two-component toner system. It traces the image from the 1st BTR to the intermediate belt and through the 2nd BTR onto the paper.

The duplex unit is optional on the N and standard on the other configurations. The DT comes with the 500-sheet Single Tray Module. The DX comes with the 1500-sheet feeder and Productivity Kit hard drive.

Repair procedures also cover the HVPS and LVPS, control boards, and Image Processor Board. Store Engine NVRAM and Restore Engine NVRAM preserve the printer serial number and ATC tag values during engine-board replacement. Arbitrary chain-link edits can corrupt that memory.

Light exposure can damage the imaging drums, and Xerox cautions against touching the photoreceptor or IBT belt surface. The IBT frame can break if the assembly drops during handle removal or installation.

The maintenance chapter covers cleaning feed and transfer rollers, paper guides, and trays. It lists the black light-protective bag, P/N 006-7971-00. Service precautions address high-voltage circuits, ESD-sensitive electronics, moving drives, safety interlocks, and the hot fuser.

Parts Identification, Wiring, and Service Reference

The parts chapter explains how to use the product code, revision digit, and serial number to match replacement parts to the printer’s electrical build and revision. Twelve P/J locator maps show where the connectors are located. Some sensor IDs appear as placeholders in the general wiring overviews. The detailed connector table, for example, identifies P/J182 for the IBT belt home position sensor.

Drawings include Fuser Structure (Cross Section), Print Data Flow, and Paper Transport (Single Tray Module). Dedicated wiring sheets cover the HVPS, LVPS, and NOHAD temperature sensor, the MCU board, motor driver board, and LPH, and the duplex unit.

The reference appendix includes control-panel menu maps, acronym definitions, and firmware updating through the CentreWare IS WebUI. Serial back-channel tracing calls for serial cable P/N 600T80374 and level adapter P/N 600T80375.

The electrical specifications list 110–127 VAC and 220–240 VAC, with maximum power dissipation of 1.25 kVA at 110 VAC, excluding the Image Processor Board. The operating humidity range is 10% to 85% RH, with 25% to 70% RH listed as optimum.

The two memory slots accept 512 MB or 1 GB unbuffered, non-parity, 200-pin DDR2 DIMMs. Reference tables cover print speed, media, printable area, registration, skew, mounting clearances, and first-print times.

Sample Registration Tolerances and Defect Spacing

With the A45 Standard Digital Test Pattern (SDTP123600), the lead registration tolerance is ±1.5 mm for trays 2–5 and ±1.9 mm for duplex side 2.

The Repeating Defects Page helps narrow down recurring marks by comparing their spacing with the fuser, imaging unit, transfer roller, and developer roller. It lists 54 mm (2.13 in.) for the transfer roller and 29 mm (1.14 in.) for the developer roller, with the latter marked for service use.
