Xerox 3001 Engineering Copier – 1998 Service Manual (P/N 701P14950)
360 Pages • Printable PDF • 9.27 MB • Download
Xerox Models Covered & Key Technical Specifications
Models & Model Codes: 3001 Engineering Copier (RW3E: 50 Hz; UW4E: 60 Hz)
Model Year: 1998
-
Power Requirements: 60 Hz or 50 Hz configurations
-
Voltage Specifications: 5 VDC (4.75–5.25 VDC), 15 VDC (14.25–15.75 VDC), 24 VDC (19–35 VDC)
-
Fuser Overheat Threshold: Over 390°F (200°C) for overheat LED, over 550°F (290°C) for thermostat opening
-
Maintenance Intervals: Normal Call procedures at every service call; Extended Maintenance when more than 30K feet (9K meters) have accumulated since the last service call, with specific component inspection/replacement at 20K and 30K intervals
Xerox Manual Features & Selected Content Preview

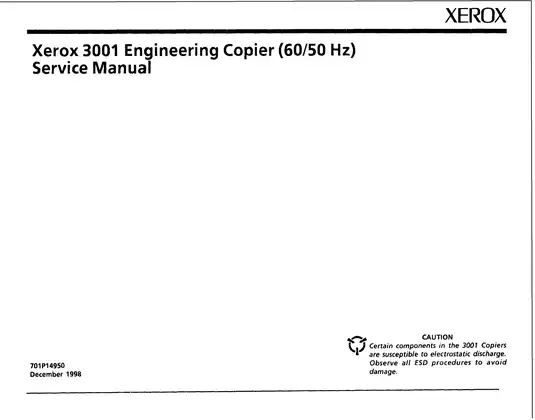

The Xerox 3001 Engineering Copier Service Manual covers the RW3E and UW4E configurations. This is the December 1998 initial issue, P/N 701P14950.
Bookmarked PDF with Partial Text Search
Search and scan readability: The PDF is partially searchable through an OCR text layer. Eight bookmarks cover the front matter and seven main sections. Small schematic labels are readable when enlarged. PDF p. 72, within the J2 High Toner Fault section, is black and unreadable.
One printable, 360-page PDF includes 14 pages of front matter, 344 pages covering Sections 1–7, and a two-page publication comment sheet. Original blank and notes pages are included in this total.
Copier Fault Diagnosis, Xerographic Repair, and Fuser Service
The following selected topics illustrate the manual’s coverage. Further examples include exposure-lamp and lens replacement, plus C9 Auditron and Foreign Accessory diagnosis.
-
Document and media transport: Step-by-step replacement procedures cover feed rolls, idler rollers, the document drive motor, motion sensor, and fabric guide.
-
Xerographic repair: Procedures cover the photoreceptor drum, cleaner blade, developer module, and charge/precharge and transfer/detack corotrons.
-
Fuser repair: Procedures cover the heat rod, roll, triac, and thermistor assembly PWB, along with replacement of oil pads, the wick, and oil-dispense roll.
-
Factory adjustments: Procedures include the Electrostatic Series, cleaner-blade and toner-dispense solenoid settings, and image-density calibration.
-
Diagnostic and parts references: Status Indicator and Image Quality Repair Analysis Procedures (RAPs) are backed by electrical schematics, connector-location drawings, and illustrated parts lists for assembly identification.
This manual is intended for certified, product-trained service personnel.
Copier Diagnostic and Maintenance Walkthrough
The initial sections map out service call procedures through the Call Flow Diagram and maintenance checklists, distinguishing Normal Call from Extended Maintenance and defining final copy-quality and counter checks.
Status and operating faults: Status-code troubleshooting covers document handler errors, fuser temperature faults, media jams, and low or high toner concentration. Separate RAPs address control-panel failures, AC/DC power loss, cooling fans, and ground faults.
Mechanical-noise isolation and checks for unexpected shutdowns or toner/developer dumping go beyond the displayed fault codes.
Copy-defect isolation: The Copy Defect Flowchart classifies problems such as light copies, streaks, localized deletions, and unfused images. The Image on Drum Procedure separates defects created before transfer from transfer or fuser problems, helping technicians identify which stage requires further diagnosis.
The Offsetting and Residual Image Isolation RAP distinguishes fuser offsetting from residual images caused by drum cleaning or electrostatic conditions.
Repair Follow-Up and Media-Specific Setup
Control-board configuration: Control PWB replacement calls for country and copier configuration plus follow-up adjustments.
Media setup: Copy-size adjustments distinguish bond, vellum/tracing paper, and film; registration procedures distinguish Sets from Multiple Copies mode.
Developer and imaging surfaces: Automatic toning and detoning are documented alongside the Tape Transfer test for failed developer material. Photoreceptor washing, polishing, and cleaning enhancement are covered, as are fuser-roll initialization and surface reconditioning.
Installation and removal sections cover site electrical checks, copier leveling, functional checks, and preparation for repacking.
The media-transport repair notes warn that an incorrectly installed retaining clip can short the drive motor control PWB. Oil-dispenser installation cautions identify the risk of damaging the stripper fingers and fuser roll.
Follow the manual’s power-disconnection requirements and warnings for high-voltage circuits, hot fuser components, and moving drives.
Electrical Schematics and Test References
Electrical references provide low-voltage power supply (LVPS) connector pinouts, DC voltage tolerances, signal names, and wire colors. High-voltage power supply (HVPS) diagnosis covers corotron outputs and their control circuits.
The F1 Fuser RAP circuit diagram covers heater control and thermal protection. Thermal reference data covers fuser-temperature checking and overheat LED and thermostat operation.
The CQ 25 Developer Bias RAP adds a copy-cycle voltage chart, while the CQ 27 Exposure RAP circuit diagram traces the illumination sensor, lamp ballast, and exposure lamp. Plug/Jack Locational Drawings connect these electrical references to physical connector positions.
Tool listings identify the Mod IV Electrometer (600T1620) and Temperature Probe Set (499T9570); copy-quality evaluation uses Test Pattern 82E5980 and Image Reference Scale 82E5040.
Regional Configurations and Accessory Coverage
Regional notes distinguish U.S. (USO), European (EO), Canadian (XCL), and Latin American (XLA) configurations. The parts lists separate frequency-specific motors, transformers, control panels, and fuser heat rods.
The Change Tag/MOD Index identifies the Tag 83 Deletion (Snake) Fix Kit and Tag 85 High Volume Oiler, with a separate exploded parts view for the latter.
Coverage comprises Sections 1–7. The Auto Cut and Cut Sheet Feeder accessory chapters listed in the front contents are not included.
Selected Thermistor and Toner-Feed Checks
The F1 Fuser RAP gives a cold thermistor resistance of 100–150 kΩ as part of its fuser-fault checks.
ADJ 9.3 specifies 30–60 seconds for a quarter-turn of the toner cartridge with the main drive motor running and the fuser at operating temperature, linking cartridge rotation speed to the toner-dispense solenoid adjustment.
