McCormick Farmall H & HV Tractor Operator's Manual, 1939–1959
107 Pages • 1 Printable PDF (English) • Download
McCormick Models Covered & Key Technical Specifications
Models: Harvester Farmall H, Harvester Farmall HV
Sub-models / Variants: Gasoline engine, Distillate engine, Kerosene engine, Pneumatic tire equipment, Steel wheel equipment (Farmall H), High clearance (HV)
Model Years: 1939–1959 (1939, 1940, 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959)
Serial Numbers: Tractor serials preceded by FBH (Farmall H) or FBHV (Farmall HV); Engine serials preceded by FBHM (Farmall H) or FBHVM (Farmall HV)
-
Engine: 4-cylinder
-
Engine speed (max load): 1650 r.p.m.
-
Engine speed (min idle): 400–450 r.p.m.
-
Fuel tank capacity: 17.5 U.S. gallons
-
Transmission and differential case capacity: 6 U.S. gallons
-
Cooling system capacity: 16.5 U.S. quarts
-
Transmission: Five-speed (Farmall H and HV). Low-Low speed attachment (60 215 DA, Farmall H). 7 m.p.h. fourth-speed attachment (62 397 DB, Farmall H and HV with pneumatic tires).
McCormick Manual Features & Selected Content Preview

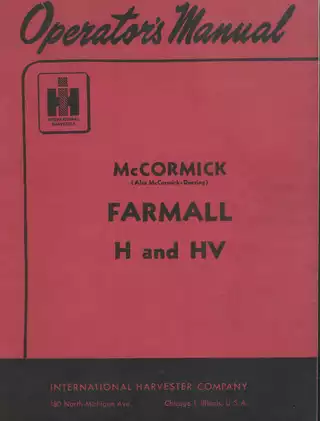

This International Harvester operator's manual covers the McCormick Farmall H and high-clearance Farmall HV. The original cover also identifies the tractors by the McCormick-Deering name.
PDF Search, Wiring Diagrams, and Page Count
Finding text and wiring details: Most pages have searchable OCR text. The cover and one index page are image-only, and the PDF has no embedded bookmarks. Small reference numbers and terminal labels in the starting and lighting diagrams are easiest to read when zoomed in.

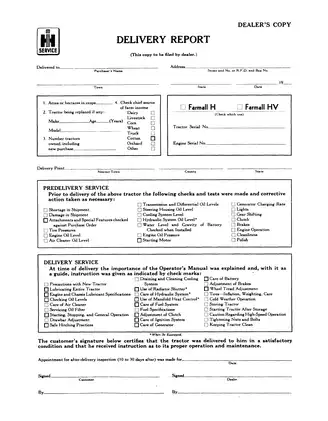

The download is one printable English PDF with 107 pages. That total includes 105 pages from the original manual and two added insert pages.
Starting, Servicing, and Setting Up the Tractor
This selection from the manual highlights common operating and maintenance tasks. Other topics include cold-weather precautions and preparing the tractor for storage.
-
Starting and fuel changeover: Cold and warm starts, gasoline warm-up for distillate and kerosene engines, fuel changeover, radiator-shutter operation, and manifold-heat settings.
-
Engine maintenance: Carburetor removal and adjustment, fuel-strainer and air-cleaner service, oil-filter element replacement, cooling-system flushing, and valve-clearance adjustment.
-
Ignition and charging: Distributor and magneto timing, breaker-point service, generator checks, and separate starting and lighting diagrams for battery-ignition and magneto-equipped tractors.
-
Belt pulley and PTO: Belt-pulley operation and power take-off use with the tractor stationary or moving, with guidance on the shields and guards.
-
Hydraulic Lift-All and Remote Control: Hose connections, regular and delayed lift, air removal, and stop-collar adjustment for implement depth.
-
Chassis and attachments: Brake equalization, clutch-pedal free travel, front-wheel bearing service, toe-in, wheel tread, and short- or long-wheelbase setup for the adjustable wide front axle.
-
Lubrication and troubleshooting: H- and HV-specific lubrication charts, periodic service schedules, and cause-and-remedy tables for operating and maintenance faults.
The manual suits Farmall H and HV owners and operators who need factory guidance for daily operation, seasonal maintenance, and routine adjustments.
Fuel, Cooling, and Minor Engine Service
Distillate and kerosene tractors use an auxiliary gasoline starting tank. The manual explains when to switch fuels and when to switch back before shutdown. Opening both fuel valves can mix the fuels and make the next start difficult. The distillate section also covers running on gasoline and explains how insufficient manifold heat can contribute to crankcase-oil dilution.
Service instructions cover idle and main-fuel mixture adjustment, fuel-screen cleaning, cooling-system draining and rust prevention, fan-belt adjustment, water-pump packing, and cylinder-head gasket tightening. The lubrication schedules distinguish gasoline from heavy-fuel operation and identify service points for the crankcase, transmission, and HV final drives.
For connecting-rod and crankshaft bearings, pistons and rings, and valve grinding, the manual directs owners to an International Harvester dealer. Full transmission, differential, steering-gear, and Lift-All pump rebuilds require separate service literature.
Electrical Service and Wiring
The electrical chapters distinguish battery ignition with voltage regulation from magneto ignition with a cut-out relay and manual charging-rate control. They cover removal and installation of the ignition unit or magneto, generator belt and commutator care, polarization, third-brush adjustment, starting-motor removal, and battery hydrometer testing. The polarization instructions identify the field-terminal connections that can damage the regulator or generator.
The factory illustrations include a control layout, an oil-filter cutaway, a partially disassembled distributor, an engine cutaway, and numbered wiring diagrams with reference lists for both electrical configurations.
Lift-All, Chassis, and Fault Finding
The Lift-All section shows which pressure outlets serve the front and rear implements and how the single-acting cylinders are connected. It also covers Remote Control priming, reservoir service, and hose care. For belt-pulley reassembly, the manual explains why the shim stack matters to gear tooth contact.
The special-equipment tables identify axle, wheel, belt-pulley, hydraulic, gearing, and ballast options by model. The troubleshooting tables help narrow down hard starting, irregular running, power loss, overheating, oil-pressure problems, high fuel or oil consumption, electrical faults, brake drag, transmission noise or shifting trouble, steering and tire problems, and Lift-All faults.
Valve and Spark Plug Setting Examples
On both models, valve clearance is 0.017 in. with the engine warm and the valves closed. The spark plug electrode gap is 0.023 in. The specification tables also list lubricant grades, fluid capacities, engine and PTO speeds, charging data, tire pressures, tread settings, and overall dimensions.
