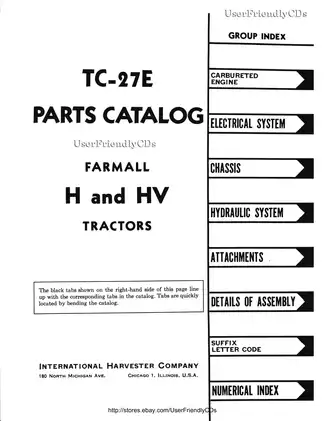

McCormick Farmall H/HV Tractor Parts Catalog 1939–1954 (P/N TC-27E)
317 Pages • Printable PDF • 363.69 MB • Download
McCormick Models Covered & Key Technical Specifications
Models: Farmall H, Farmall HV
Model Years: 1939–1954 (1939, 1940, 1941, 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954)
Serial Numbers: Farmall H serial numbers start at 501. Farmall HV serial numbers start at 109988.
-
Engine type: 4-cylinder carbureted
-
Engine configuration: 3 3/8-inch bore x 4 1/4-inch stroke
-
Fuel type: Gasoline, Kerosene, or Distillate
-
Piston variants: Standard, 5000-ft altitude, 8000-ft altitude
McCormick Manual Features & Selected Content Preview
International Harvester’s McCormick Farmall H and HV parts catalog (P/N TC-27E) covers the standard H and high-clearance HV tractor configurations listed for 1939–1954. This edition supersedes TC-27D. Exploded illustrations and numbered parts lists support component identification, parts ordering, and repair planning.
Printable PDF, Bookmarks, and Diagram Detail
Search and drawing detail: Catalog text is not searchable in this PDF. Sixteen embedded bookmarks provide access to the main sections and indexes. Small terminal labels and reference numbers in the battery-ignition, magneto-ignition, and Bosch lighting diagrams are readable when enlarged.
One printable English-language PDF contains 317 pages, including one added reproduction cover and ten memorandum pages. The file size is 363.69 MB.
Engine, Driveline, and Lift-All Parts Identification
These selected catalog highlights outline the main coverage. Additional topics include assorted decal packages and engine hour-meter equipment.
-
Engine assemblies: Exploded views and parts lists identify cylinder-head, valve-train, crankcase, crankshaft, piston, sleeve, lubrication, cooling, governor, and carburetor components.
-
Ignition and electrical equipment: International H-4 magneto, battery-ignition distributor, Delco-Remy starting and charging equipment, Bosch generator, lighting components, and configuration-specific wiring diagrams.
-
Clutches and transmission: Auburn and Rockford clutch listings, transmission shafts and gears, low-low-speed equipment, reverse-operation attachments, differential components, and brake assemblies.
-
Steering and running gear: H- and HV-specific bolsters, axles, steering connections, wheels, seats, drawbars, radiator, grille, fuel tanks, piping, and strainers.
-
Lift-All hydraulics: Illustrated listings cover pump units, delayed-lift valves, hydraulic cylinders, selective-lift controls, remote-control valves, hoses, and break-away couplings.
-
Attachments and parts lookup: Belt-pulley and PTO assemblies, wheel equipment, assembly-component tables, special-feature suffix codes, and a numerical OEM part-number index.
The catalog is suited to tractor mechanics, restoration shops, parts specialists, and experienced owners who can relate exploded illustrations to the assemblies on their tractor.
Engine and Configuration Identification
The engine section traces components from the cylinder head, valves, and rocker gear through the crankcase, camshaft, crankshaft, connecting rods, pistons, and sleeves. Separate listings identify the oil pump and filter, manifold, International D-10 updraft carburetor, governor, fan, thermostat, and water pump.
Fuel-specific and altitude-piston listings help distinguish compression configurations before parts are selected. Complete service-engine listings also identify items supplied separately, including the carburetor, ignition equipment, and fan assembly.
Serial applicability appears throughout the cylinder-head, carburetor throttle-body, oil-filter, magneto, gear, axle, seal, seat, and hydraulic-pump listings. The suffix-letter chart identifies special equipment used after FBH20890, including fuel configuration, altitude pistons, gearing, starting and lighting equipment, ignition, and front-axle options.
Electrical Connections and Wiring Views
Separate drawings show Lighting and Starting (Battery Ignition), Lighting and Starting Attachment (Magneto Ignition), and Wiring Diagram—Electric Lighting for the Bosch no-battery generator system.
These views show cable routing and connections at the battery, ammeter, fuse housing, junction block, switches, generator, and regulator. Related parts lists identify cables, spark plugs, lamps, terminals, and replacement electrical components.
Chassis, PTO, and Hydraulic Fitment
Dedicated H-only and HV-only illustrations distinguish front bolsters, steering arrangements, rear axles, wheels, and drawbars. Chassis listings also separate countershaft band brakes from mechanical disc-brake equipment.
PTO replacement notes link attachment selection to transmission gearing and countershaft configuration. Some earlier applications require additional countershaft parts; the catalog also identifies rear-frame rework requirements for specified replacements.
The Lift-All delayed-lift valve has different applications for the regular pump and the higher-pressure pump stenciled “8.” Its replacement spring is restricted to the specified pump configuration, so valve components should not be selected by appearance alone.

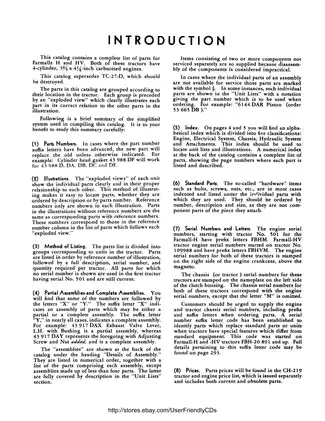

Assembly Contents and Repair Planning

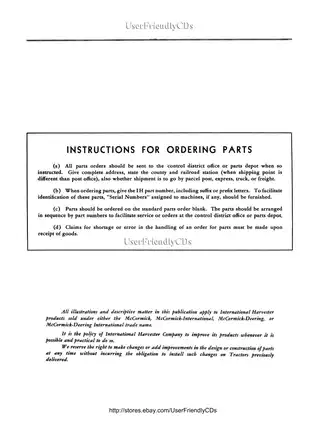

Exploded-view reference numbers connect each illustrated component to its part number, description, quantity, and applicable serial or equipment notes. That structure is particularly useful when building a parts order before a repair or checking whether loose components belong to the same assembly.
The Details of Assembly tables expand selected assemblies into component lists and identify parts not supplied separately. Replacement references and the numerical index provide routes from an existing OEM number to the relevant listing.
This is a parts catalog. Step-by-step disassembly, overhaul, troubleshooting, and electrical or hydraulic testing require separate service instructions.
Heavy castings, spring-loaded and rotating components, electrical circuits, and trapped hydraulic pressure can cause serious injury. Support the tractor and removed assemblies correctly, isolate electrical power, relieve hydraulic pressure, and use the applicable IH service instructions and proper lifting equipment before beginning repair work.
Selected Clutch and Cylinder Size Examples
Clutch listings distinguish a 10-inch Rockford unit for serials 501–391357 and an optional 10-inch Auburn unit for 332221–391357 from the 10-1/2-inch Rockford unit for 391358 and up. Serial number and installed clutch type both matter when selecting repair parts.
Lift-All cylinder listings include 2-1/4 x 8-inch and 3 x 8-inch assemblies, with component applicability organized by cylinder part number. These are catalog identification sizes, rather than wear limits or service-adjustment values.
