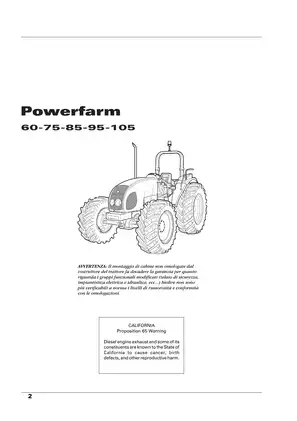

McCormick Powerfarm 60, 65, 75, 85, 95, 105 Tractor 2003 Operation and Maintenance Manual (PN 3665 926 M1)

• Landini Powerfarm coverage: 60, 75, 85, 95, and 105 tractors in 2WD or 4WD, with a cab or open-platform ROPS, plus supplemental data for the 85 HC, 95 HC, and 105 HC High Clearance models; 155-page PDF, Publication No. 3665 926 M1.
• Separates the standard Perkins 1103C-33, 1104C-44, and 1104C-44T engine applications from the 1004C-44 and 1004C-44T engines specified for the HC tractors, helping owners match the manual to the actual build.
• Covers the 12x12 mechanical reverse shuttle and 24x12 creeper, underdrive, or overdrive configurations, with gear-selection guidance and model- and tire-specific ground-speed charts.
• Details independent, economy, and ground-speed PTO operation, interchangeable PTO shafts on the 95 and 105, three-point hitch setup, and mechanical lift operation in position, draft, Intermix, and float modes.
• Includes scheduled service procedures, fuel- and brake-system bleeding, clutch/PTO/brake adjustment, 2WD and 4WD axle service, external hydraulic controls, wheel-track setup, tire matching, ballast, and long-term storage preparation.
• Provides transmission charts, wheel-track layouts, hitch and hydraulic-lift views, WEO and North American safety-decal maps, fuse/relay identification, and the seven-pole trailer-socket pinout.
• Scope: This is an operator and routine maintenance manual, not a workshop repair manual. It does not contain internal engine or transmission overhaul, major component teardown, electrical wiring schematics, hydraulic circuit diagrams, factory pressure-test routines, or fault-code diagnostics.

Operation and Routine Maintenance

This Landini publication was written to help the owner and driver operate and maintain the tractor safely. It is suited to qualified operators and experienced owners who are already familiar with agricultural tractor safety; the manual directs sealed fuel-system work, valve checks, alternator service, and other specialized repair work to dealer-trained personnel.

Operating coverage runs from normal and cold-weather starting through the clutch, shuttle transmission, 540, 540 Economy, 1,000-rpm and ground-speed PTO settings, brakes, hydraulic trailer brake, differential lock, 4WD, wheel and tire setup, ballast, three-point linkage, and tractor transport. The hydraulic section explains position control, draft control, Intermix, and float operation, along with single- and double-acting auxiliary valves, kick-out and float functions, an optional flow divider, push-pull couplers, and auxiliary lift cylinders.

The maintenance table tracks break-in work and recurring 100-, 250-, 500-, and 1,000-hour or annual service. Procedures cover engine oil and filters, fuel filtration, cooling and air-cleaner systems, transmission/power-lift oil, steering, rear final drives, the 4WD front axle, brake adjustment and bleeding, lubrication points, battery and charging-system care, lighting, fuses, and storage after long idle periods. These are operating, inspection, adjustment, and routine repair procedures; they are not internal rebuild instructions.

Two manual-specific cautions matter when matching parts and fluids. Incorrectly paired front and rear tires can alter 4WD lead enough to overload the front axle and transmission. The brake circuit requires the specified mineral-based LHM fluid; mixing it with an incompatible brake fluid can quickly cause brake-system failure.

Specifications and Technical Data

The specifications distinguish the three-cylinder, naturally aspirated 3.3-liter Powerfarm 60 from the four-cylinder 4.4-liter tractors: naturally aspirated 75 and 85 models and turbocharged 95 and 105 models. The HC supplement separately identifies its engine family, high-clearance dimensions, tire combinations, transmission choices, integral braking, PTO arrangements, hydraulic lift data, and dedicated axle/final-drive maintenance points.

Reference tables cover tractor weights and dimensions, matched tire combinations, adjustable front and rear tracks, transmission ratios and travel speeds, PTO configurations, brake and axle types, steering data, hydraulic pump and lift specifications, electrical equipment, towing attachments, lubricant grades, and system capacities. The worldwide edition also notes that standard and optional equipment can vary by market, so the model, engine, driveline, PTO, and hydraulic configuration should be checked before using a procedure or ordering parts.

Reference Drawings and Language Coverage

Useful visual references include the reverse-shuttle and option-lever layouts, creeper/underdrive/overdrive speed charts, 2WD/4WD and rear-track position drawings, Category 2 hitch geometry, Intermix lift-control diagrams, and market-specific safety-decal location maps. Electrical coverage is limited to operator-level checks and component identification rather than wiring diagnosis.

Most of the PDF is in English. Several pages covering dashboard switches, steering-wheel and seat adjustment, 2WD track setup, selected hitch and maintenance items, and the alphabetical index are printed in Italian.

Safety reminder: PTO, brake, hydraulic, lifting, and ROPS work can cause serious injury or machine damage. Follow the complete publication, relieve stored pressure, support raised equipment correctly, and use qualified service personnel where the manual calls for them.
