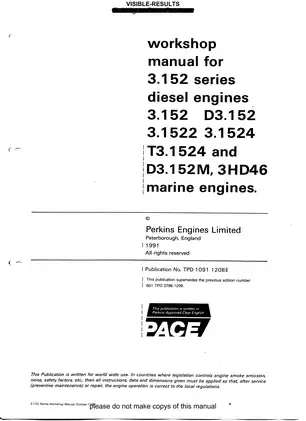

Definitive Training Training Manual: Diesel Engine Ultimate Perkins 3.152, D3.152, 3.1522, 3.1524, 13.1524 Diesel Engine Workshop Manual - Comprehensive Diagnostics & Repair Procedures Blueprint-Vault

Subsystem-Focus: 3.152 Series engines across agricultural, marine, and industrial applications // Architecture-Focus: Multi-system diesel engine documentation logic // Coverage-Scope: Complete technical reference spanning engine assembly, timing, fuel delivery, and support systems.

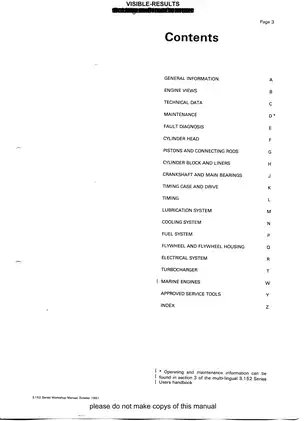

The repository is divided into cylinder head assembly, piston and connecting rod assemblies, crankshaft assembly, timing case and drive assembly, cylinder block assembly, engine timing, aspiration system, lubrication system, and fuel system, covering general information, specifications, electrical equipment, auxiliary equipment, and special tools.

Modular Nexus

Engine rebuild procedures are documented for the 3.152 series, addressing component disassembly, inspection protocols, and assembly sequences across all major engine sections. The manual provides rocker cover removal and fitting procedures, rocker assembly operations, valve clearance adjustments, and cylinder head fastener tightening sequences using both standard torque methods and angle-based techniques. Valve spring replacement while the cylinder head remains fitted is specified, along with procedures for valve guide inspection, removal, and installation. The document includes detailed specifications for valve dimensions, angles, and protrusion limits to maintain combustion chamber integrity.

Comprehensive Logic-Path

Drivetrain specifications are addressed in the crankshaft assembly section, documenting main bearing installation, thrust washer positioning, and crankshaft end-float verification. Piston and connecting rod assembly procedures include big end bearing removal and fitting, piston ring gap inspection, and height verification above the cylinder block face. The manual specifies piston height grades, gudgeon pin installation, and small end bush renewal, with clear documentation of component clearances and interference fits. Crankshaft overhaul data is provided for undersize journal machining at 0.25 mm, 0.51 mm, and 0.76 mm reductions, including finished surface specifications and fillet radius requirements.

Modular Methodology

Reassembly procedures are specified for timing case and drive assembly operations, including idler gear and hub installation with backlash verification. Camshaft gear removal and fitting procedures reference timing mark alignment with the crankshaft gear, fuel pump gear, and idler gear. The manual documents crankshaft gear installation using both heating methods for transition fits and alternative approaches for tapered shafts. Timing case cover fitting includes centralizing tool usage to ensure proper oil seal positioning. Front oil seal removal and replacement procedures specify seal orientation, housing preparation, and installation depth verification.

Systematic Logic-Path

Service intervals are documented for the lubrication system, including filter canister renewal timing and pressure maintenance specifications. The relief valve operation is explained with spring loading data and setting pressure ranges from 345 to 448 kPa. Oil pump inspection procedures detail rotor clearance measurements for differential rotor designs, with specifications for outer rotor to body clearance of 0.23 to 0.33 mm and inner rotor end-float of 0.038 to 0.089 mm. The document documents torque specifications for the connecting rod caps at 77 Nm to ensure proper big end bearing retention, as well as main bearing setscrew torques of 152 Nm for secure crankshaft positioning.

Operational Protocol

Component locations are identified for the fuel system, with separate Delphi locked and pin-timed pump procedures, plus Stanadyne pump documentation for generator set applications. Atomiser removal and fitting sequences distinguish between clamp-retained and gland nut designs, specifying torque values of 22 Nm and 30 Nm respectively. Fuel lift pump testing procedures include static pressure measurement at 41 to 69 kPa and operational pressure verification between 42 and 70 kPa. The manual documents high-pressure fuel pipe tightening to 22 Nm for union connections and 27 Nm for atomiser inlet connections, with caution guidance on avoiding over-tightening that could restrict fuel flow. Turbocharger faults are catalogued with 40 diagnostic code references linking symptoms to potential causes including restricted airways, lubrication delays, and bearing wear conditions.

The document includes comprehensive torque specifications for the valve seat insert dimensions, featuring inlet and exhaust specifications with detailed dimensional data for insert pressing operations. Cylinder liner fitting procedures reference interference fit ranges of 0.026 to 0.076 mm and completed bore surface finishes between 1.5 and 2.0 micrometres Ra for silicon carbide plateau honing. Cooling system specifications detail thermostat opening temperatures at 80 to 84°C ("starts to open") and 96°C ("fully open"), with valve lift requirements of 0.2 mm and 9.0 mm respectively. The manual documents torque specifications for the flywheel to crankshaft connection at 105 Nm and cylinder head fastener sequences using both 70 Nm initial tightening and subsequent 60° angle increments to achieve proper clamp load distribution.
